M/T Gear Shift Lever: Removal

Set the vehicle on a lift.
Remove the gear shift knob.
Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box . >
Remove the clamp.

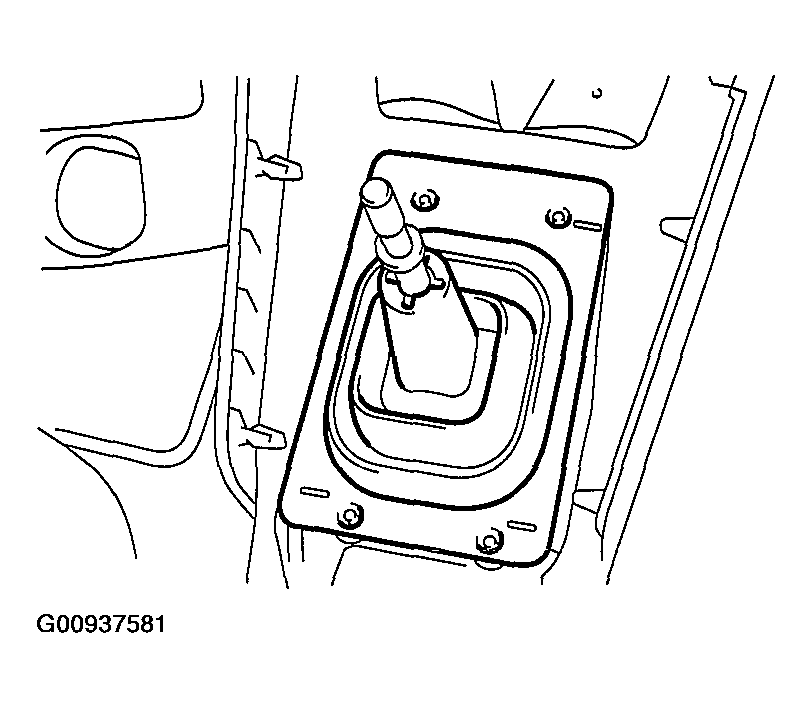

Fig 1: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

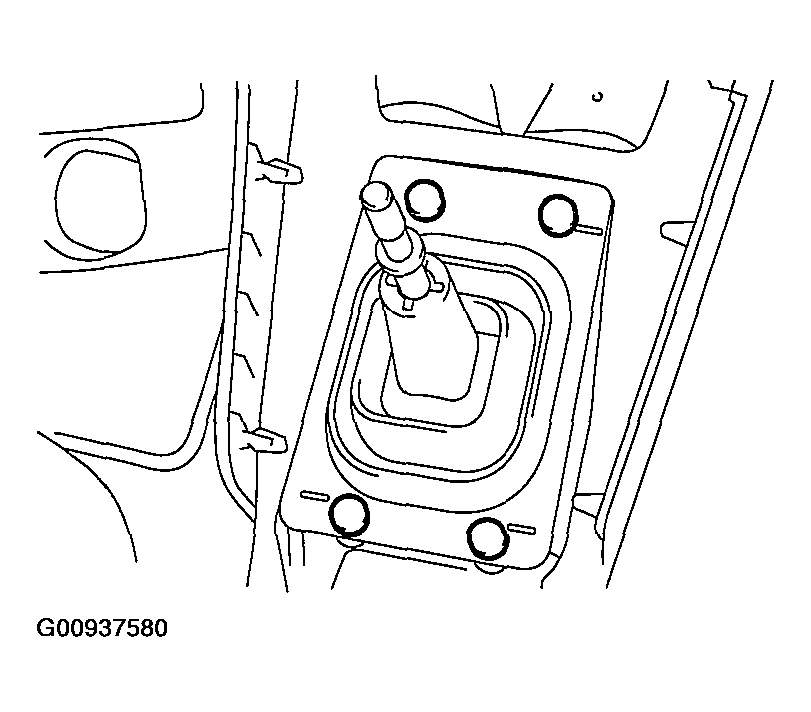

Fig 2: Identifying Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from body.

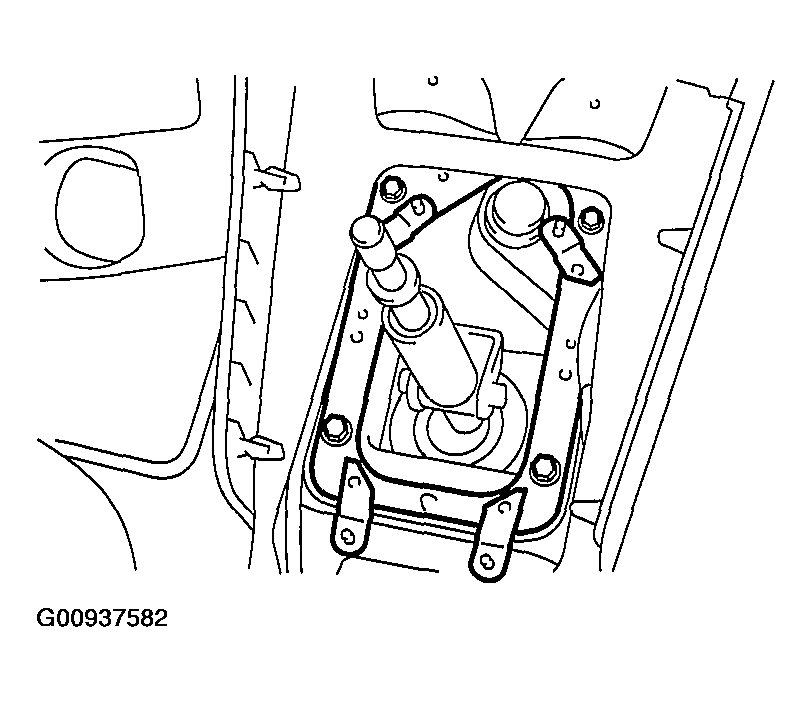

Fig 3: Identifying Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
Non-turbo model

< Ref. to REMOVAL , Rear Exhaust Pipe . > < Ref. to REMOVAL , Muffler . >

Turbo model

< Ref. to REMOVAL , Rear Exhaust Pipe . > < Ref. to REMOVAL , Muffler . >
Remove the heat shield cover. (If equipped)
Remove the stay from transmission bracket.

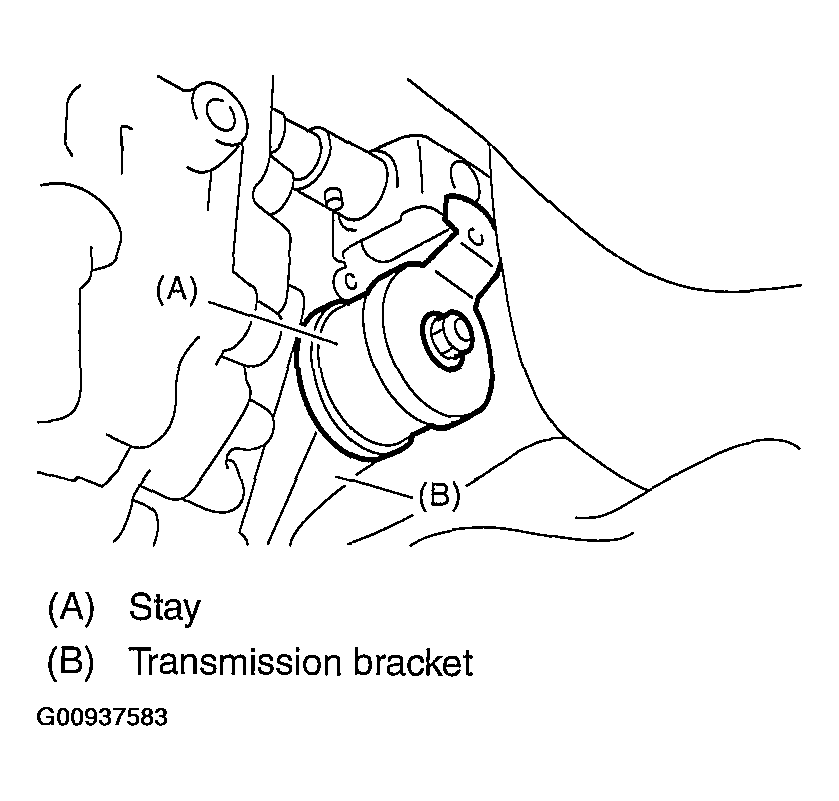

Fig 4: Identifying Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

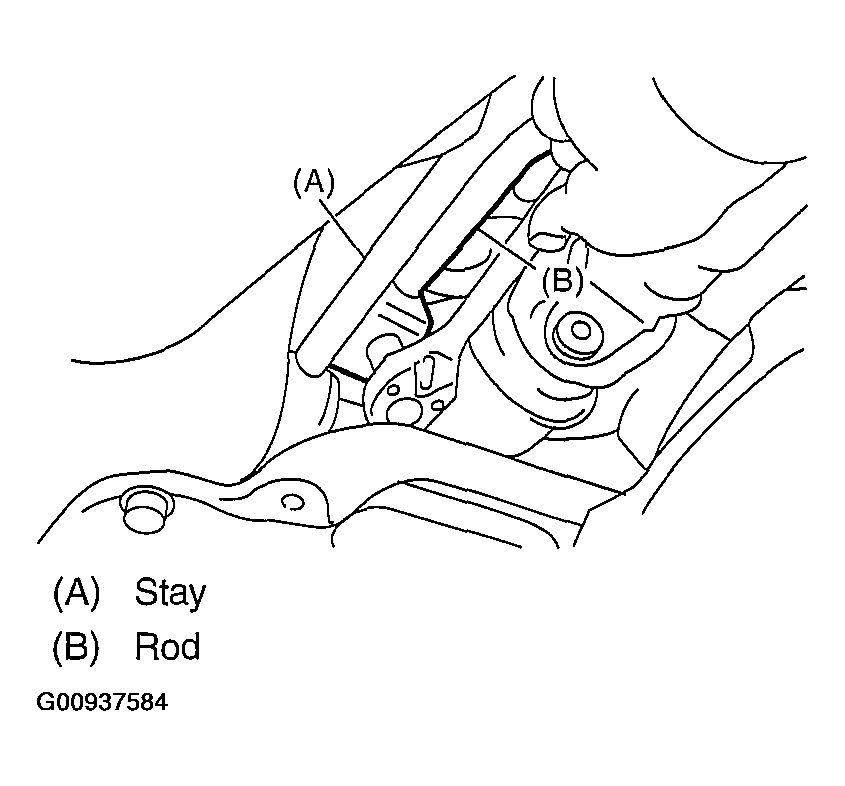

Fig 5: Identifying Rod
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from body.

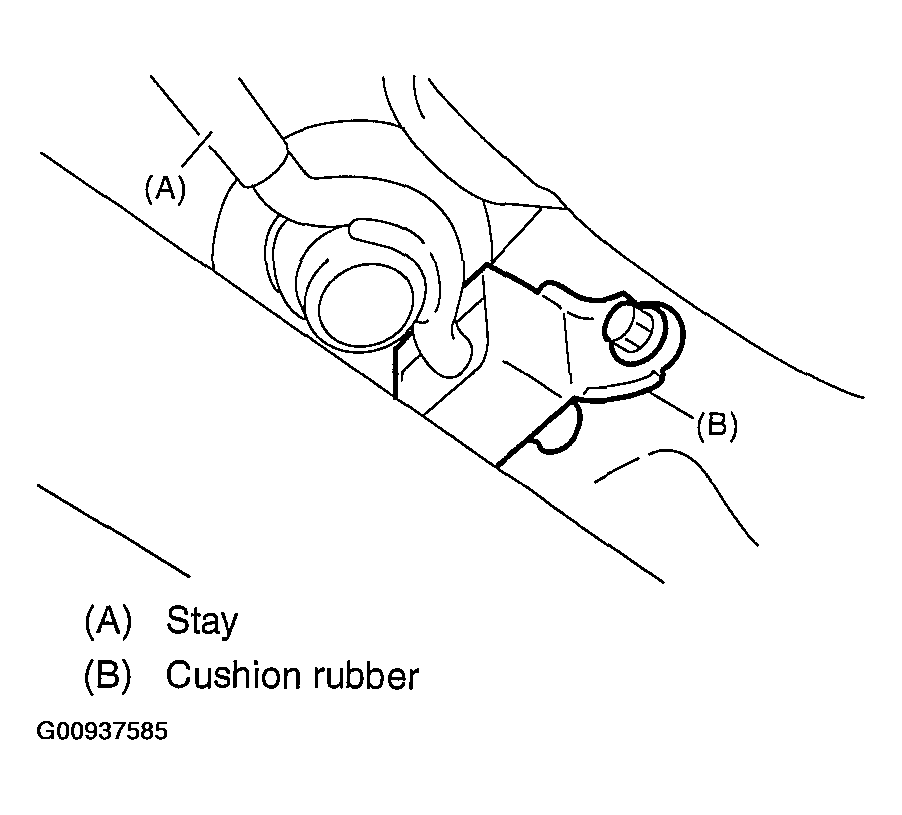

Fig 6: Identifying Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then extract the joint.

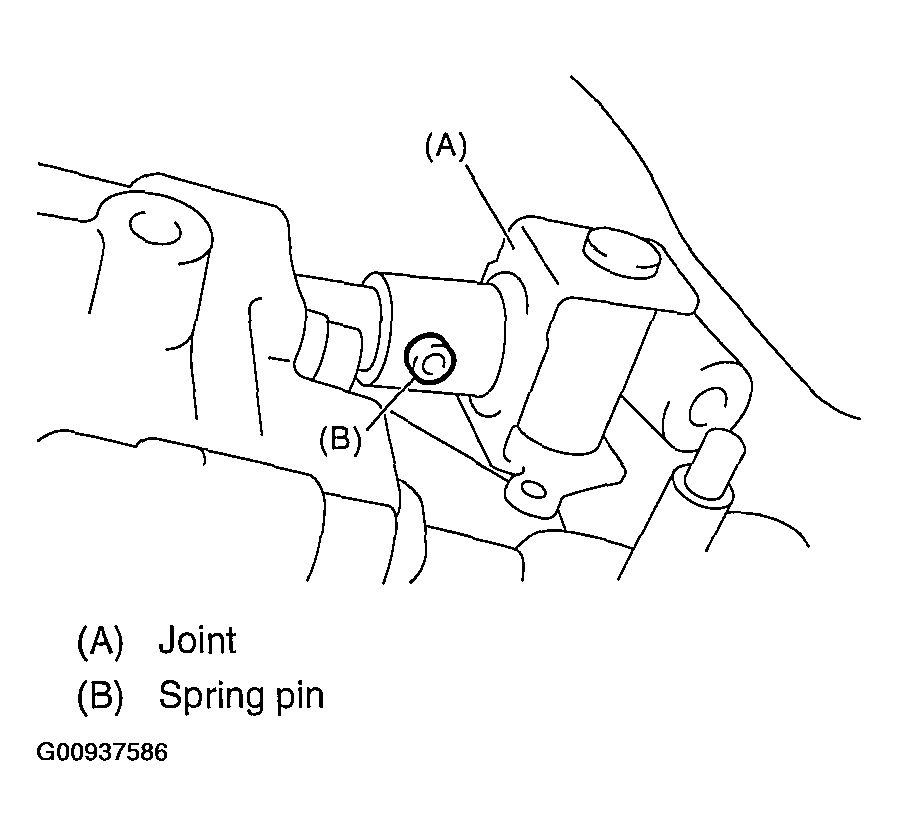

Fig 7: Identifying Spring Pin & Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

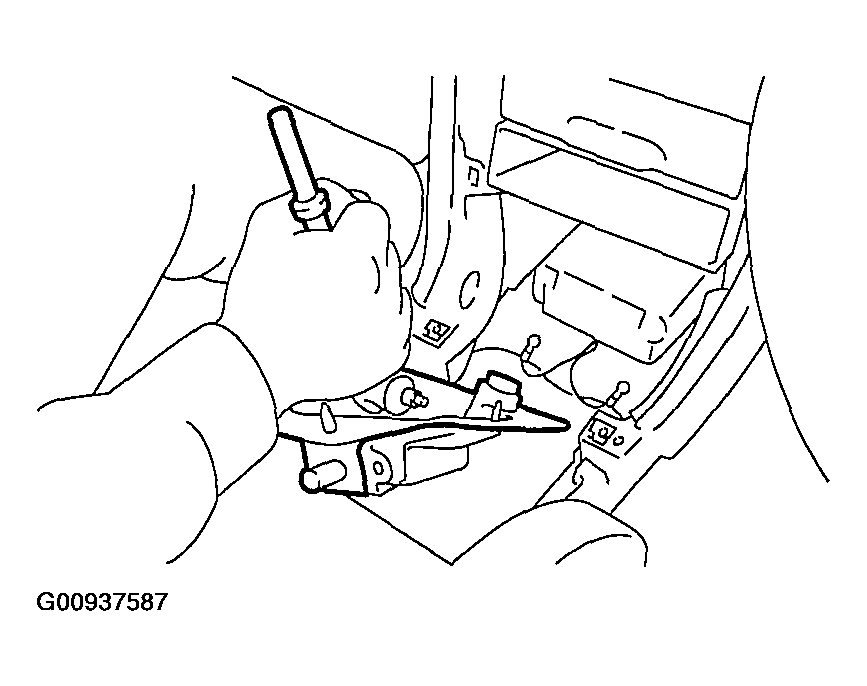

Fig 8: Identifying Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
