Select Cable: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Prior to removal, set the lever to "N" range.
Lift-up the vehicle.
Remove the front and center exhaust pipe.
Non-turbo model

< Ref. to REMOVAL , Front Exhaust Pipe . >

Turbo model

< Ref. to REMOVAL , Front Exhaust Pipe . >
Remove the heat shield cover. (If equipped)
Remove the snap pin from range select lever.

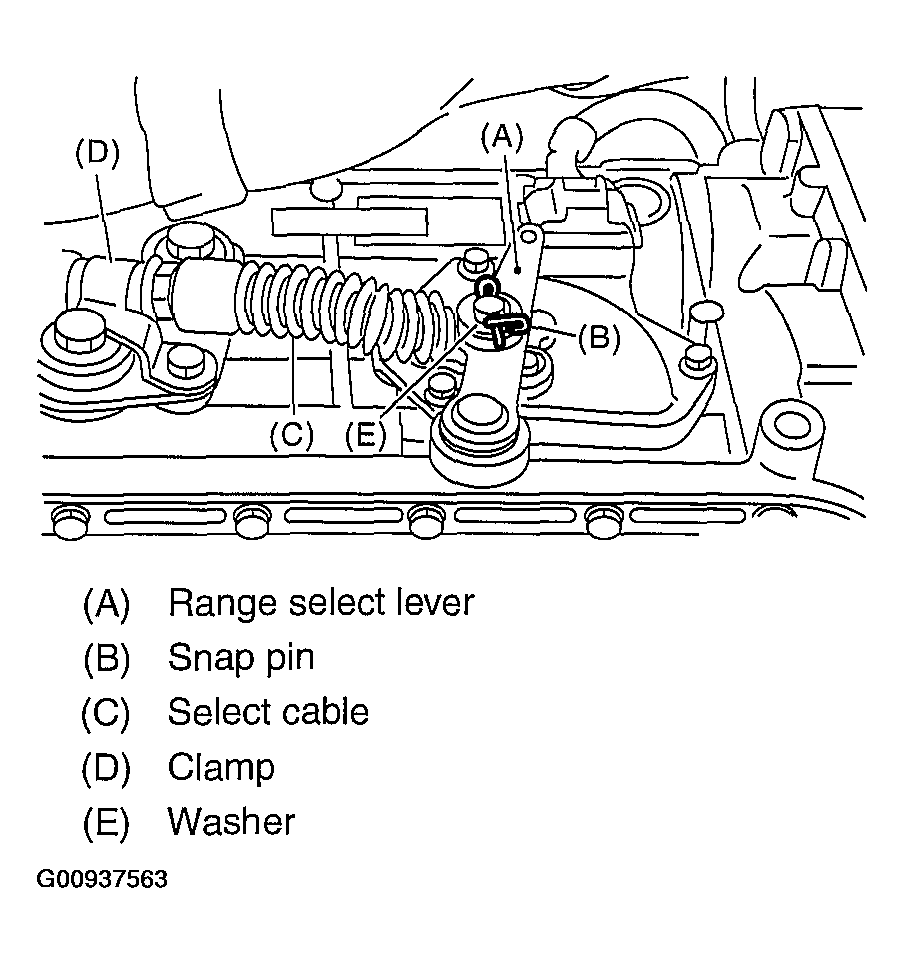

Fig 1: Identifying Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from transmission case.

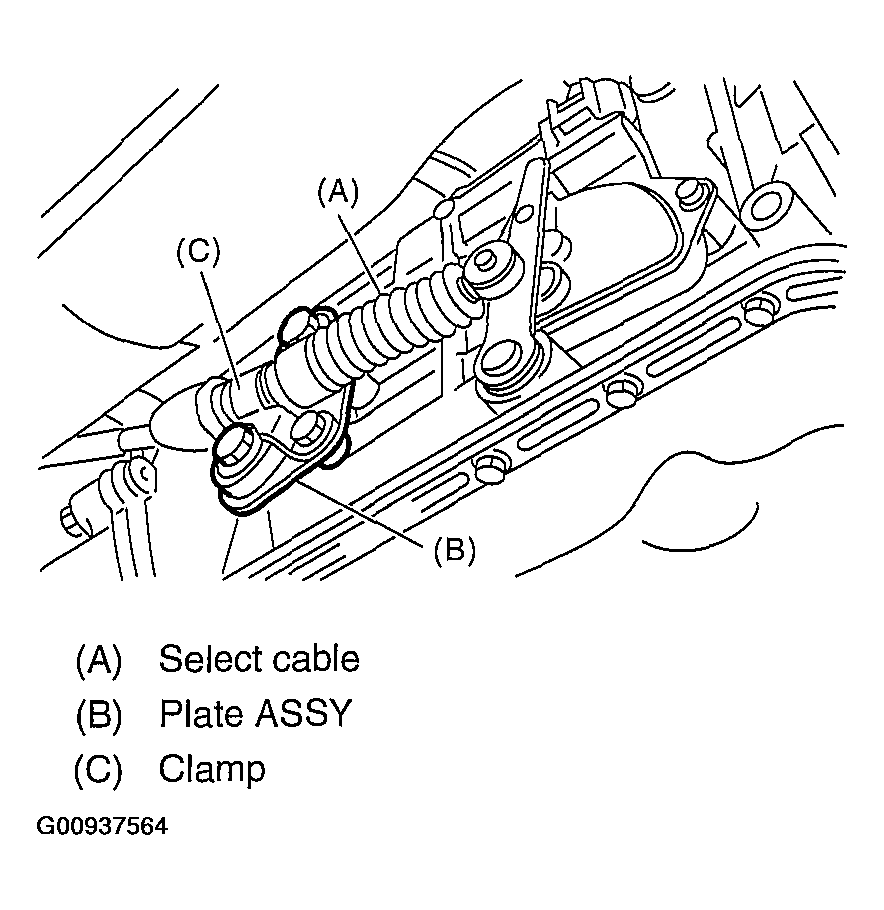

Fig 2: Identifying Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the select cable from range select lever, and then remove the cable bracket.

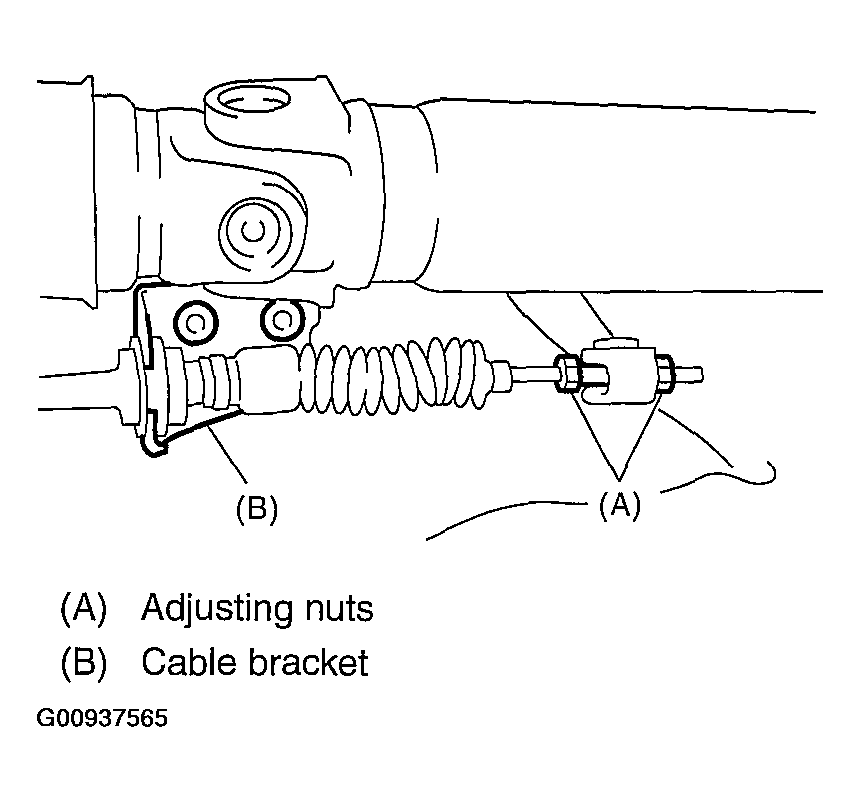

Fig 3: Disconnecting Select Cable From Range Select Lever, And Identifying Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
