Engine Control Module

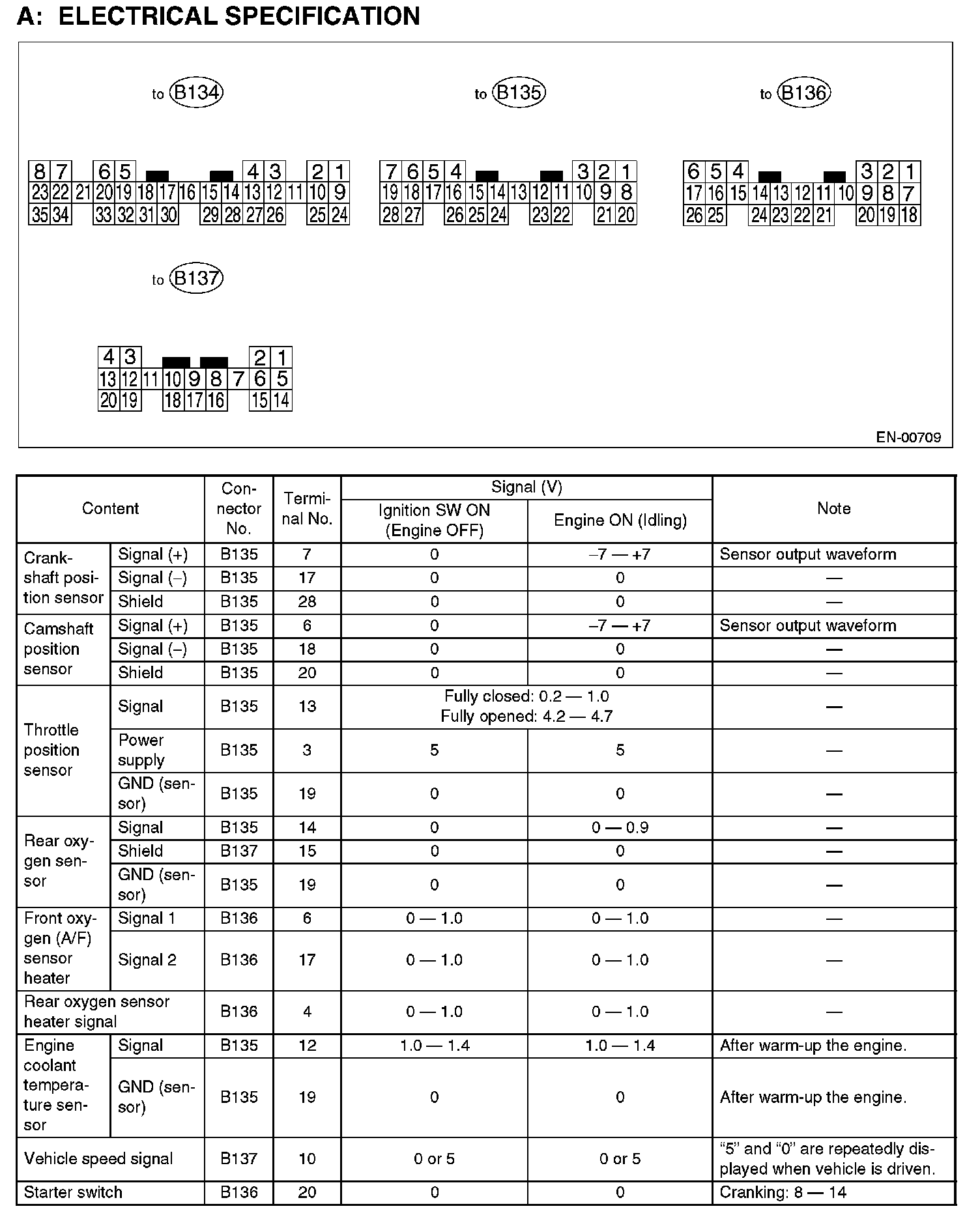

Engine Control Module (ECM) I/O Signal Part 1:

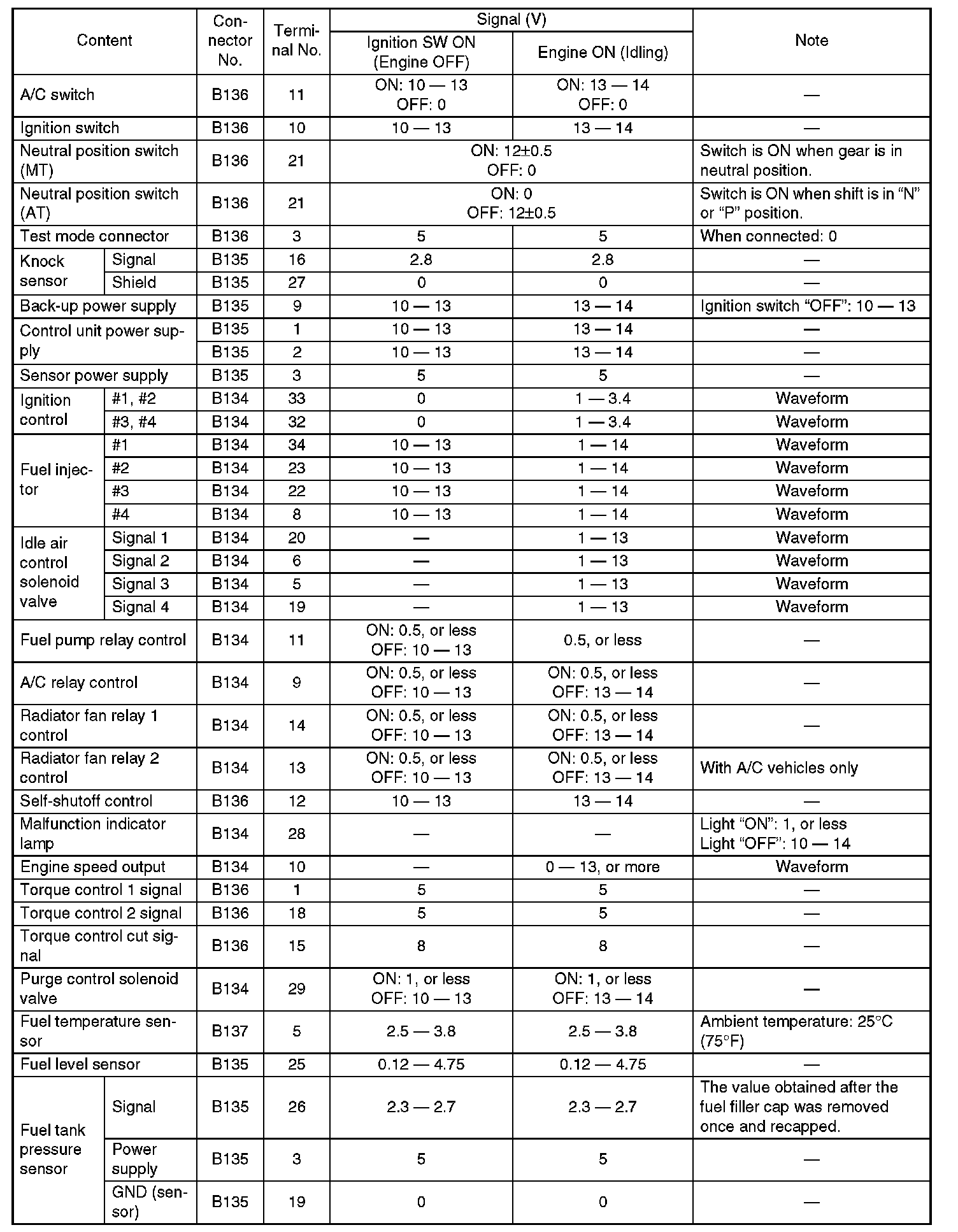

Engine Control Module (ECM) I/O Signal Part 2:

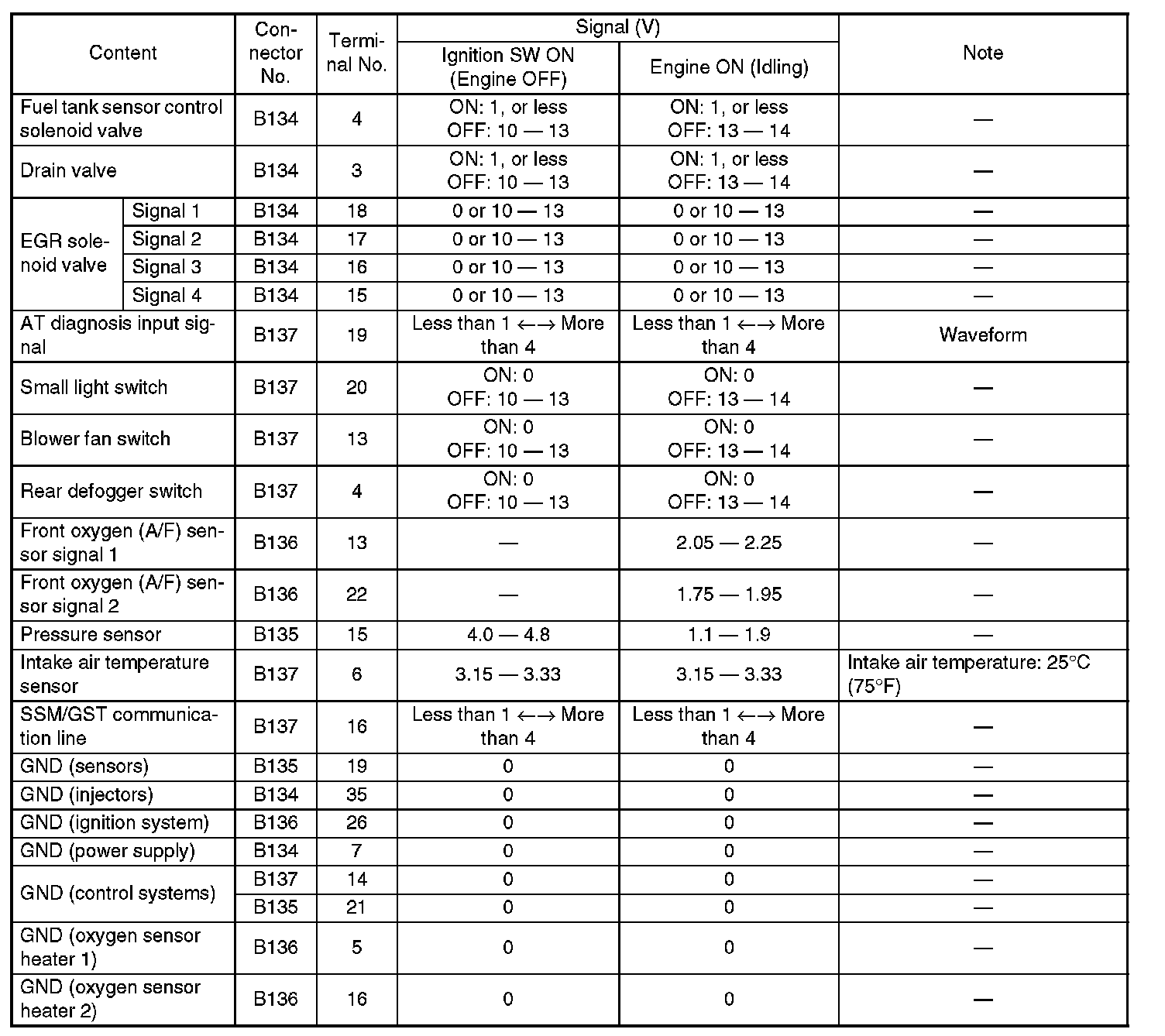

Engine Control Module (ECM) I/O Signal Part 3:
