Control Module Schematic

SCHEMATIC

Part 1:




Part 2:





EXCEPT U5 MODEL

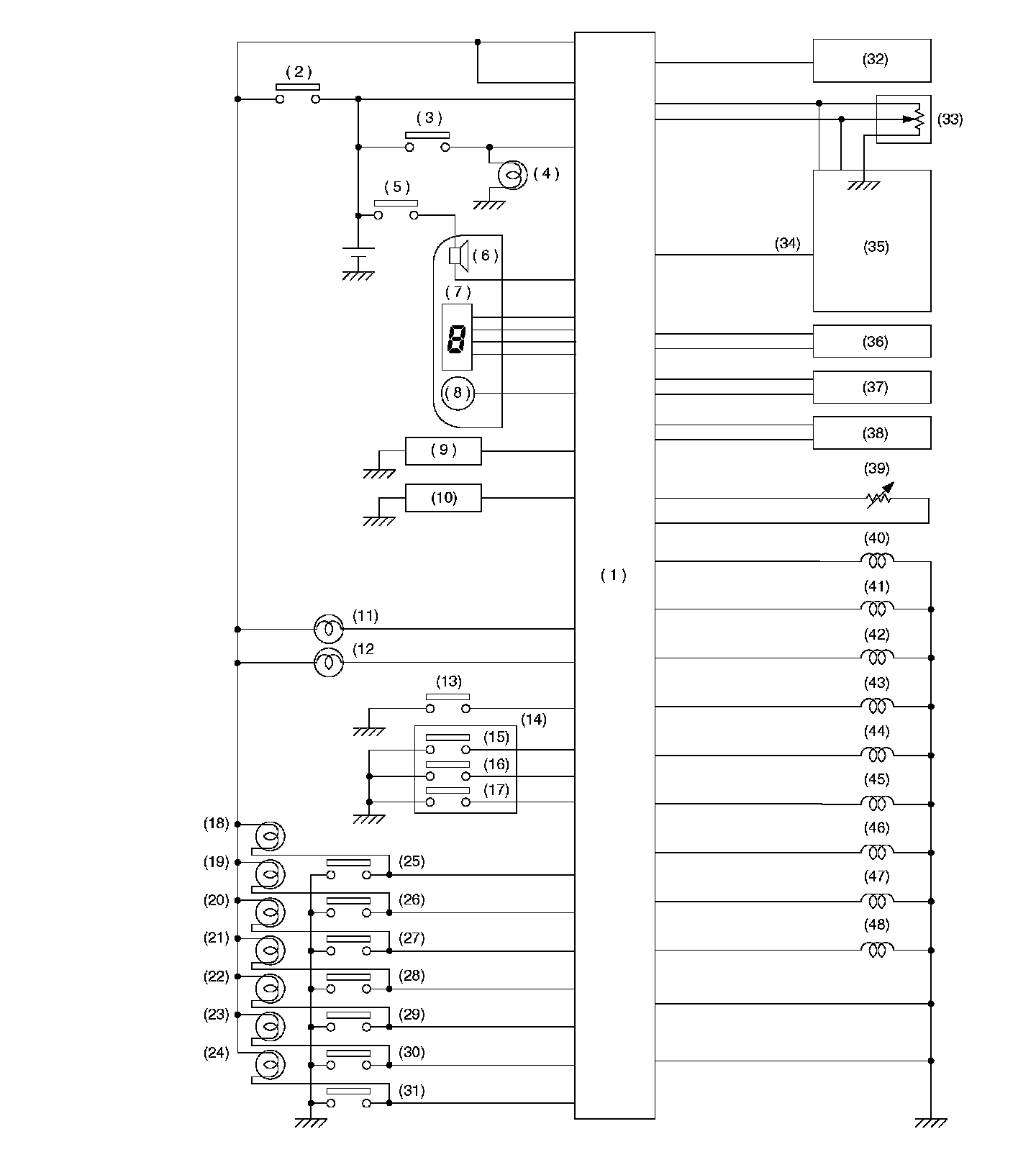

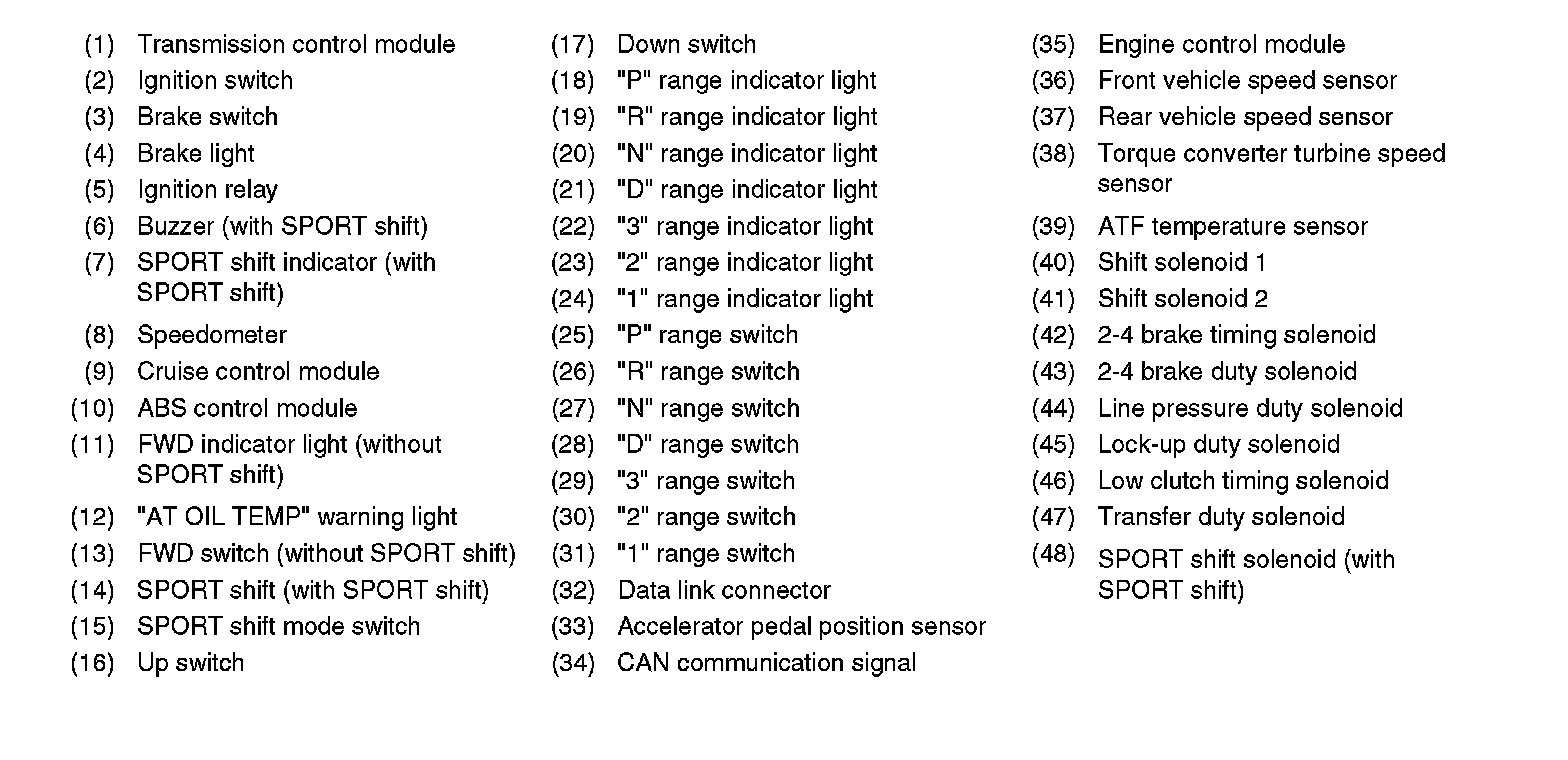

Part 1:




Part 2:

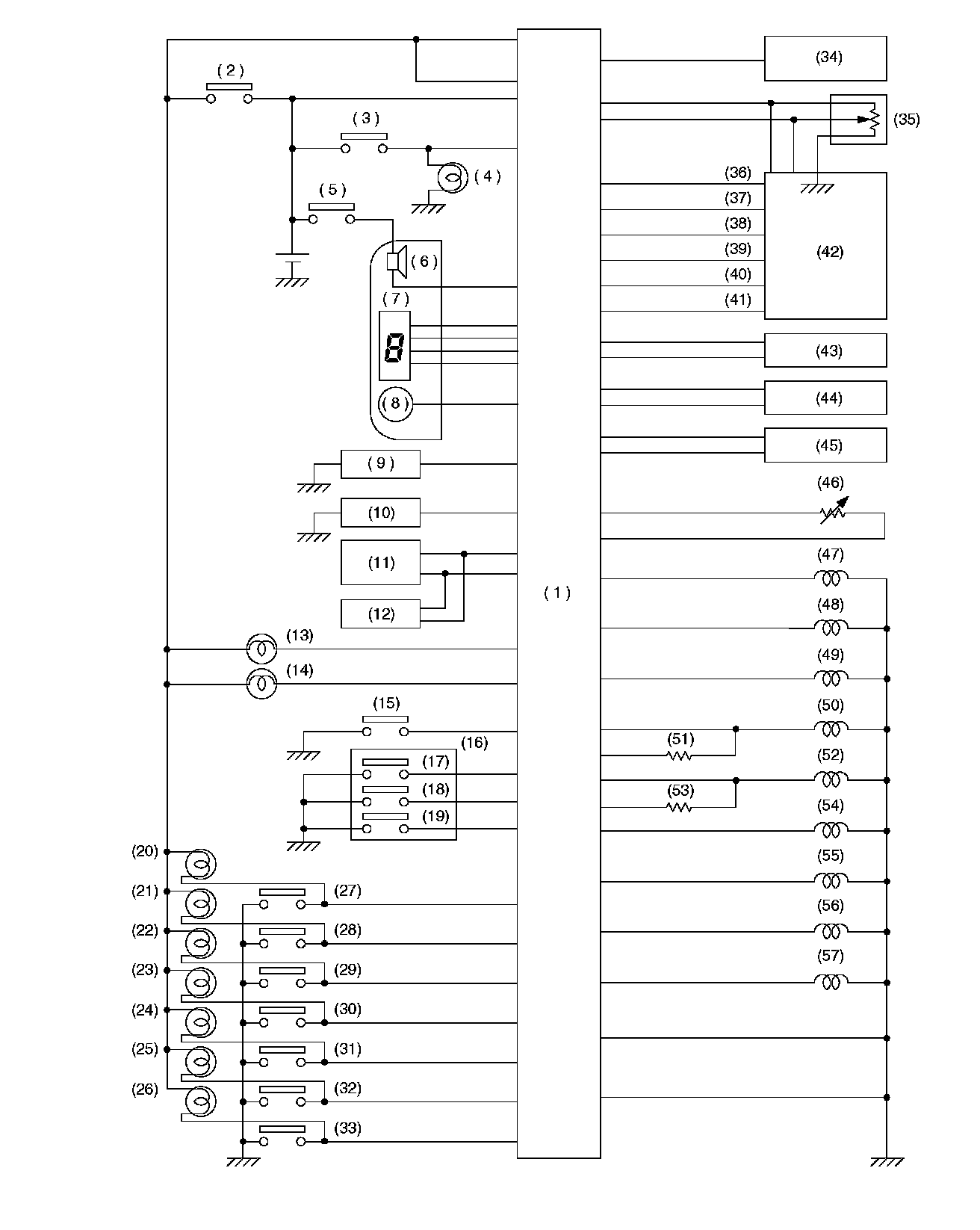

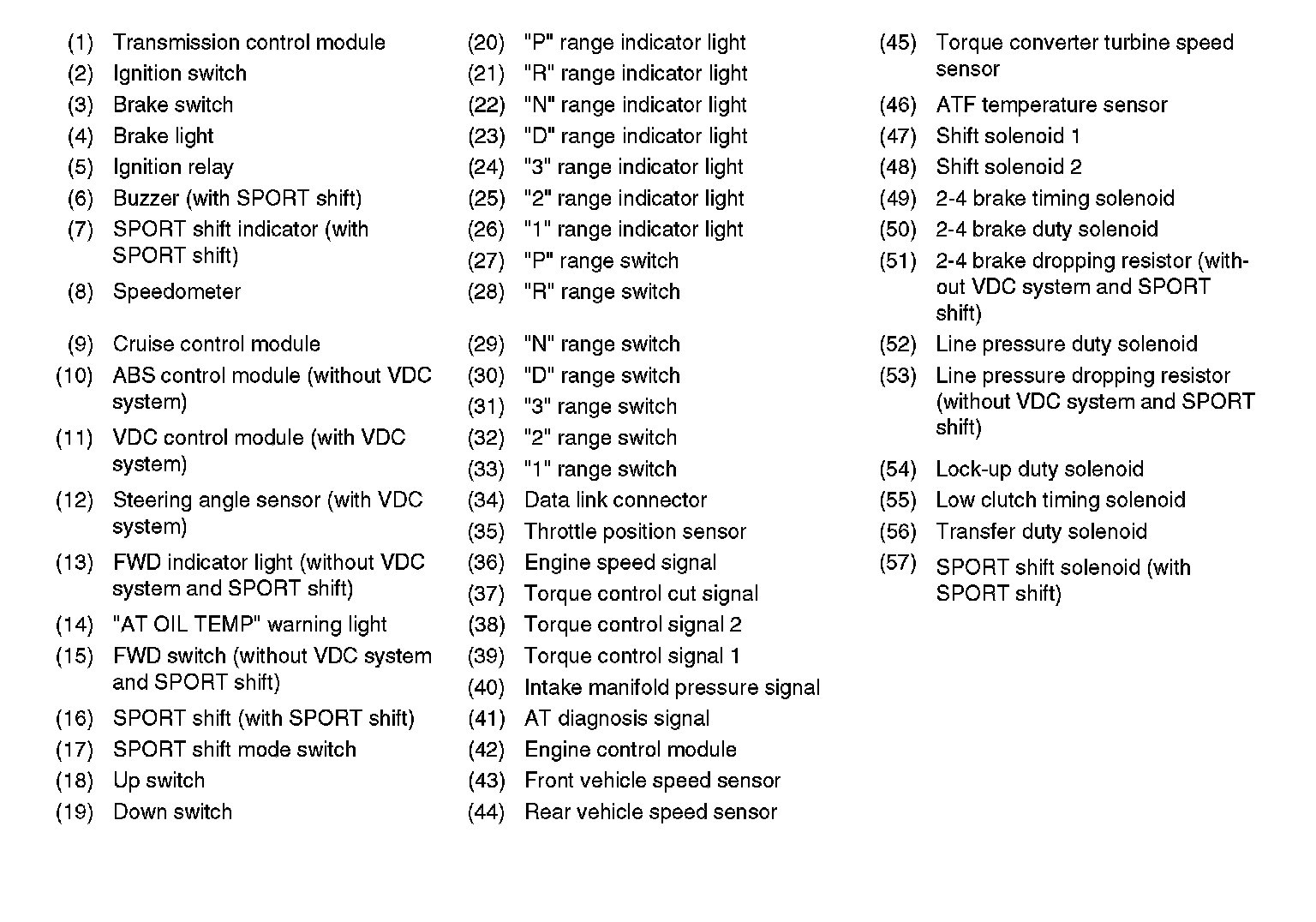

U5 MODEL
