Ignition Cable: Testing and Inspection

Spark Plug Cord

INSPECTION

Check for:
1. Damage to cords, deformation, burning or rust formation of terminals

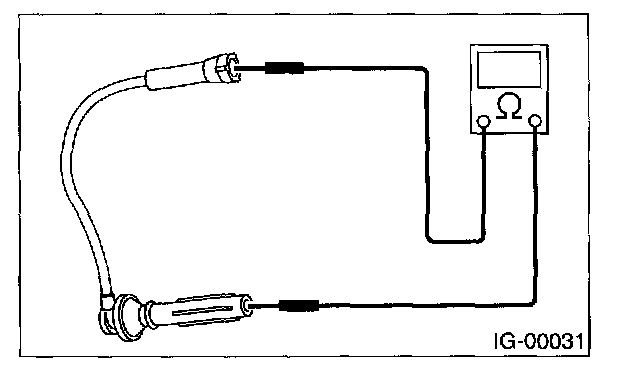

2. Resistance values of cords

Resistance value:
# 1 cord: 5.6 - 10.6
# 2 cord: 7.3 - 13.7
# 3 cord: 5.9 - 11.1
# 4 cord: 7.3 - 13.7
