Check Inhibitor Switch

CHECK INHIBITOR SWITCH

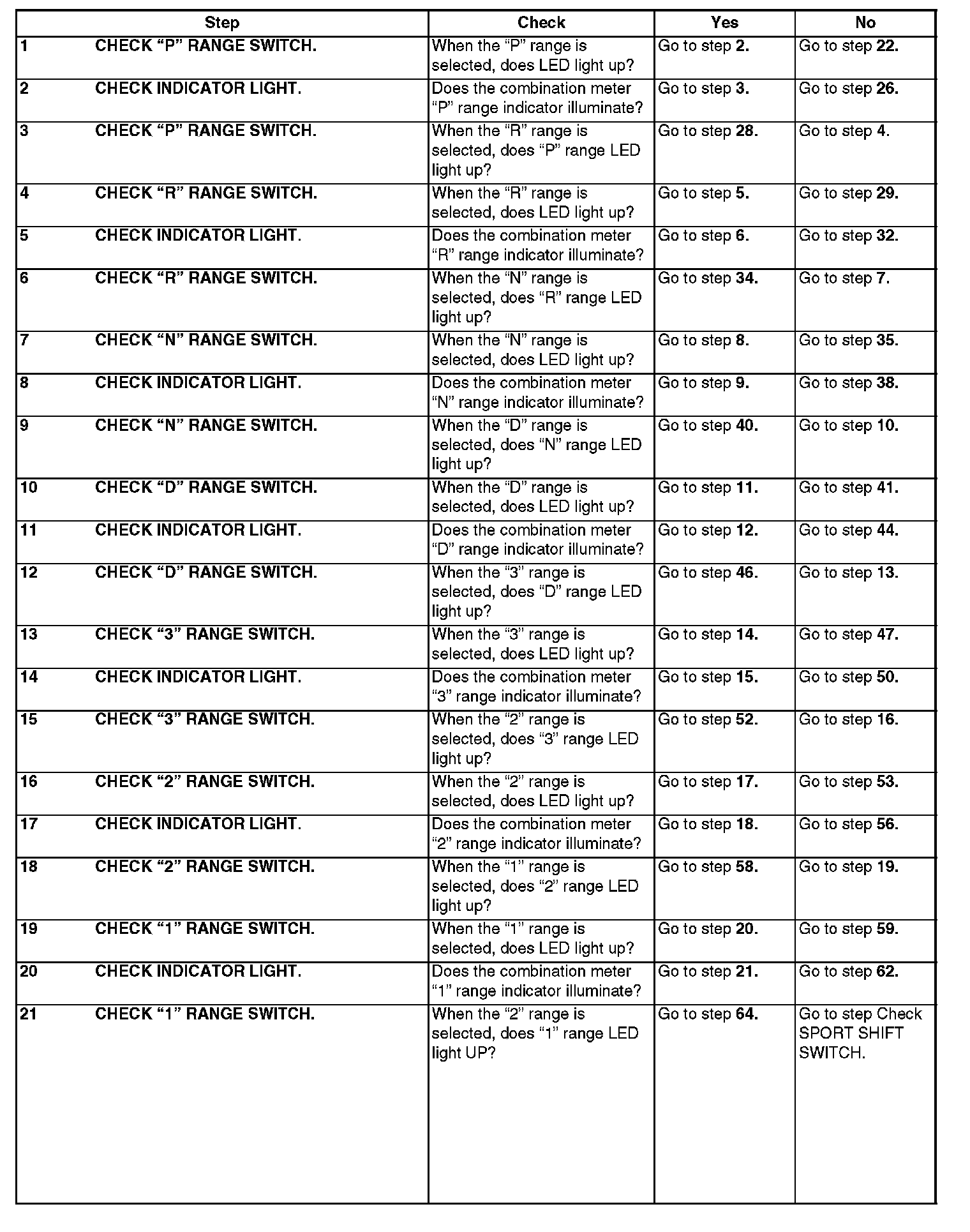

Steps 1-21:

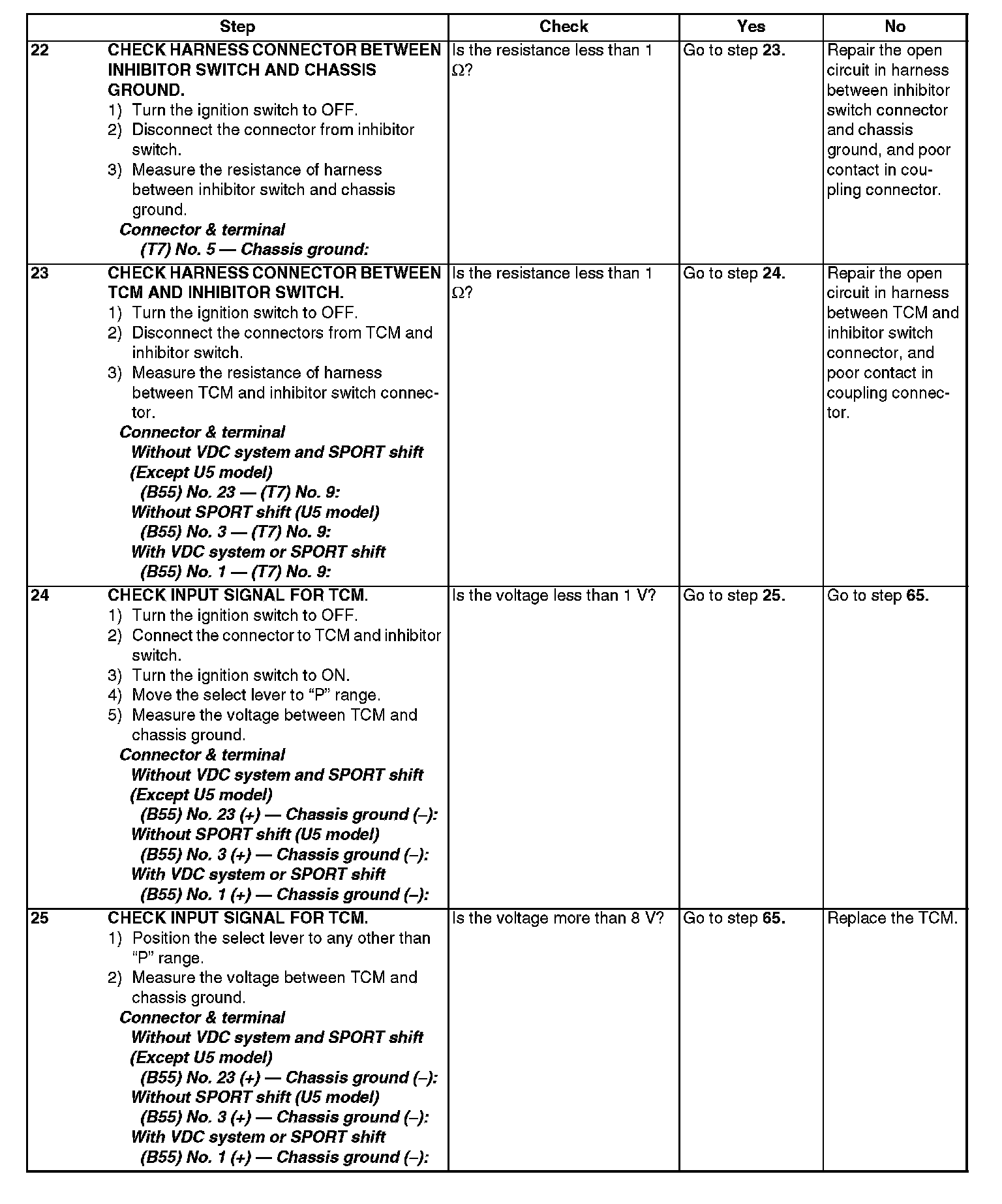

Steps 22-25:

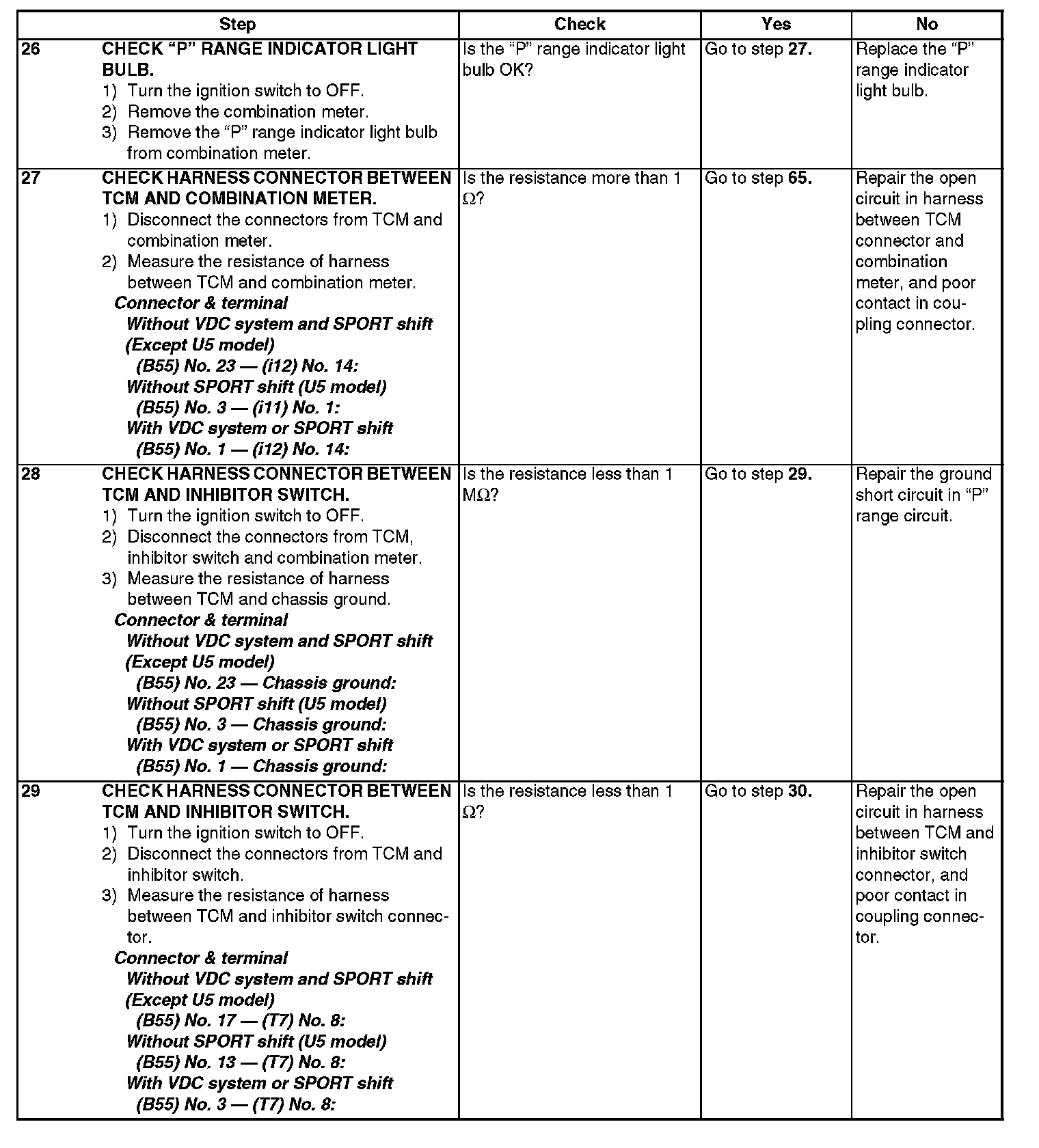

Steps 26-29:

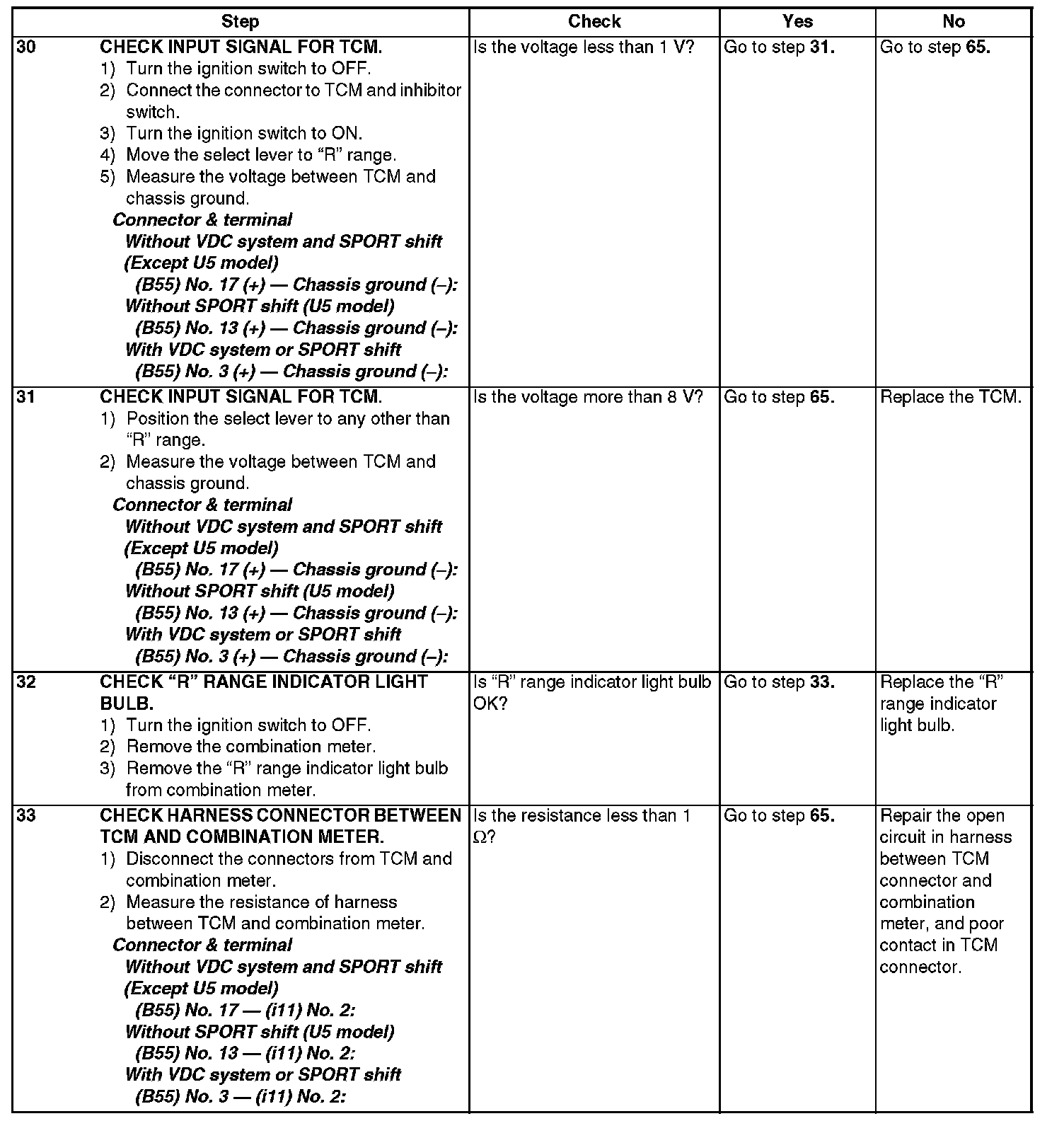

Steps 30-33:

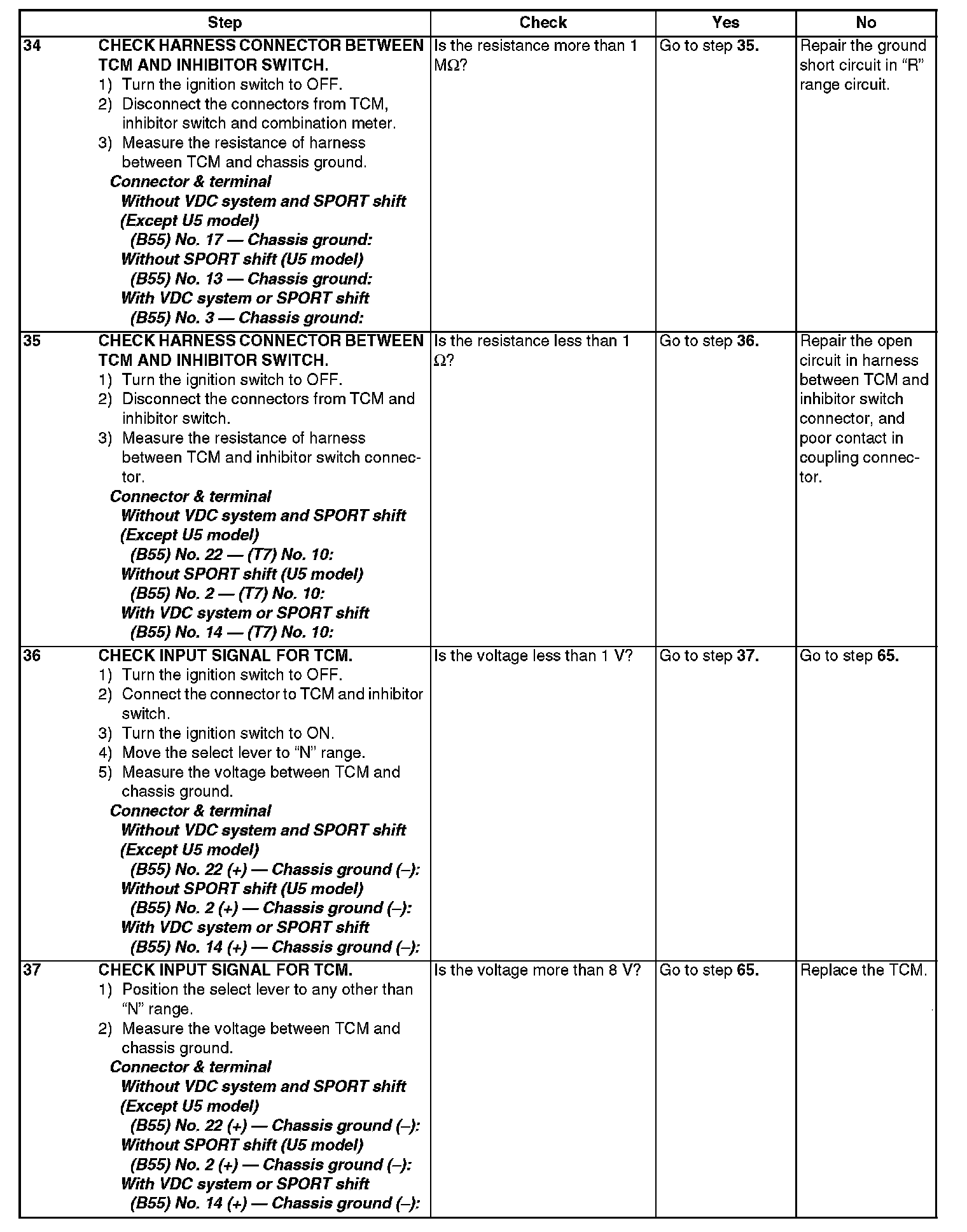

Steps 34-37:

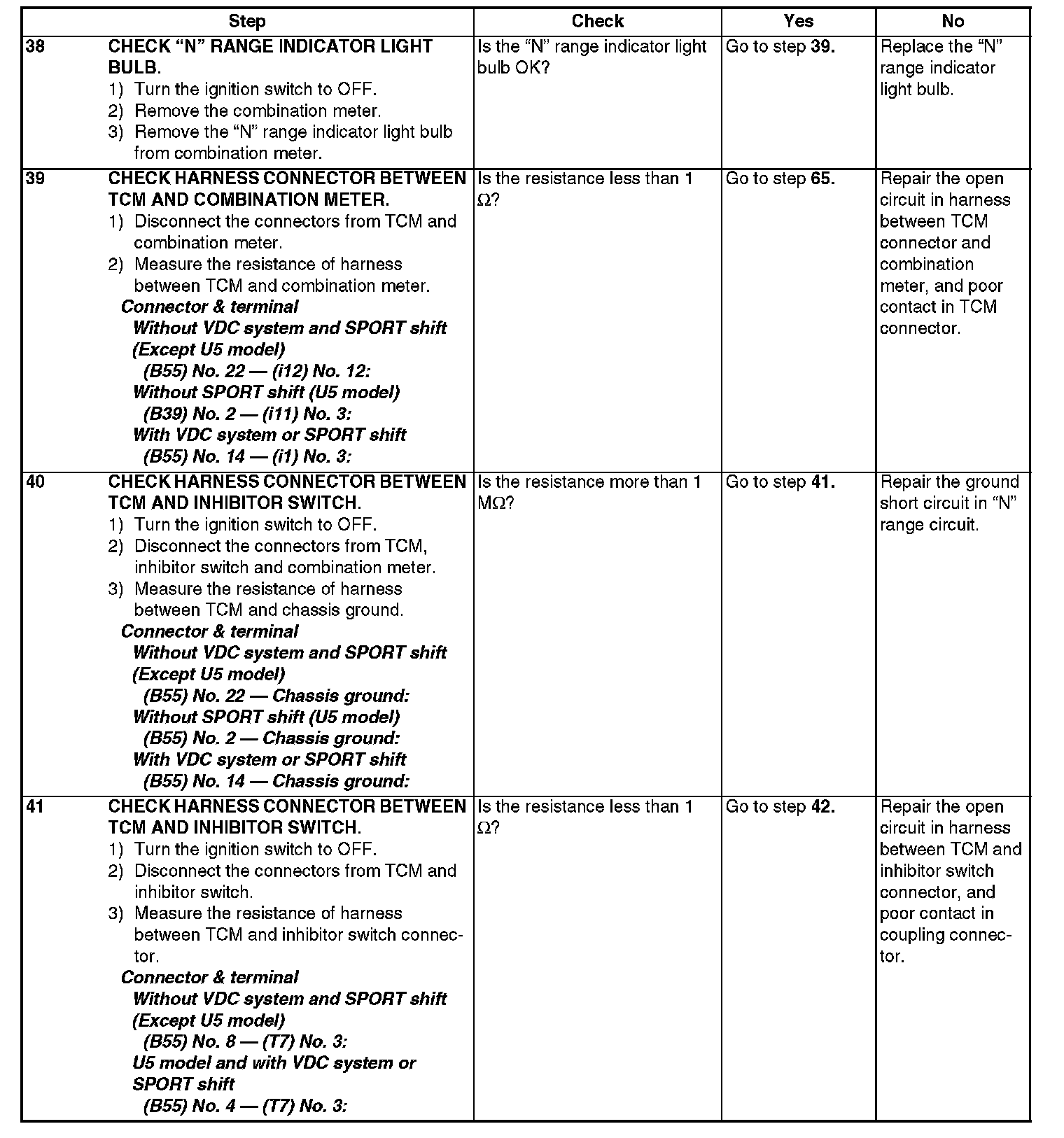

Steps 38-41:

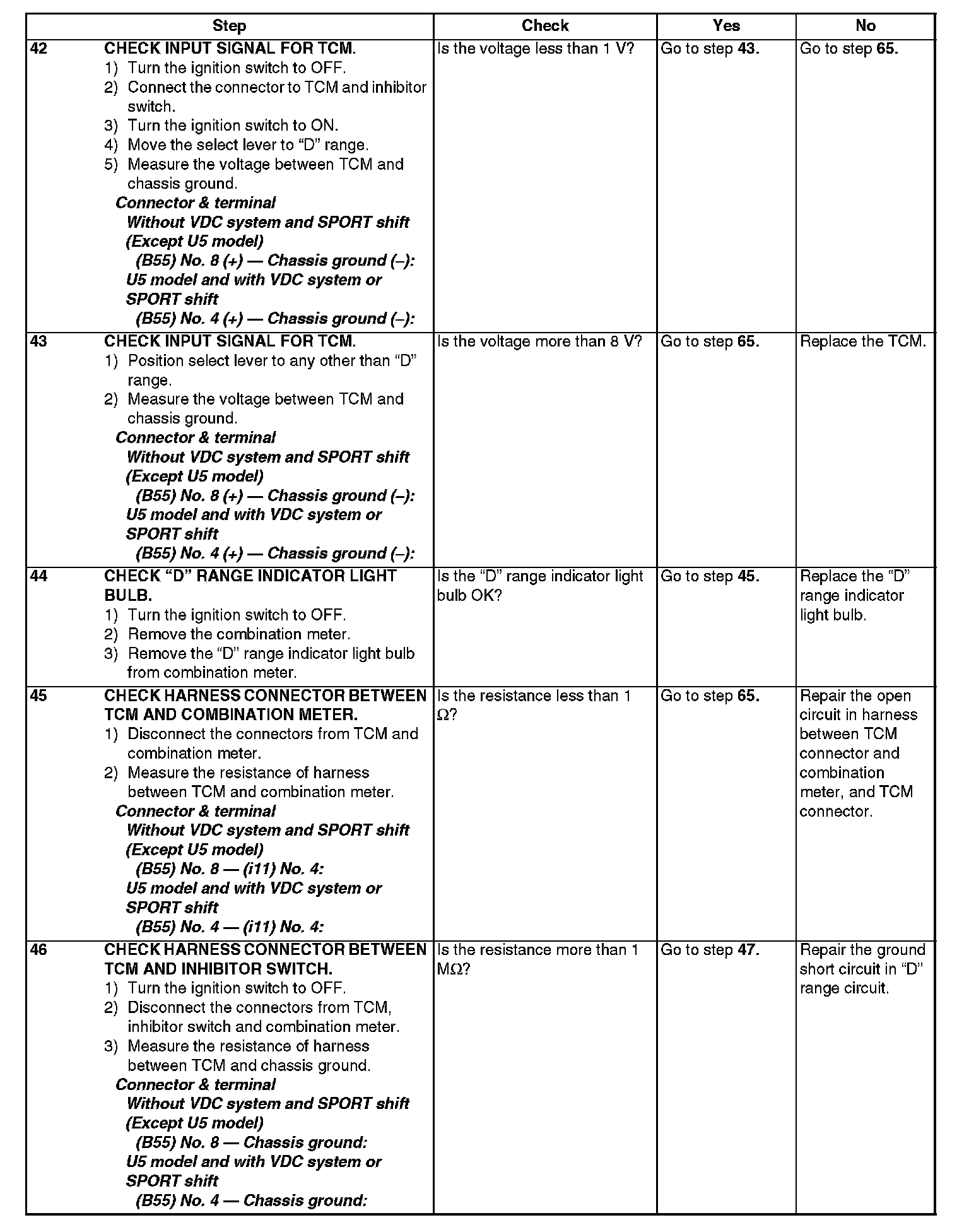

Steps 42-46:

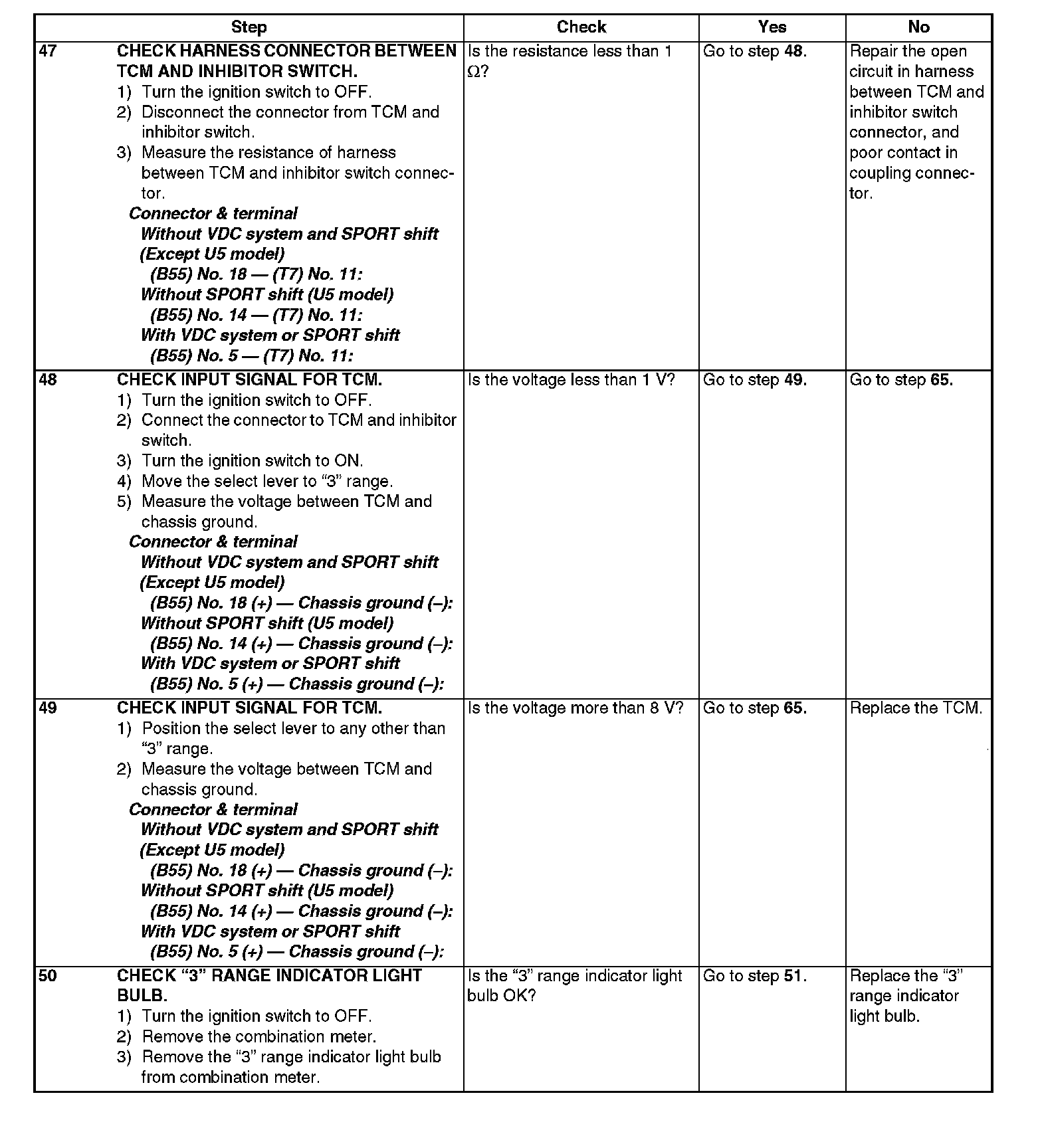

Steps 47-50:

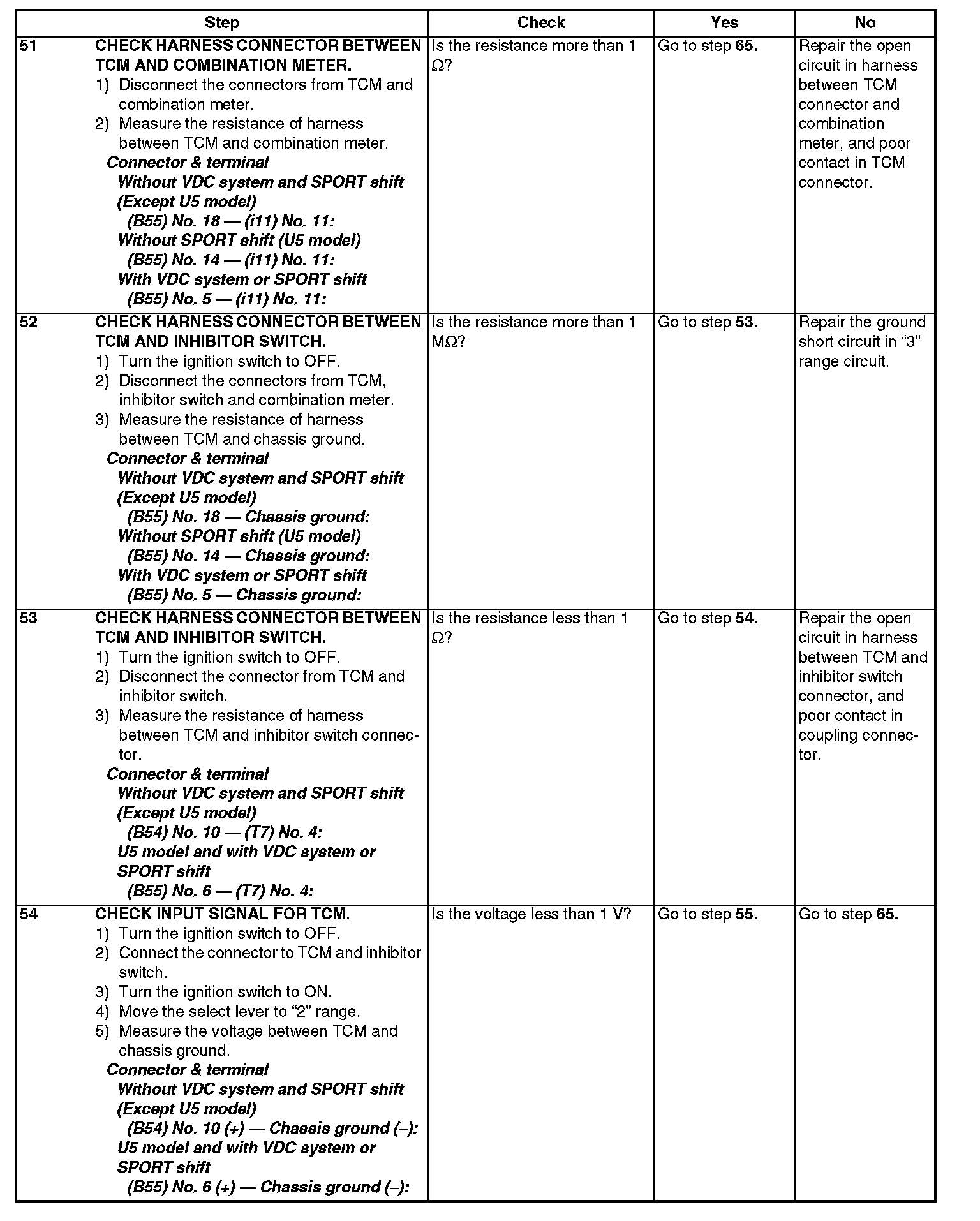

Steps 51-54:

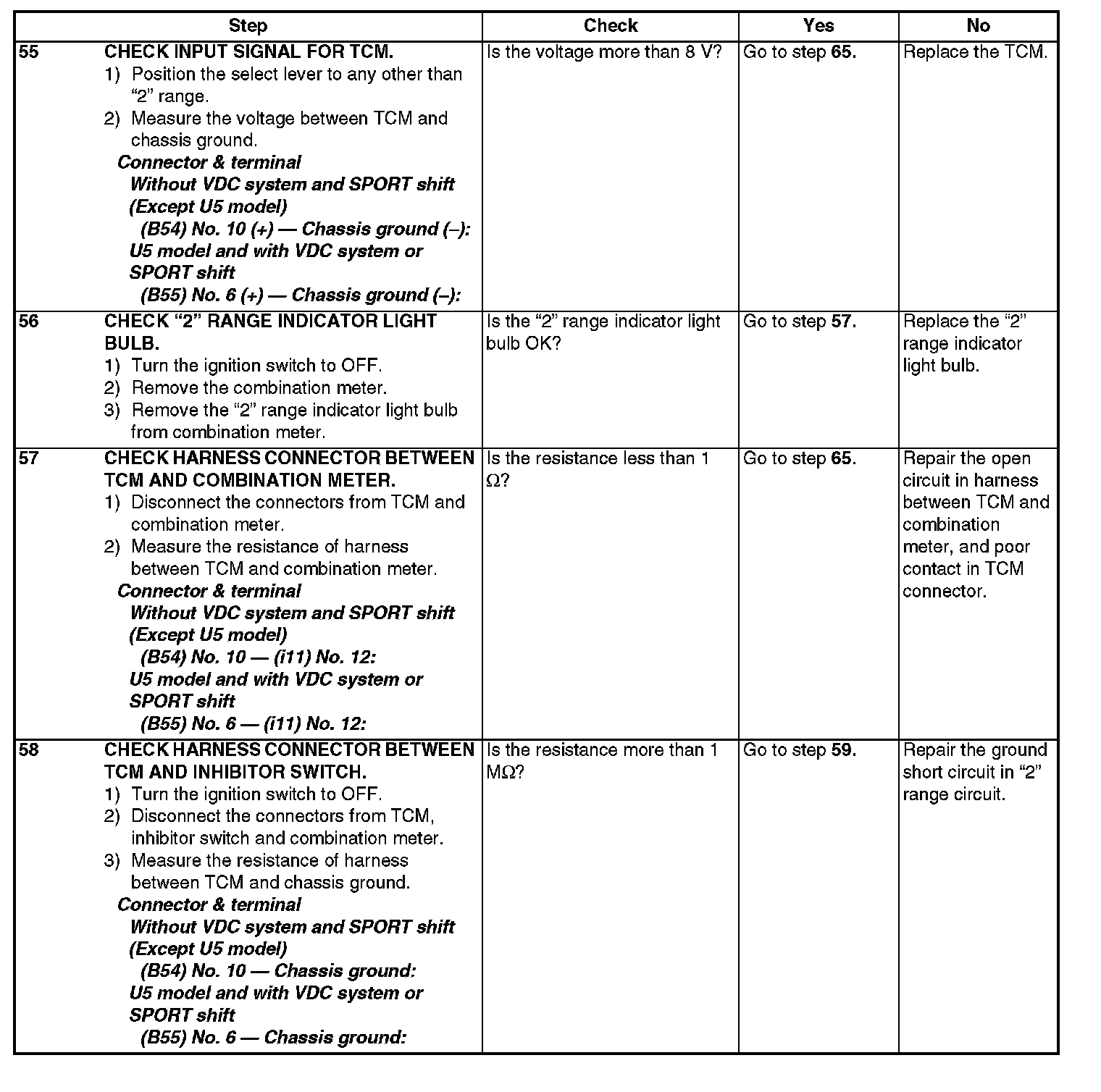

Steps 55-58:

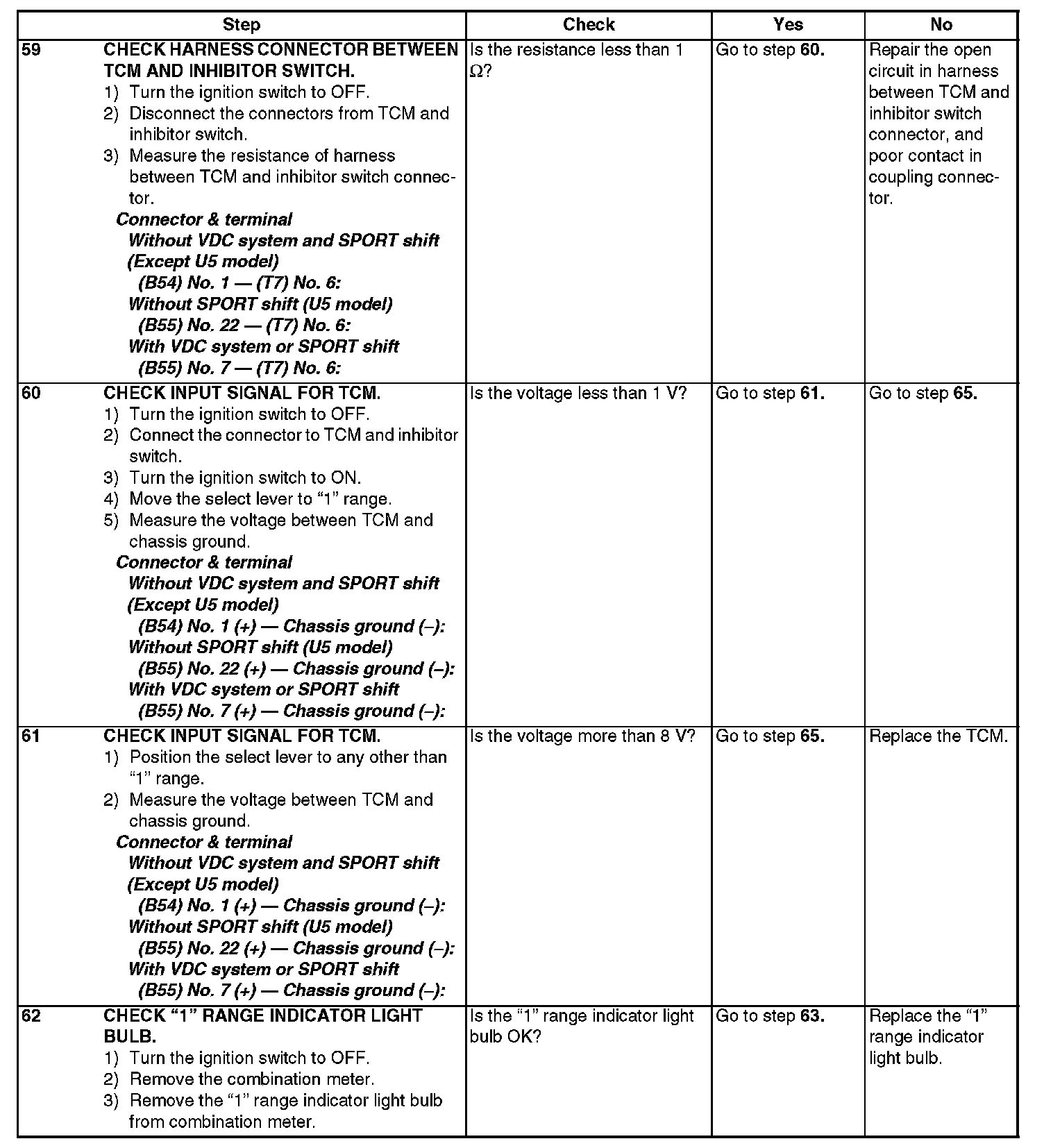

Steps 59-62:

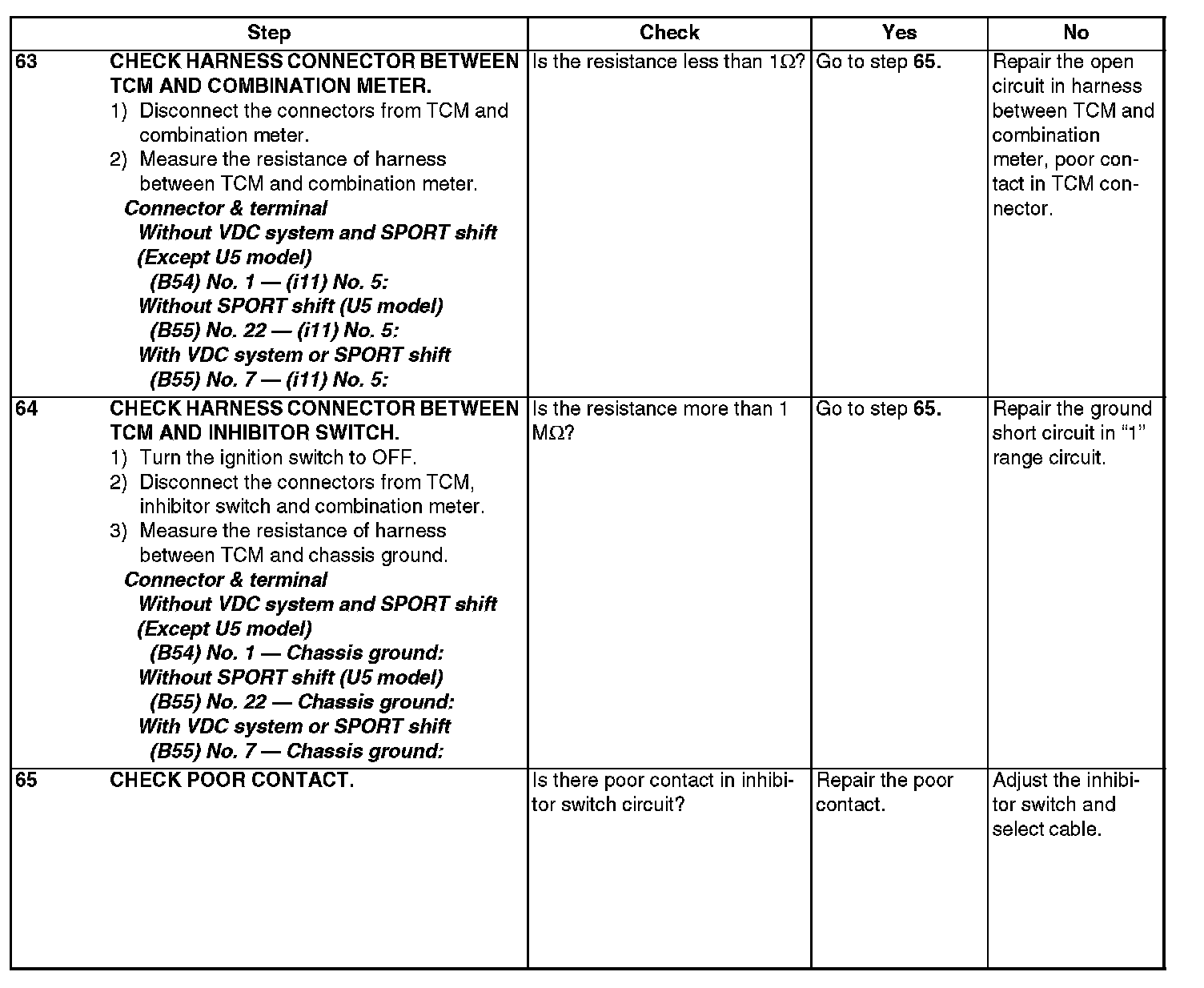

Steps 63-65:

DIAGNOSIS:
The input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

WIRING DIAGRAM:

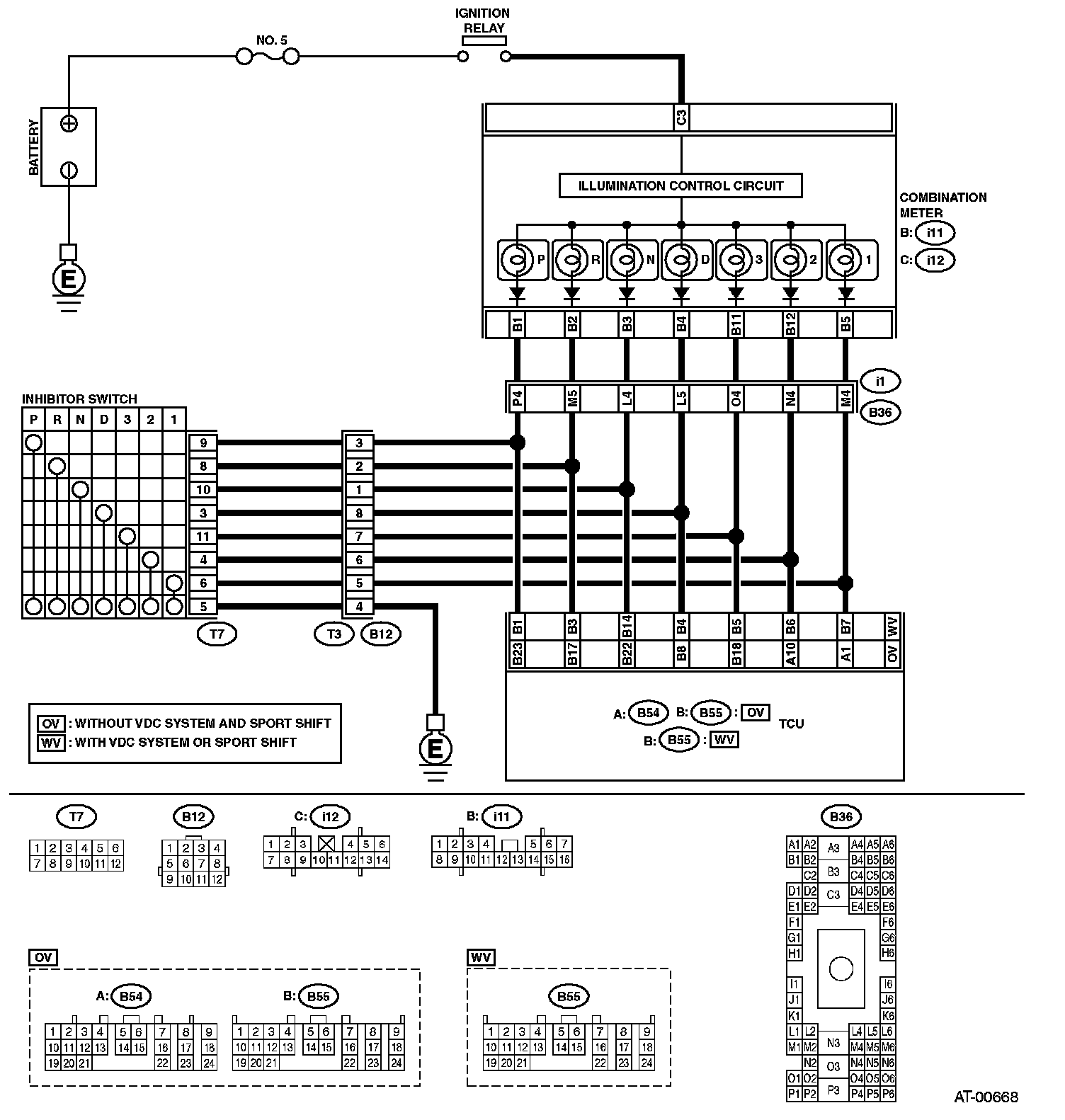

^ Except U5 model

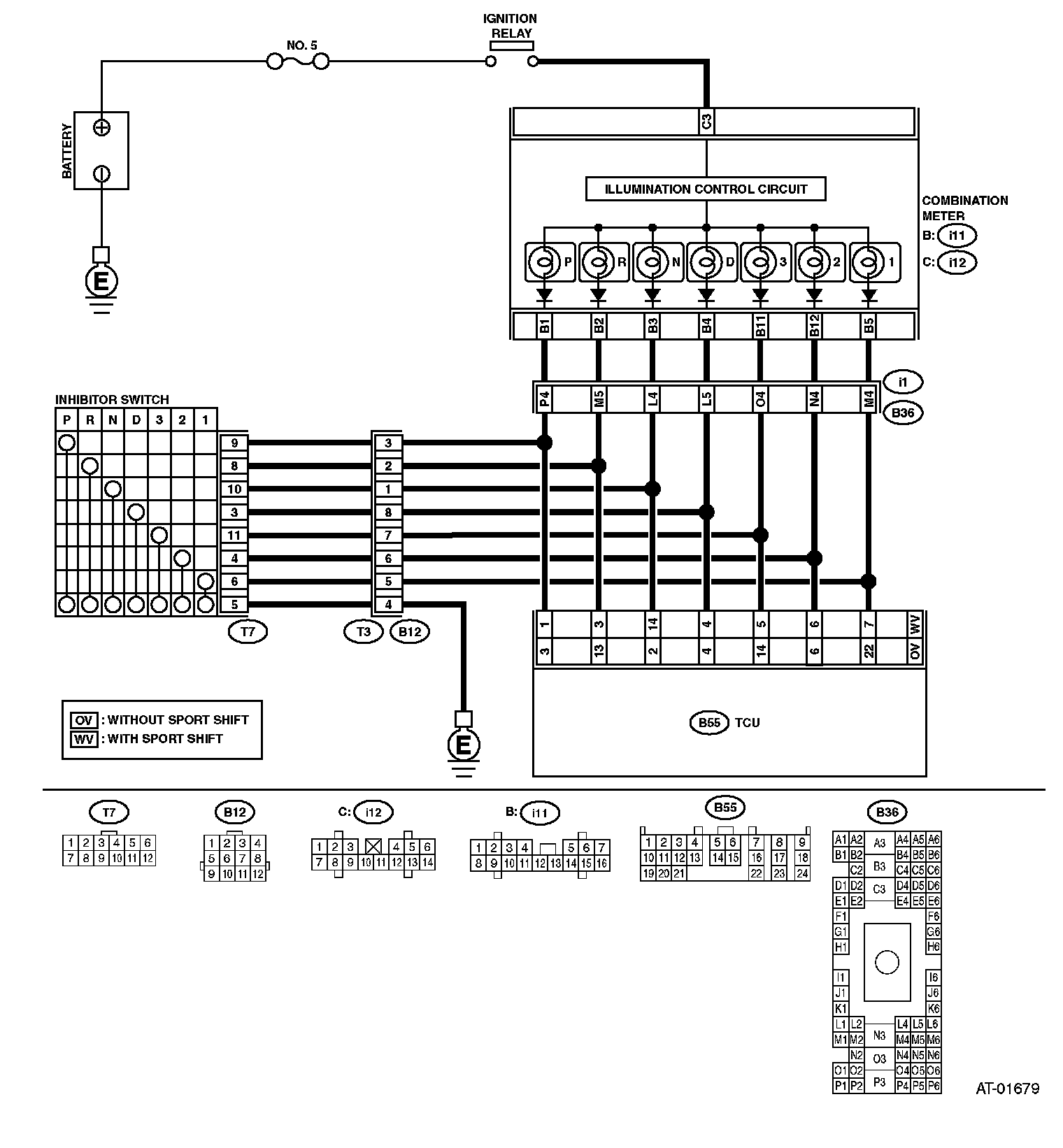

^ U5 model
