Diagnostic Procedure For Select Monitor Communication

Diagnostic Procedure for Select Monitor Communication
COMMUNICATION FOR INITIALIZING IMPOSSIBLE

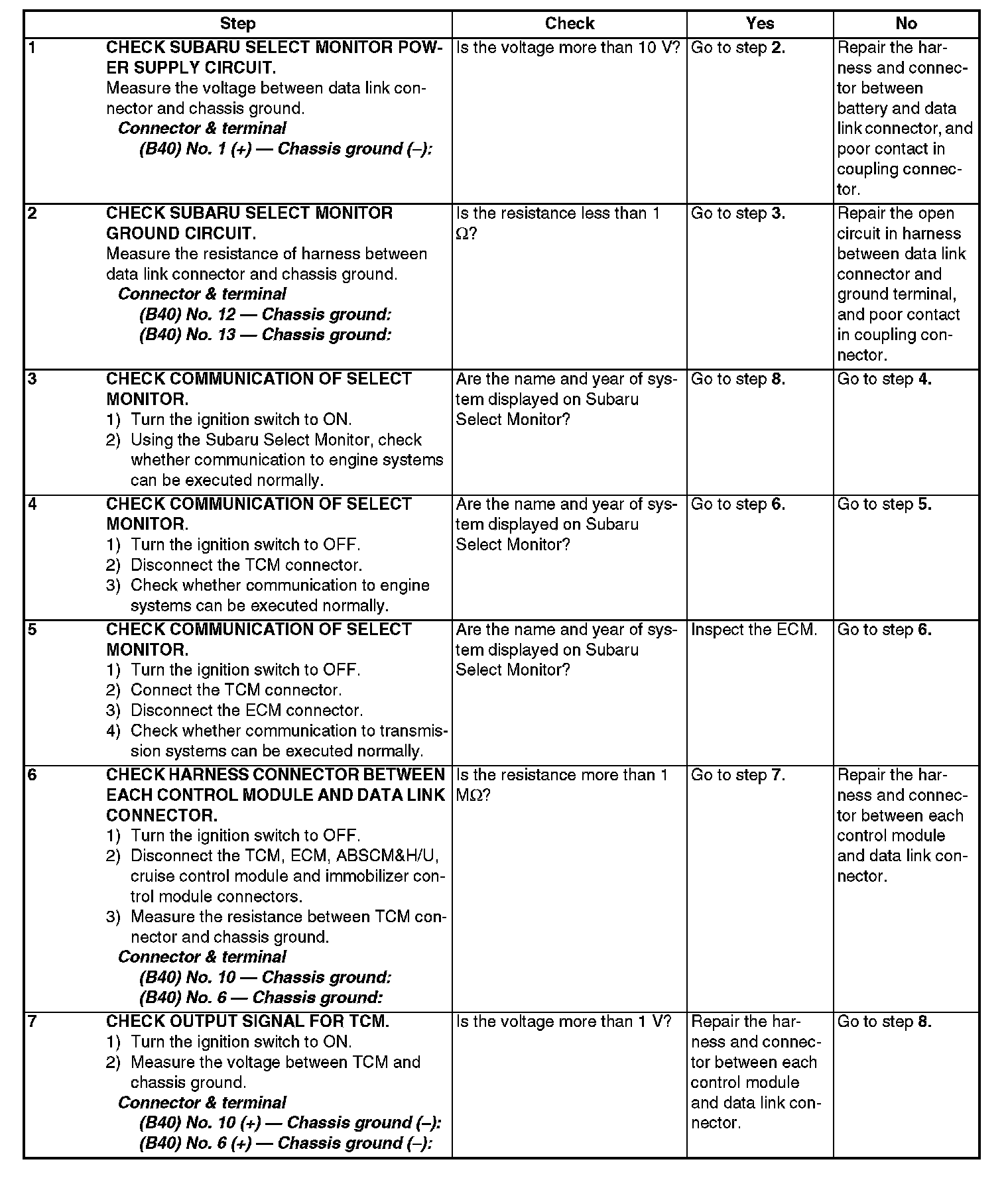

Steps 1-7:

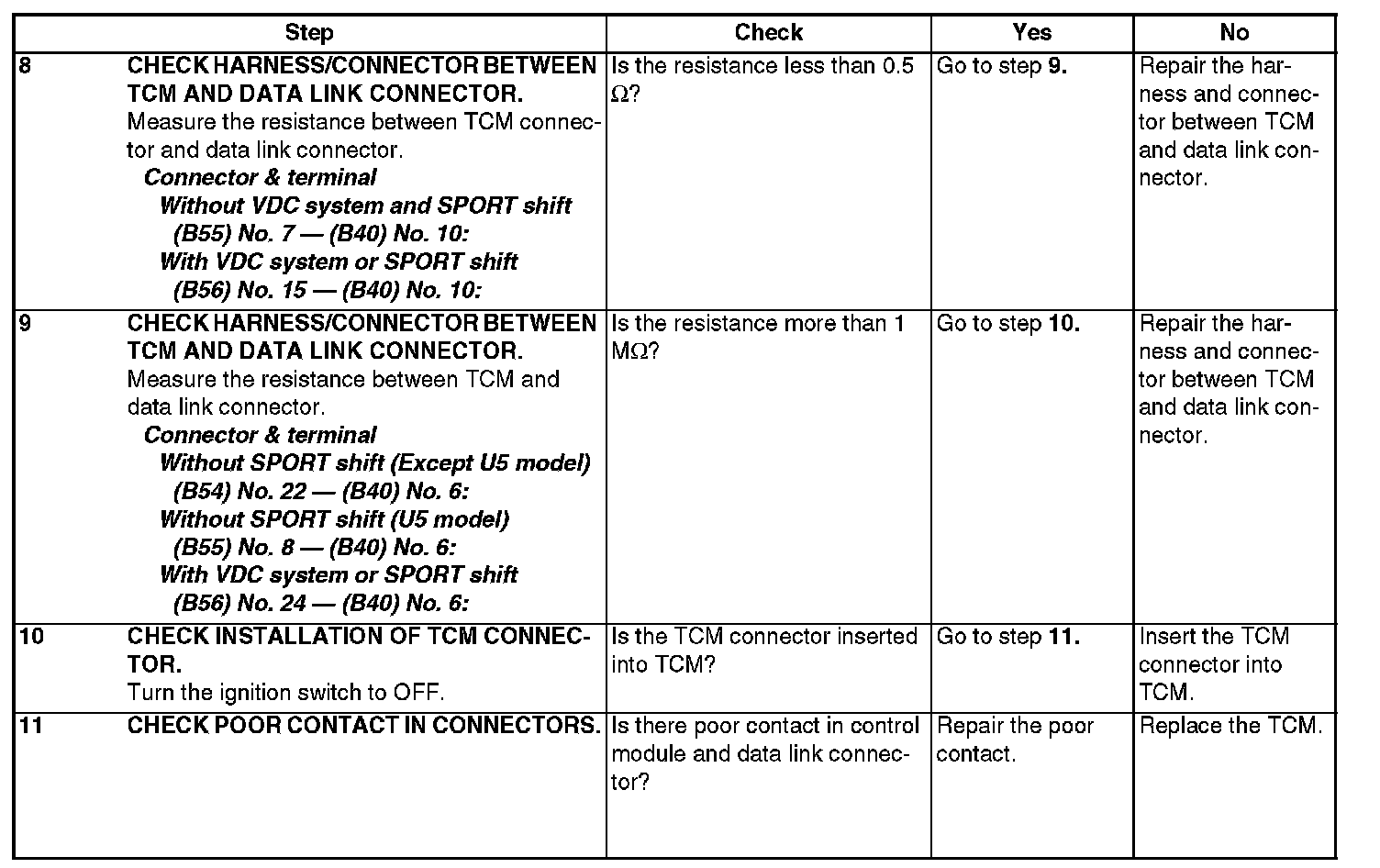

Steps 8-11:

DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Select monitor communication failure

WIRING DIAGRAM

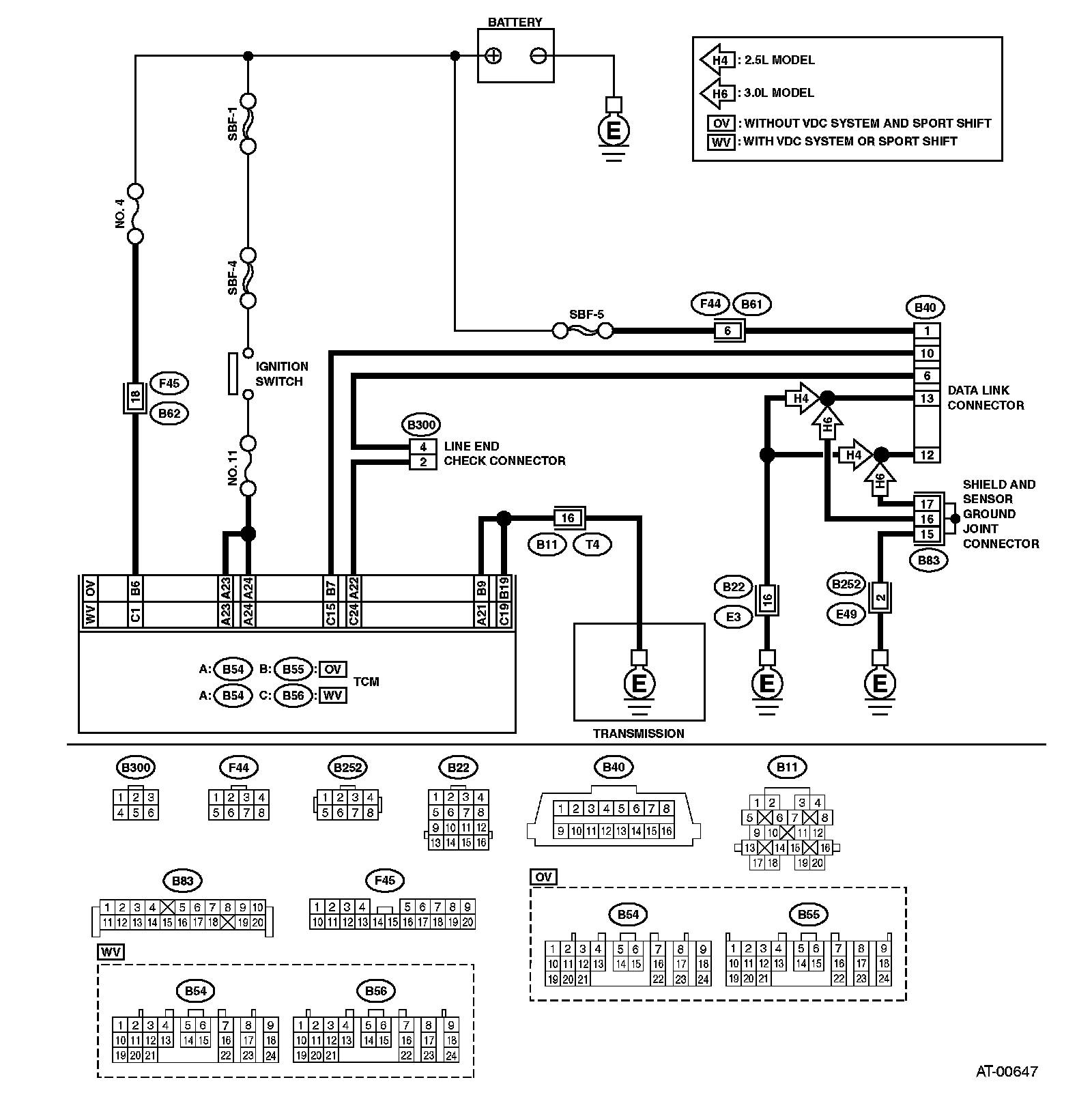

^ Except U5 model

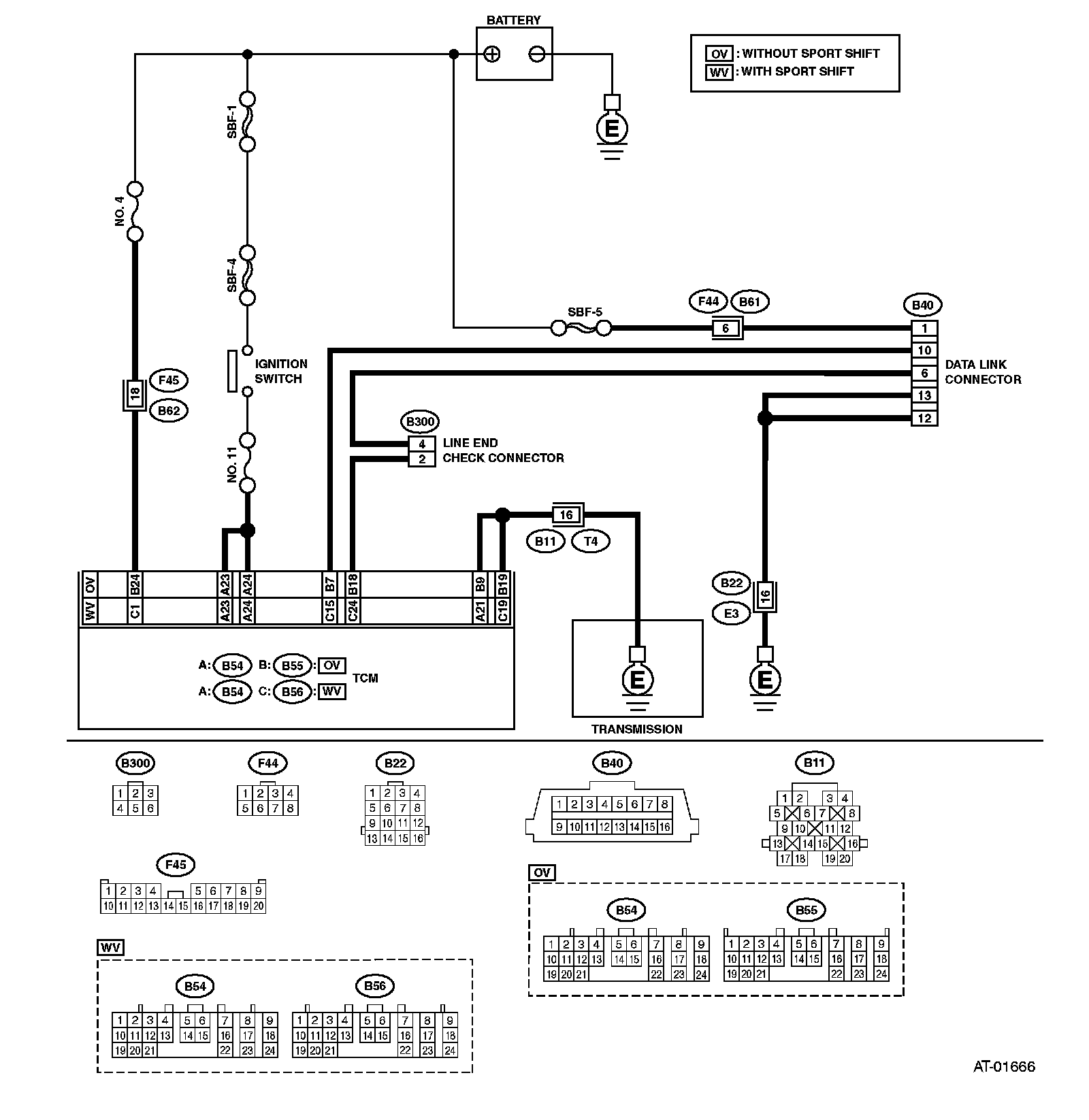

^ U5 model
