Torque Data

COMPONENT

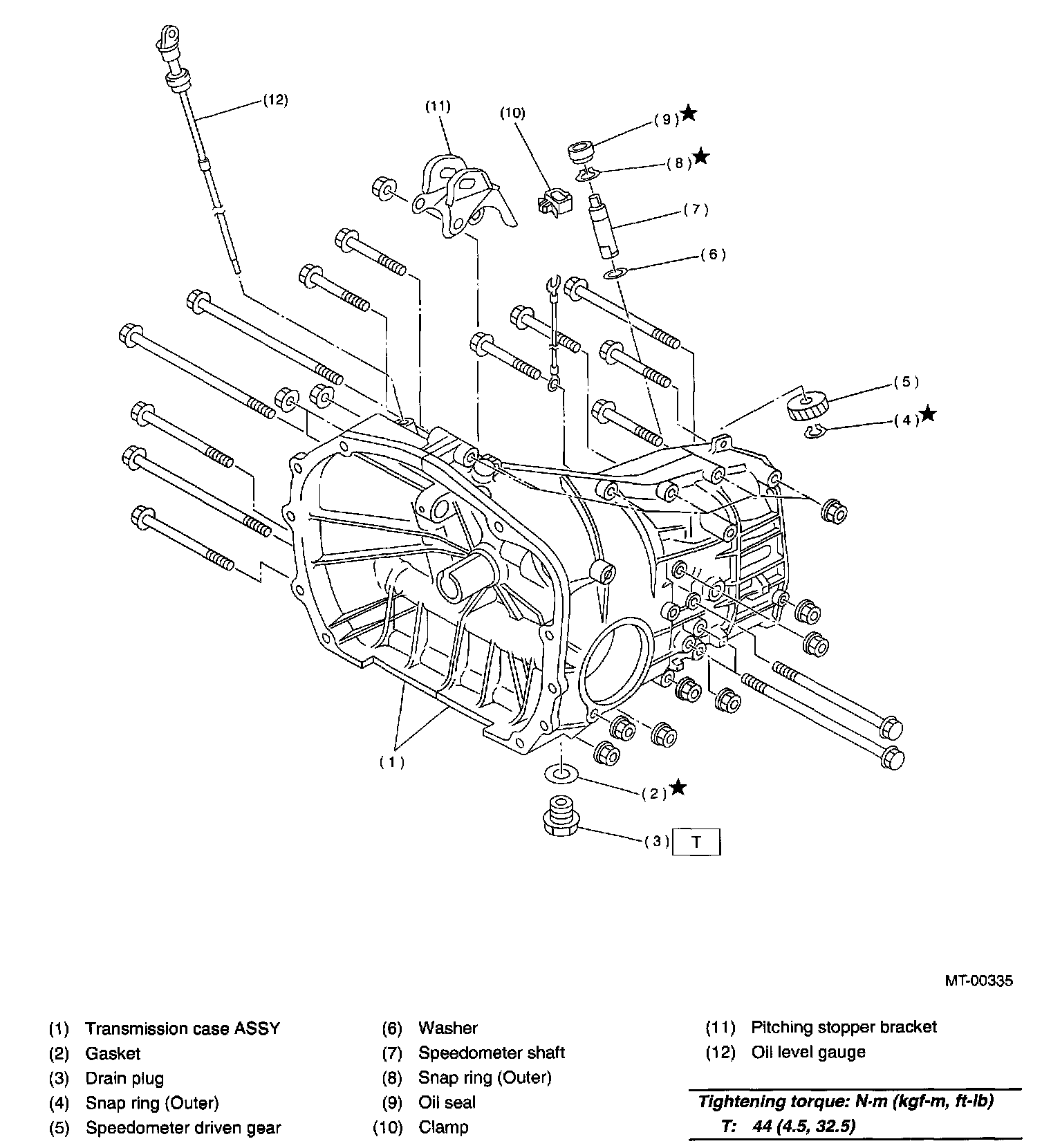

TRANSMISSION CASE








^ Transmission case tightening torque

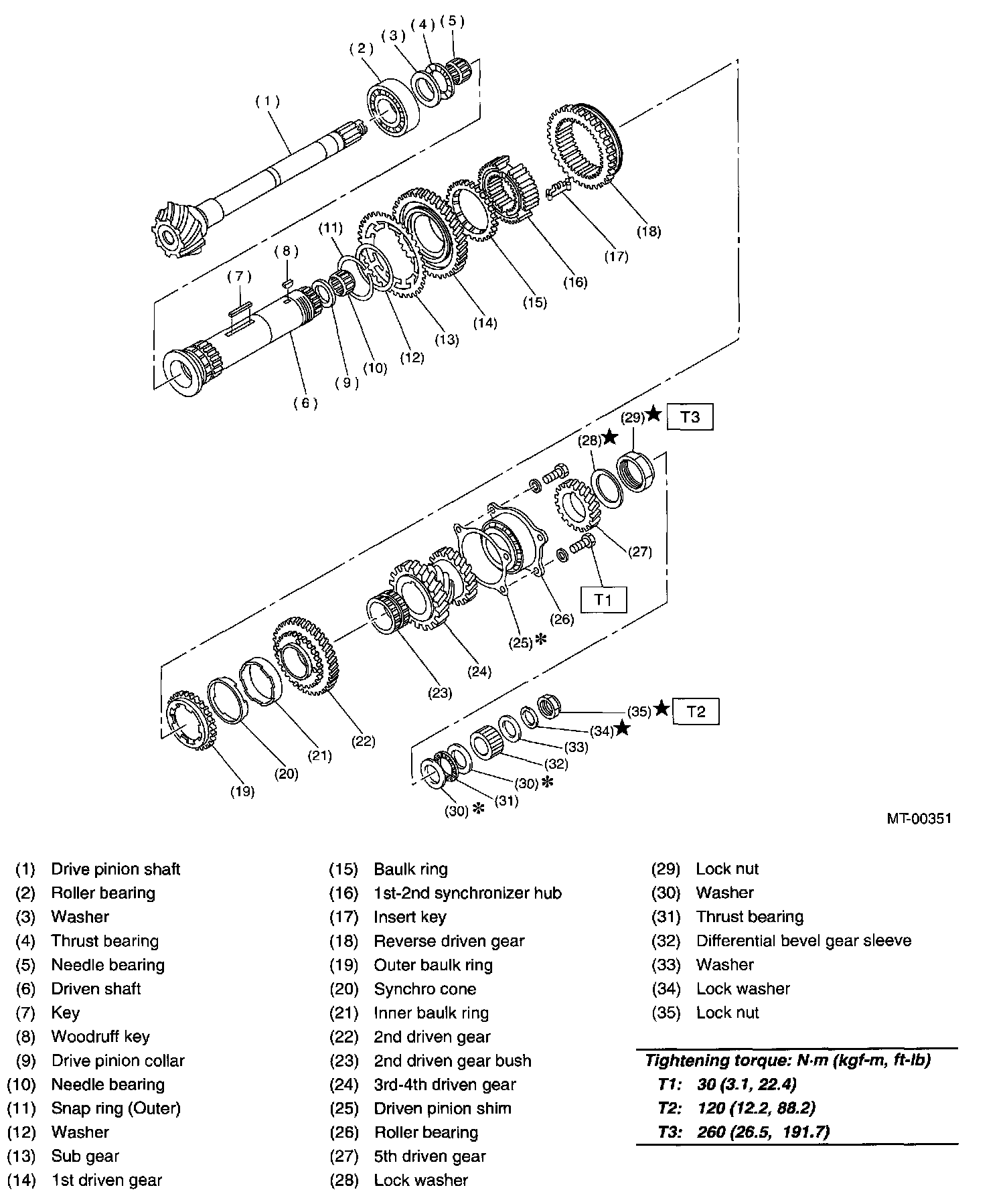

DRIVE PINION ASSEMBLY

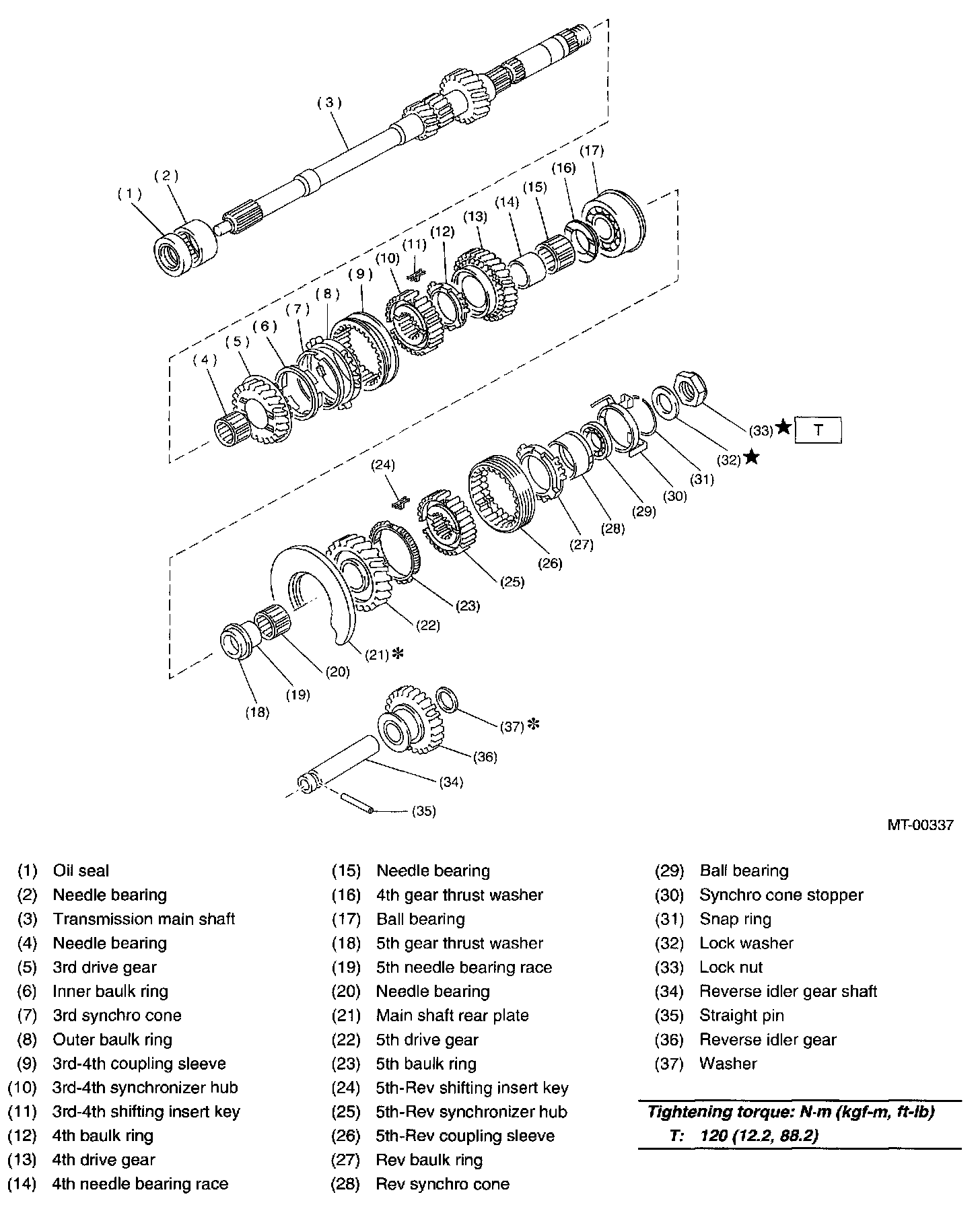

MAIN SHAFT ASSEMBLY

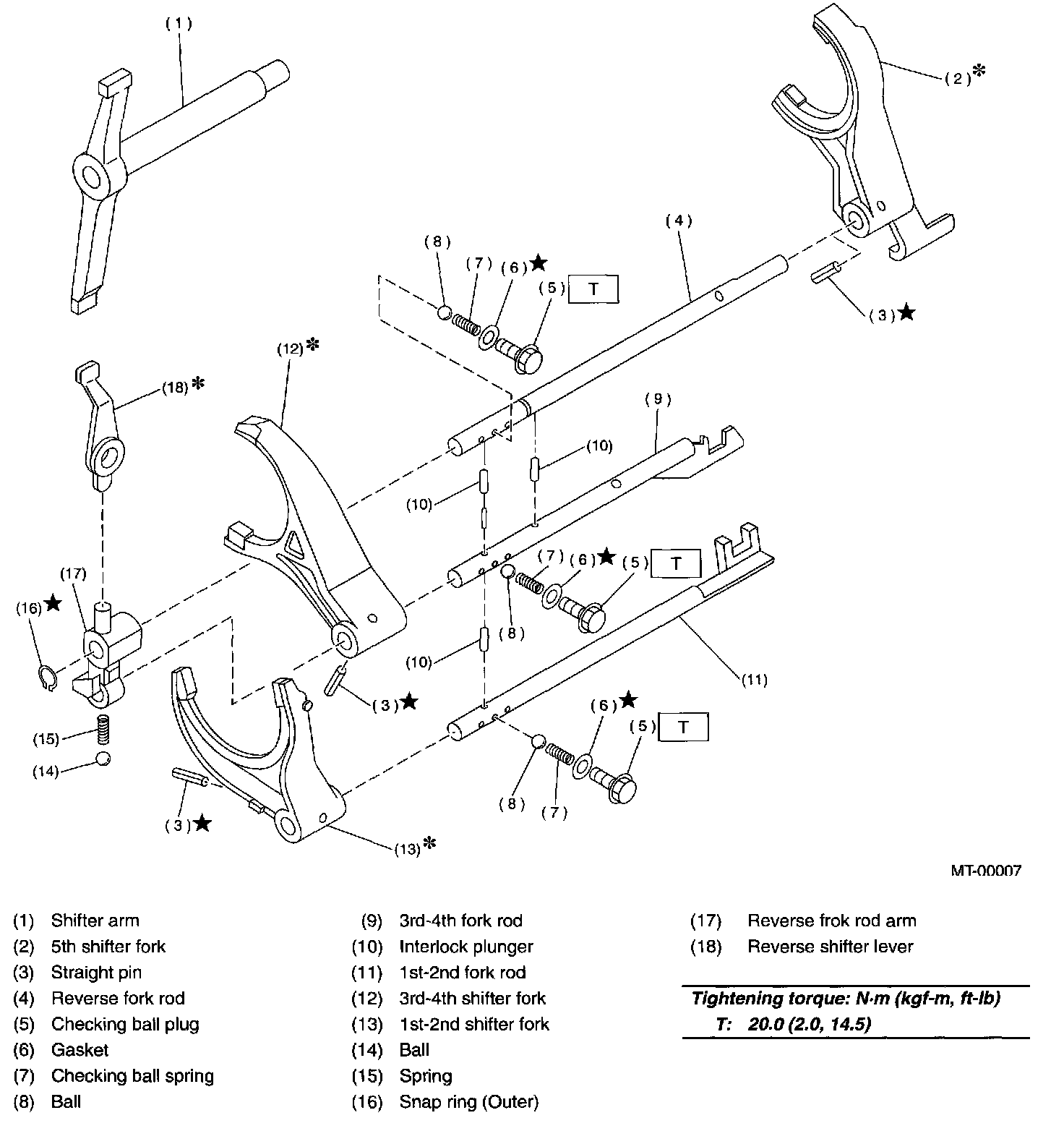

SHIFTER FORK AND SHIFTER ROD

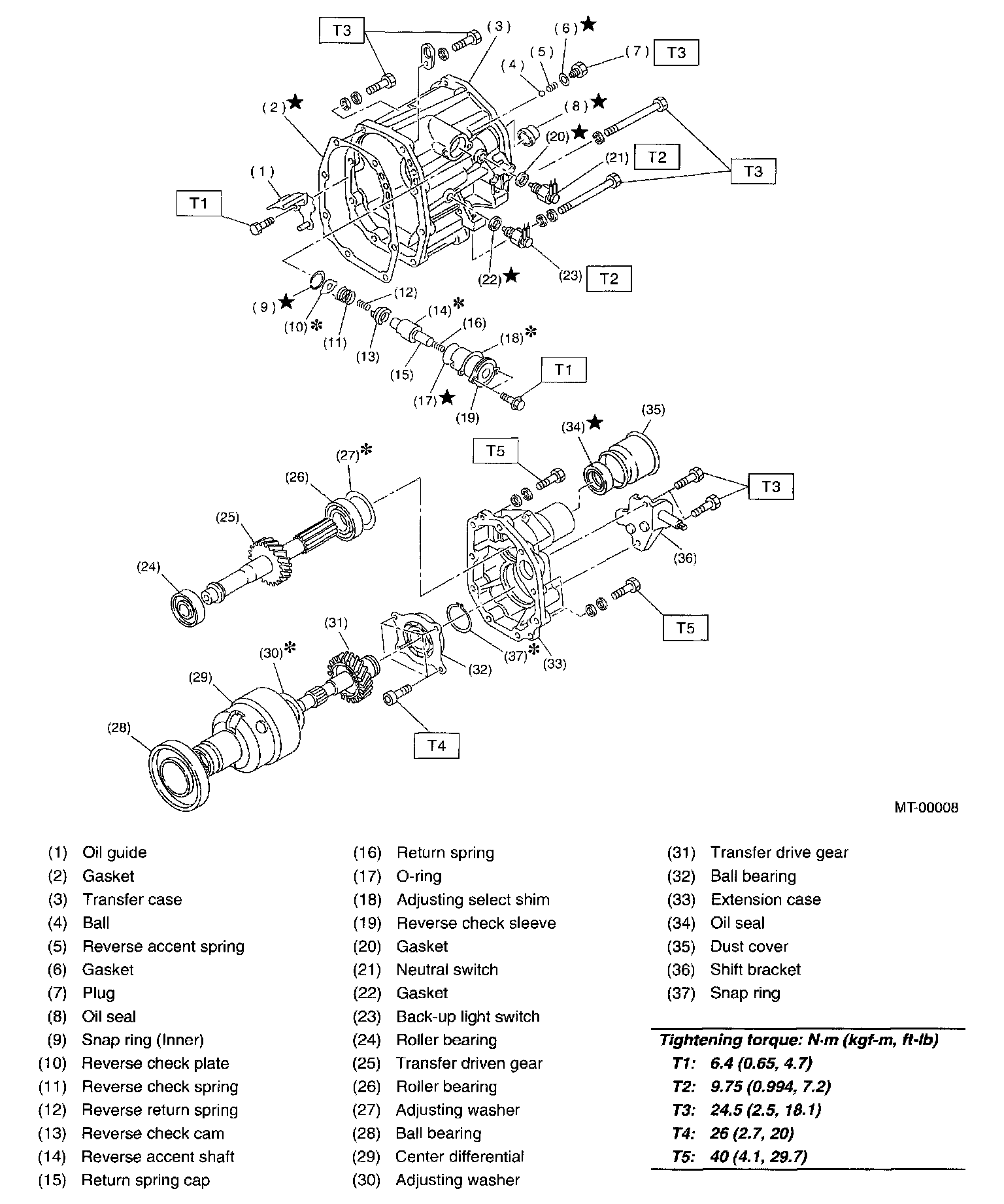

TRANSFER CASE AND EXTENSION

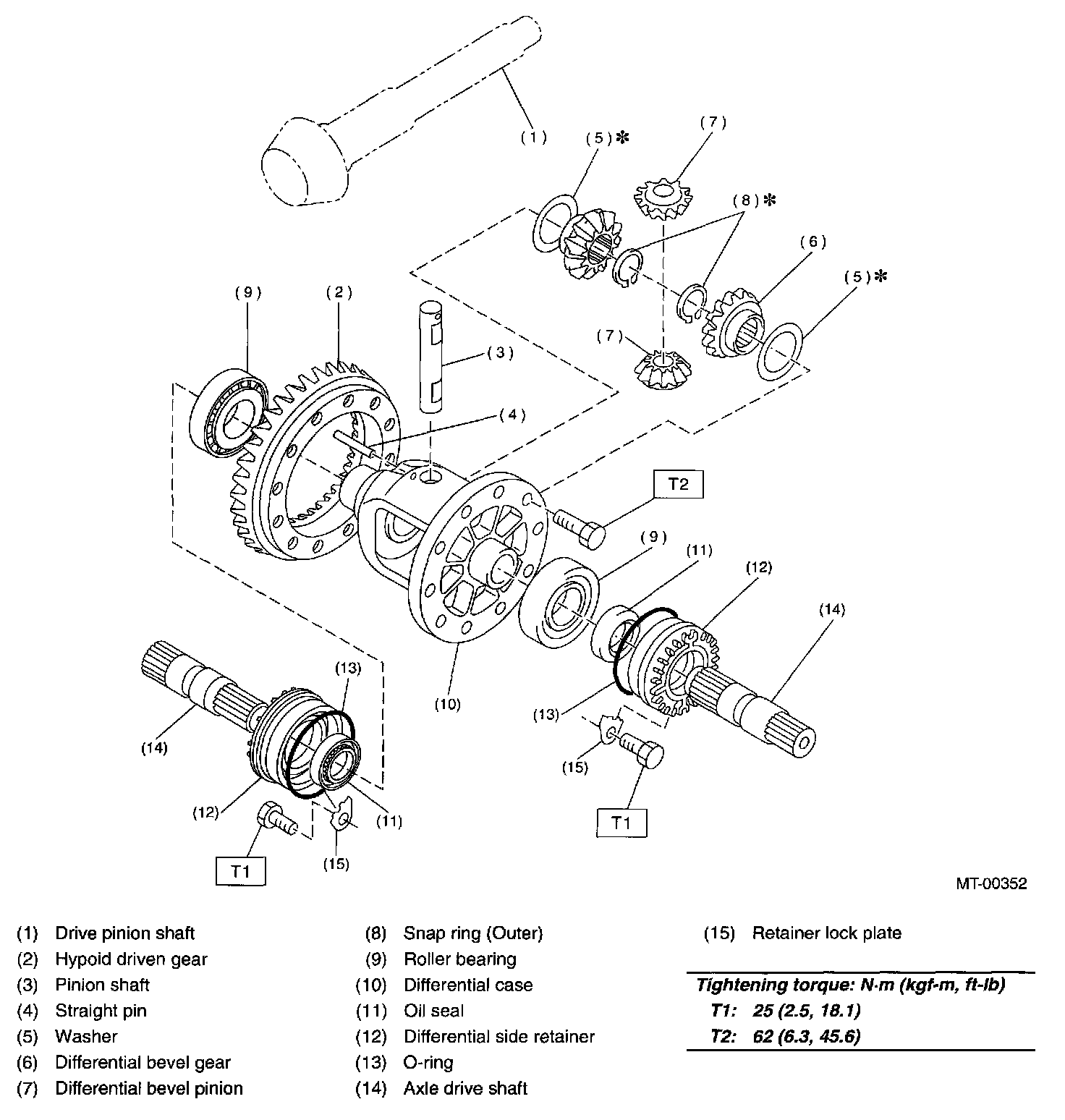

FRONT DIFFERENTIAL
