Front Fender: Service and Repair

FENDER PANEL

REMOVAL

1. Disconnect ground cable from battery.
2. Remove side sill spoilers. (If fitted)
3. Remove side protectors and fender protectors. (OUTBACK)
4. Remove front bumper face.
5. Remove headlights.
6. Remove mud guard.

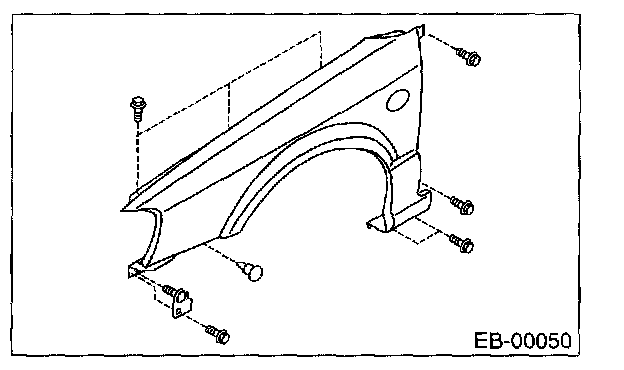

7. Remove bolts and clips to remove front fender.






INSTALLATION

1. Install in the reverse order of removal.
2. When fender panel is installed, clearance between fender panel and hood or front fender must be equal.

Tightening torque: 7.35 N.m (0.75 kgf-m, 5.4 ft-lb)
