Inner Rearview Mirror

Inner Rearview Mirror

REMOVAL

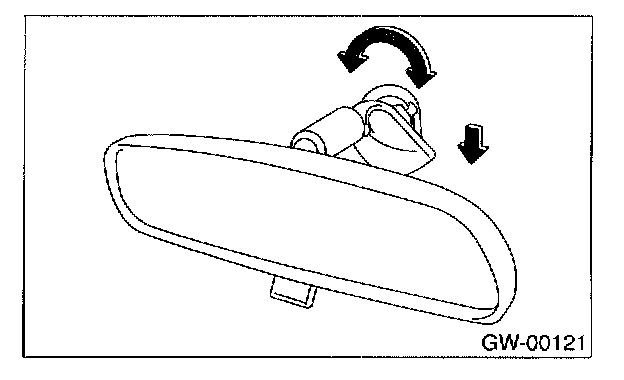

1. Turn mirror base 90 degrees clockwise or counterclockwise to remove it.

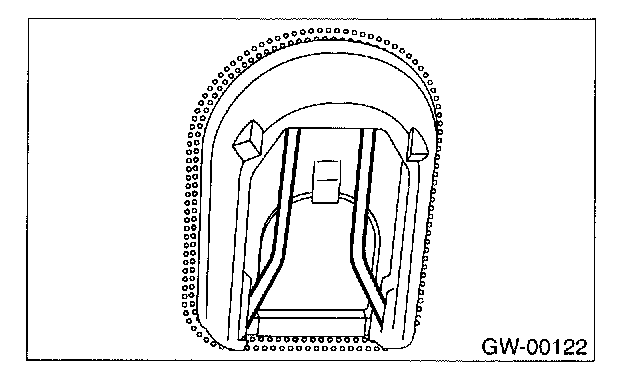

2. Remove spring from mirror base.

CAUTION: Be careful not to damage the mirror surface.

INSTALLATION

Install in the reverse order of removal.
