Towing Information: Service and Repair

TOWING CONDITIONS

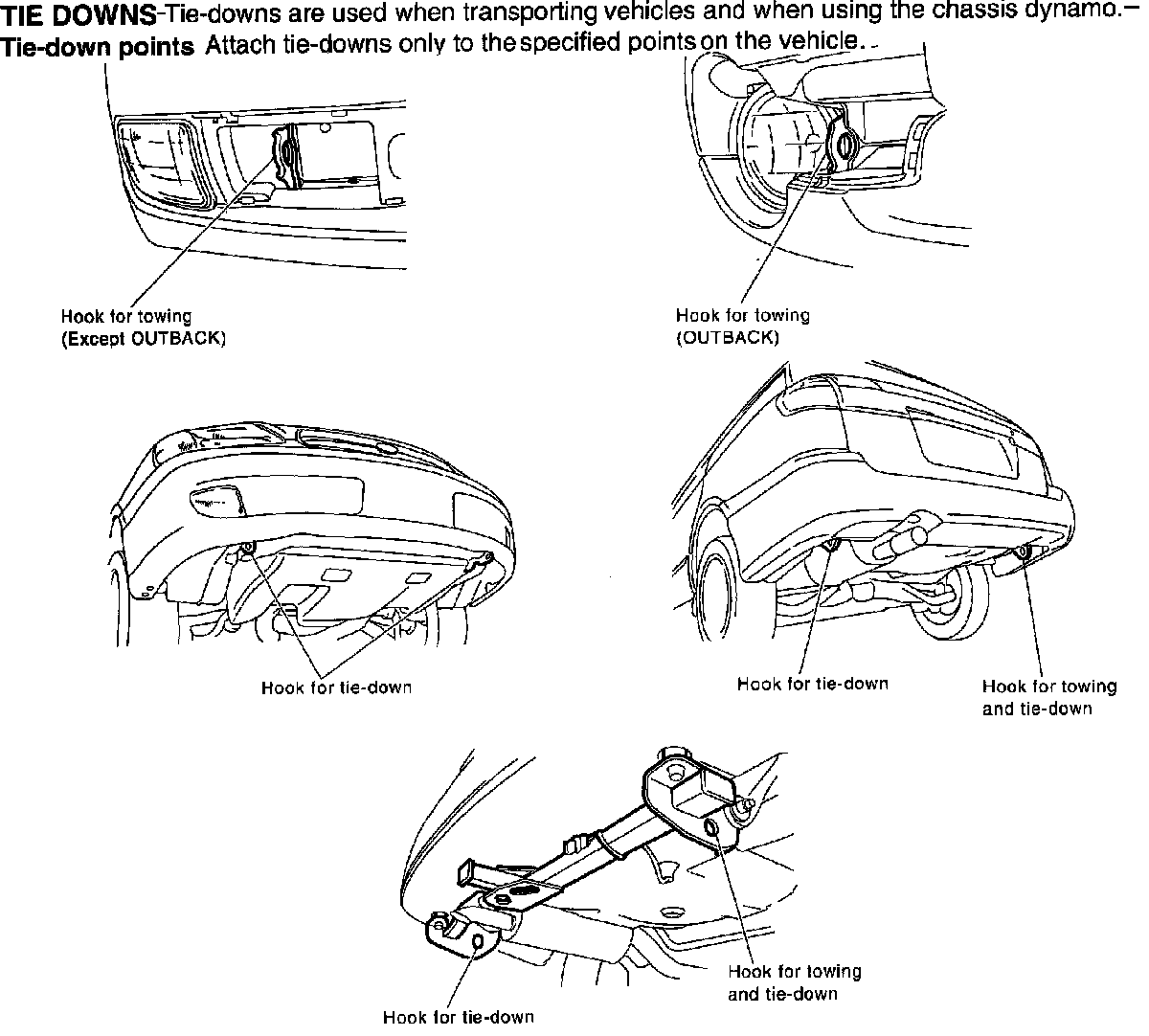

Vehicle Tie Downs

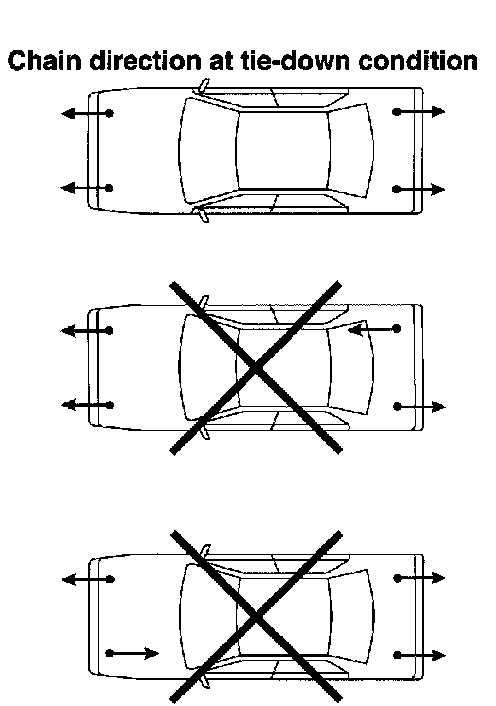

Chain Direction

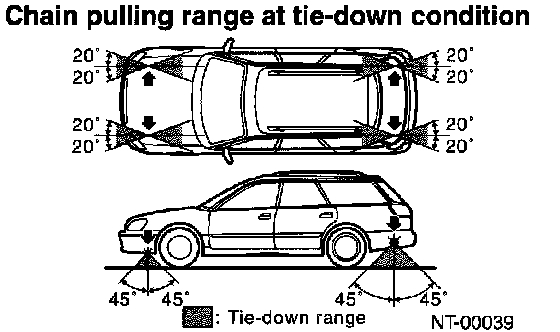

Chain Pulling Range

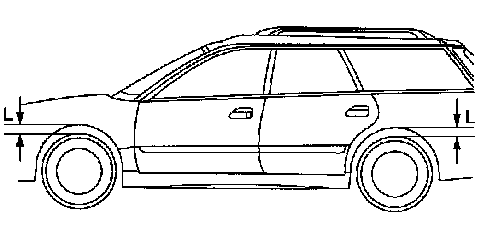

Vehicle Sinking Volume
Measure distance L between tire highest point to arch highest point before tie-down and after tie- down. Difference of measurement value (drop height) shall be within 50.8 mm (2.00 in). Make sure to fix a vehicle securely.

TOWING

Avoid towing vehicles except when the vehicle cannot be driven. For vehicles with AWD, AT or VTD use a loader instead of towing. When towing other vehicles, to prevent excessive weight from damaging the hook or vehicle:

Do not tow other vehicles with a front towing hook.
Make sure the vehicle towing is heavier that the vehicle being towed.
