Computers and Control Systems: Locations

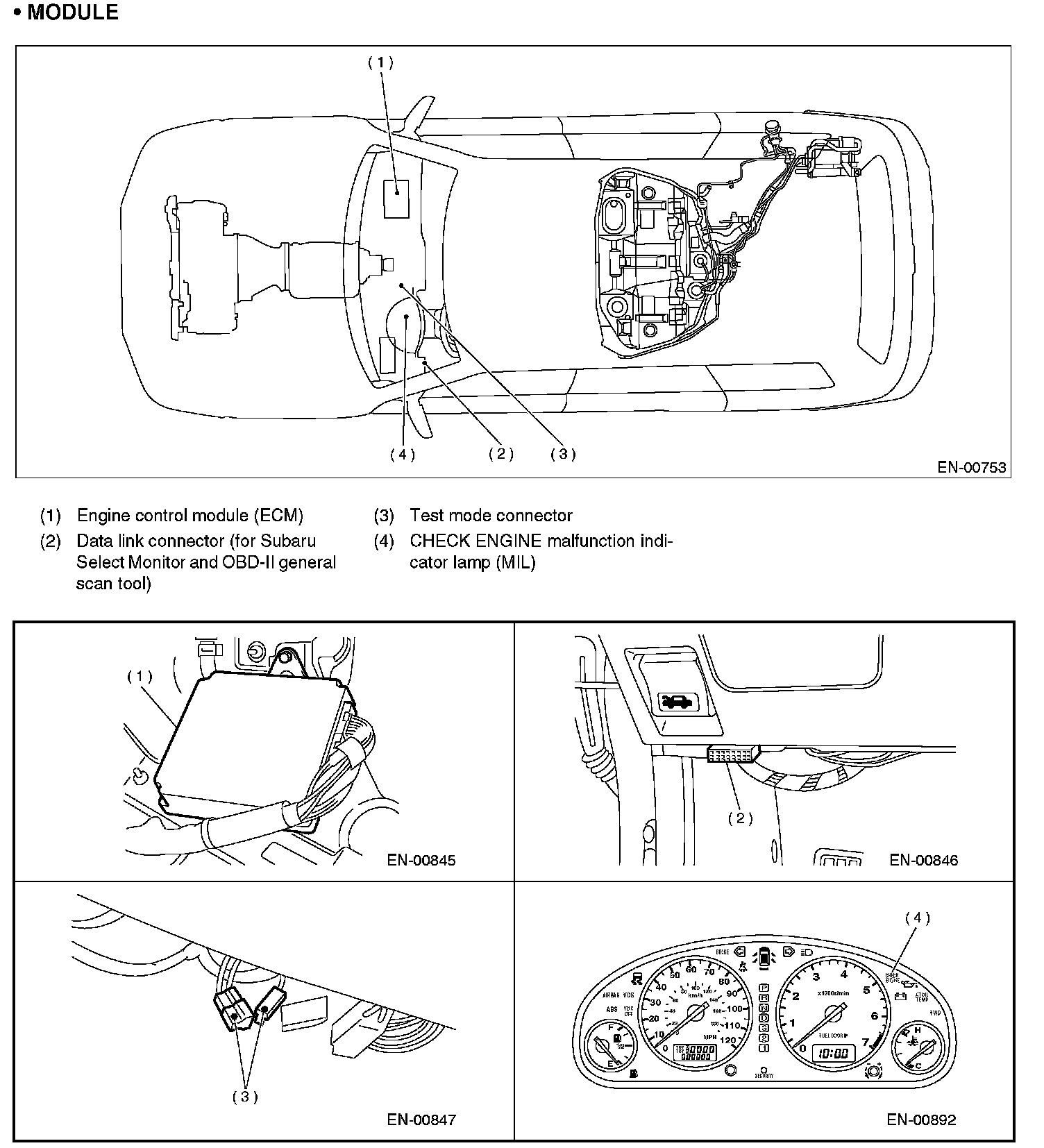

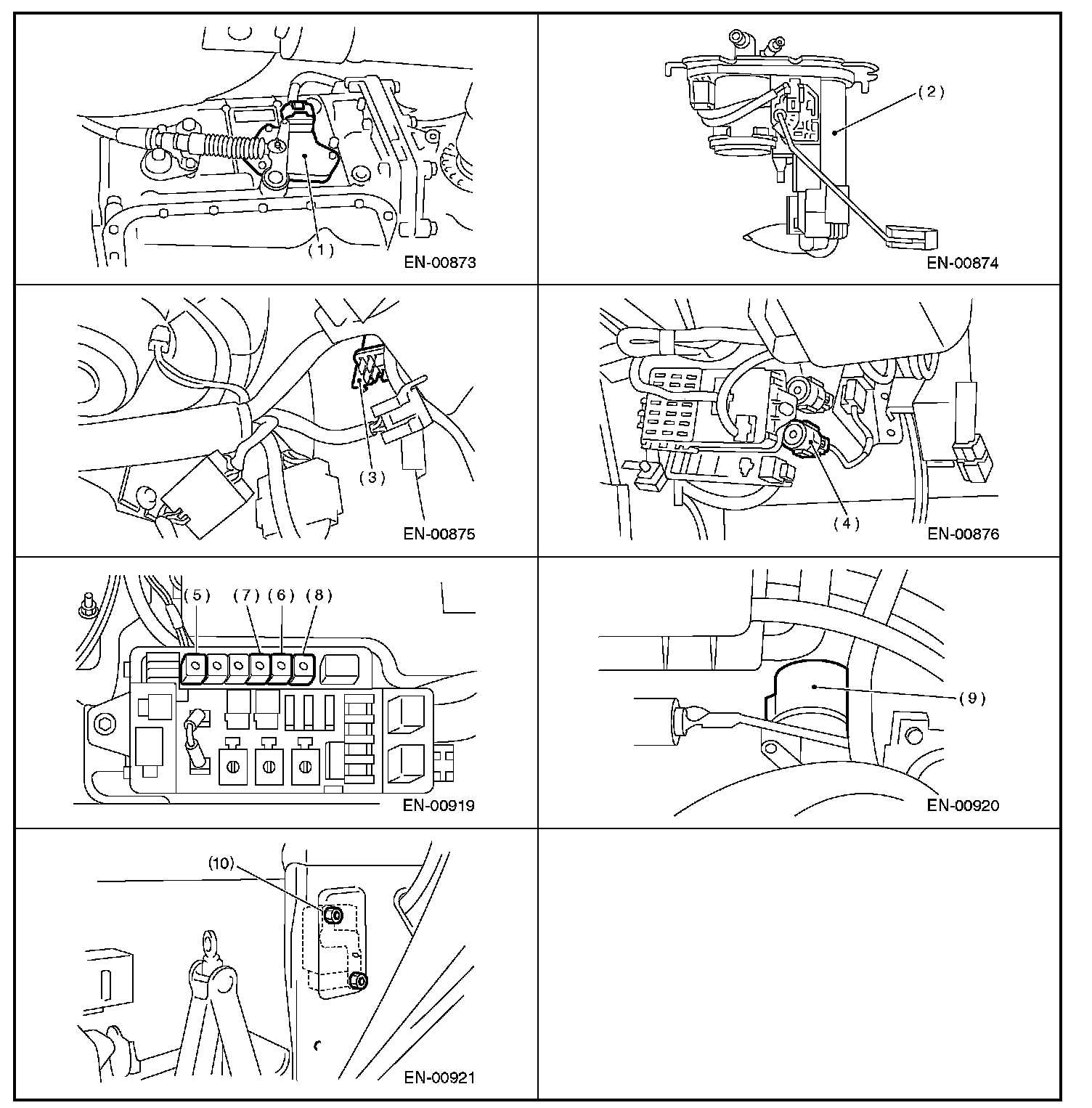

Electrical Components Location - Module:

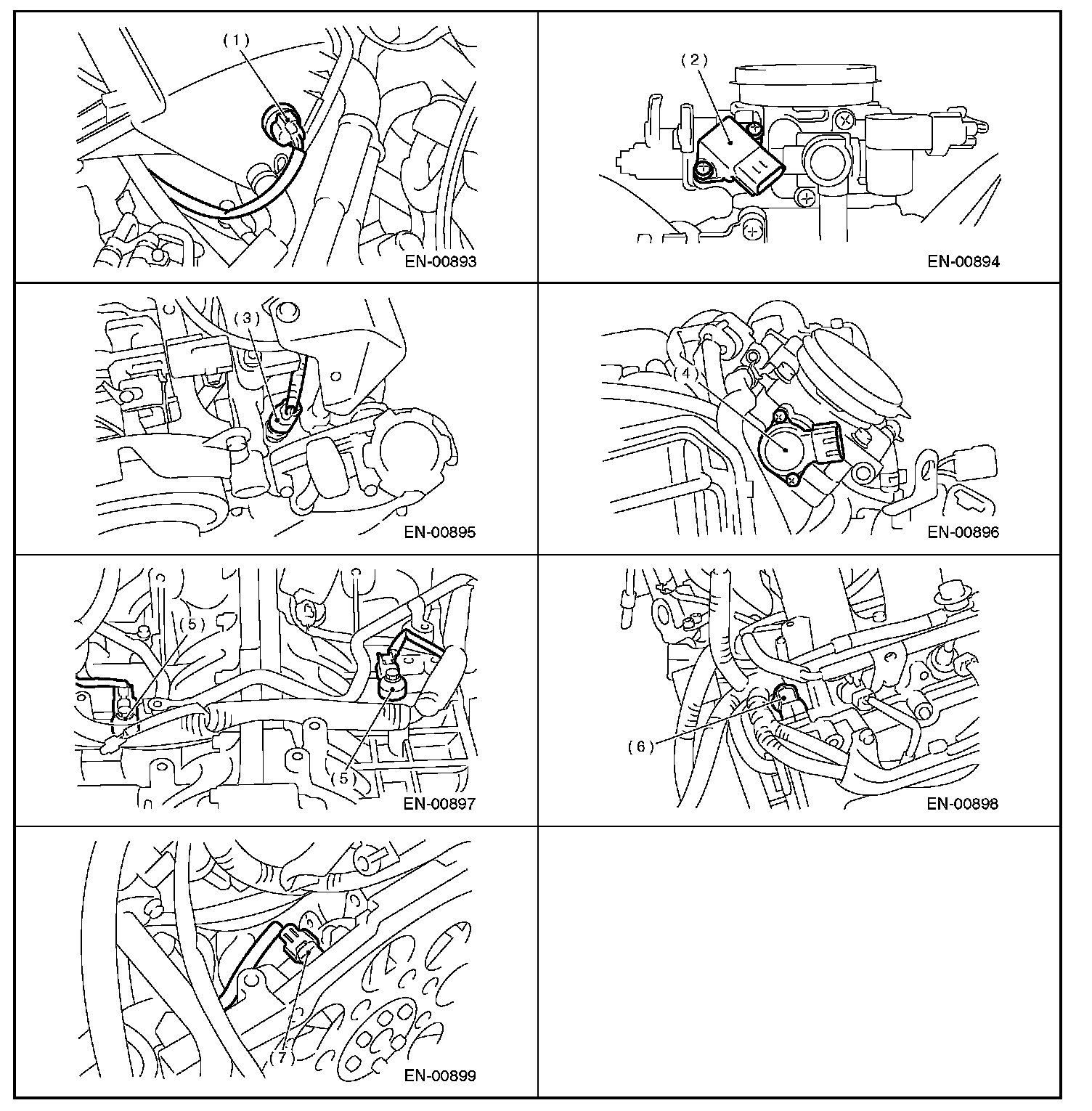

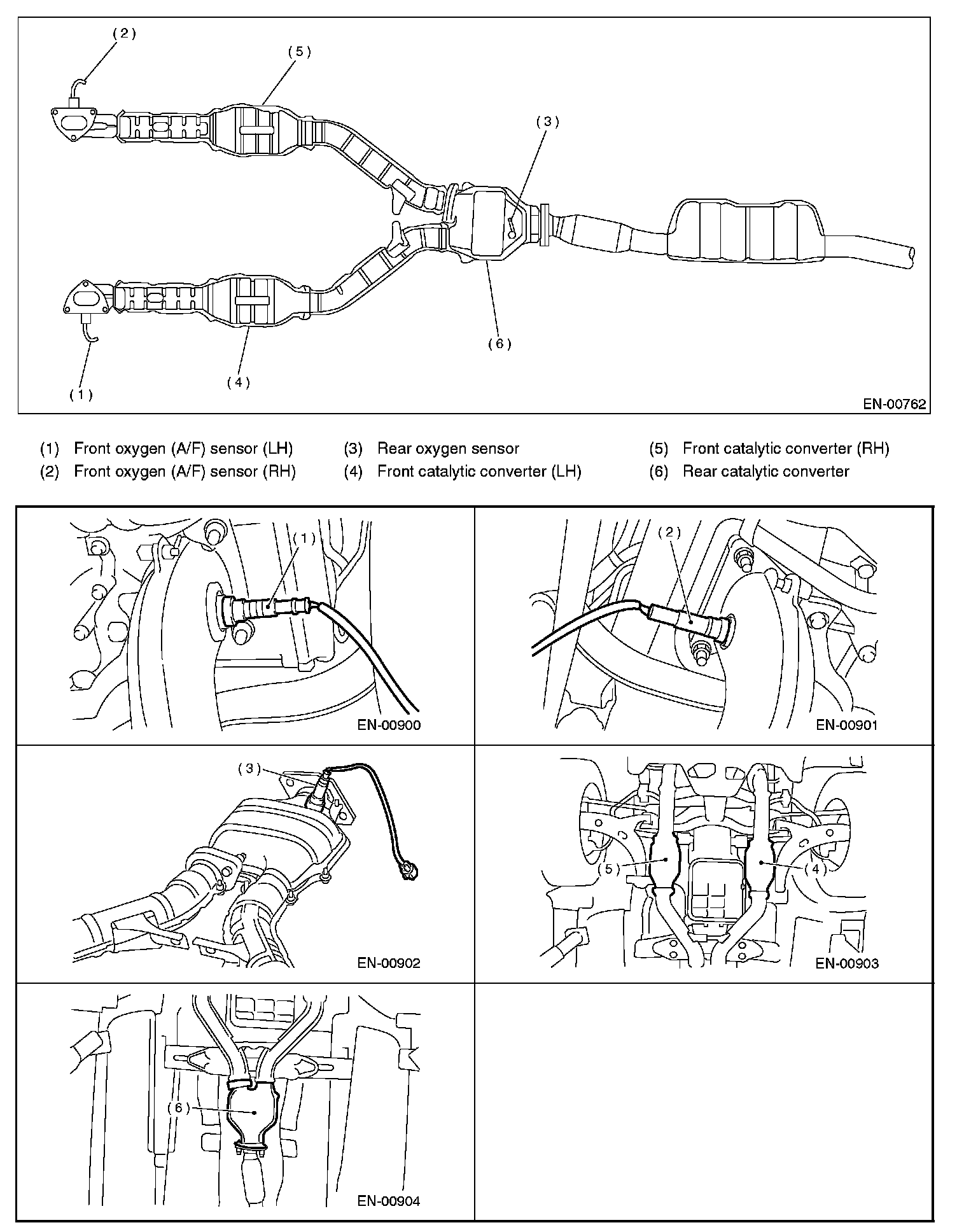

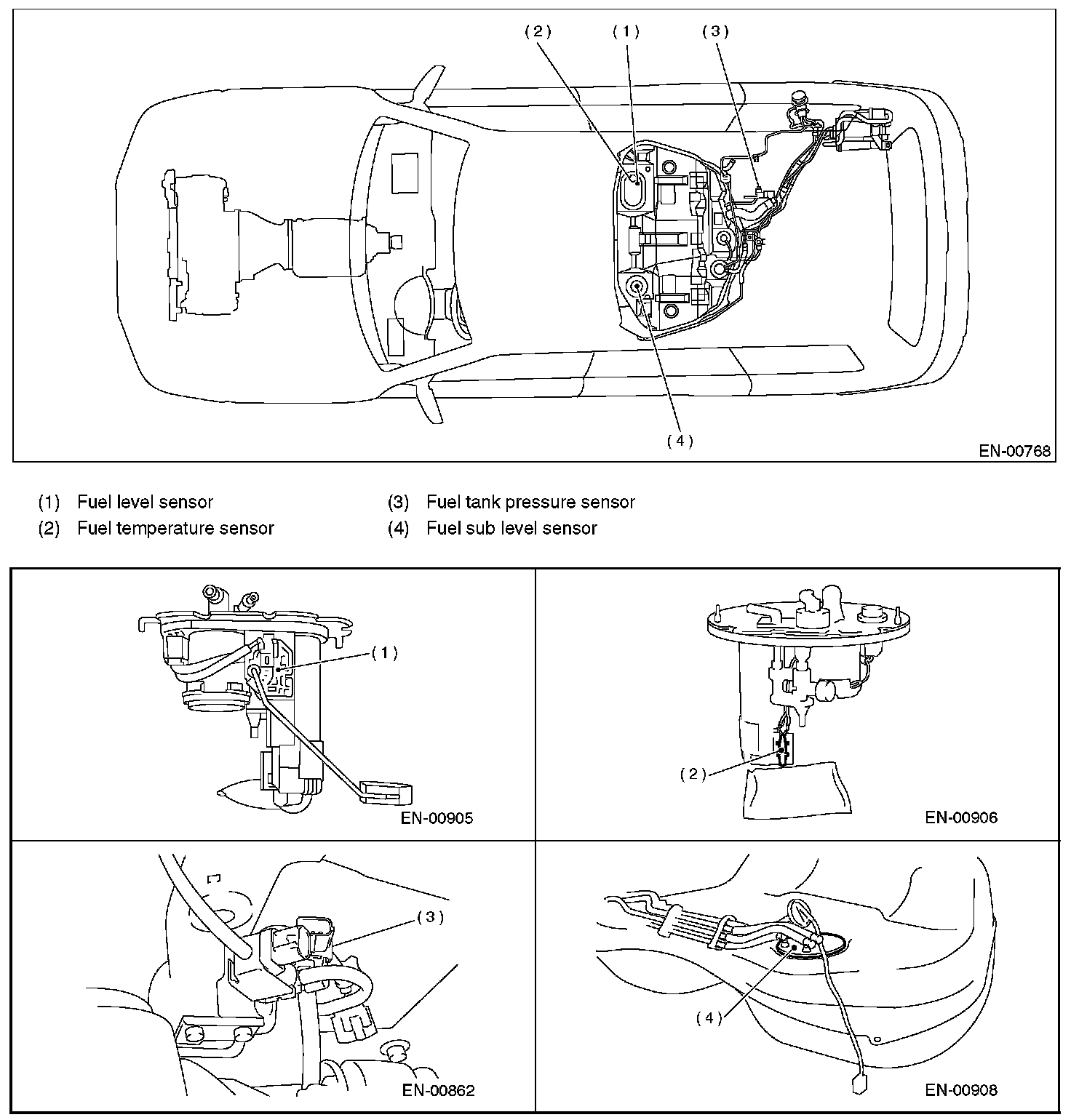

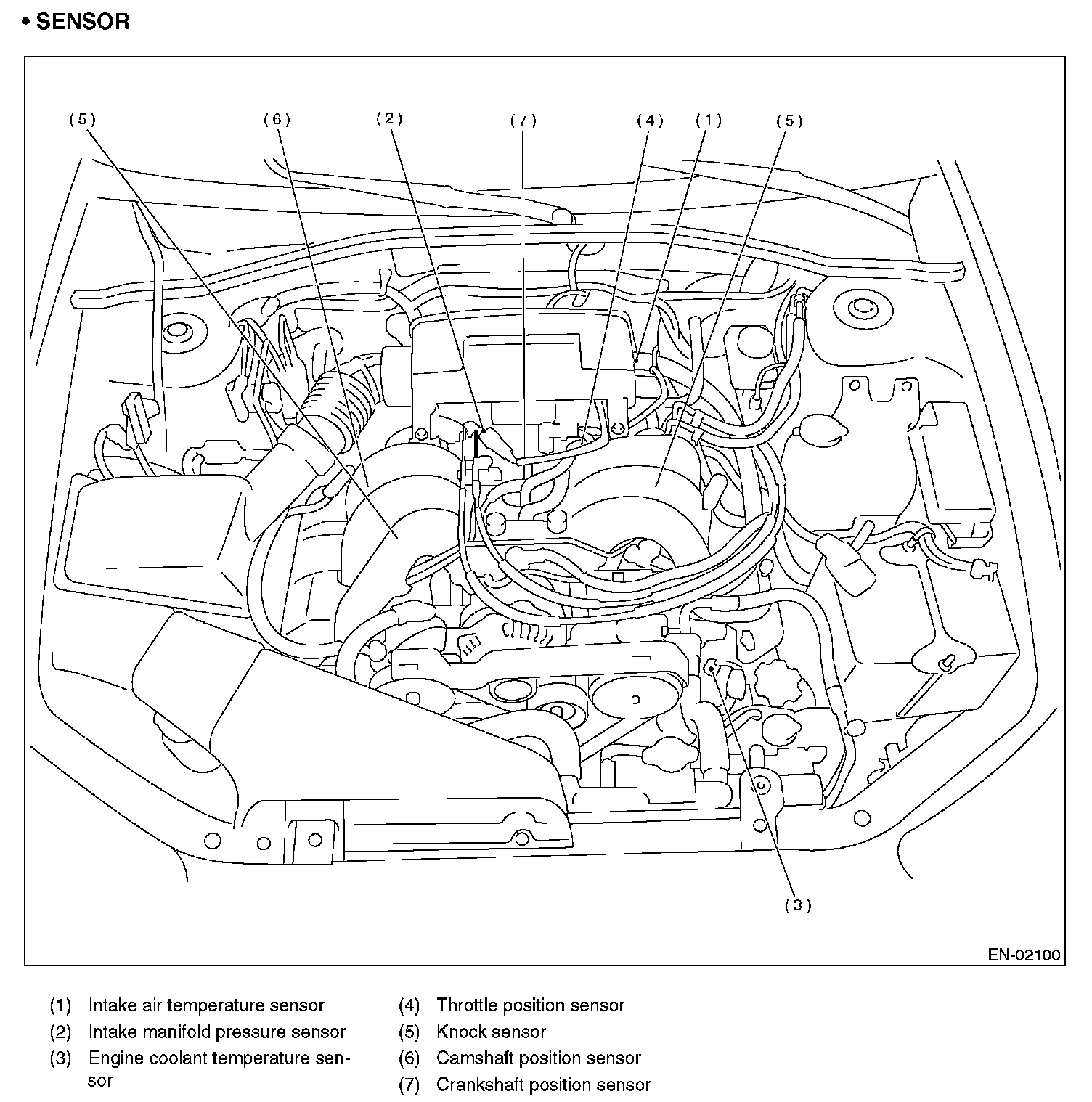

Electrical Components Location - Sensor:
