Main Relay (Computer/Fuel System): Service and Repair

REMOVAL




1. Disconnect battery ground cable.
2. Remove lower inner trim of passenger side.

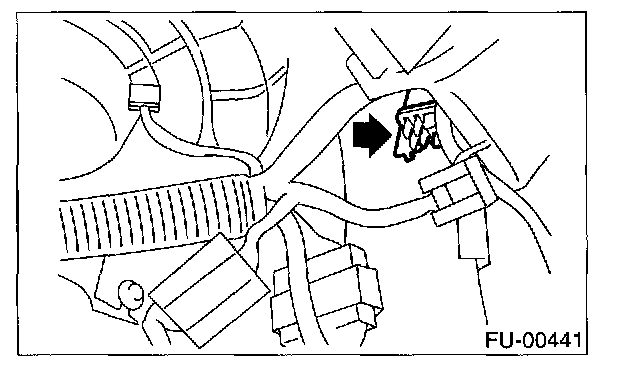

3. Disconnect connectors from main relay.




4. Remove bolt which holds main relay bracket on body.

INSTALLATION
Install in the reverse order of removal.
