Pinout Values and Diagnostic Parameters

Transmission Control Module (TCM) I/O Signal

Part 1:




Part 2:




Part 3:




Part 4:

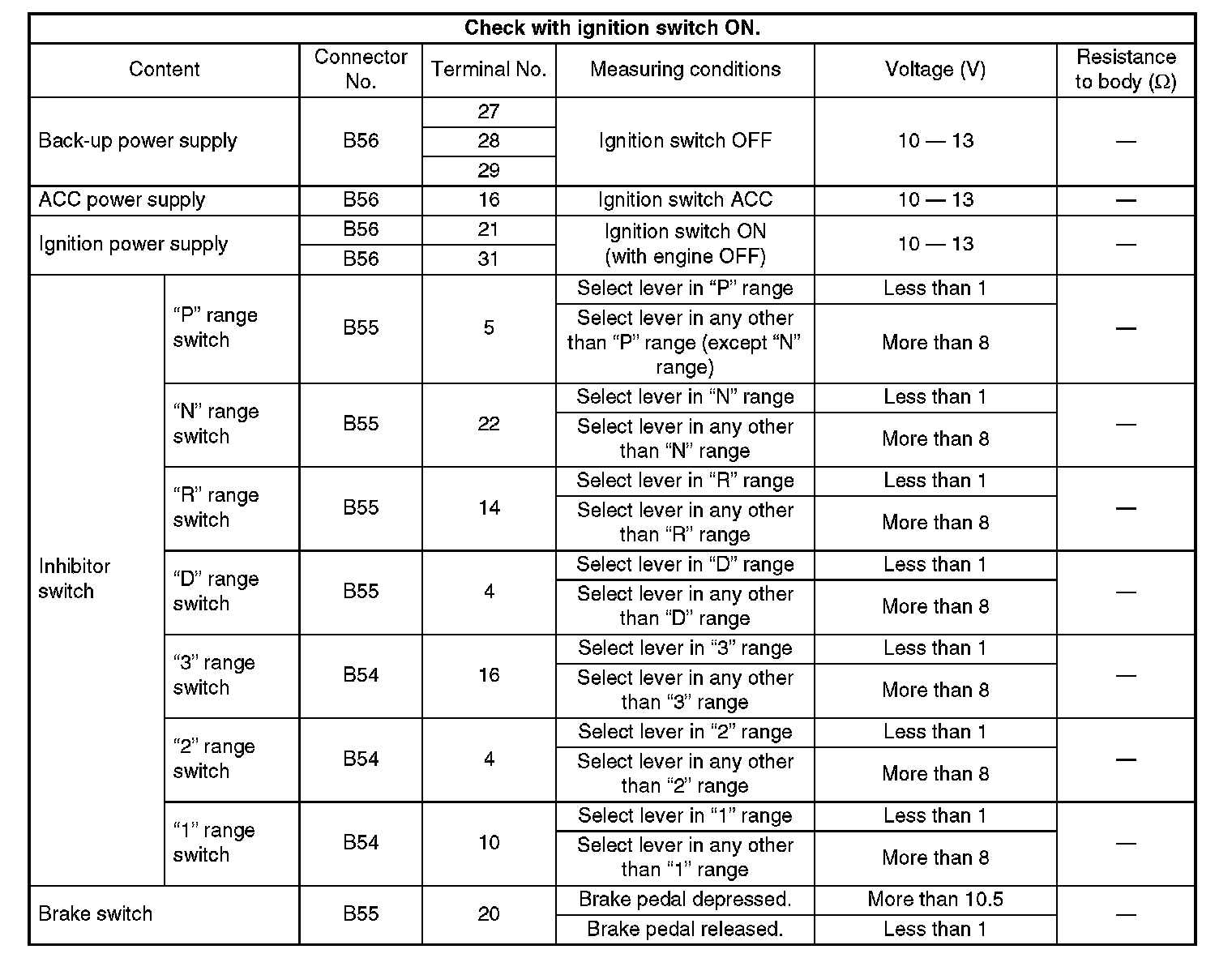

Transmission Control Module (TCM) I/O Signal Part 1:

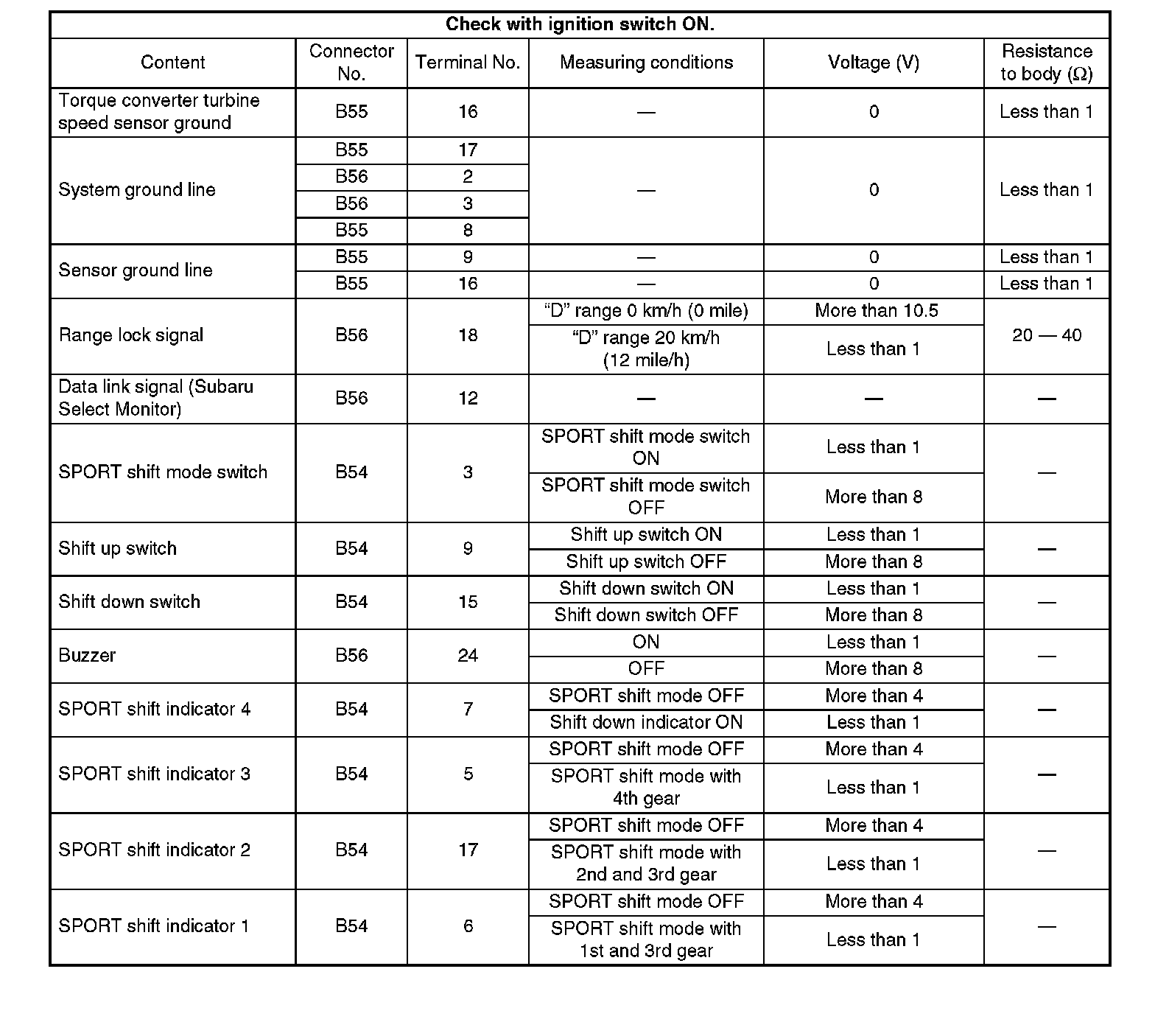

Transmission Control Module (TCM) I/O Signal Part 2:

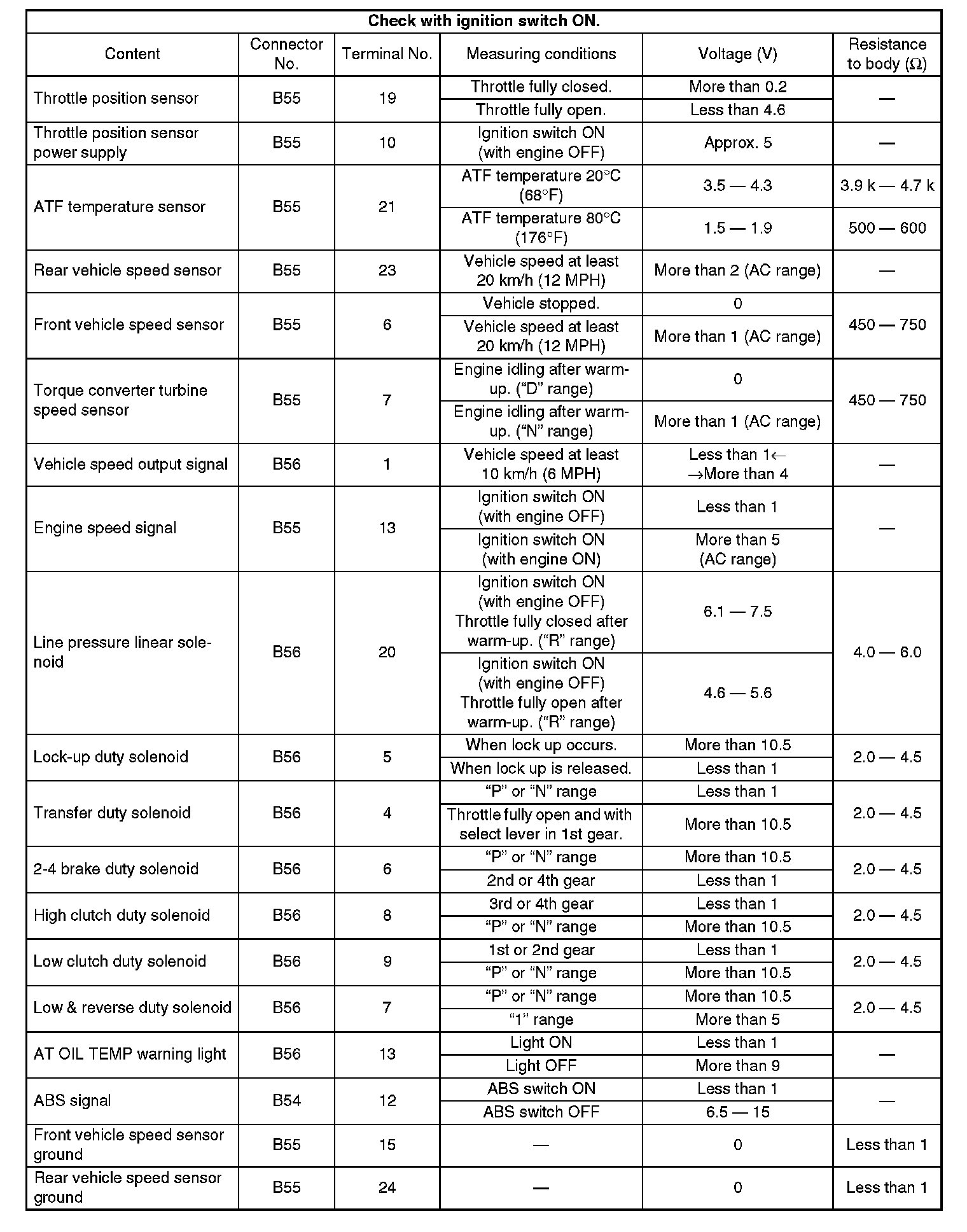

Transmission Control Module (TCM) I/O Signal Part 3:






ELECTRICAL SPECIFICATION
