Wheel Alignment: Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

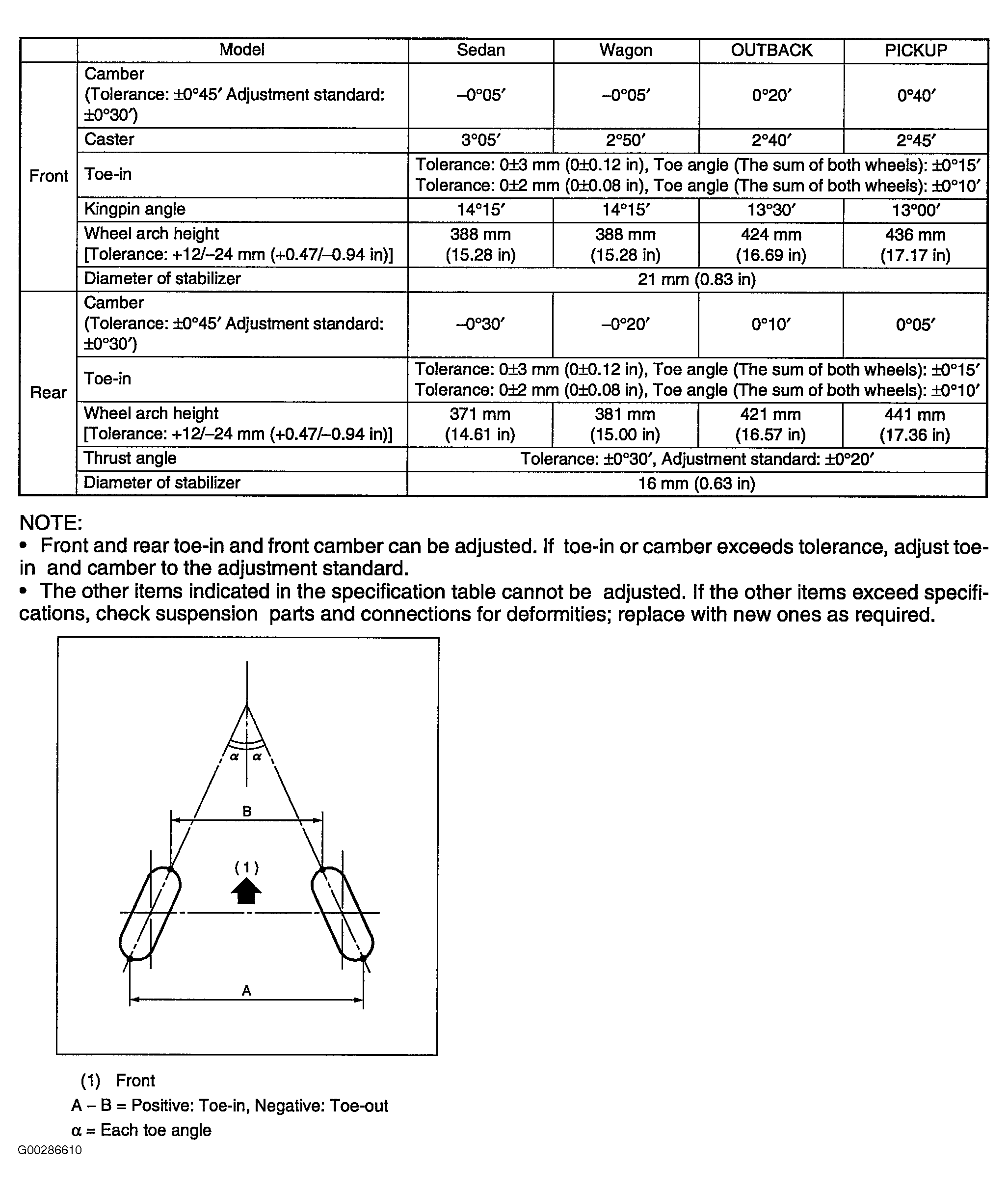

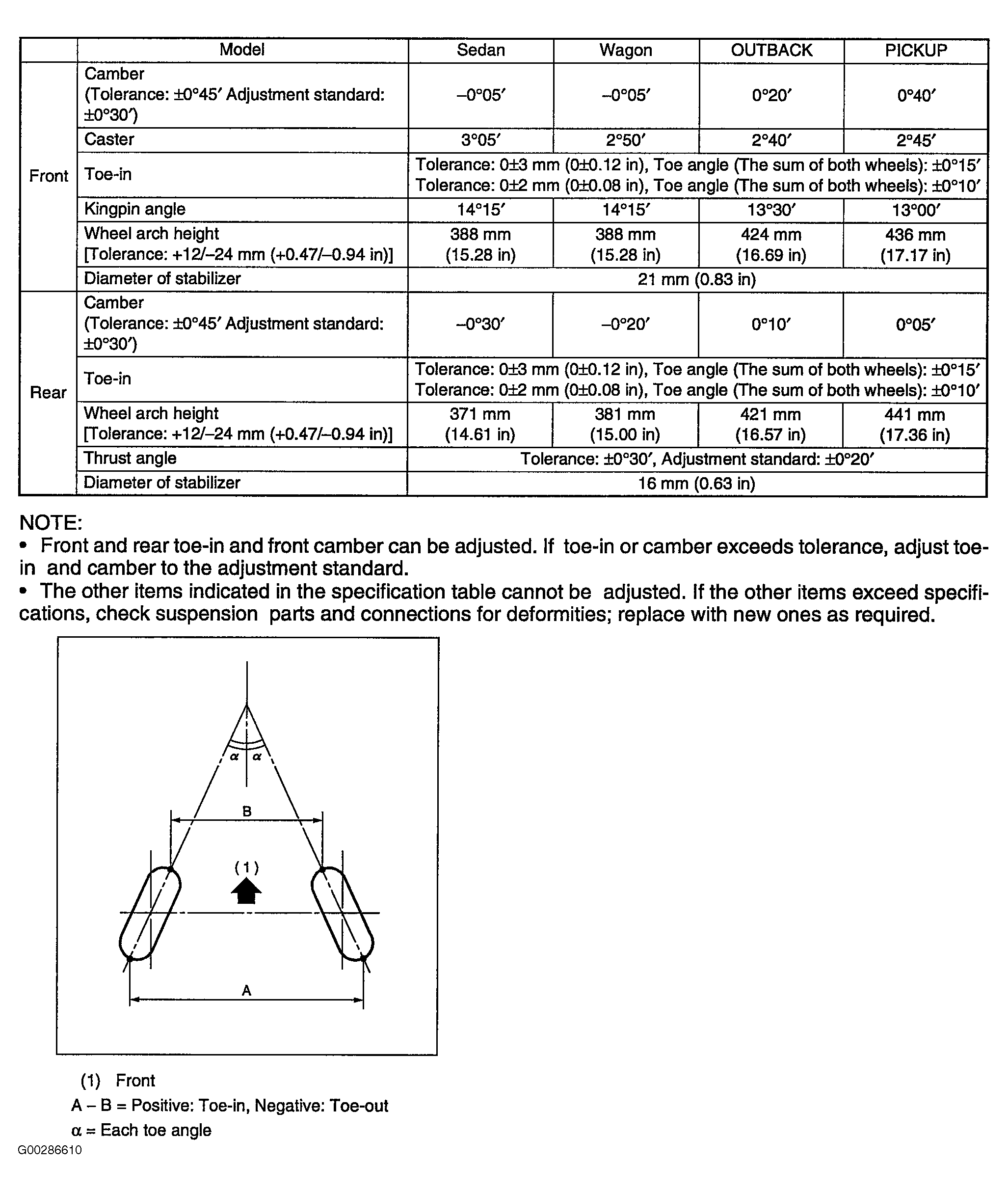

Fig 1: Wheel Alignment Specifications (Legacy & Outback)

Courtesy of SUBARU OF AMERICA, INC.
