Inner Rearview Mirror: Removal

Loosen TORX screw (A) and remove the inner rearview mirror.

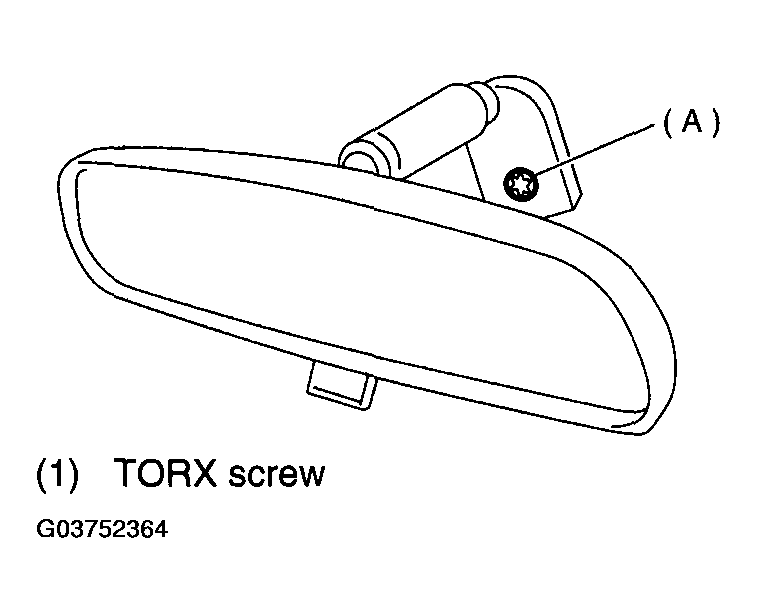

Fig 1: Removing Inner Rearview Mirror
G03752364Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Be careful not to damage the mirror surface.
