Remote Control Mirror Switch: Removal

  1. Remove power window main switch panel.

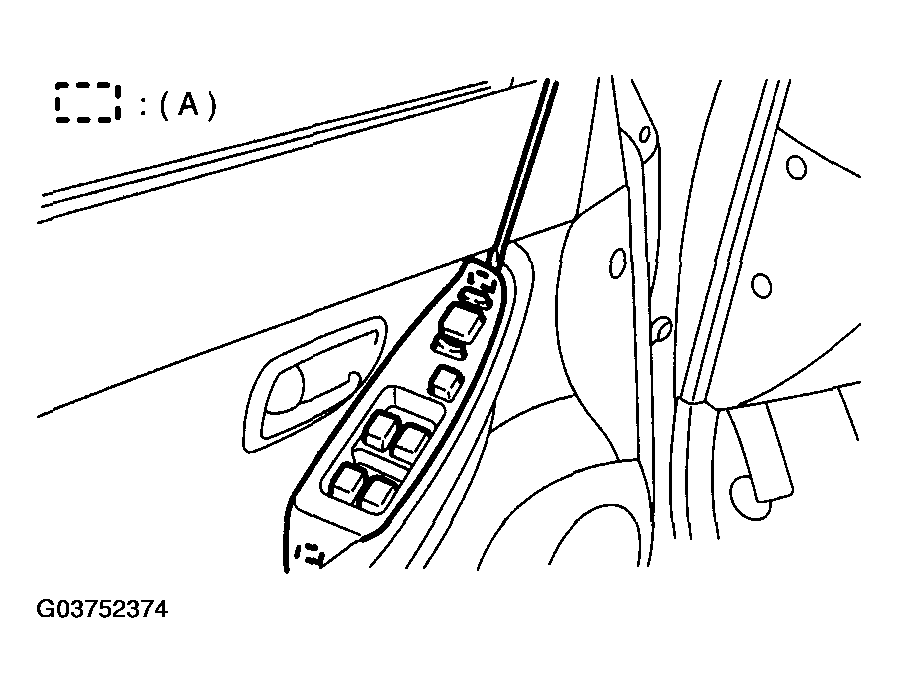

    Fig 1: Removing Power Window Main Switch Panel
    G03752374Courtesy of SUBARU OF AMERICA, INC.
  2. Remove four hook (A) to remove remote control mirror switch.

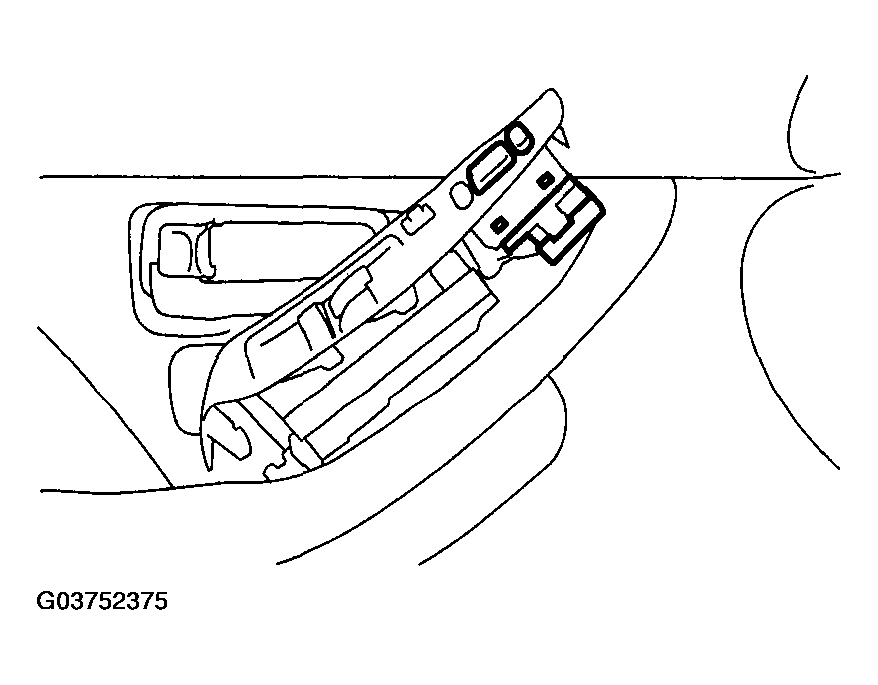

    Fig 2: Removing Remote Control Mirror Switch
    G03752375Courtesy of SUBARU OF AMERICA, INC.
