Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

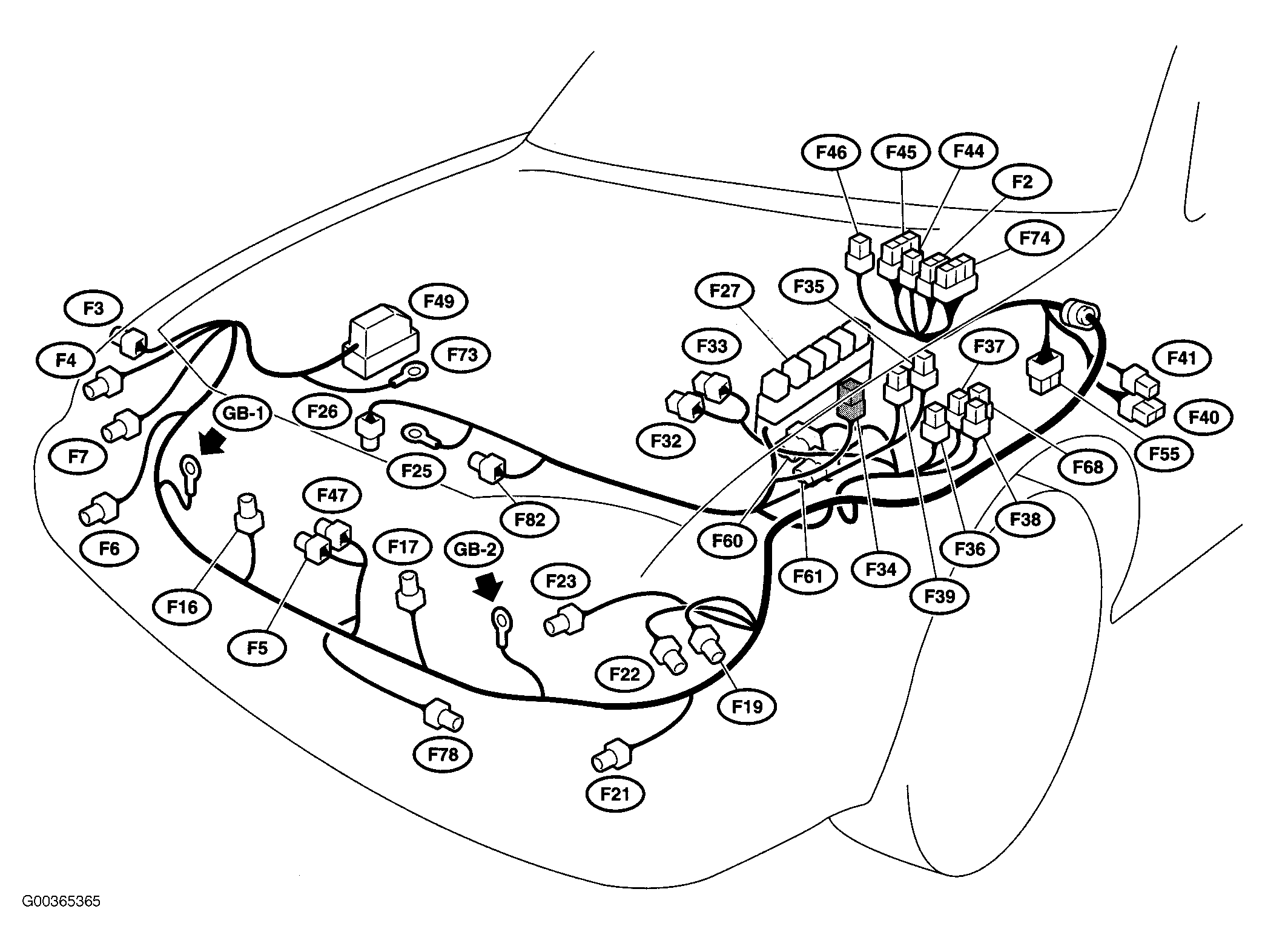

| ABS Control Module (F49) | Right side of engine compartment. See Figure. |

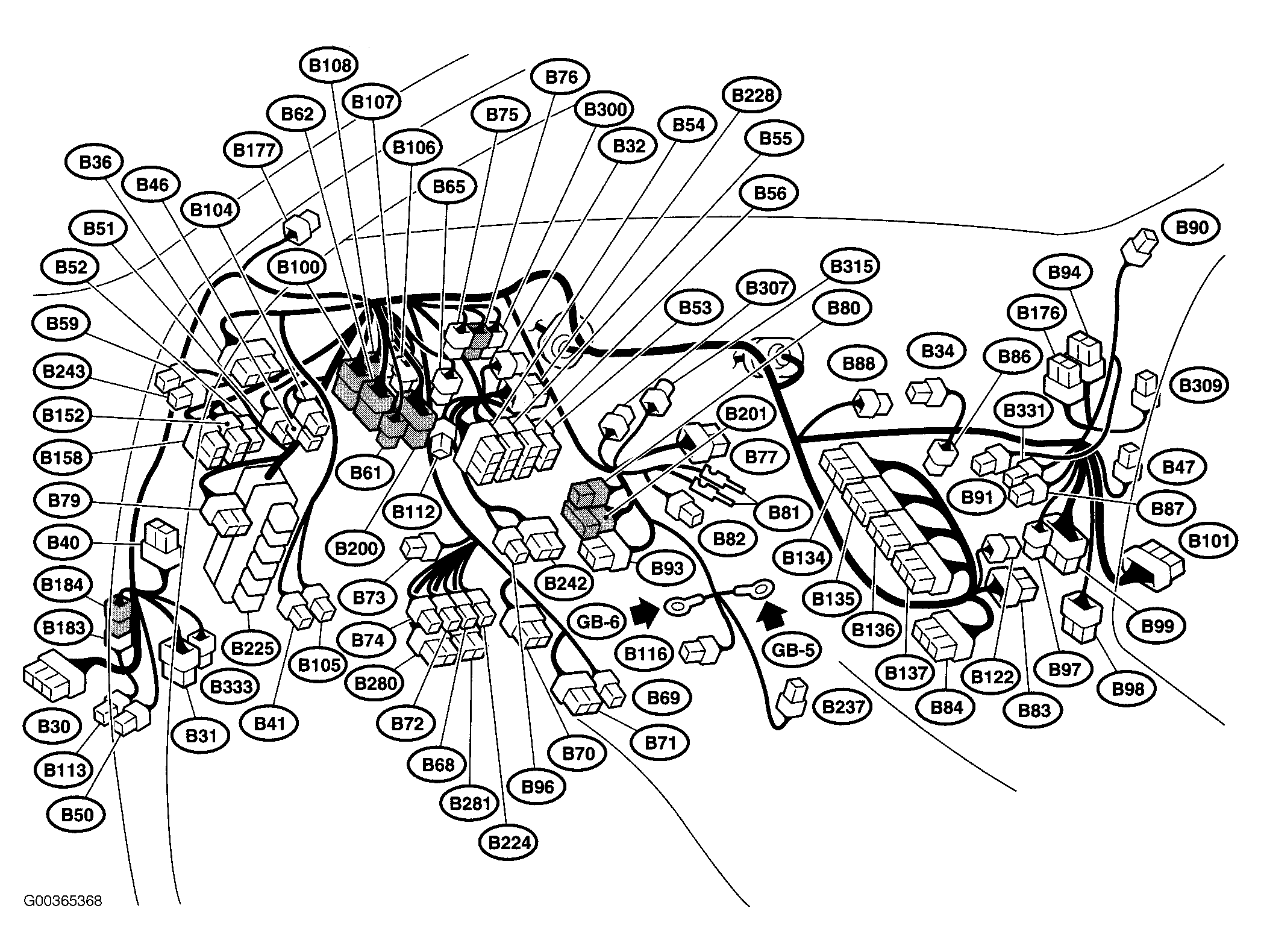

| Cruise Control Module (B94) | Behind right side of dash. See Figure. |
| Daytime Running Light Control Module (B96, B242) | Behind left center of dash. See Figure. |
| Engine Control Module (B134, B135, B136, B137) | In passenger side front footwell below carpet and protective panel. See Figure. |

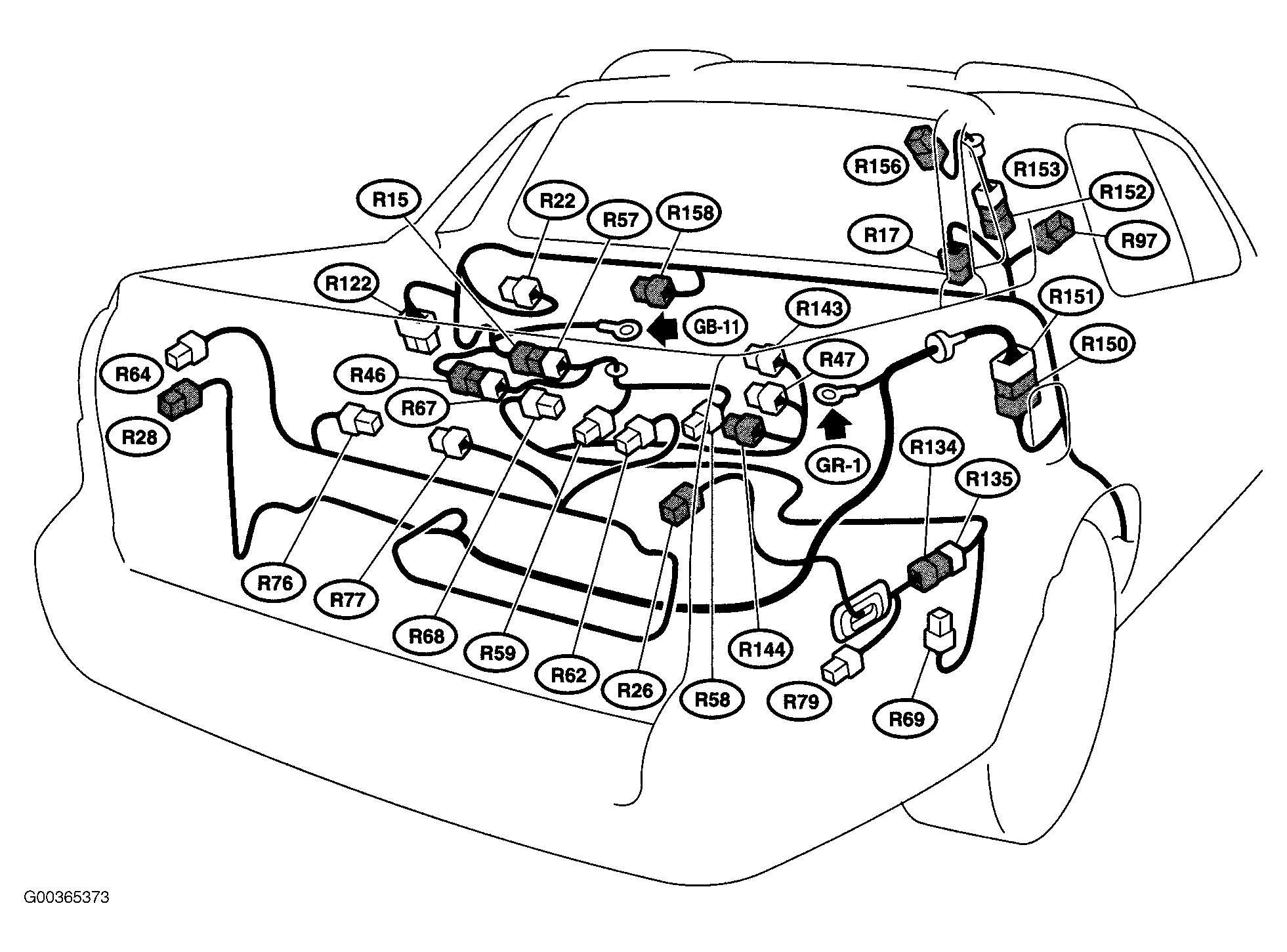

| Fuel Gauge Sub Module (R59) | On top of fuel tank. See Figure. |
| Fuel Pump Assembly & Fuel Gauge Module (R58) | On top of fuel tank. See Figure. |
| Fuel Pump Control Module (R122) | Near fuel tank. See Figure. |
| Integrated Module (B280, B281) | Lower left side of dash. See Figure. |
| Keyless Entry Control Module (B176) | Behind right side of dash. See Figure. |
| Security Control Module (B93) | Behind center of dash. See Figure. |
| Stop & Turn Module (B333) | Behind left side of dash. See Figure. |
| Transmission Control Module (B54, B55, B56) | Behind left side of dash. See Figure. |
| Turn & Hazard Module (B32) | Behind left side of dash. See Figure. |
