Camshaft Position Sensor: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

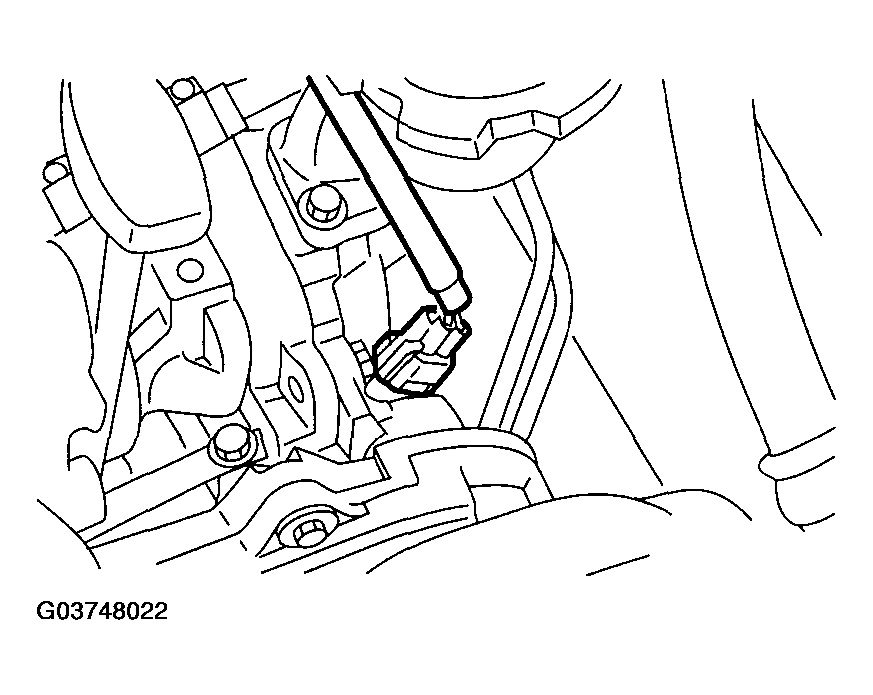

Disconnect connector from camshaft position sensor.

Fig 2: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

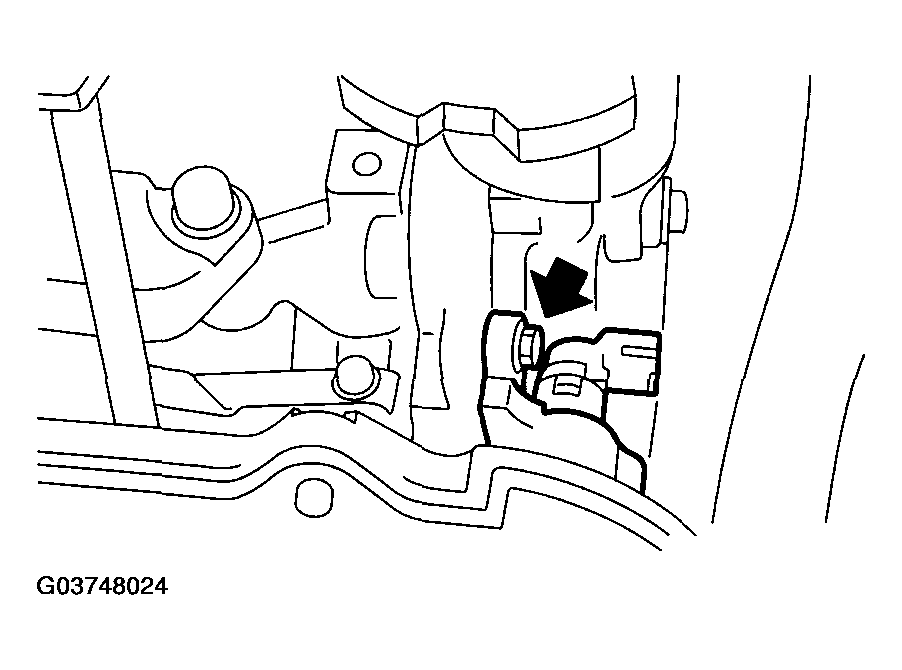

Remove bolt which installs camshaft position sensor to camshaft position sensor support.

Fig 3: Removing Camshaft Position Sensor To Camshaft Position Sensor Support Bolts
Courtesy of SUBARU OF AMERICA, INC.

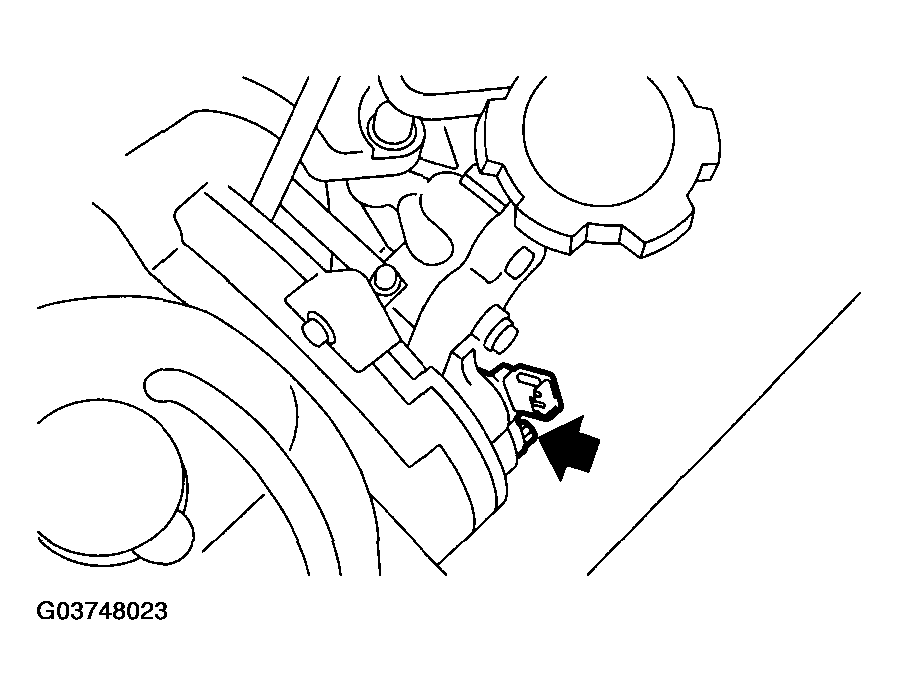

Remove bolt which installs camshaft position sensor support to camshaft cap LH.

Fig 4: Removing Camshaft Position Sensor Support To Camshaft Cap LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove camshaft position sensor and camshaft position sensor support as a unit.

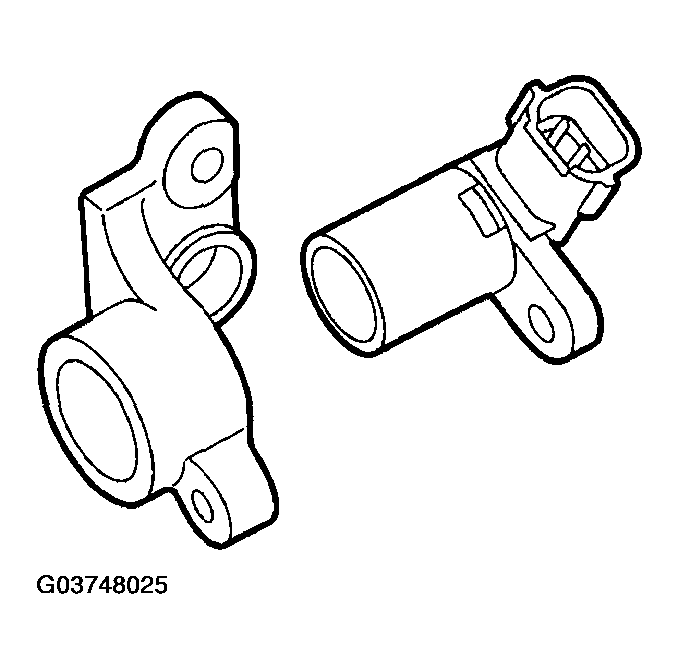

Remove camshaft position sensor itself.

Fig 5: Removing Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
