Crankshaft Position Sensor: Removal

Disconnect ground cable from battery.

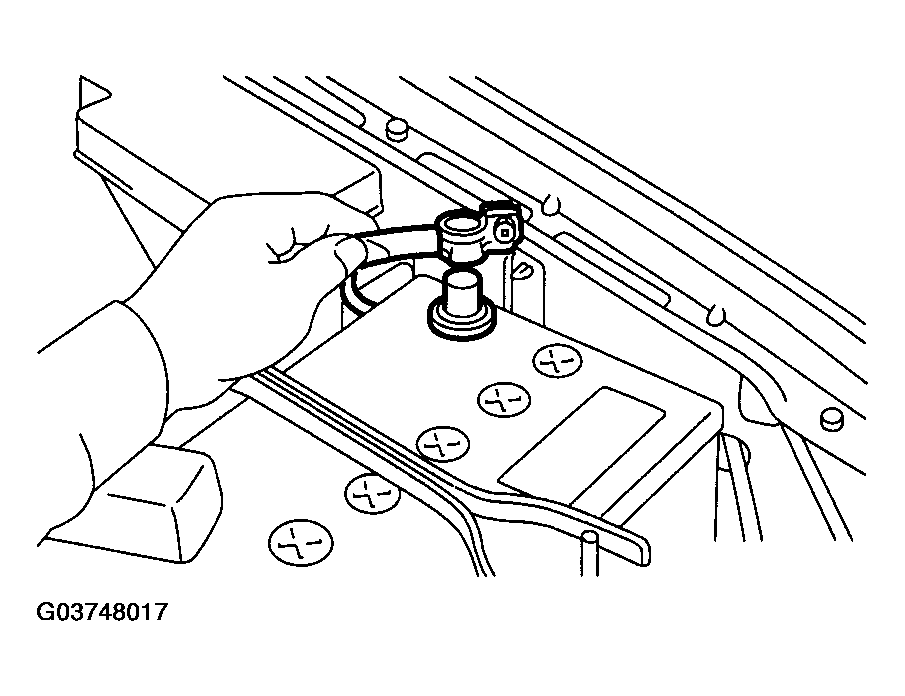

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs crankshaft position sensor to cylinder block.

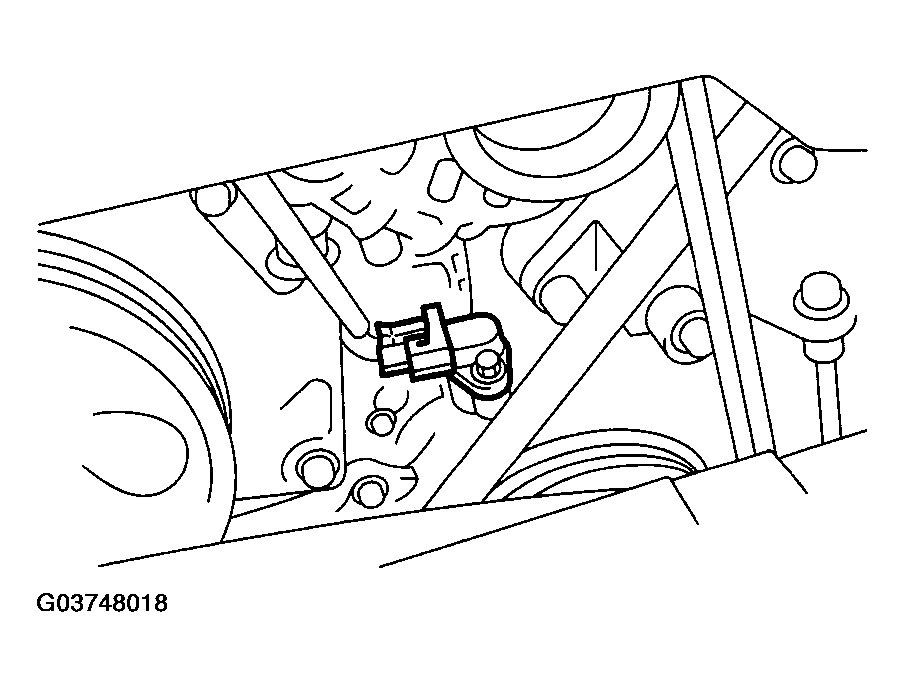

Fig 2: Removing Crankshaft Position Sensor To Cylinder Block Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove crankshaft position sensor, and disconnect connector from it.

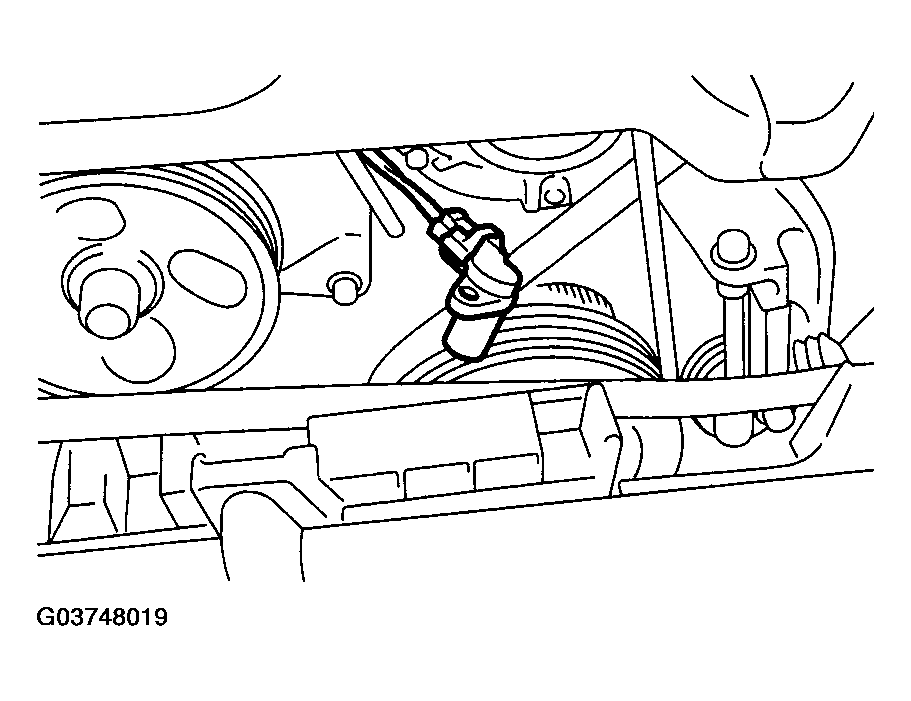

Fig 3: Disconnecting Crankshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
