Engine Coolant Temperature Sensor: Removal

Disconnect ground cable from battery.

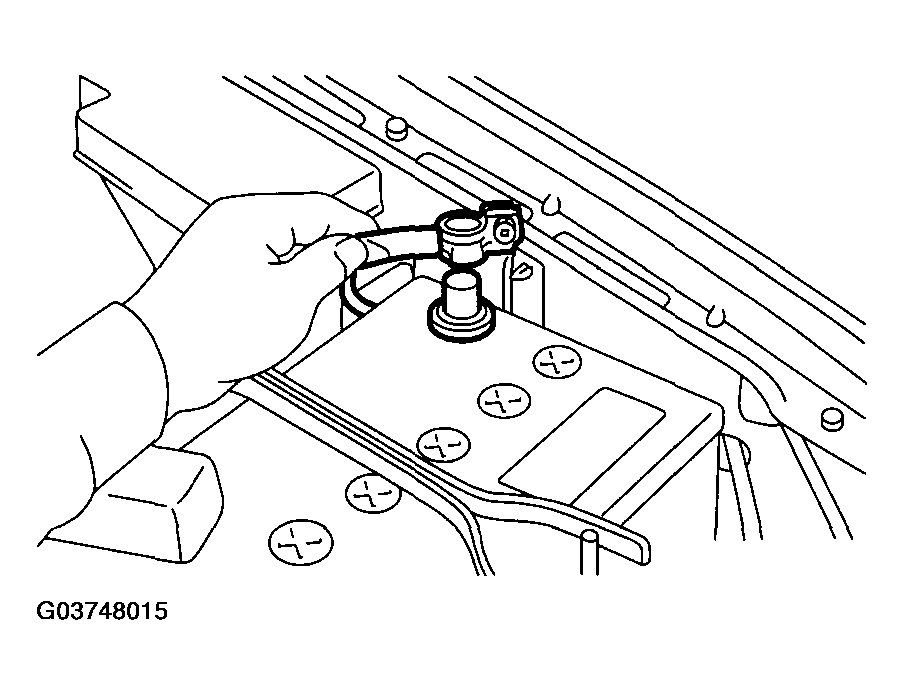

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case.
< Ref. to REMOVAL , Air Intake Duct. > and < Ref. to REMOVAL , Air Cleaner Case. >
Disconnect connector from engine coolant temperature sensor.

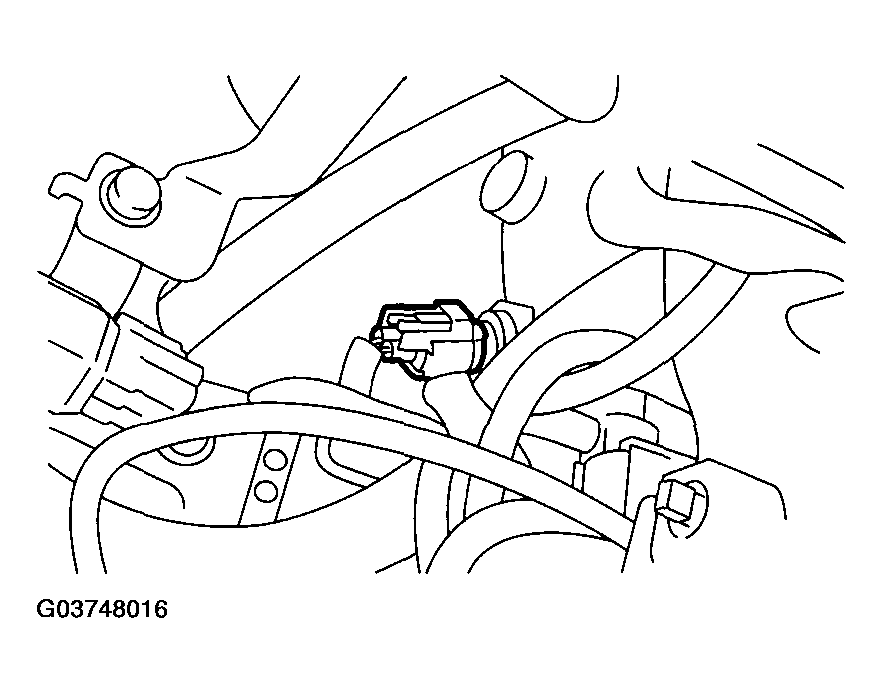

Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove engine coolant temperature sensor.
