Fuel Cut Valve: Installation

Install in the reverse order of removal.

Tightening torque:

4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

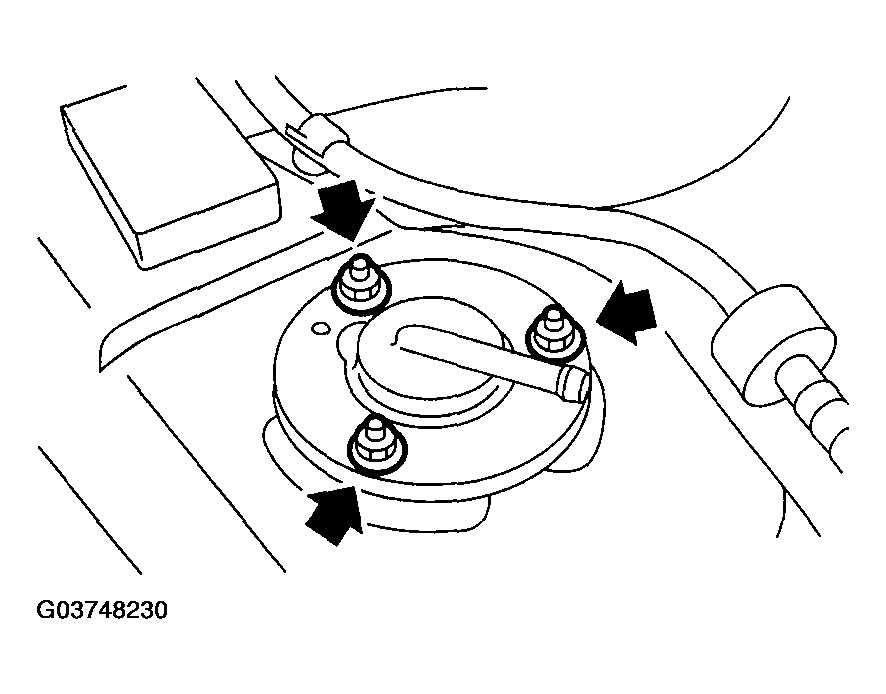

Fig 1: Installing Bolts Holding Fuel Cut Valve

Courtesy of SUBARU OF AMERICA, INC.
