Fuel Cut Valve: Removal

  1. Remove fuel tank. < Ref. to , REMOVAL , Fuel Tank. >
  2. Move clip and disconnect evaporation hose from fuel cut valve.

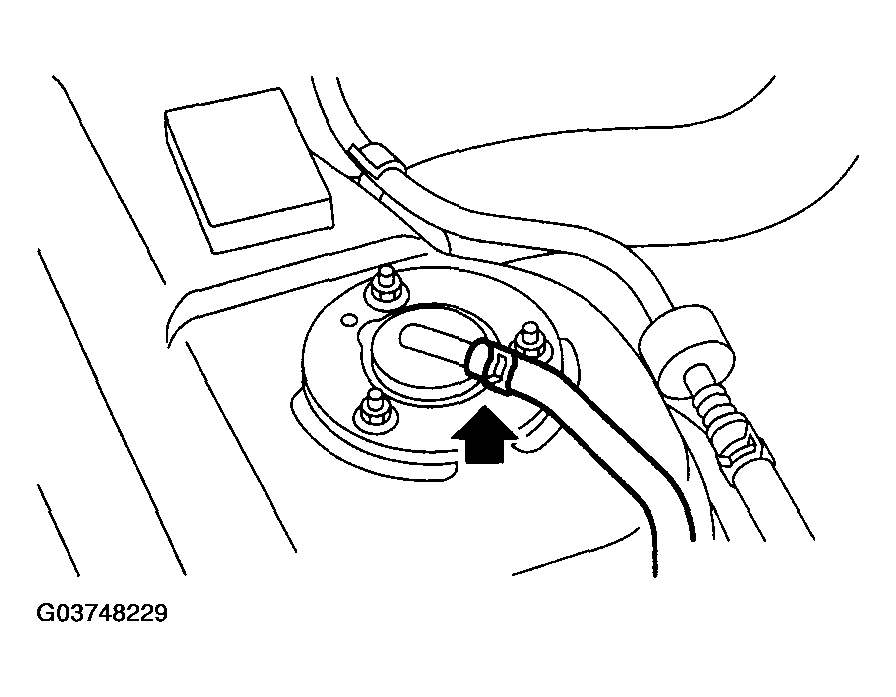

    Fig 1: Disconnecting Evaporation Hose From Fuel Cut Valve
    G03748229Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolts which install fuel cut valve.
