LH Side

Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
Open fuel flap lid, and remove fuel filler cap.
Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install washer tank on body.

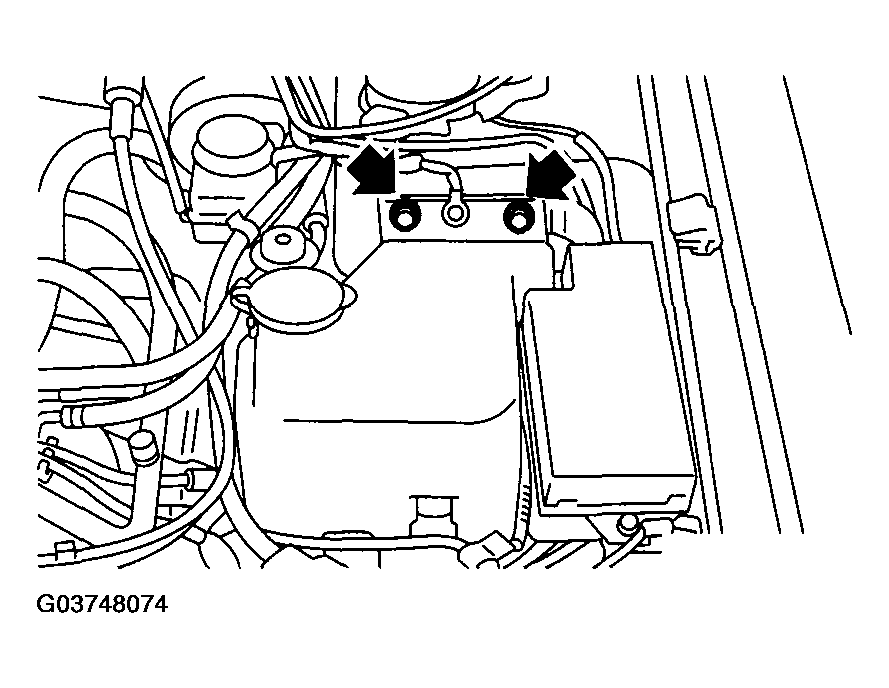

Fig 2: Removing Washer Tank Holding Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.

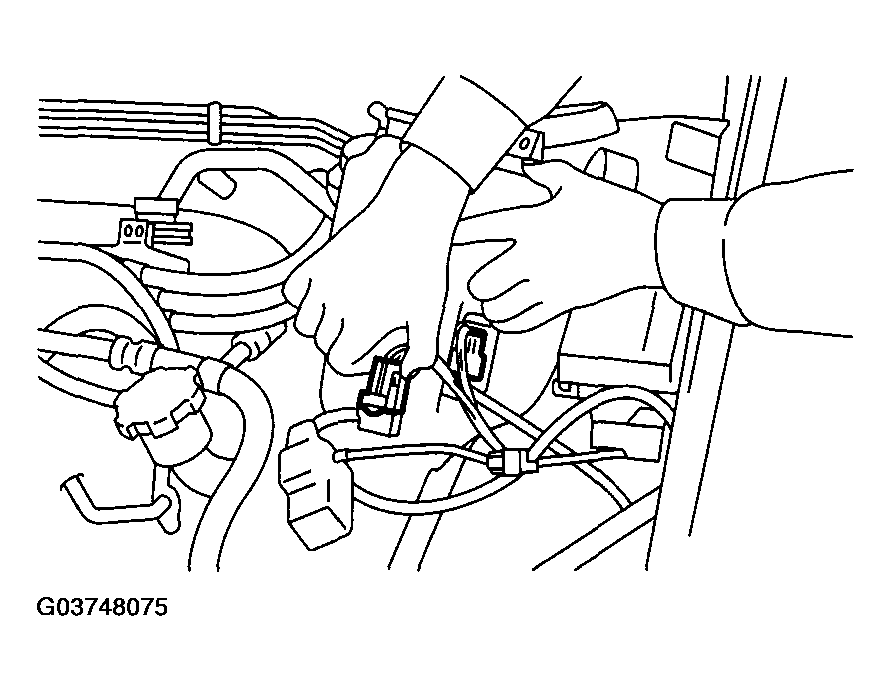

Disconnect connector from rear gate glass washer motor.

Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.

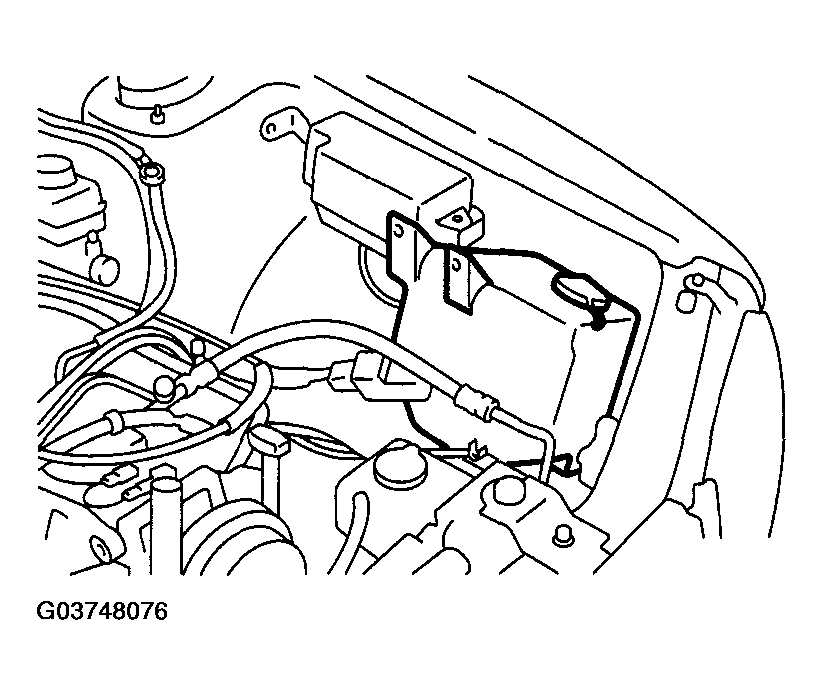

Move washer tank, and secure it away from working area.

Fig 4: Removing Washer Tank
Courtesy of SUBARU OF AMERICA, INC.

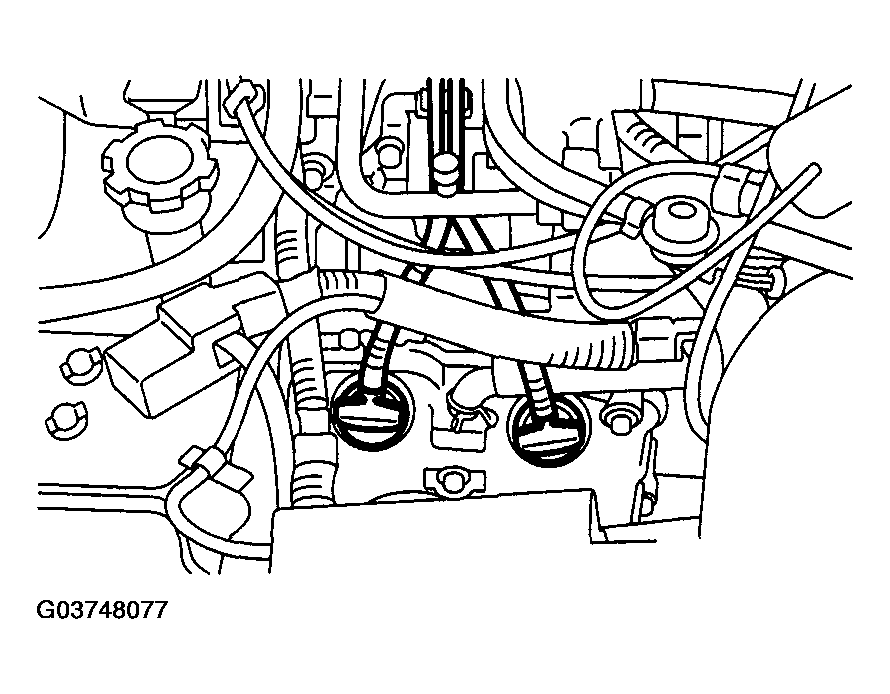

Remove spark plug cords from spark plugs (#2 and #4 cylinders).

Fig 5: Removing Spark Plug Cords From Spark Plugs (No. 2 And 4 Cylinders)
Courtesy of SUBARU OF AMERICA, INC.

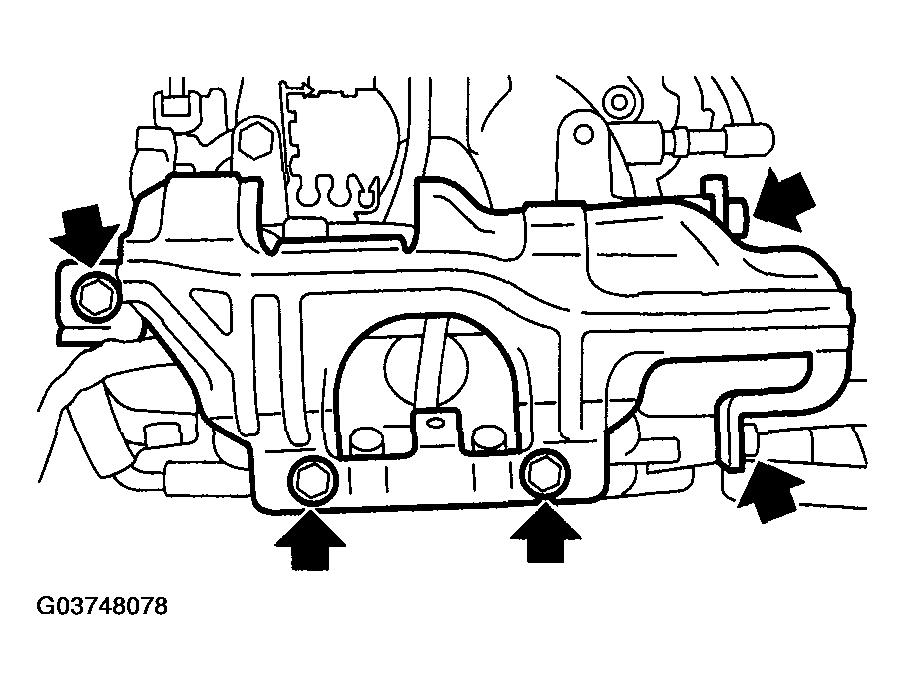

Remove fuel pipe protector LH.

Fig 6: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

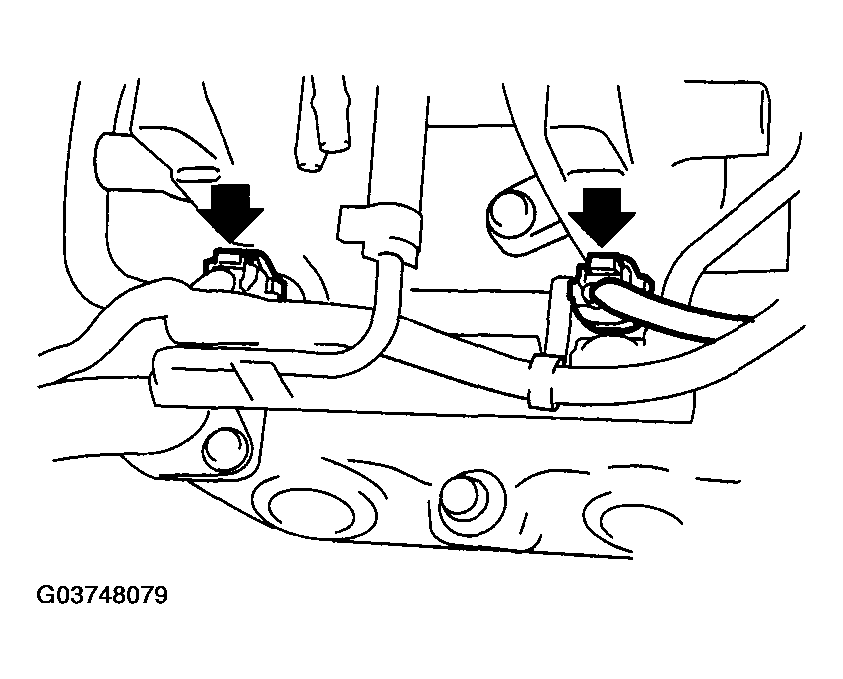

Disconnect connector from fuel injector.

Fig 7: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.

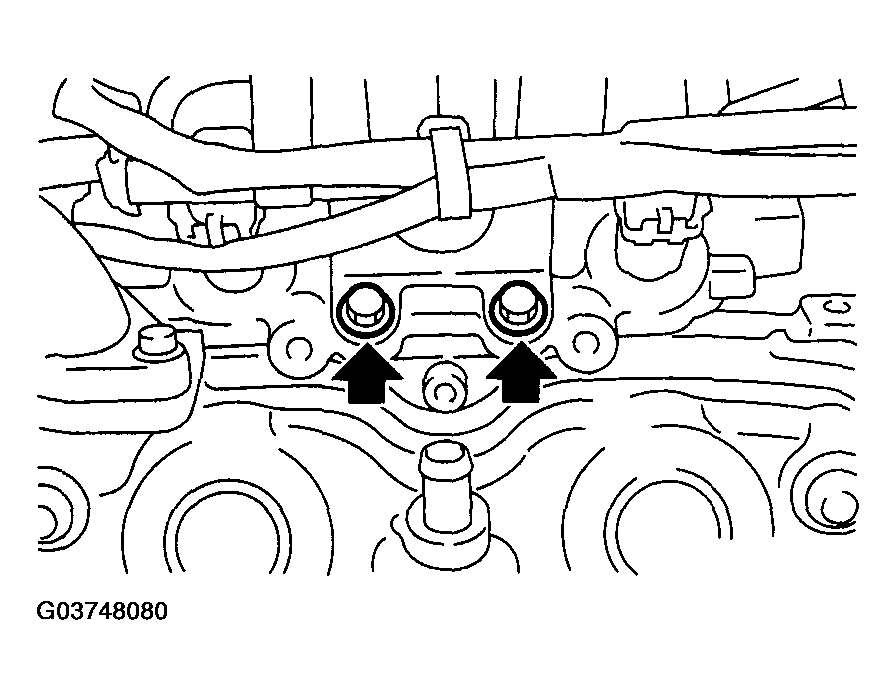

Remove bolt which holds injector pipe to intake manifold.

Fig 8: Removing Bolt Holding Injector Pipe To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

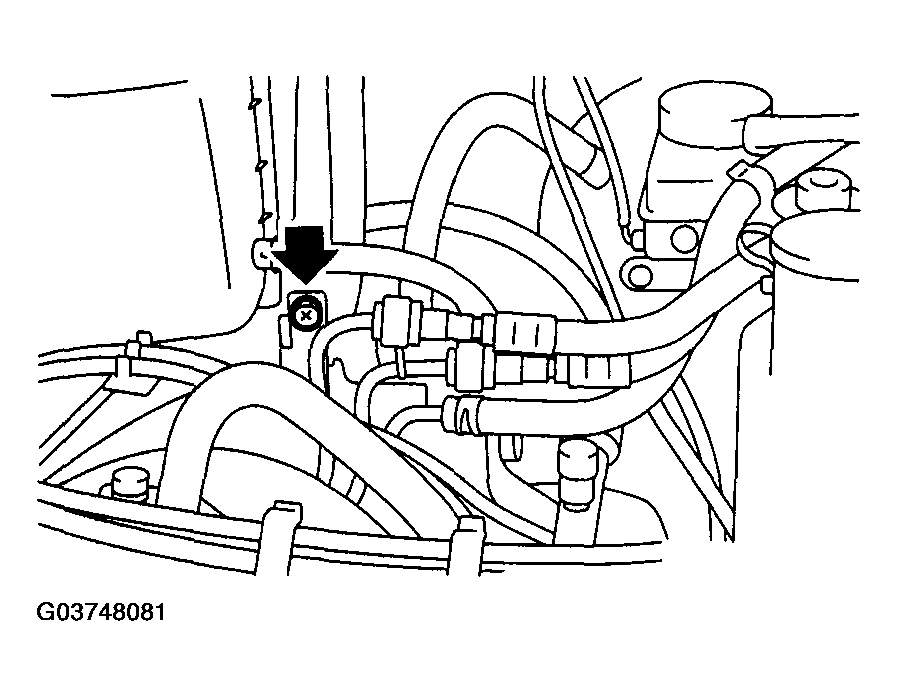

Remove bolt which holds fuel pipe on the left side intake manifold.

Fig 9: Removing Bolt Holding Fuel Pipe On Left Side Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.

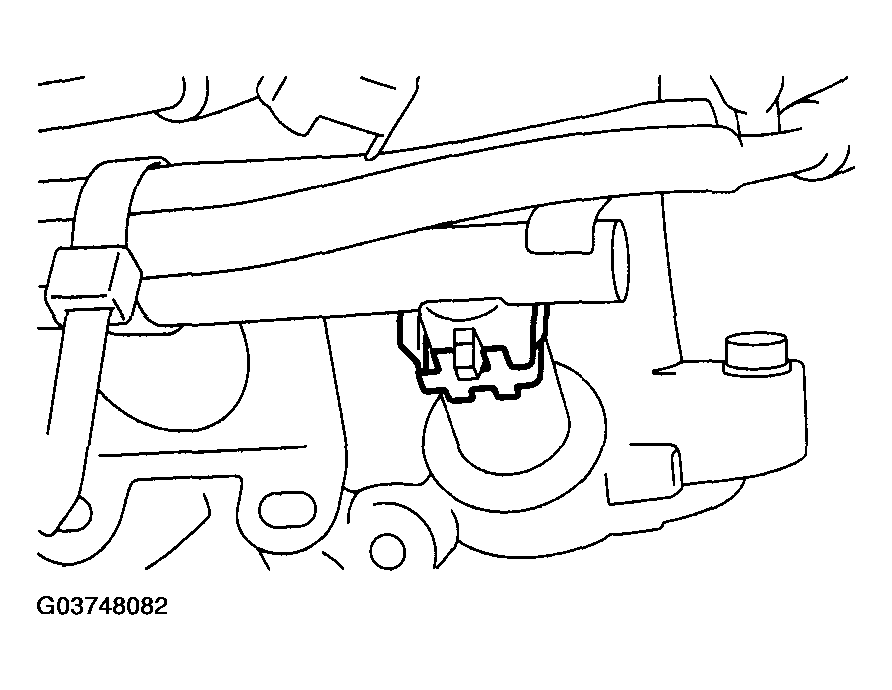

1. Remove fuel injector securing clip.

  Fig 10: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove fuel injector while lifting up fuel injector pipe.

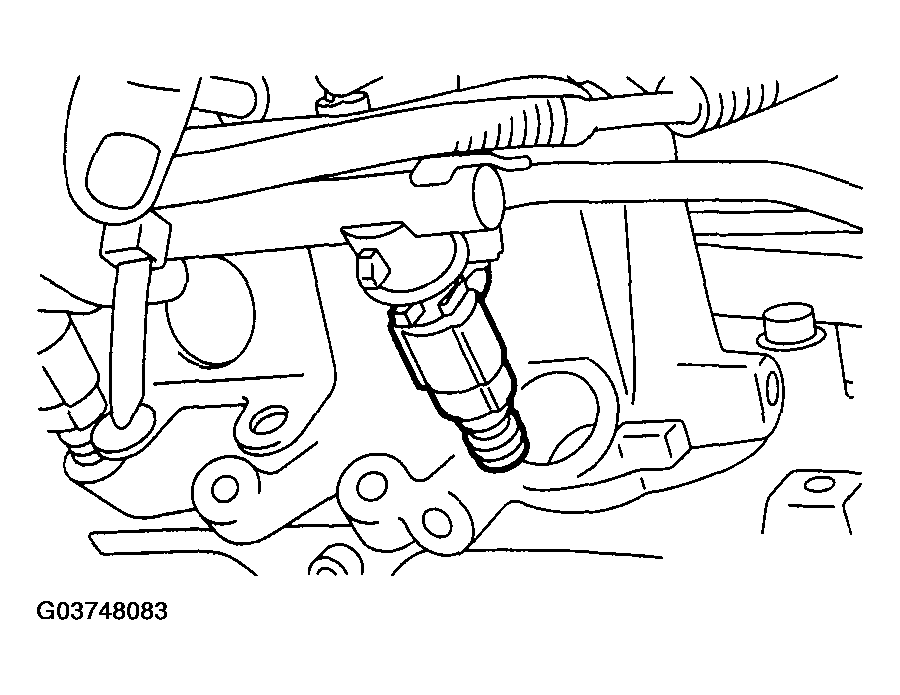

  Fig 11: Removing Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
