Fuel Pump: Disassembly

  1. Remove fuel pump and pump holder.
    NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

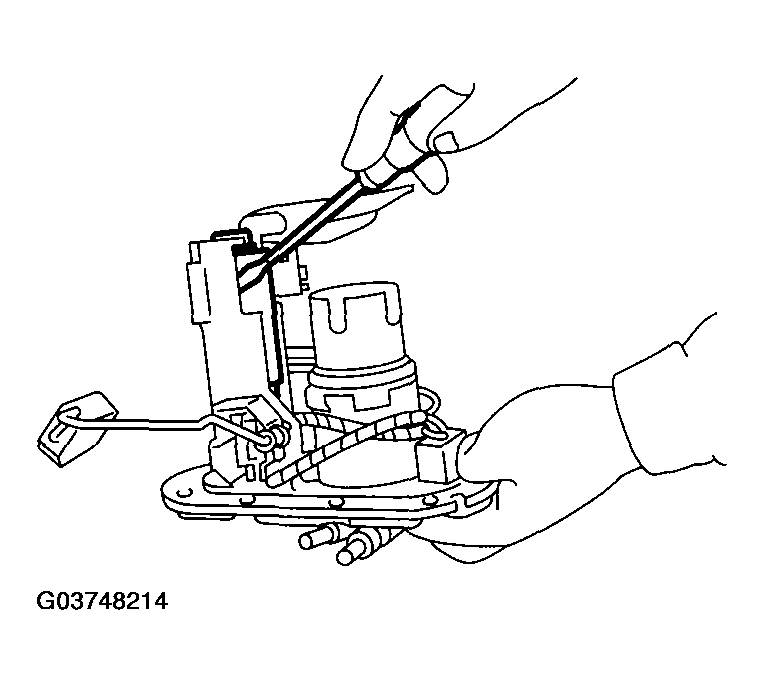

    Fig 1: Removing Fuel Pump And Pump Holder
    G03748214Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from fuel pump.

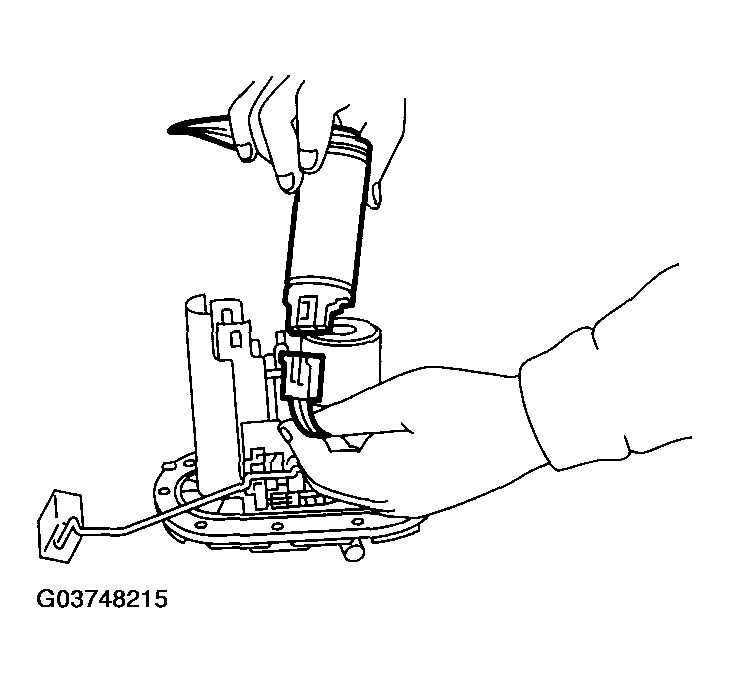

    Fig 2: Disconnecting Fuel Pump Connector
    G03748215Courtesy of SUBARU OF AMERICA, INC.
