Fuel Pump: Removal

WARNING:

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
Drain fuel from fuel tank.
< Ref. to , DRAINING FUEL , OPERATION, Fuel. >
Raise rear seat and turn floor mat up.

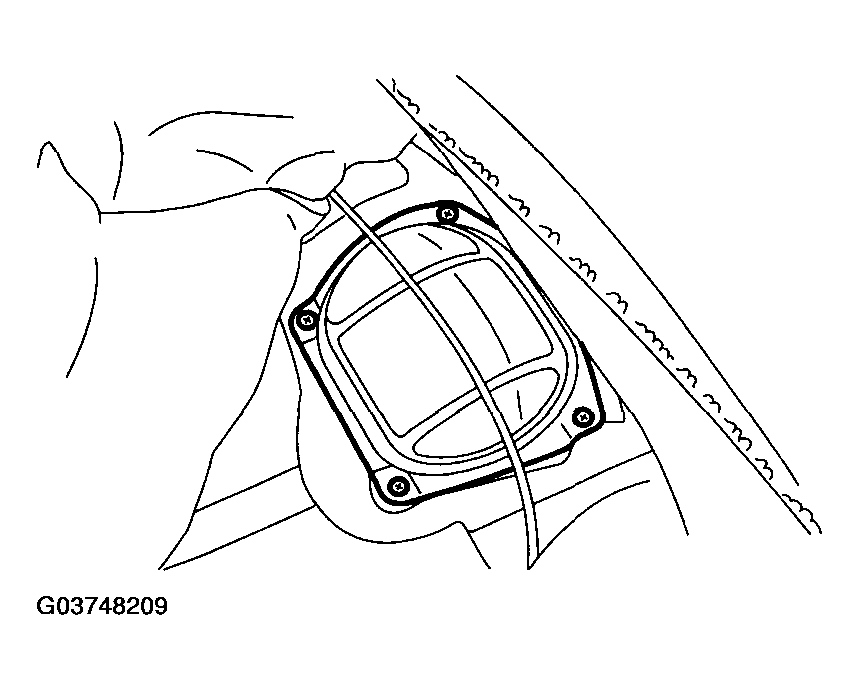

Remove access hole lid.

Fig 1: Removing Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.

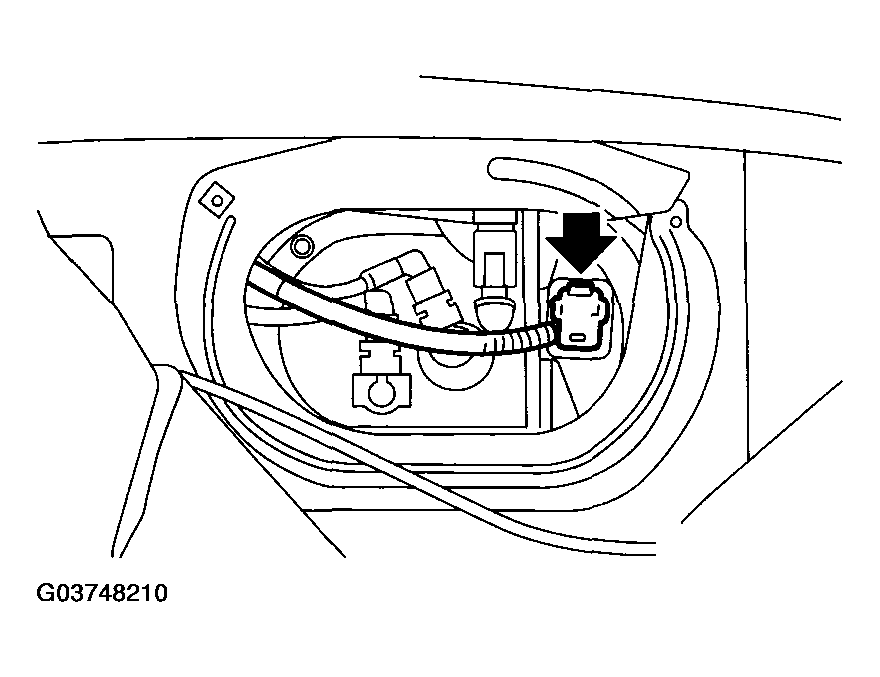

Disconnect connector from fuel pump.

Fig 2: Disconnecting Fuel Pump Connector
Courtesy of SUBARU OF AMERICA, INC.

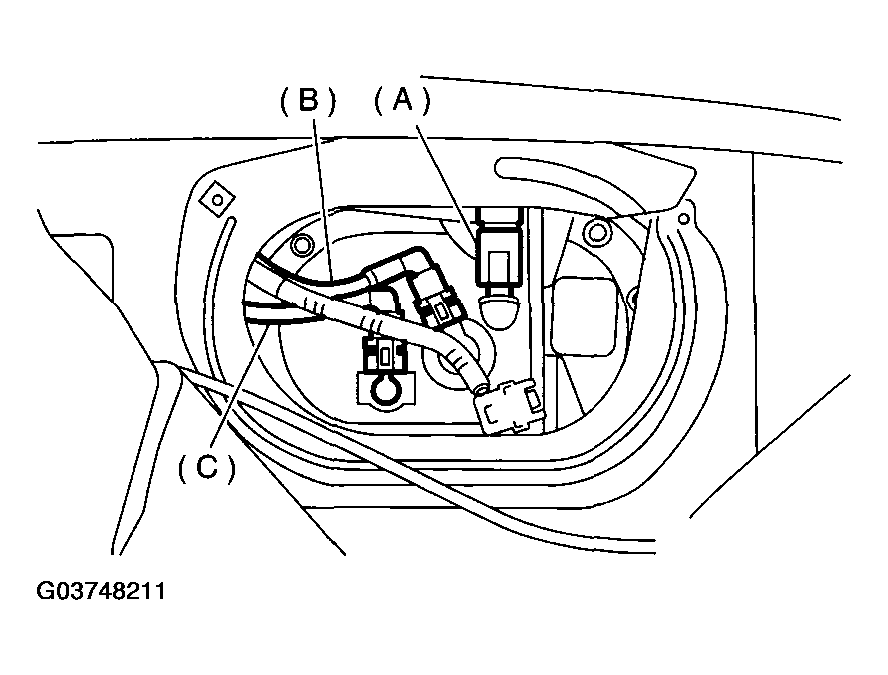

Disconnect quick connector and then disconnect fuel delivery hose (A) and return hose (B). < Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation Lines. >

Fig 3: Disconnecting Quick Connector, Fuel Delivery Hose And Return Hose
Courtesy of SUBARU OF AMERICA, INC.

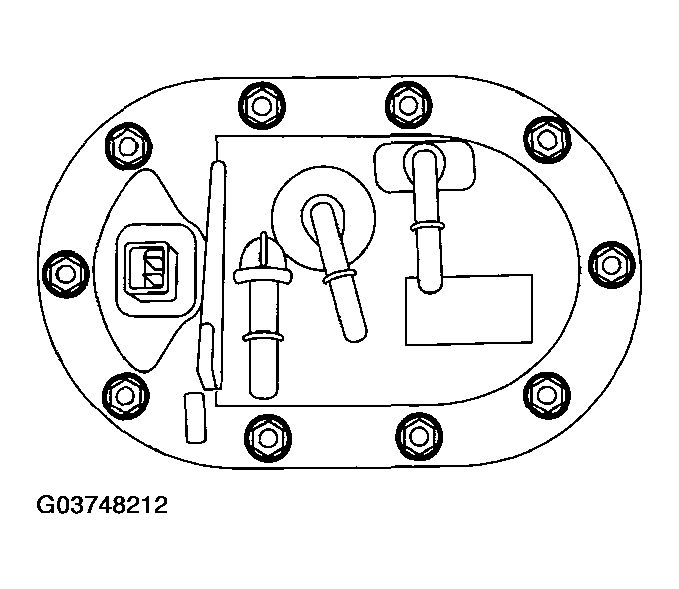

Remove nuts which install fuel pump assembly onto fuel tank.

Fig 4: Removing Nuts Holding Fuel Pump Assembly Onto Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Take off fuel pump assembly from fuel tank.
