Knock Sensor: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case.
< Ref. to REMOVAL , Air Cleaner Case. >
Disconnect knock sensor connector.

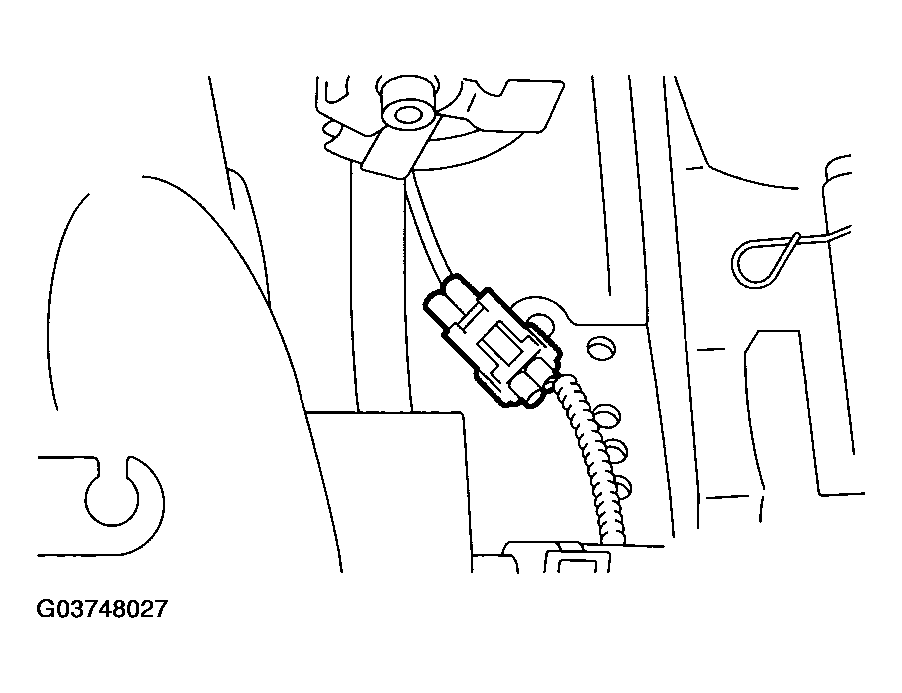

Fig 2: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove knock sensor from cylinder block.

Fig 3: Removing Knock Sensor From Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
