Throttle Body: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case.
< Ref. to REMOVAL , Air Cleaner Case. >

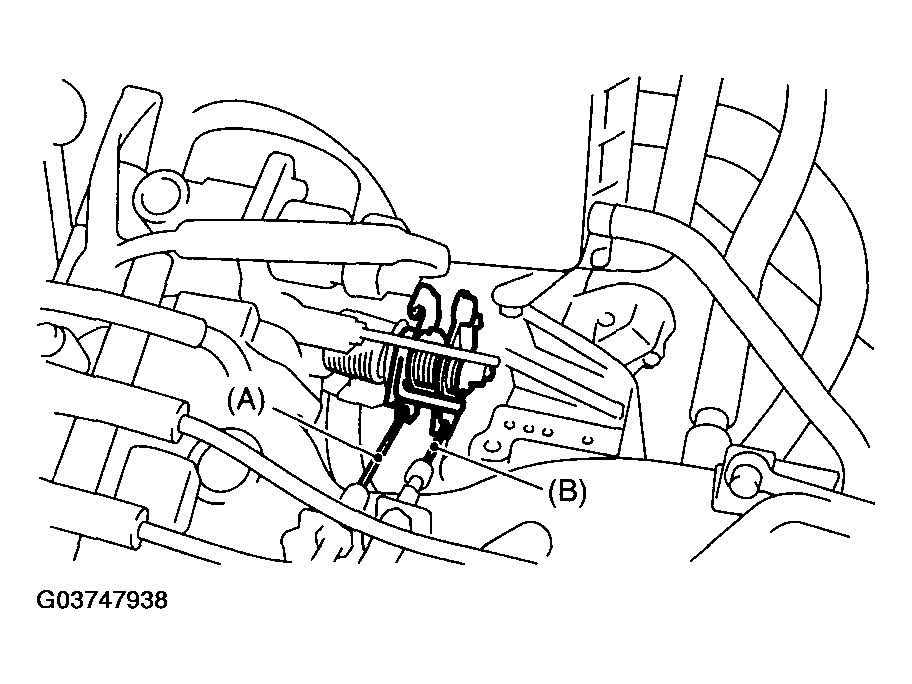

Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

Fig 2: Disconnecting Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.

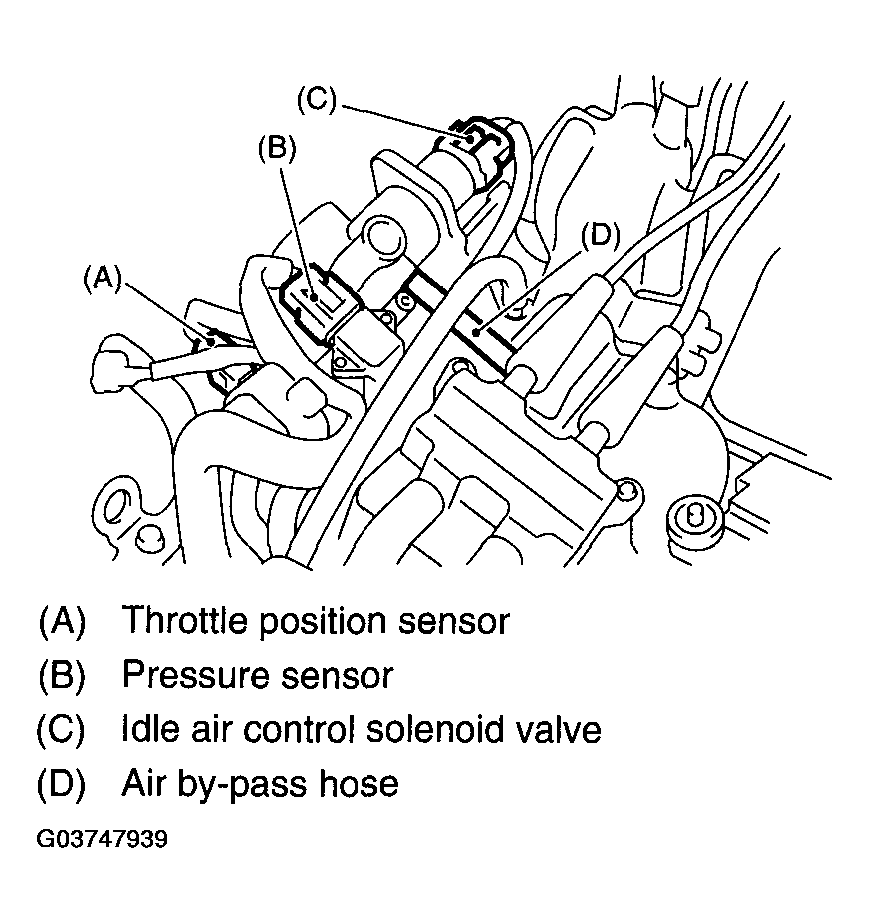

Disconnect connectors from idle air control solenoid valve, throttle position sensor and pressure sensor.
Disconnect air by-pass hose from throttle body.

Fig 3: Disconnecting Air By-Pass Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

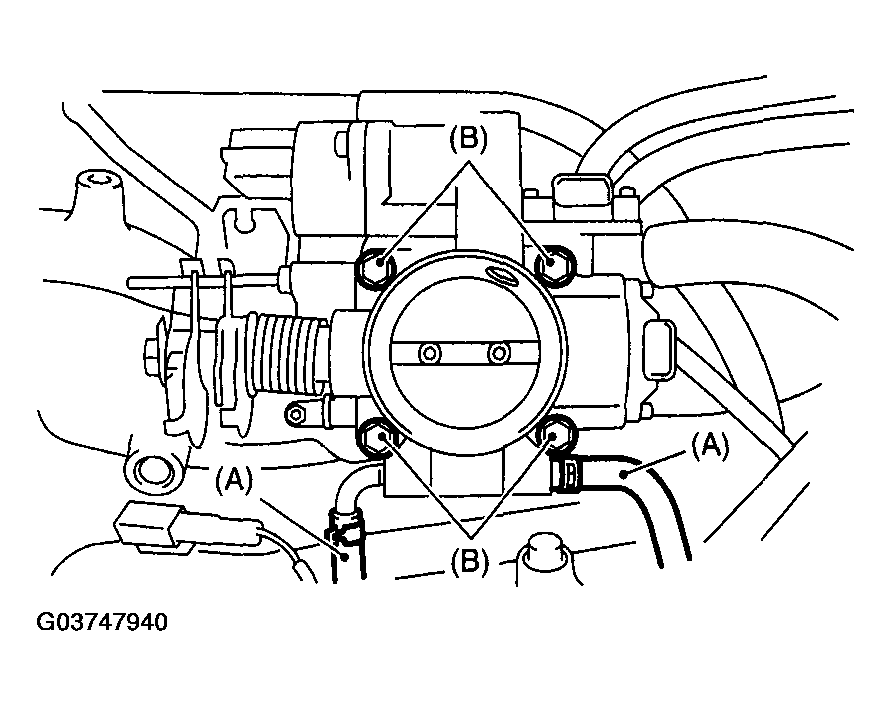

Disconnect engine coolant hoses (A) from throttle body.
Remove bolts (B) which install throttle body to intake manifold.

Fig 4: Removing Throttle Body To Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
