Accelerator Pedal: Inspection

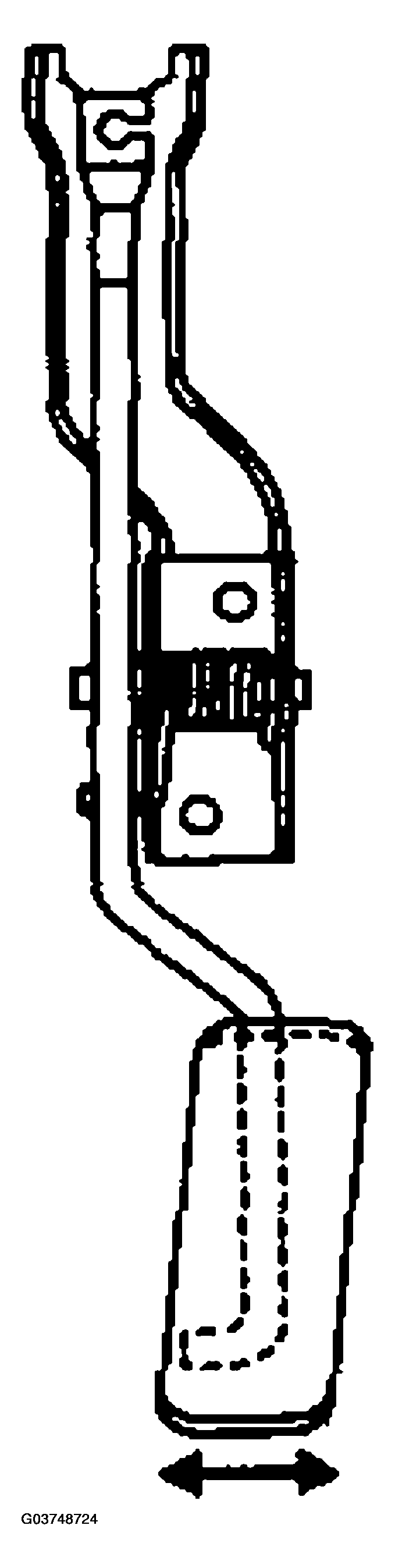

- Lightly move pedal pad in lateral the direction to ensure pedal deflection is in specified range.
- If excessive deflection is noted, replace bushing and clip with new ones.
Deflection of accelerator pedal:
Service limit
+/-2.0 mm (+/-0.079 in) or less
