Accelerator Pedal: Removal

Disconnect ground cable from battery.
Remove lock nut from accelerator cable bracket.
Remove accelerator cable from bracket.
Remove accelerator cable end from throttle cam.
NOTE: Be careful not to kink accelerator cable.

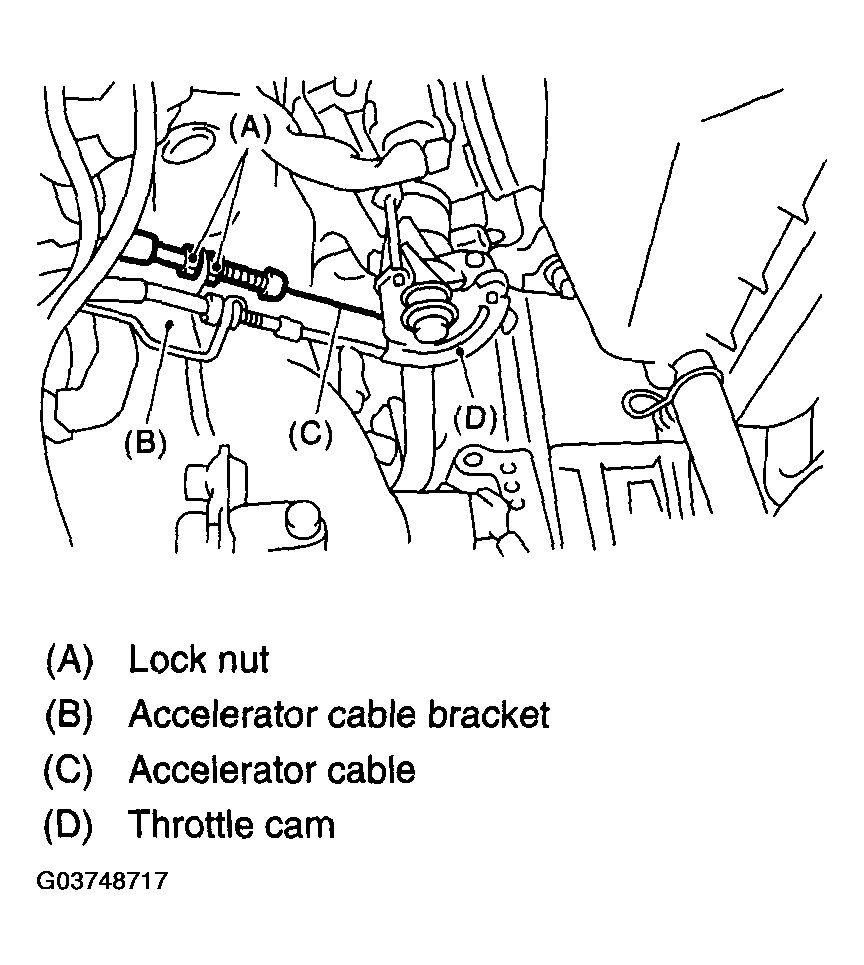

Fig 1: Identifying Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove clip inside engine compartment.

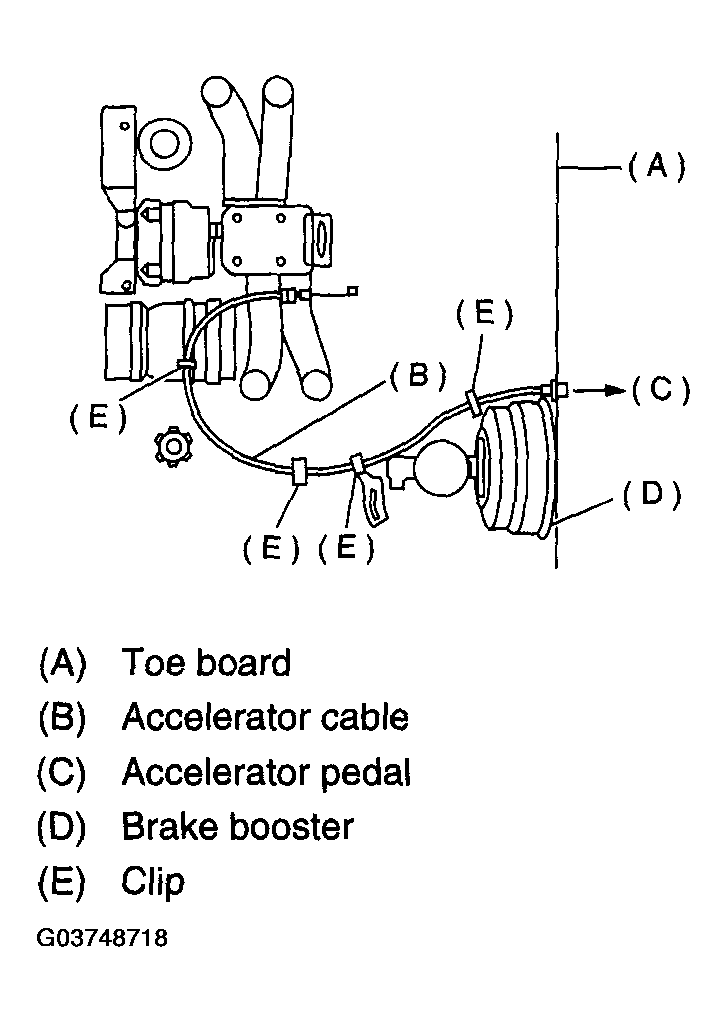

Fig 2: Identifying Engine Compartment Components
Courtesy of SUBARU OF AMERICA, INC.
Remove instrument panel lower cover from instrument panel, and connector.
Remove accelerator pedal connecting bolt from accelerator pedal bracket.

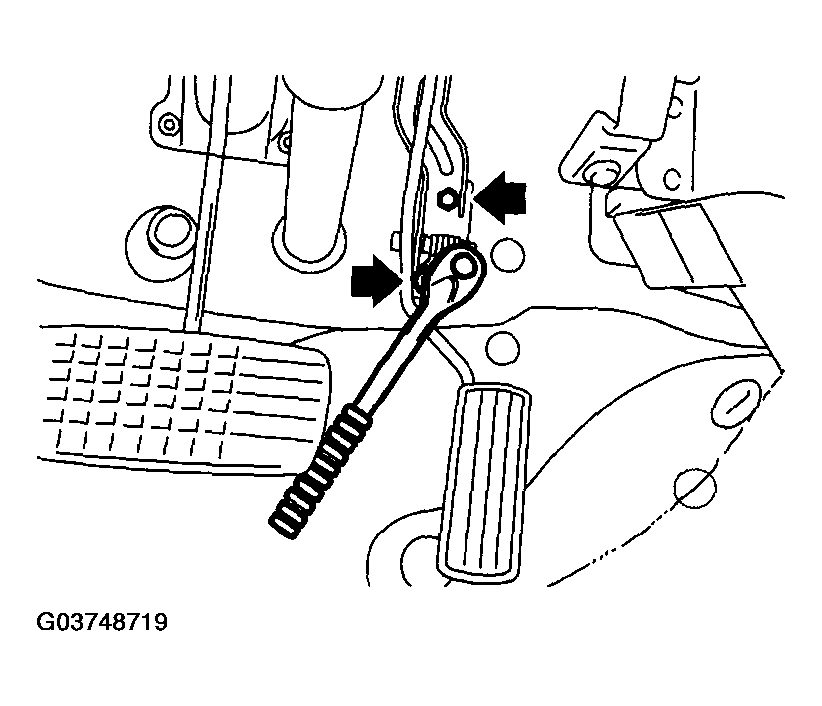

Fig 3: Removing Accelerator Pedal Connecting Bolt From Accelerator Pedal Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect grommet (A) from toe board.
NOTE: From engine room side, push grommet (A) into hole.

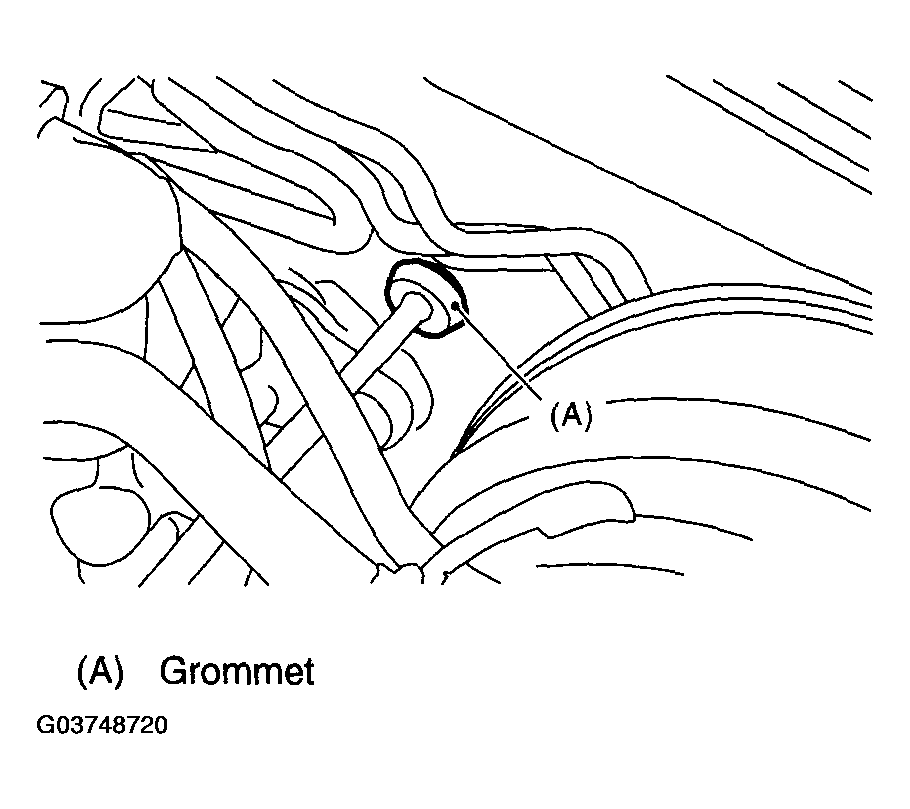

Fig 4: Disconnecting Grommet From Toe Board
Courtesy of SUBARU OF AMERICA, INC.
Pull out the cable from the toe board hole.
Disconnect accelerator cable bushing from accelerator pedal lever.

Fig 5: Pulling Out Cable From Toe Board Hole
Courtesy of SUBARU OF AMERICA, INC.
Disconnect accelerator cable stopper (A) from bracket.

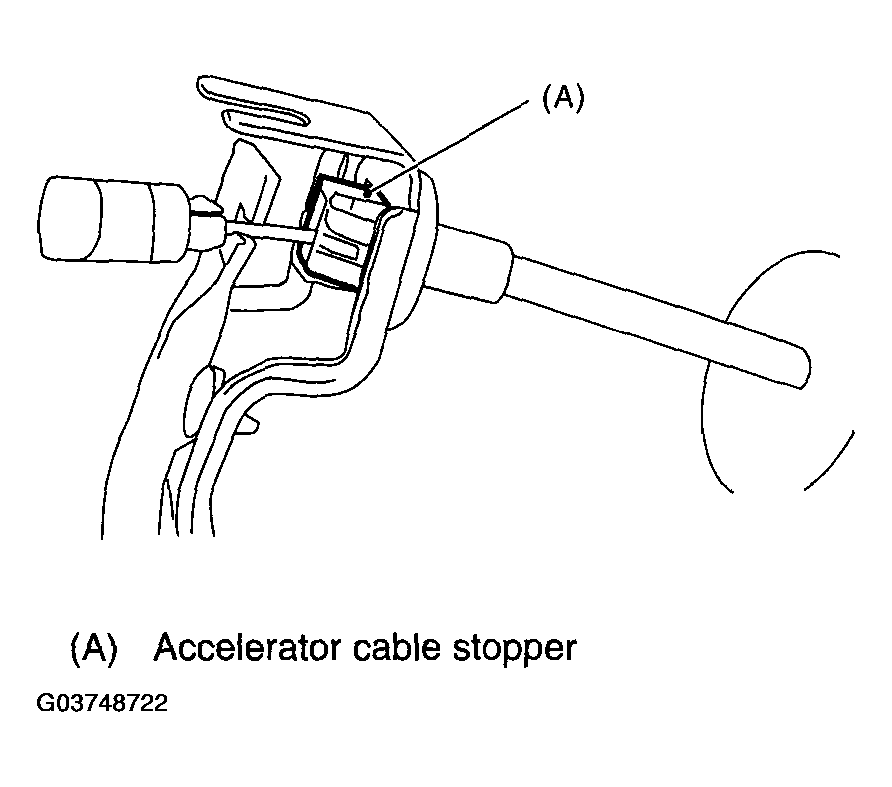

Fig 6: Disconnecting Accelerator Cable Stopper From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove accelerator cable and bracket.
