RH Side

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03748728Courtesy of SUBARU OF AMERICA, INC.
  2. Remove spark plug cords by pulling boot, not cord itself.

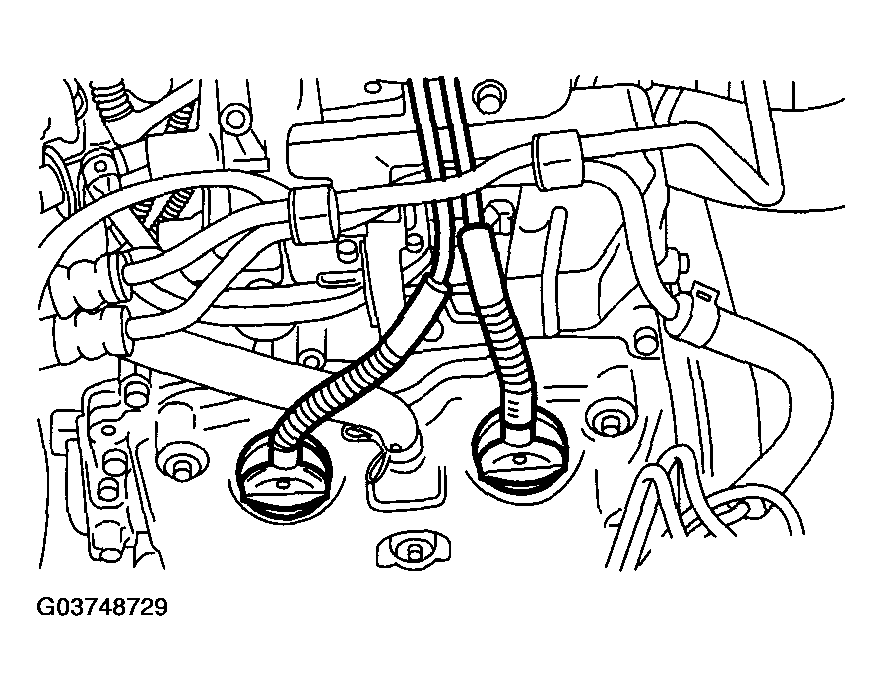

    Fig 2: Removing Spark Plug Cords By Pulling Boot
    G03748729Courtesy of SUBARU OF AMERICA, INC.
  3. Remove spark plugs with the spark plug socket.

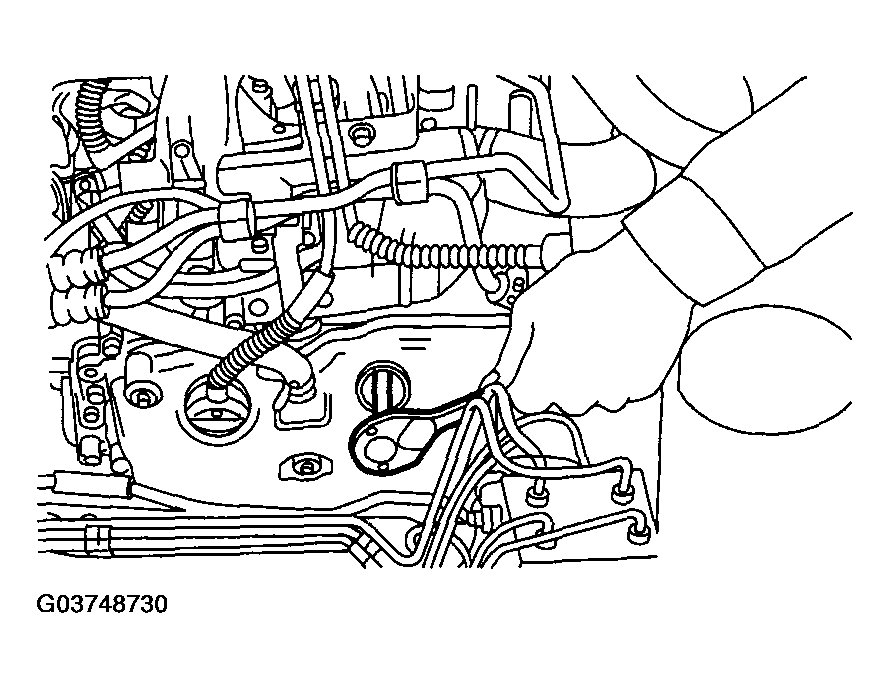

    Fig 3: Removing Spark Plugs With Spark Plug Socket
    G03748730Courtesy of SUBARU OF AMERICA, INC.
