Identification Number And Label Locations: Notes

The VIN (Vehicle Identification Numbers) is used to classify the vehicle. Positioning of the plate label for identification

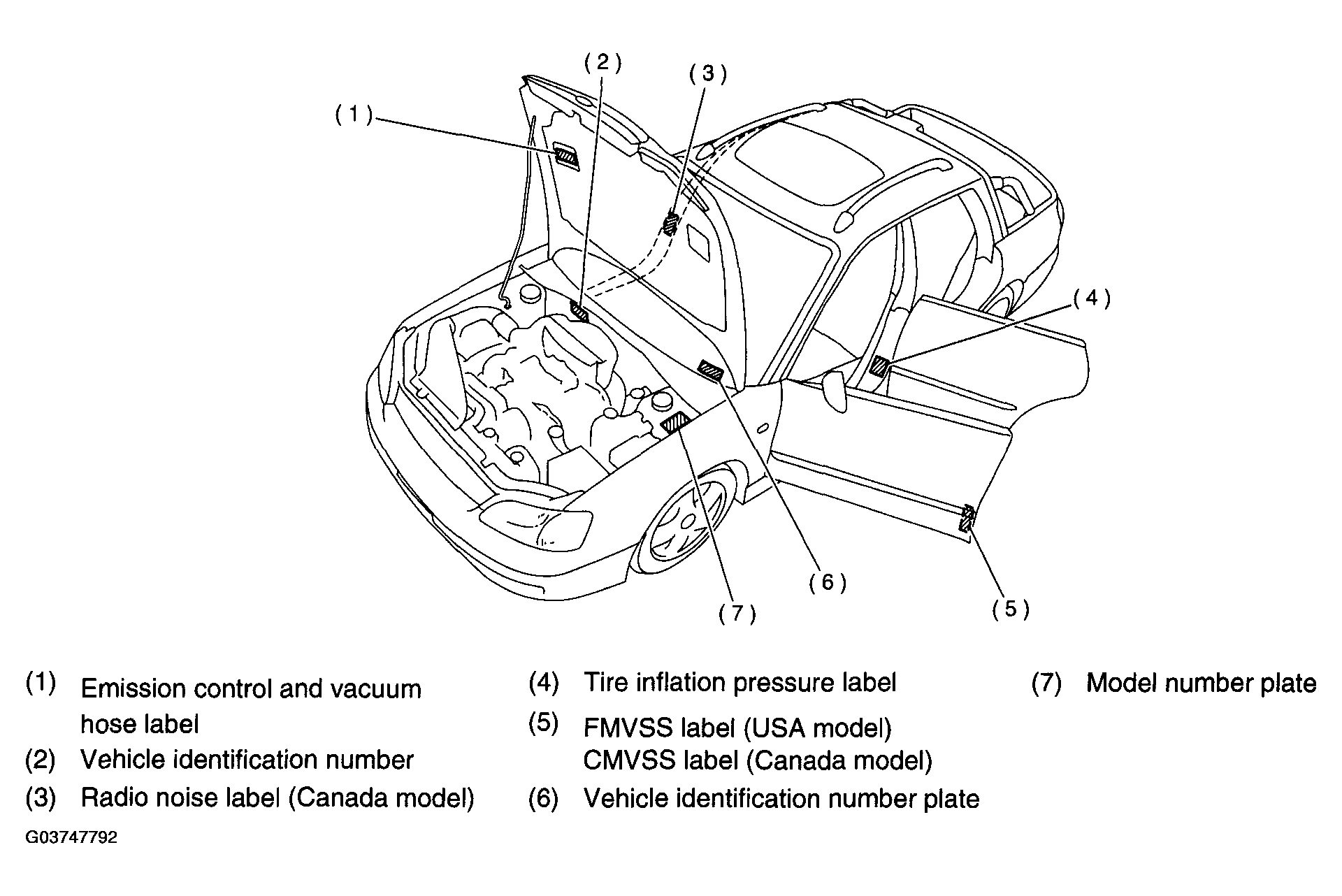

Fig 1: Identifying VIN (Vehicle Identification Numbers) Location
G03747792Courtesy of SUBARU OF AMERICA, INC.

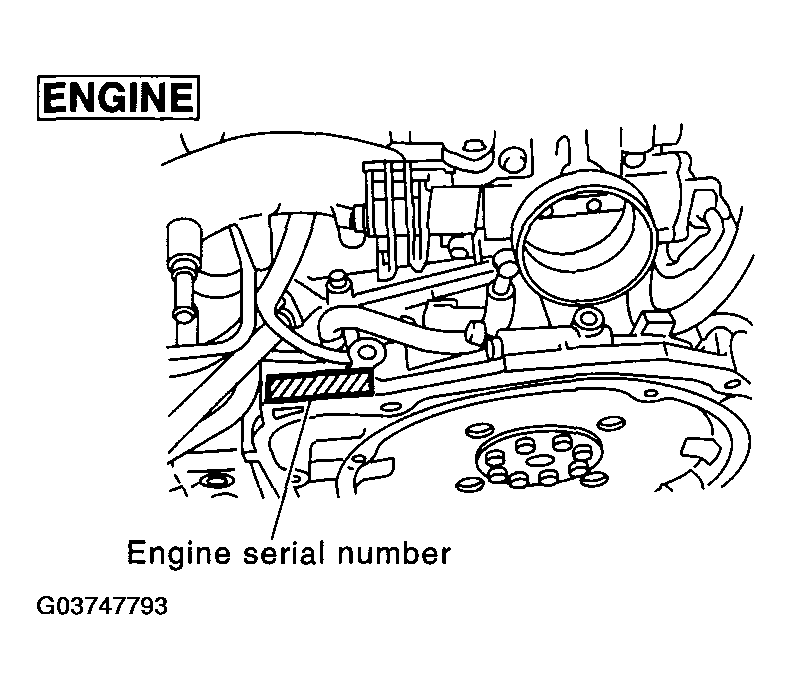

Fig 2: Identifying Engine Serial Number Location
G03747793Courtesy of SUBARU OF AMERICA, INC.

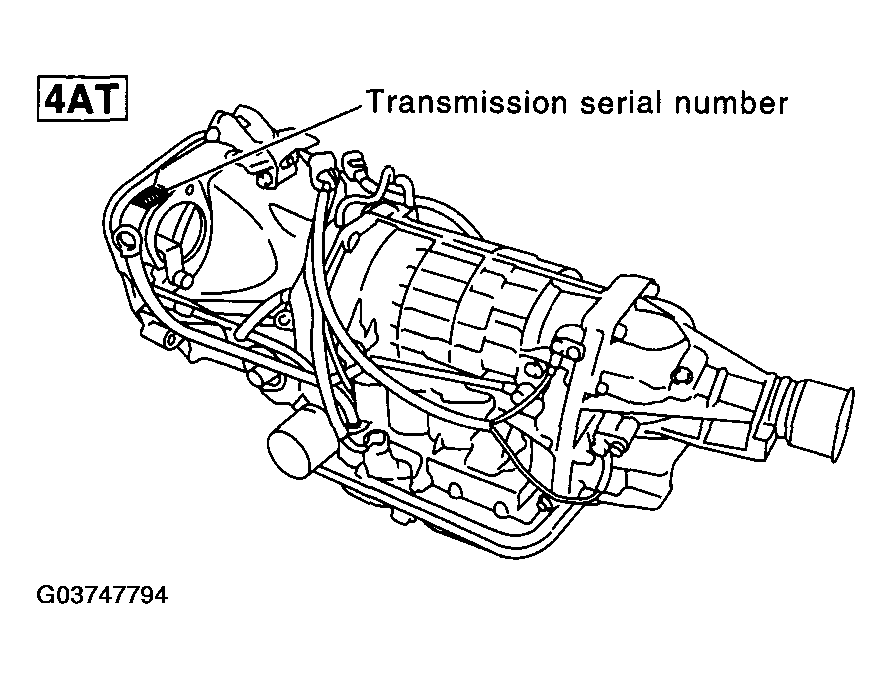

Fig 3: Identifying Transmission Serial Number Location (4AT)
G03747794Courtesy of SUBARU OF AMERICA, INC.

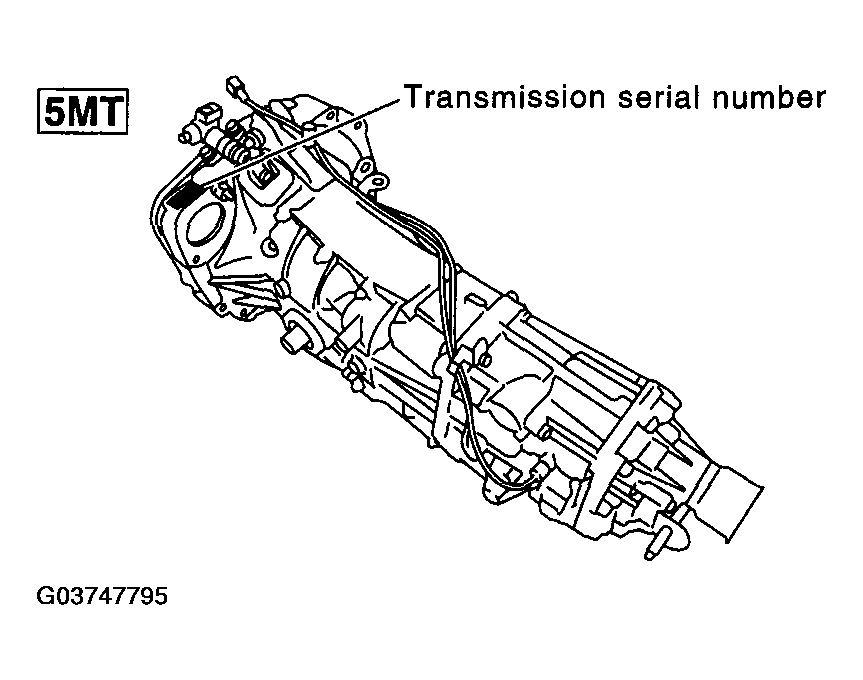

Fig 4: Identifying Transmission Serial Number Location (5MT)
G03747795Courtesy of SUBARU OF AMERICA, INC.
