Chain pulling range at tie-down condition

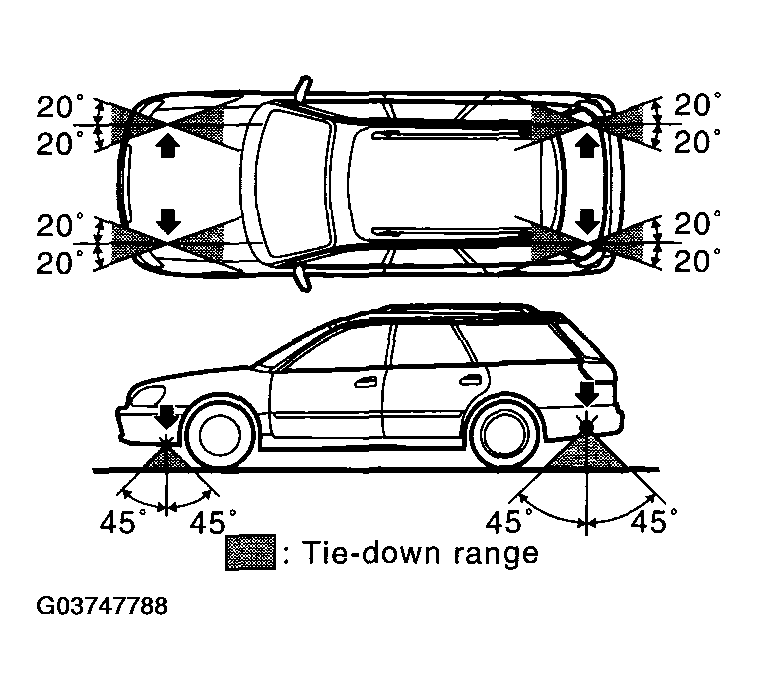

Fig 1: Identifying Chain Pulling Range At Tie-Down Condition
G03747788Courtesy of SUBARU OF AMERICA, INC.
