Control Valve Body: Assembly

  1. Install a new seal ring to piston.

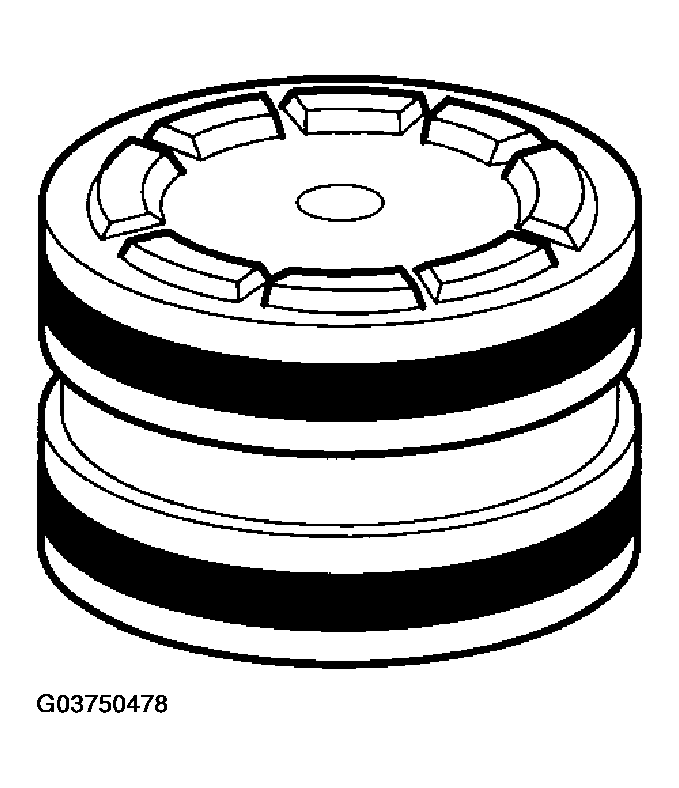

    Fig 1: Installing New Seal Ring To Piston
    G03750478Courtesy of SUBARU OF AMERICA, INC.
  2. Apply ATF to the seal ring.
  3. Insert the piston fully into upper valve body.

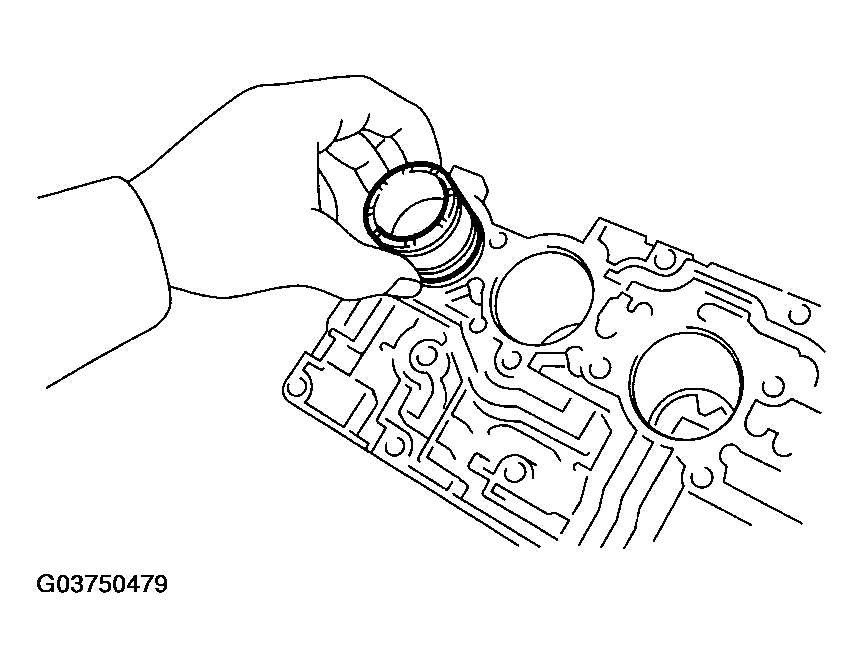

    Fig 2: Installing Piston Fully Into Upper Valve Body
    G03750479Courtesy of SUBARU OF AMERICA, INC.
  4. Install the spring and four steel balls to specified positions of upper valve body.

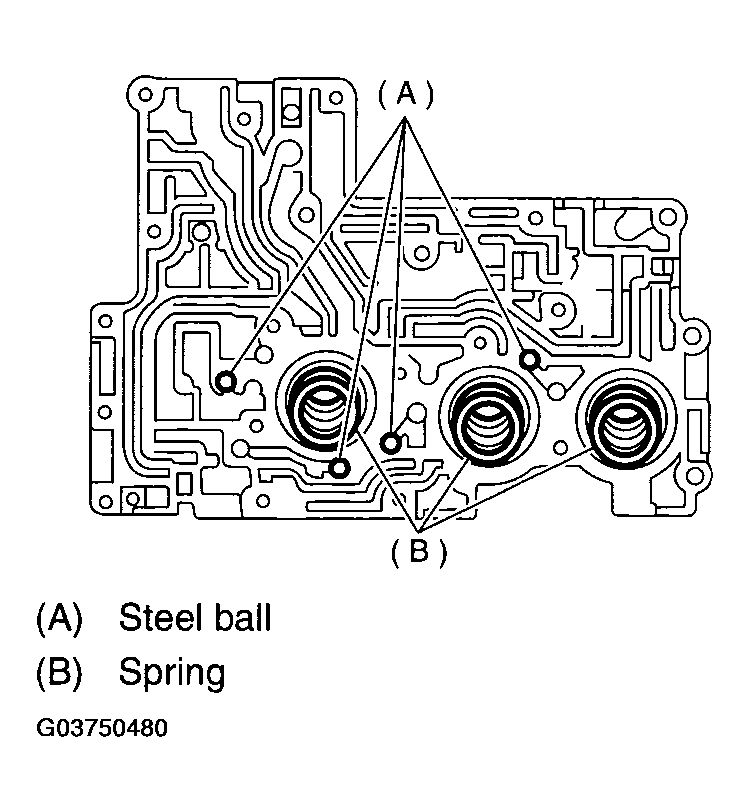

    Fig 3: Installing Spring And Four Steel Balls To Specified Positions Of Upper Valve Body
    G03750480Courtesy of SUBARU OF AMERICA, INC.
  5. Align the hole in side plate with the hole in separator plate, and then install support plate and upper separator plate to middle valve body.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

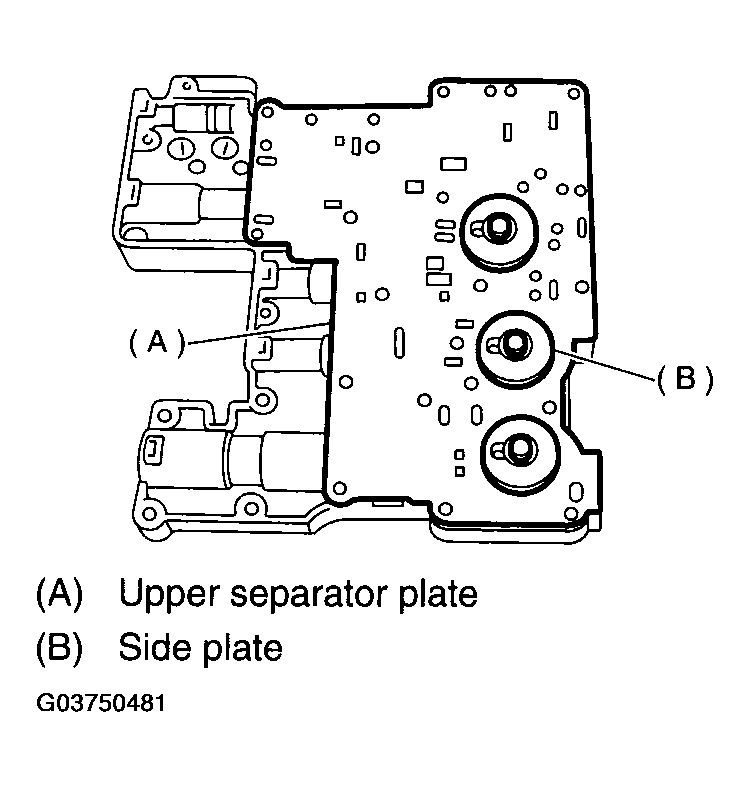

    Fig 4: Installing Support Plate And Upper Separator Plate To Middle Valve Body
    G03750481Courtesy of SUBARU OF AMERICA, INC.
  6. Insert six steel balls in their proper positions to middle valve body.

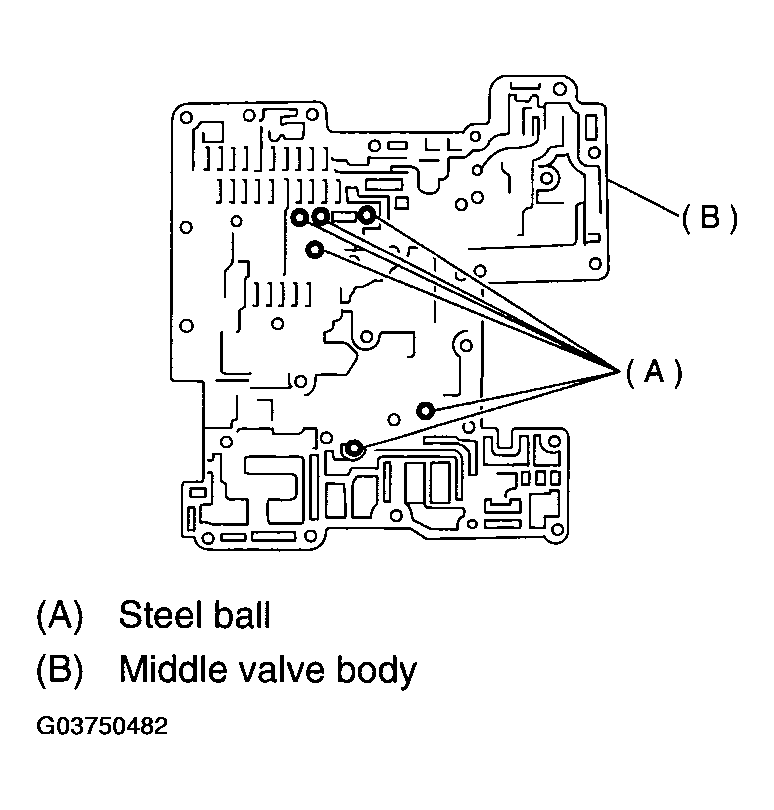

    Fig 5: Inserting Six Steel Balls In Proper Positions To Middle Valve Body
    G03750482Courtesy of SUBARU OF AMERICA, INC.
  7. Install three filters to lower valve body.
    NOTE: Pay attention to the location of filters.

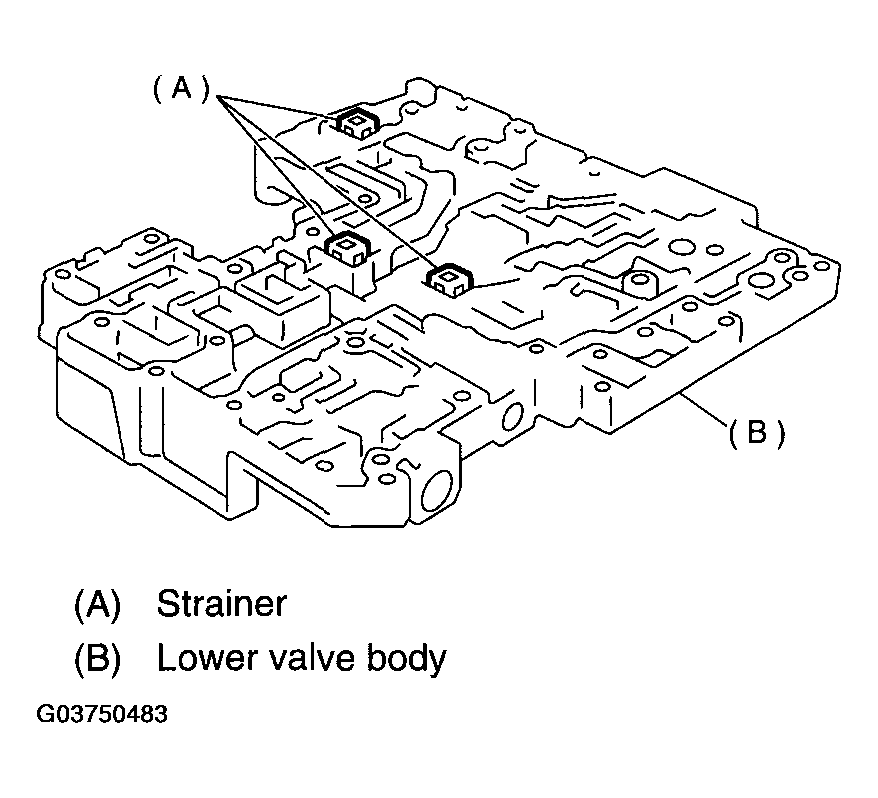

    Fig 6: Installing Three Filters To Lower Valve Body
    G03750483Courtesy of SUBARU OF AMERICA, INC.
  8. Install the lower separate plate to lower valve body.

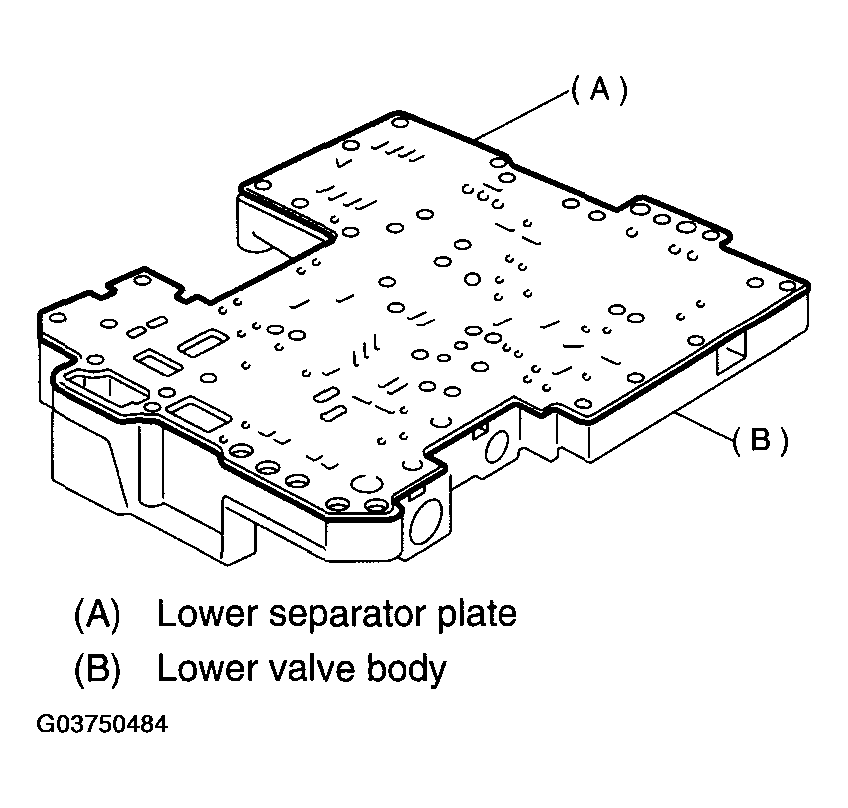

    Fig 7: Installing Lower Separate Plate To Lower Valve Body
    G03750484Courtesy of SUBARU OF AMERICA, INC.
  9. Temporarily assemble the valve body.
    NOTE: Be careful not to drop the middle valve body and upper body interior steel ball, or the lower body filter.

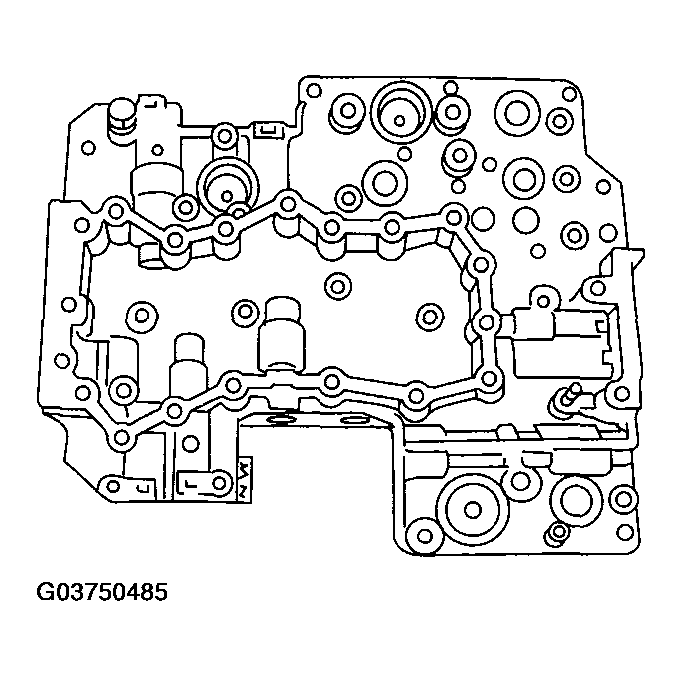

    Fig 8: Assembling Valve Body
    G03750485Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten the bolts and nuts.
    NOTE: Install the bolts (D) from upper valve body side.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

    Fig 9: Tightening Bolts And Nuts
    G03750486Courtesy of SUBARU OF AMERICA, INC.
  11. Install the sensor, solenoids and duty solenoids to specified positions.

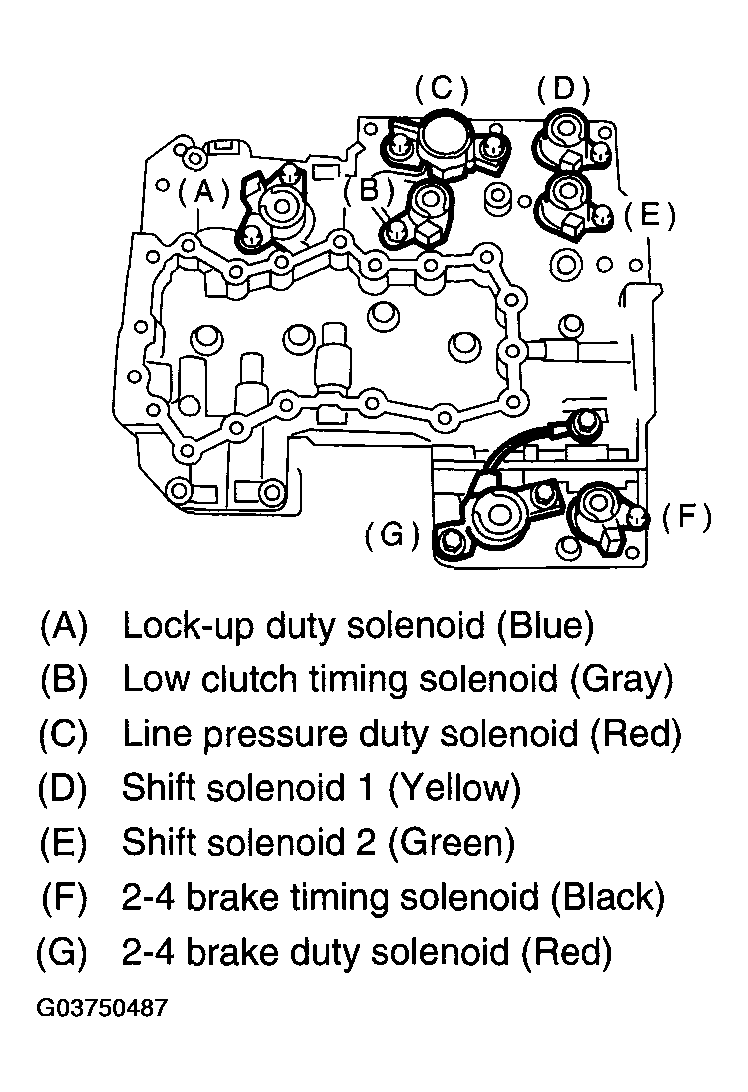

    Fig 10: Installing Sensor, Solenoids And Duty Solenoids To Specified Positions
    G03750487Courtesy of SUBARU OF AMERICA, INC.
  12. Tighten the bolts.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

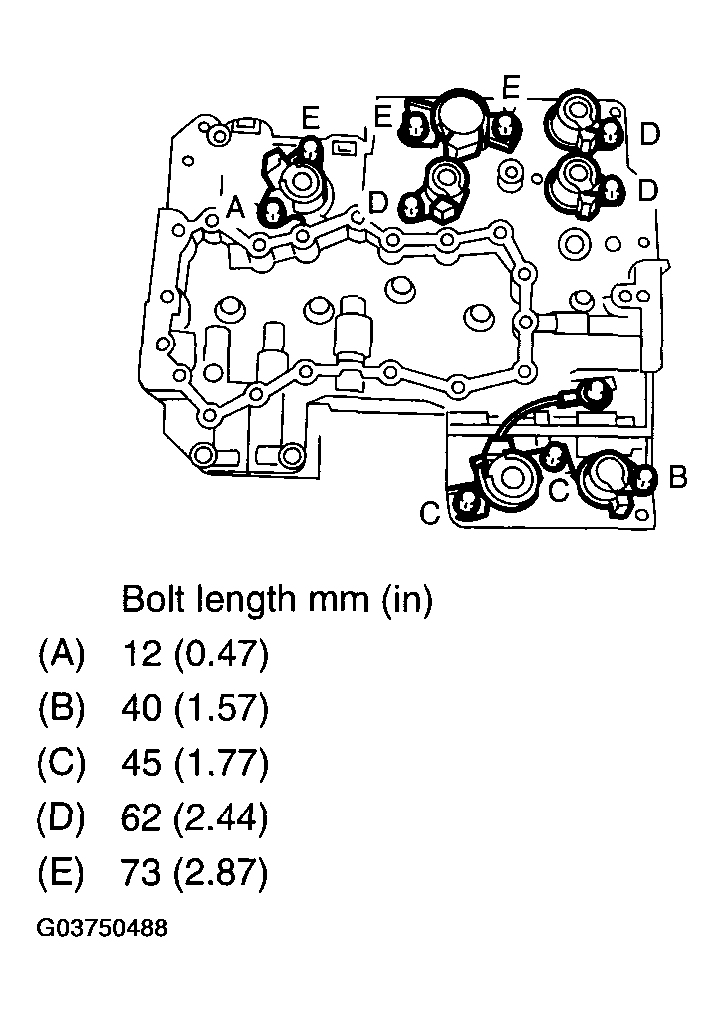

    Fig 11: Tightening Bolts
    G03750488Courtesy of SUBARU OF AMERICA, INC.
  13. Install oil strainer to lower valve body.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

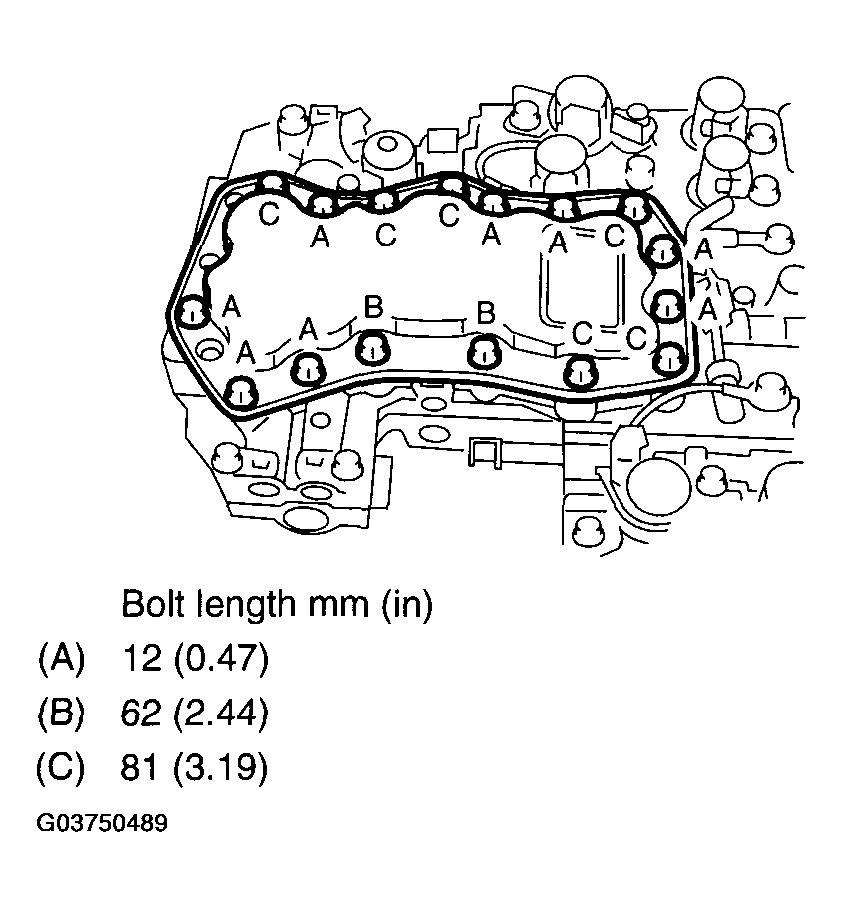

    Fig 12: Installing Oil Strainer To Lower Valve Body
    G03750489Courtesy of SUBARU OF AMERICA, INC.
