VTD Model

Press new oil seal using ST and a press.
ST 498057300 INSTALLER
Press dust cover.
Install the transfer clutch pipe onto the extension case, taking care not to bend the pipe.

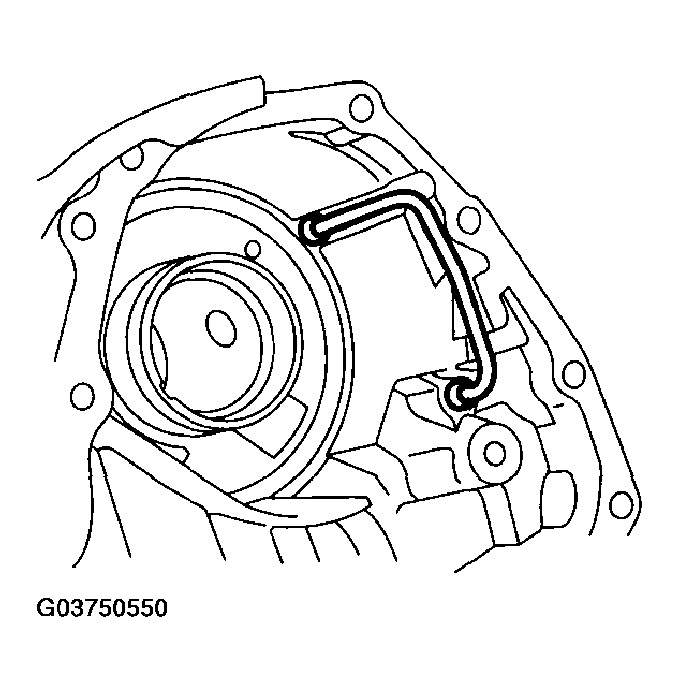

Fig 1: Installing Transfer Clutch Pipe Onto Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the test plug.
Tightening torque:

13 N.m (1.3 kgf-m, 9.4 ft-lb)

Fig 2: Installing Test Plug
Courtesy of SUBARU OF AMERICA, INC.
Insert the multi-plate clutch, drive plates, driven plates, and spring retainer.

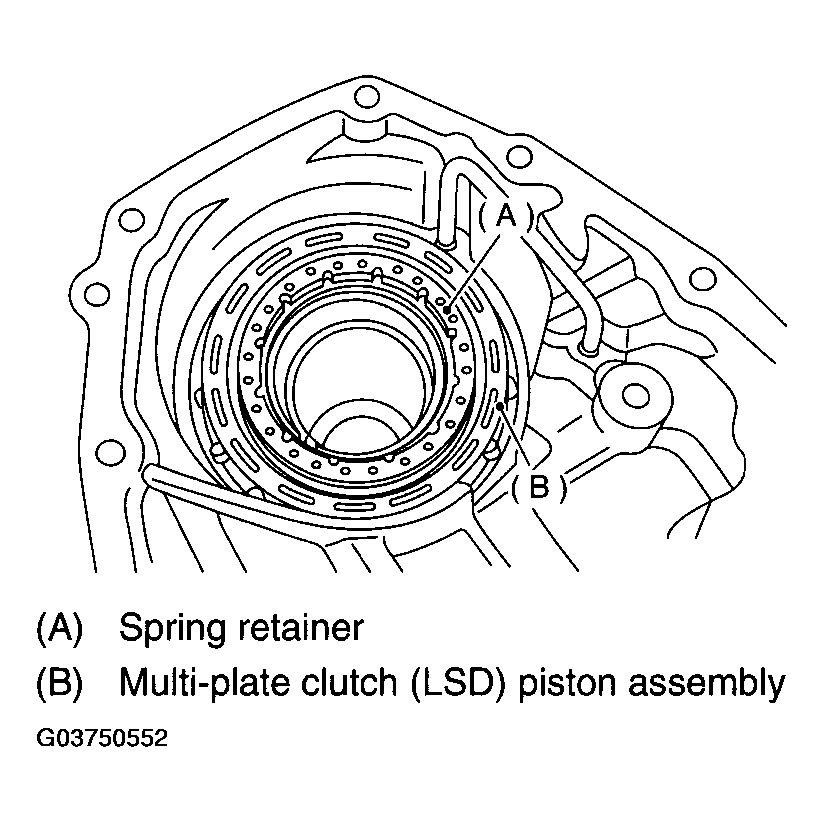

Fig 3: Inserting Multi-Plate Clutch, Drive Plates, Driven Plates, And Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring using special tools 1, 2, and 3.
ST1 398673600 COMPRESSOR

ST2 498627100 SEAT

ST3 398663600 PLIERS

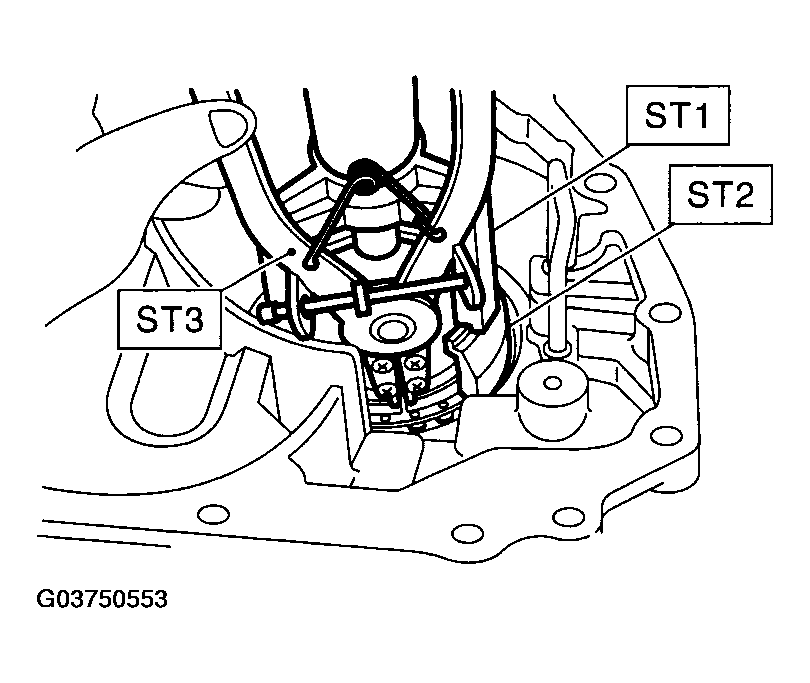

Fig 4: Installing Snap Ring Using Compressor ST1-398673600, Sheat ST2-498627100 And ST3-398663600 Pliers
Courtesy of SUBARU OF AMERICA, INC.
