MPT Model

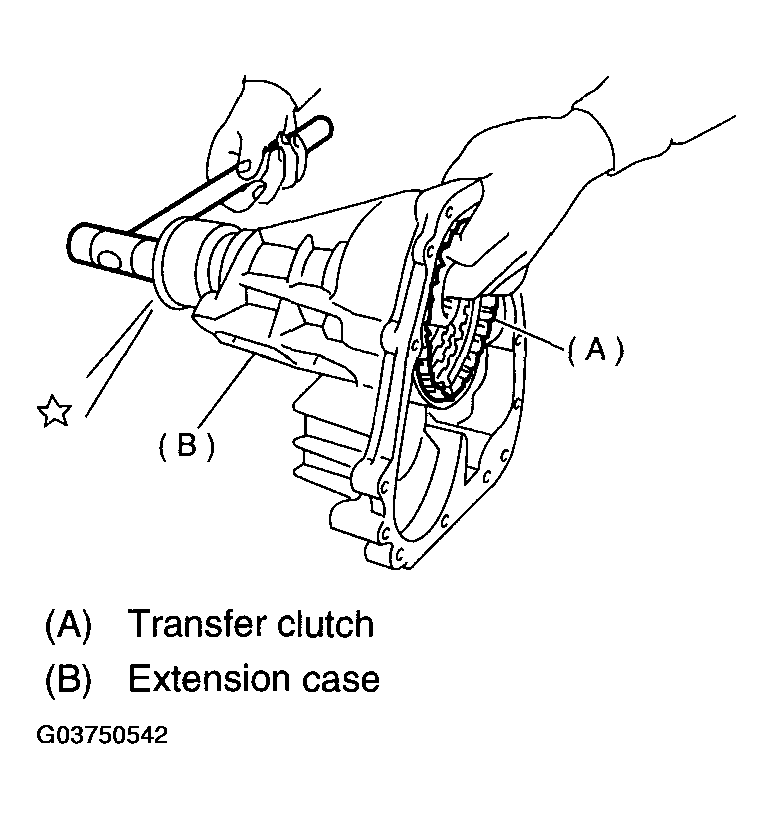

Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
NOTE: Be careful not to damage the oil seal in the extension.

Fig 1: Removing Transfer Clutch
Courtesy of SUBARU OF AMERICA, INC.

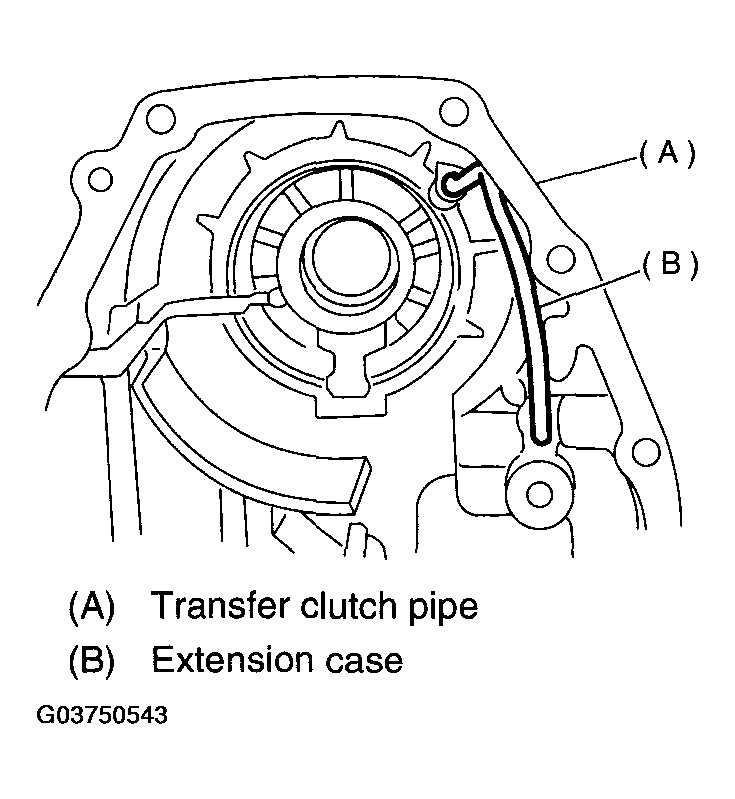

Remove the transmission clutch pipe without bending pipe.

Fig 2: Removing Transmission Clutch Pipe Without Bending Pipe
Courtesy of SUBARU OF AMERICA, INC.
