Front Vehicle Speed Sensor: Removal

Set up the vehicle on a lift.
Disconnect the ground cable from battery.

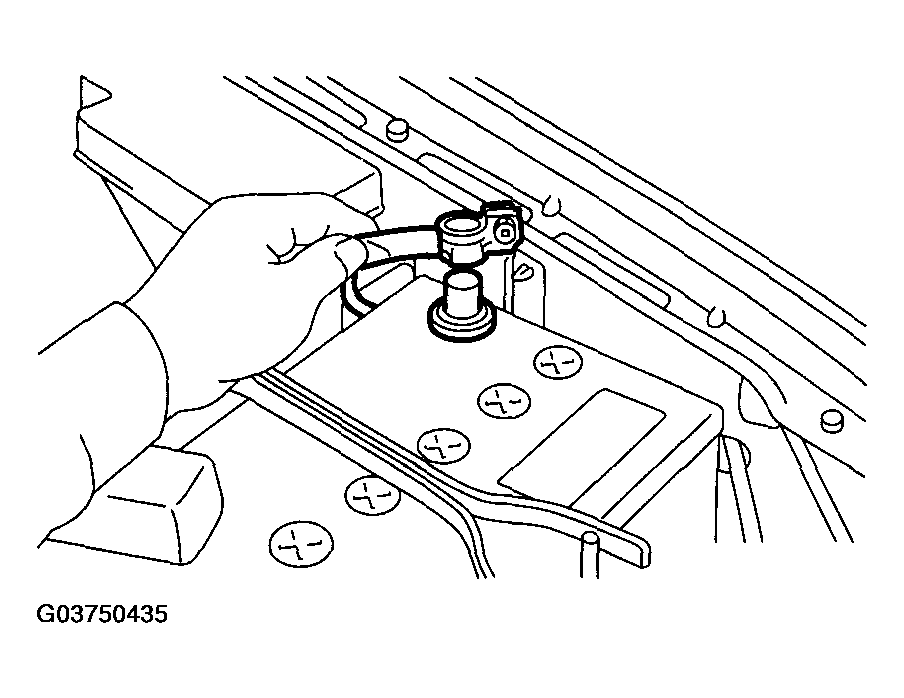

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case or air intake chamber. (Non-TURBO model)
< Ref. to REMOVAL , Air Cleaner Case. >
Remove the intercooler. (TURBO model)
< Ref. to REMOVAL , Intercooler. >
Disconnect the transmission connector.

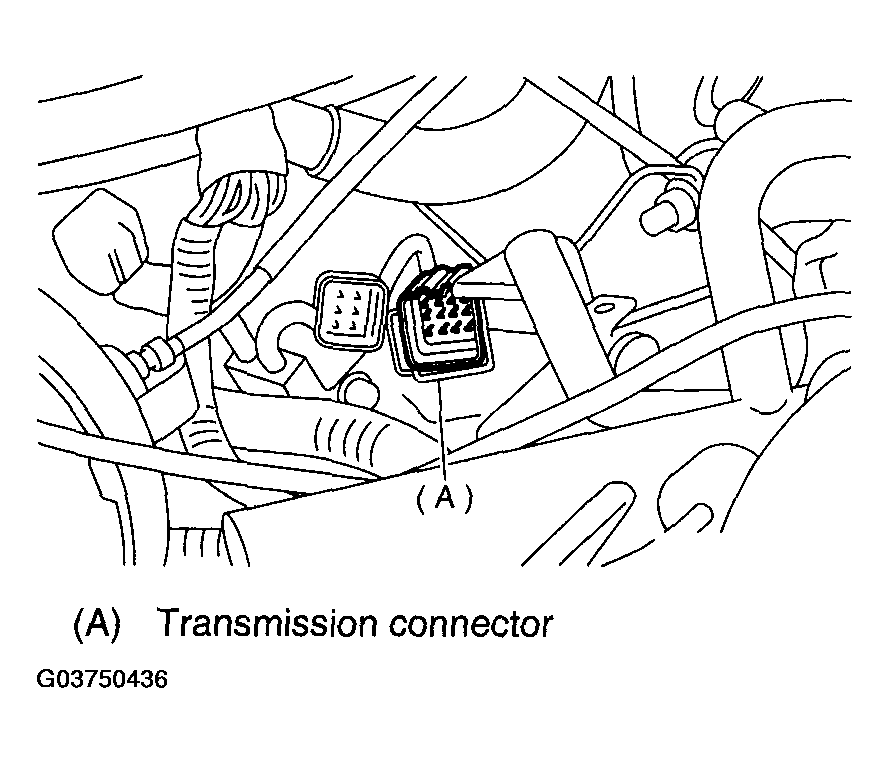

Fig 2: Disconnecting Transmission Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper. < Ref. to , REMOVALS . >
Remove the transmission connector from stay.
Lift-up the vehicle.
Clean the transmission exterior.
Drain the ATF completely.
NOTE: Tighten the ATF drain plug after draining the ATF.

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

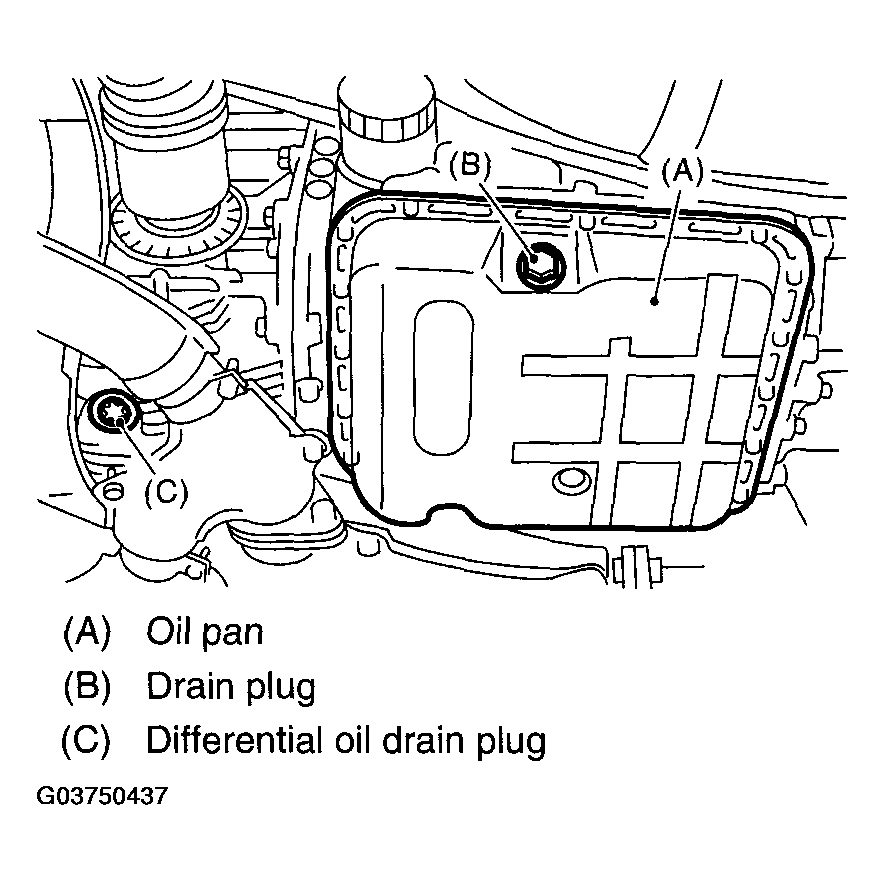

Fig 3: Identifying Oil Pan, Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the front, center, exhaust pipes and muffler. (Non-TURBO model)
< Ref. to REMOVAL , Front Exhaust Pipe. >, < Ref. to REMOVAL , Rear Exhaust Pipe. > and < Ref. to REMOVAL , Muffler. >
Remove the center, rear exhaust pipe and muffler. (TURBO model)
< Ref. to REMOVAL , Center Exhaust Pipe. >, < Ref. to REMOVAL , Rear Exhaust Pipe. > and < Ref. to REMOVAL , Muffler. >
Remove the shield cover. (If equipped)
Remove the propeller shaft. < Ref. to REMOVAL , Propeller Shaft. >
Place the transmission jack under transmission.
NOTE: Make sure that the support plates of transmission jack don't touch the crossmember.
Remove the transmission rear crossmember bolts.

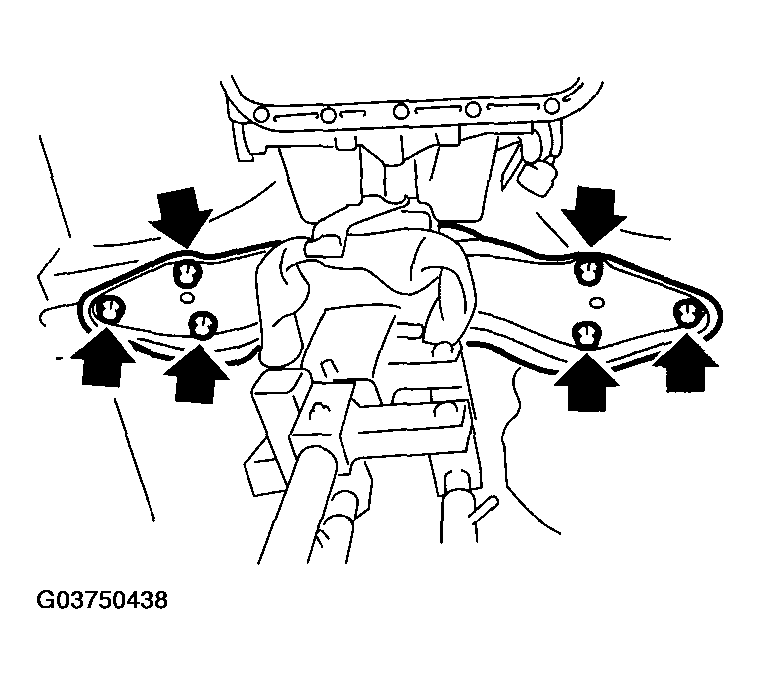

Fig 4: Removing Transmission Rear Crossmember Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the AT jack.
NOTE: Do not separate the AT jack and transmission.
Remove the oil cooler inlet and outlet pipe.
NOTE: When removing the outlet pipe, be careful not to lose balls and springs used with retaining screws.
Remove the front vehicle speed sensor and torque converter turbine speed sensor.

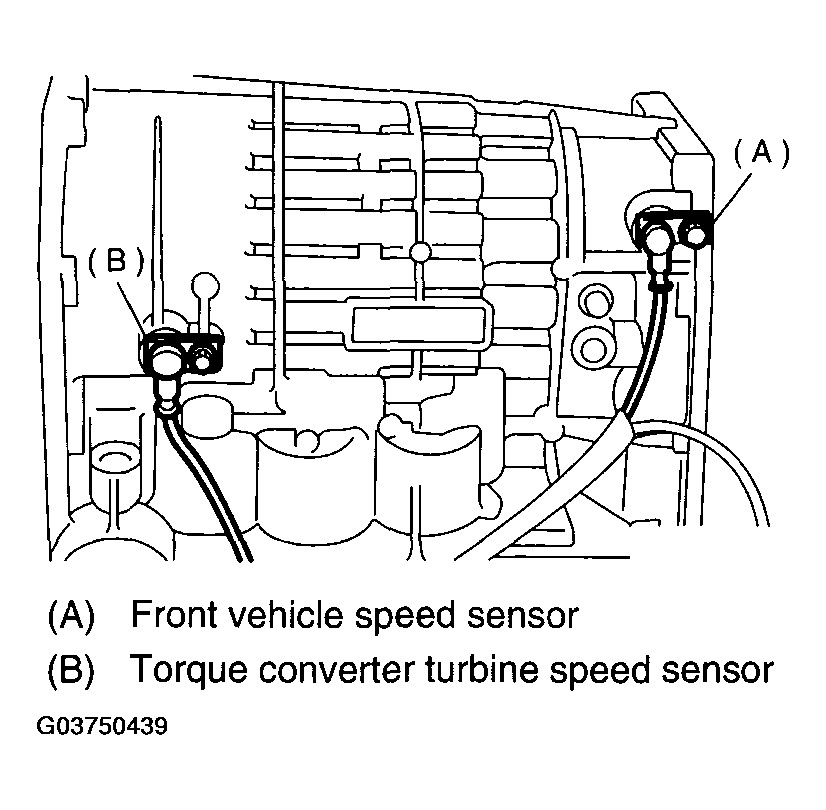

Fig 5: Removing Front Vehicle Speed Sensor And Torque Converter Turbine Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear vehicle speed sensor. (Non-TURBO model)

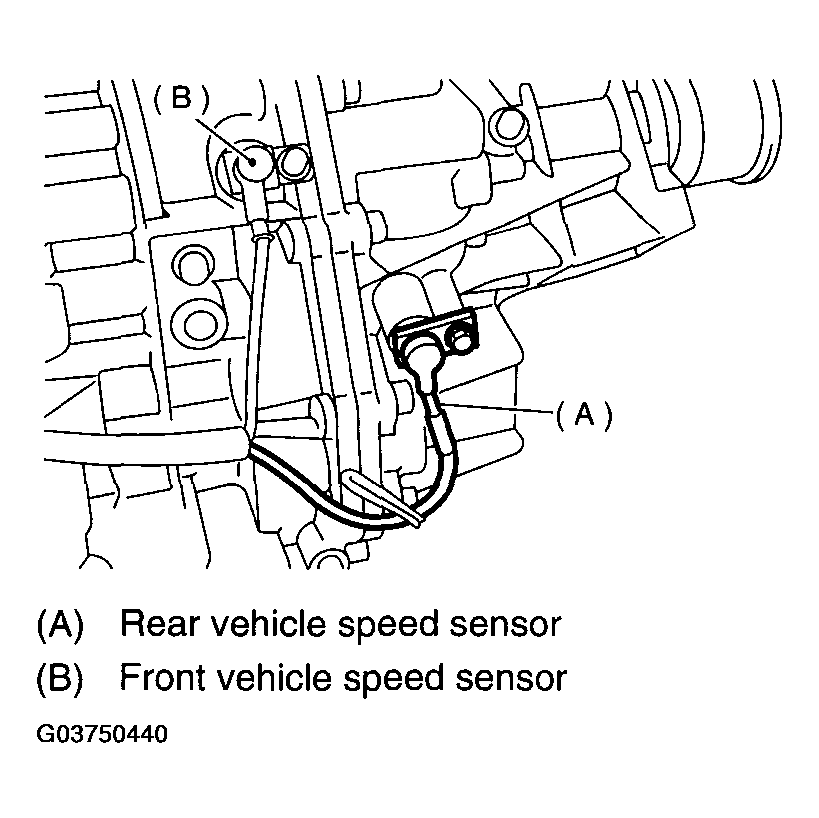

Fig 6: Removing Rear Vehicle Speed Sensor (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear vehicle speed sensor connector. (TURBO model)

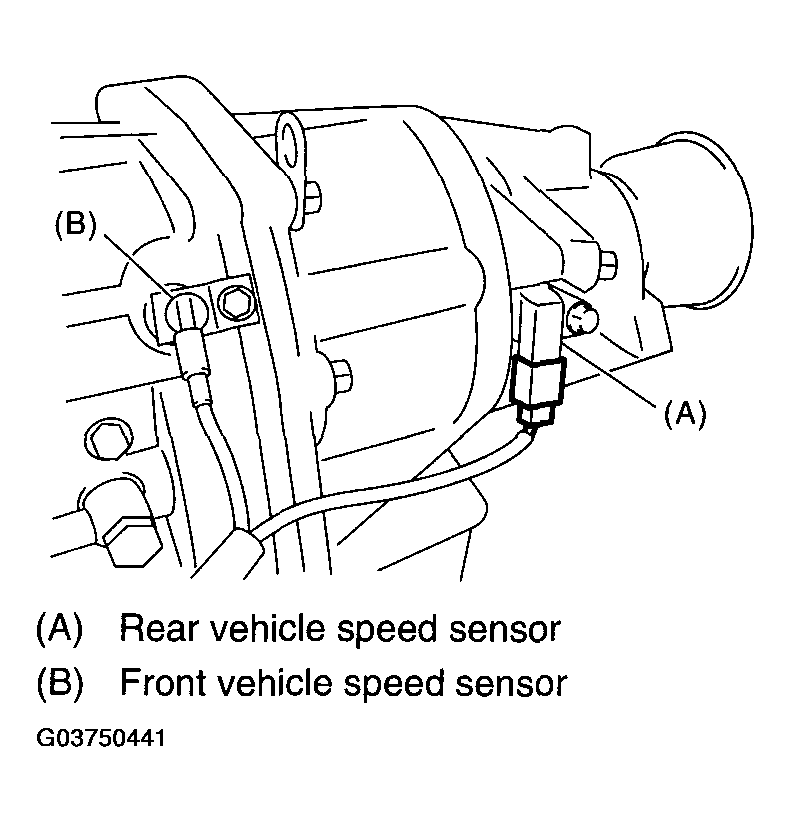

Fig 7: Disconnecting Rear Vehicle Speed Sensor Connector (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pan.

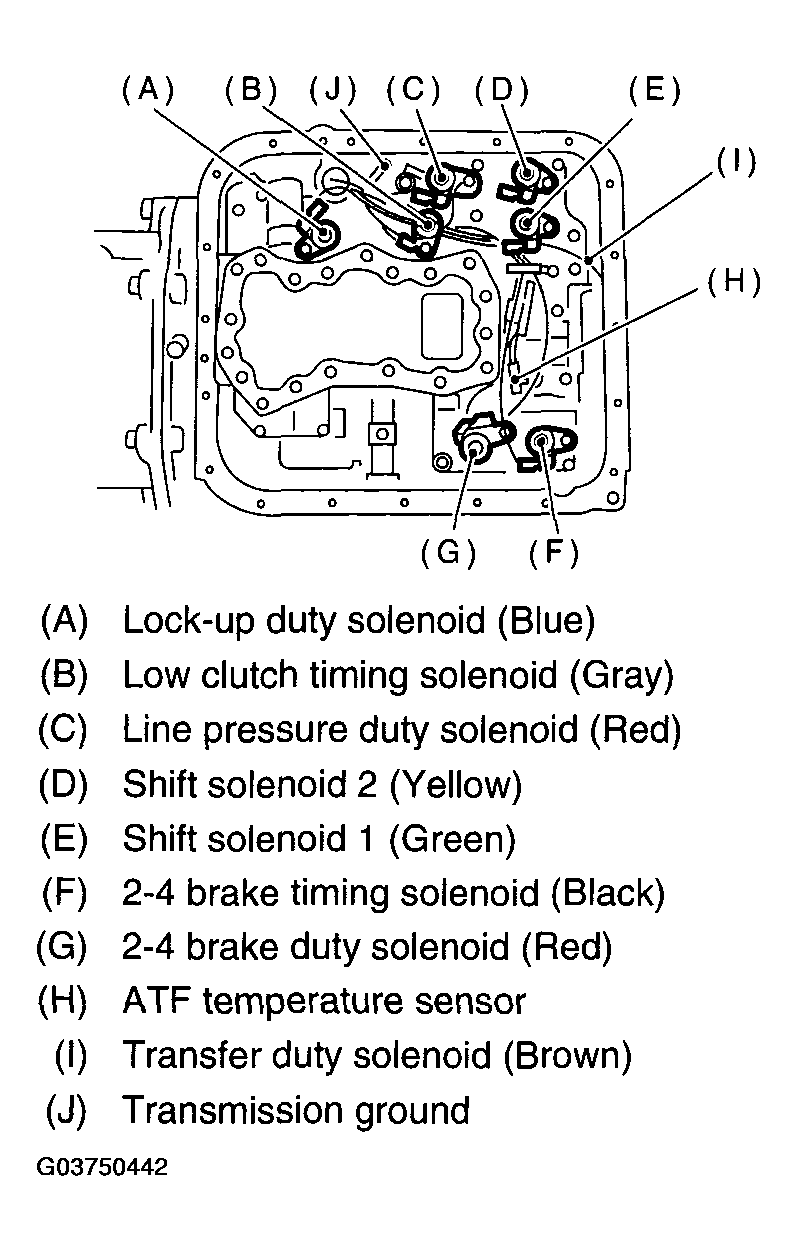

Disconnect the duty solenoid connectors, and then disconnect the ATF temperature sensor from control valve body. (Non-TURBO model)

Fig 8: Disconnecting Duty Solenoid Connectors And ATF Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect control valve connector and transmission ground. (TURBO model)

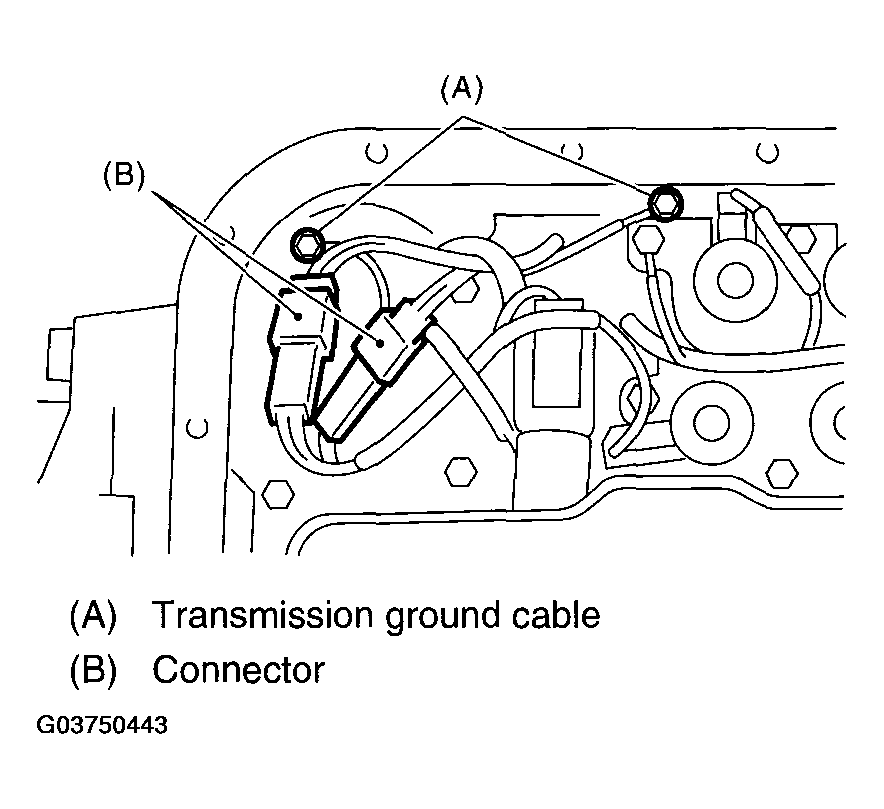

Fig 9: Disconnecting Control Valve Connector And Transmission Ground
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness assembly.
