Control Valve And Harness Routing

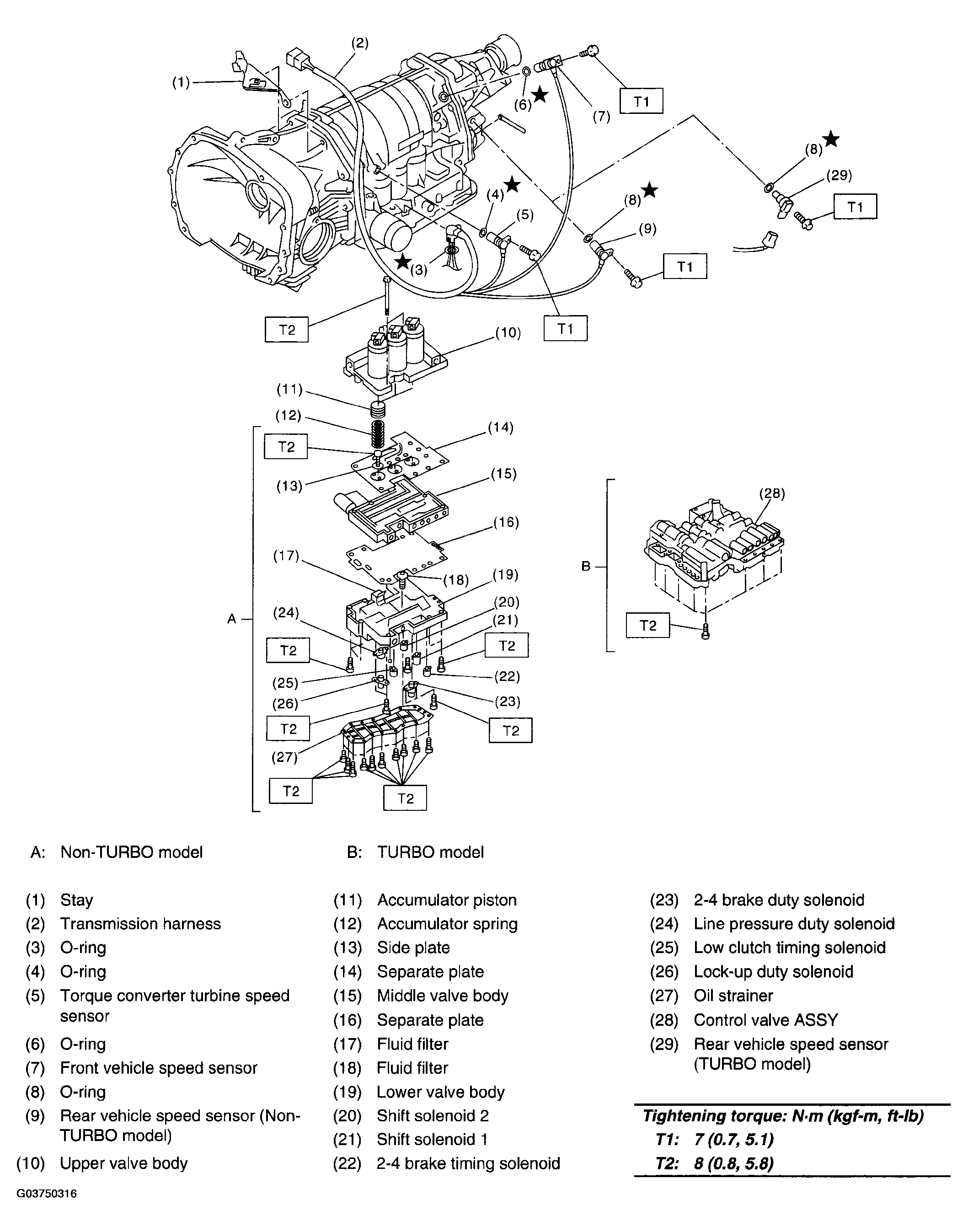

Fig 1: Replacement Components Of Control Valve & Harness Routing With Torque Specifications
G03750316Courtesy of SUBARU OF AMERICA, INC.
