Special Tools

SPECIAL TOOLS SPECIFICATION

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 498575400 OIL PRESSURE GAUGE ASSY Used for measuring oil pressure.
Fig 2 498897200 ADAPTER Used oil pump housing when measuring reverse clutch pressure and line pressure.
Fig 3 498897700 ADAPTER SET Used for measuring transfer clutch pressure.
Fig 4 498545400 FILTER WRENCH Used for removing and installing ATF filter.
Fig 5 498277200 STOPPER SET Used for removing and installing automatic transmission assembly to engine.
Fig 6 41099AA000 ENGINE SUPPORT ASSY Used for supporting engine.
  1. ENGINE SUPPORT BRACKET (41099AA010)
  2. ENGINE SUPPORT (41099AA020)
Fig 7 398527700 PULLER ASSY
  • Used for removing extension case roller bearing.
  • Used for removing extension oil seal.
  • Used for removing front differential side retainer bearing outer race.
  • Used for removing front differential side retainer bearing outer ball race.
Fig 8 498057300 INSTALLER Used for installing extension oil seal.
Fig 9 498077000 REMOVER Used for removing differential taper roller bearing.
Fig 10 499247400 INSTALLER
  • Used for installing transfer outer snap ring.
  • Used with GUIDE (499257300).
Fig 11 499257300 SNAP RING OUTER GUIDE
  • Used for installing transfer outer snap ring.
  • Used with INSTALLER (499247400).
Fig 12 499787000 WRENCH ASSY Used for removing and installing differential side retainer.
Fig 13 398437700 DRIFT Used for installing converter case oil seal.
Fig 14 398487700 INSTALLER Used for installing taper roller bearing of front differential.
Fig 15 398673600 COMPRESSOR Used for removing and installing clutch spring.
Fig 16 498255400 PLATE Used for measuring backlash of hypoid gear.
Fig 17 399893600 PLIERS Used for removing and installing clutch spring.
Fig 18 498247001 MAGNET BASE
  • Used for measuring gear backlash.
  • Used with DIAL GAUGE (498247100).
Fig 19 498247100 DIAL GAUGE
  • Used for measuring gear backlash.
  • Used with MAGNET BASE (498247001).
Fig 20 498517000 REPLACER Used for removing front roller bearing.
Fig 21 398623600 SEAT Used for removing spring of transfer clutch piston.
Fig 22 499267300 STOPPER PIN Used for installing inhibitor switch.
Fig 23 499787700 WRENCH Used for removing and installing drive pinion lock nut.
Fig 24 499787500 ADAPTER Used for removing and installing drive pinion lock nut.
Fig 25 398643600 GAUGE Used for measuring total end play, extension end play and drive pinion height.
Fig 26 498627100 SEAT Used for holding low clutch piston retainer spring when installing snap ring.
Fig 27 499577000 GAUGE
  • Used for measuring the transmission case mating surface to the reduction gear end surface.
  • For MPT model.
Fig 28 398744300 GAUGE
  • Use for measuring contact face between multi-plate clutch end and transmission.
  • For VTD model.
Fig 29 499737000 PULLER Used for removing reduction driven gear assembly.
Fig 30 499737100 PULLER SET Used for removing reduction drive gear assembly.
Fig 31 498077600 REMOVER Used for removing ball bearing.
Fig 32 498937110 HOLDER Used for removing and installing drive pinion lock nut.
Fig 33 498677100 COMPRESSOR Used for installing 2-4 brake snap ring.
Fig 34 498437000 HIGH CLUTCH PISTON GUIDE Used for installing high clutch piston.
Fig 35 498437100 LOW CLUTCH PISTON GUIDE Used for installing low clutch piston.
Fig 36 899580100 INSTALLER Used for press-fitting the ball bearing for transfer clutch.
Fig 37 28399SA000 REMOVER
  • Used for removing axle shaft.
  • TURBO model
Fig 38 28399SA010 PROTECTOR
  • Used for installing axle shaft.
  • TURBO model
Fig 39 18675AA000 DIFFERENTIAL OIL SEAL INSTALLER
  • Used for installing differential side retainer oil seal.
  • TURBO model
Fig 40 499247300 INSTALLER
  • Used for removing axle shaft.
  • Used with REMOVER (499095500).
  • Non-TURBO model
Fig 41 499095500 REMOVER
  • Used for removing axle shaft.
  • Non-TURBO model
Fig 42 499797000 INSTALLER
  • Used for installing differential side retainer oil seal.
  • Non-TURBO model
Fig 43 398497701 SEAT Used for installing needle bearing.
Fig 44 899524100 PULLER SET
  • Using the bolt only.
    1. Bolt
  • Used with PULLER SET (499737100).
  • Used with PULLER (499737000).
    1. Puller
    2. Cap
Fig 45 24082AA260 CARTRIDGE Troubleshooting for electrical systems.
Fig 46 22771AA030 SUBARU SELECT MONITOR KIT Troubleshooting for electrical systems.
Fig 1: Identifying Special Tool ST-498575400
G03750326Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST-498897200
G03750327Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Special Tool ST-498897700
G03750328Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST-498545400
G03750329Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-498277200
G03750330Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST41099AA000
G03750331Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST-398527700
G03750332Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST-498057300
G03750333Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST-498077000
G03750334Courtesy of SUBARU OF AMERICA, INC.
Fig 10: Identifying Special Tool ST-499247400
G03750335Courtesy of SUBARU OF AMERICA, INC.
Fig 11: Identifying Special Tool ST-499257300
G03750336Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST-499787000
G03750337Courtesy of SUBARU OF AMERICA, INC.

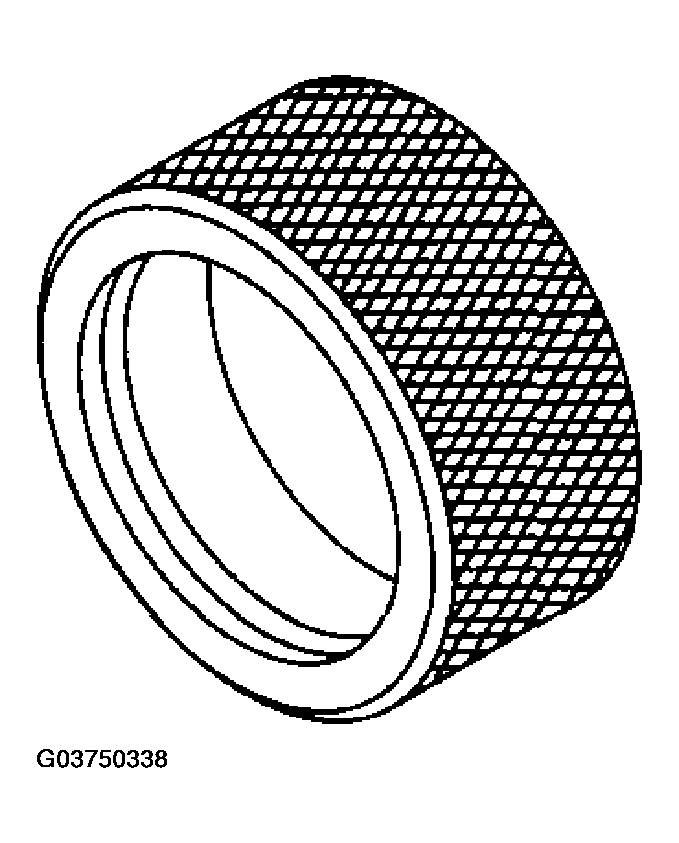

Fig 13: Identifying Special Tool ST-398437700
G03750338Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST-398487700
G03750339Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST-398673600
G03750340Courtesy of SUBARU OF AMERICA, INC.
Fig 16: Identifying Special Tool ST-498255400
G03750341Courtesy of SUBARU OF AMERICA, INC.
Fig 17: Identifying Special Tool ST-399893600
G03750342Courtesy of SUBARU OF AMERICA, INC.

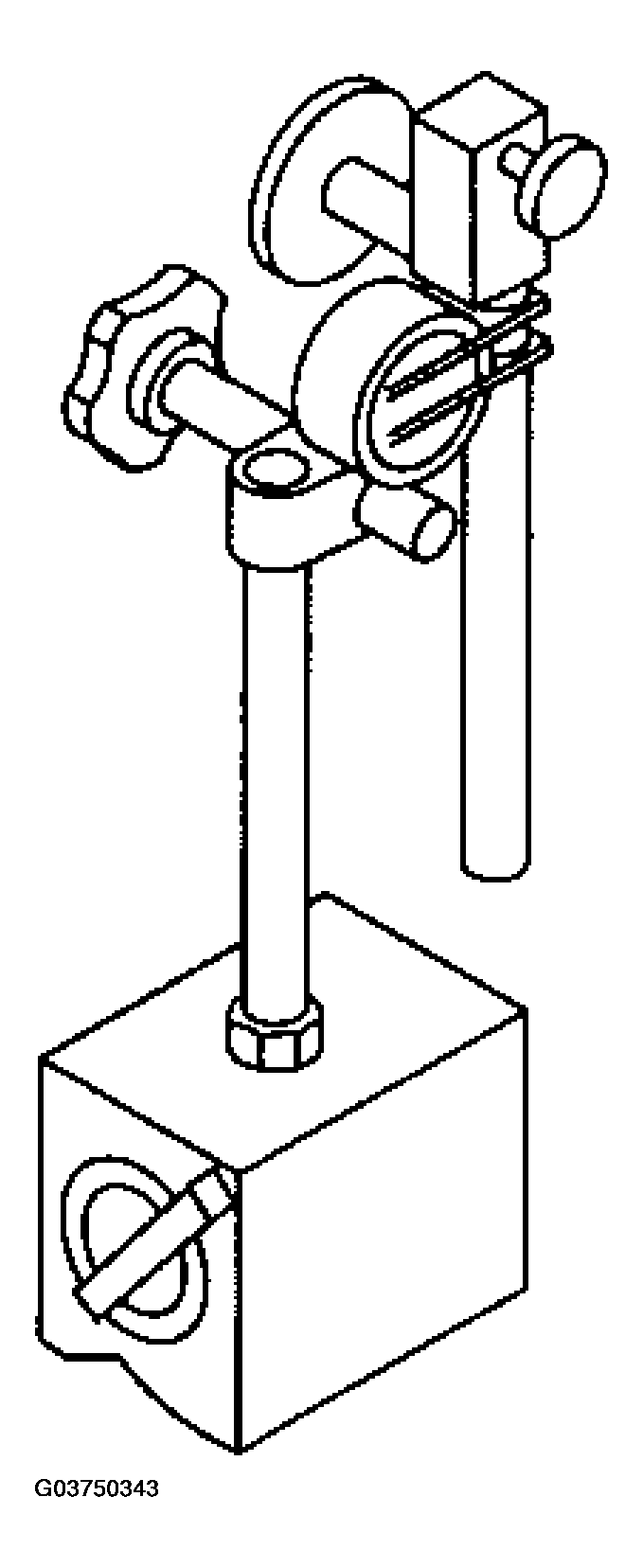

Fig 18: Identifying Special Tool ST-498247001
G03750343Courtesy of SUBARU OF AMERICA, INC.

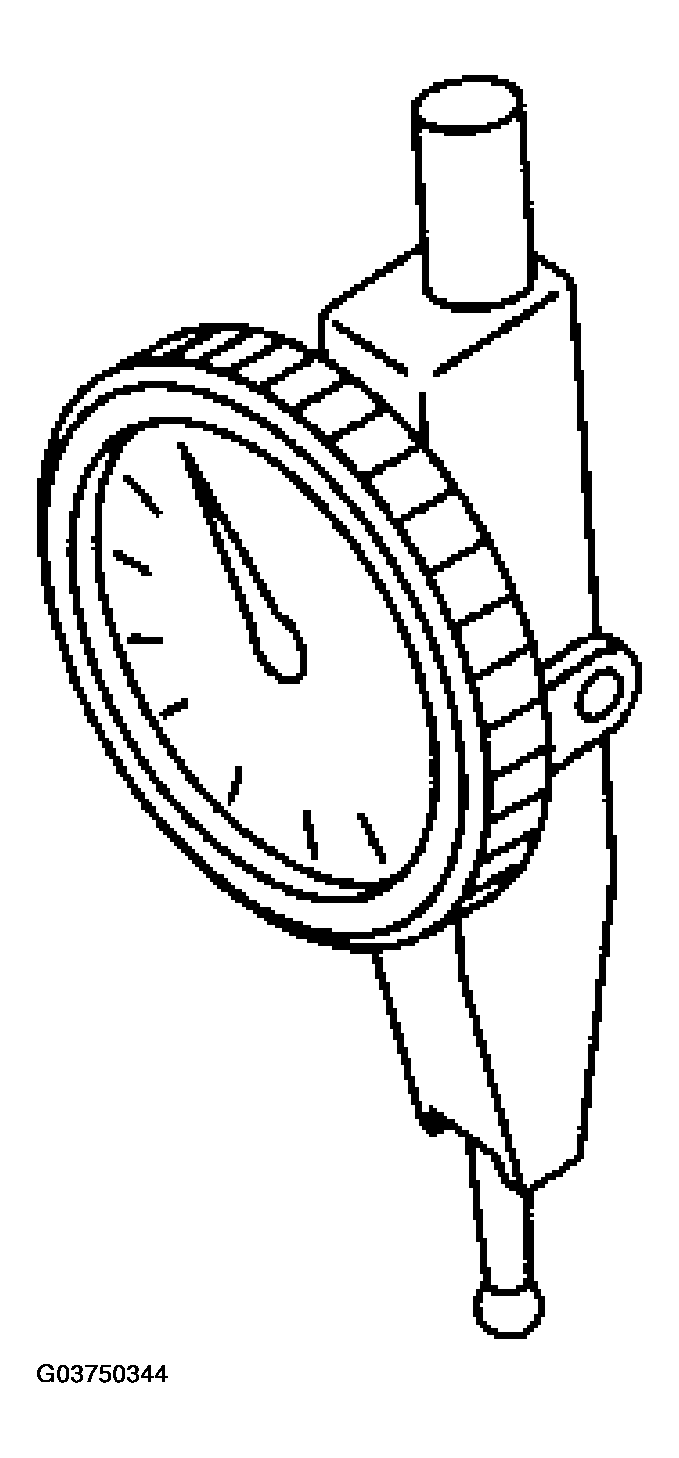

Fig 19: Identifying Special Tool ST-498247100
G03750344Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST-498517000
G03750345Courtesy of SUBARU OF AMERICA, INC.
Fig 21: Identifying Special Tool ST-398623600
G03750346Courtesy of SUBARU OF AMERICA, INC.
Fig 22: Identifying Special Tool ST-499267300
G03750347Courtesy of SUBARU OF AMERICA, INC.
Fig 23: Identifying Special Tool ST-499787700
G03750348Courtesy of SUBARU OF AMERICA, INC.
Fig 24: Identifying Special Tool ST-499787500
G03750349Courtesy of SUBARU OF AMERICA, INC.
Fig 25: Identifying Special Tool ST-398643600
G03750350Courtesy of SUBARU OF AMERICA, INC.
Fig 26: Identifying Special Tool ST-498627100
G03750351Courtesy of SUBARU OF AMERICA, INC.
Fig 27: Identifying Special Tool ST-499577000
G03750352Courtesy of SUBARU OF AMERICA, INC.
Fig 28: Identifying Special Tool ST-398744300
G03750353Courtesy of SUBARU OF AMERICA, INC.
Fig 29: Identifying Special Tool ST-499737000
G03750354Courtesy of SUBARU OF AMERICA, INC.

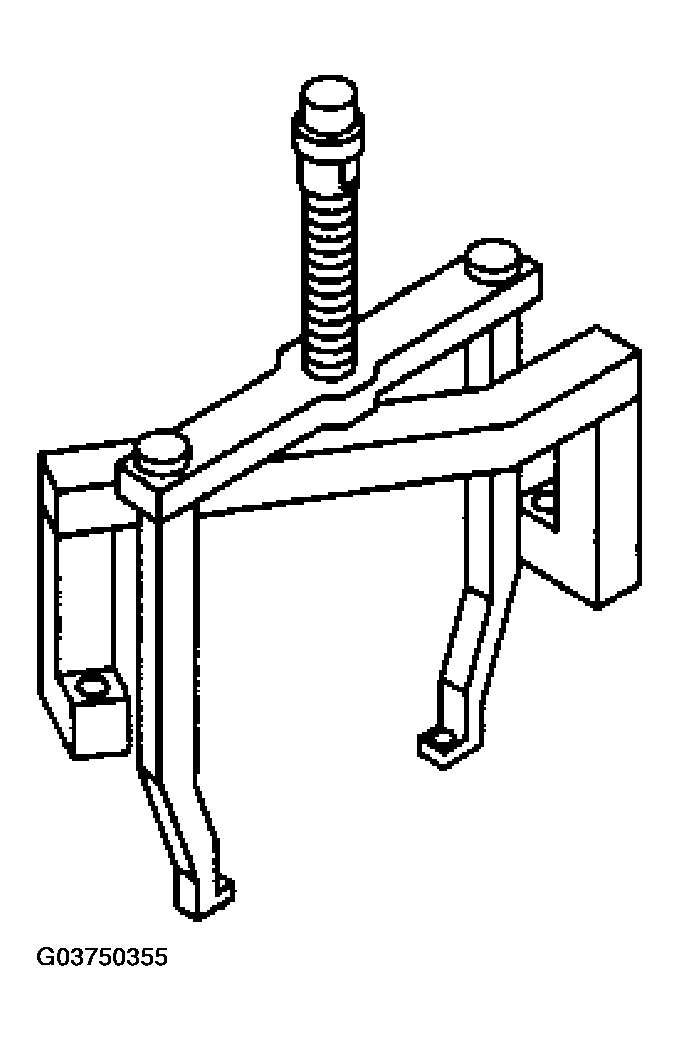

Fig 30: Identifying Special Tool ST-499737100
G03750355Courtesy of SUBARU OF AMERICA, INC.
Fig 31: Identifying Special Tool ST-498077600
G03750356Courtesy of SUBARU OF AMERICA, INC.
Fig 32: Identifying Special Tool ST-498937110
G03750357Courtesy of SUBARU OF AMERICA, INC.
Fig 33: Identifying Special Tool ST-498677100
G03750358Courtesy of SUBARU OF AMERICA, INC.
Fig 34: Identifying Special Tool ST-498437000
G03750359Courtesy of SUBARU OF AMERICA, INC.
Fig 35: Identifying Special Tool ST-498437100
G03750360Courtesy of SUBARU OF AMERICA, INC.
Fig 36: Identifying Special Tool ST-899580100
G03750361Courtesy of SUBARU OF AMERICA, INC.
Fig 37: Identifying Special Tool ST-28399SA000
G03750362Courtesy of SUBARU OF AMERICA, INC.
Fig 38: Identifying Special Tool ST-28399SA010
G03750363Courtesy of SUBARU OF AMERICA, INC.
Fig 39: Identifying Special Tool ST-18675AA000
G03750364Courtesy of SUBARU OF AMERICA, INC.
Fig 40: Identifying Special Tool ST-499247300
G03750365Courtesy of SUBARU OF AMERICA, INC.
Fig 41: Identifying Special Tool ST-499095500
G03750366Courtesy of SUBARU OF AMERICA, INC.
Fig 42: Identifying Special Tool ST-499797000
G03750367Courtesy of SUBARU OF AMERICA, INC.
Fig 43: Identifying Special Tool ST-398497701
G03750368Courtesy of SUBARU OF AMERICA, INC.
Fig 44: Identifying Special Tool ST-899524100
G03750369Courtesy of SUBARU OF AMERICA, INC.
Fig 45: Identifying Special Tool ST-24082AA260
G03750370Courtesy of SUBARU OF AMERICA, INC.

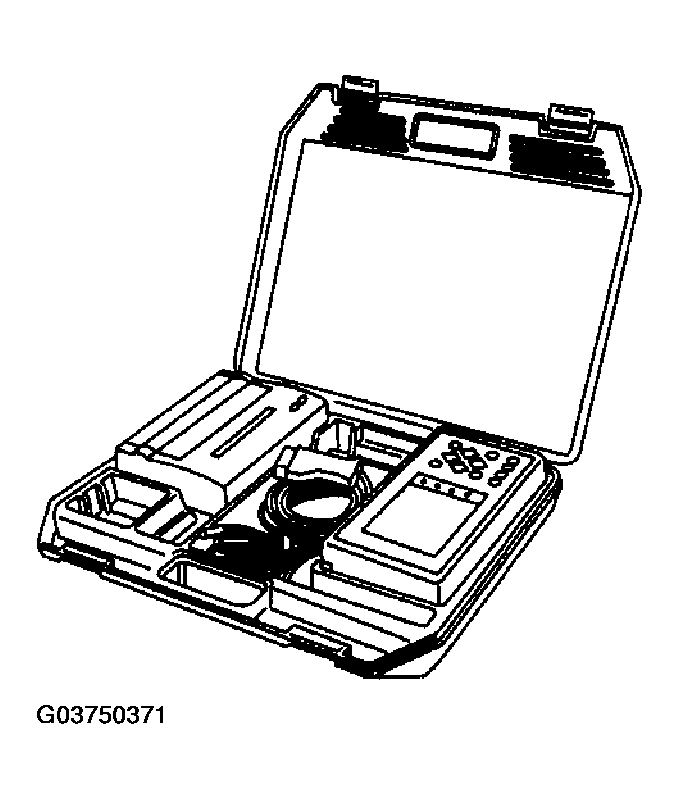

Fig 46: Identifying Special Tool ST-22771AA030
G03750371Courtesy of SUBARU OF AMERICA, INC.
