Transmission Control Device: Installation

Install the detention spring to transmission case.
Tightening torque:

6 N.m (0.6 kgf-m, 4.3 ft-lb)
Insert the range select lever, and tighten the bolt.
Tightening torque:

6 N.m (0.6 kgf-m, 4.3 ft-lb)

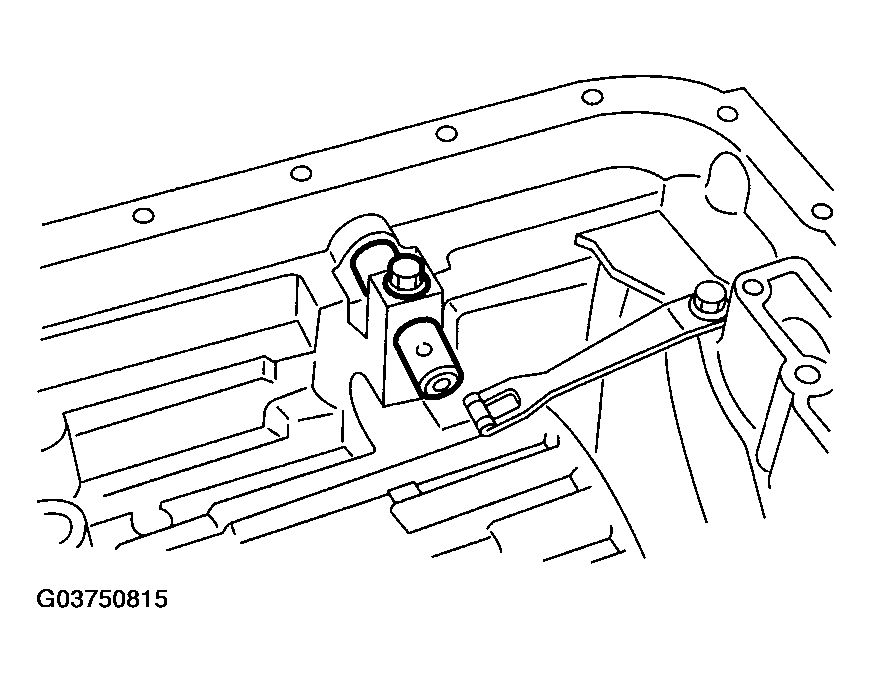

Fig 1: Inserting Range Select Lever, And Tightening Bolt
Courtesy of SUBARU OF AMERICA, INC.
Insert the manual plate and parking rod.

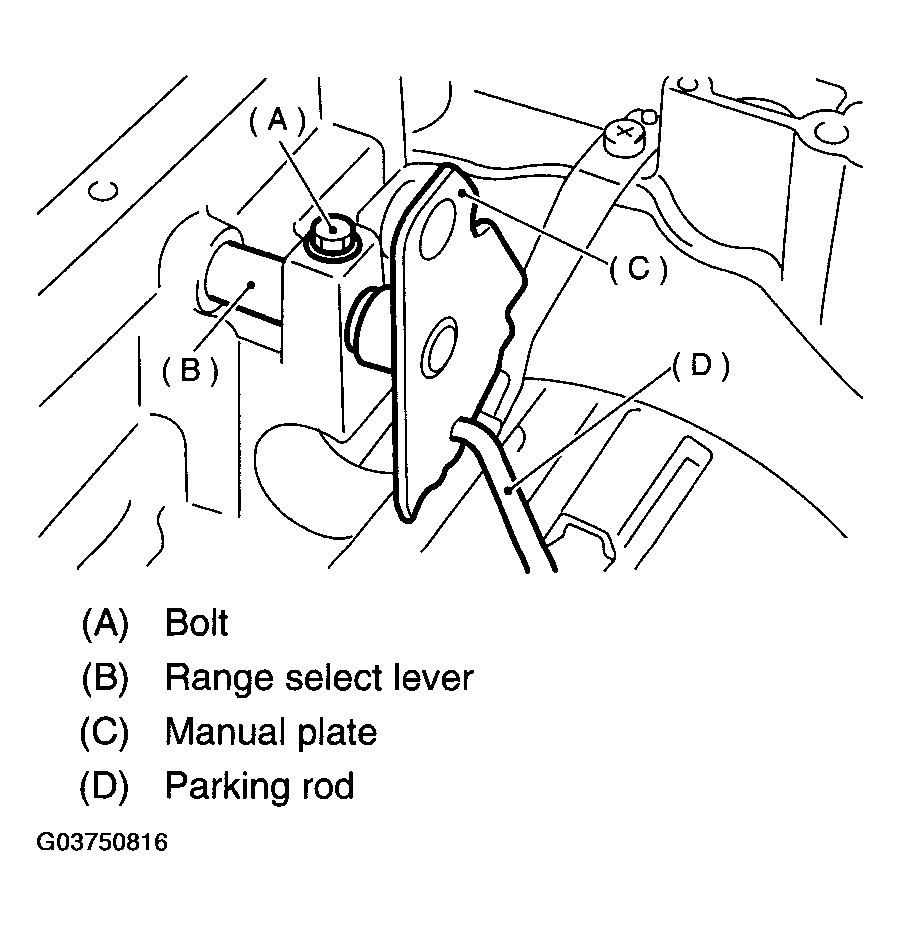

Fig 2: Inserting Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert the spring pin to manual plate.

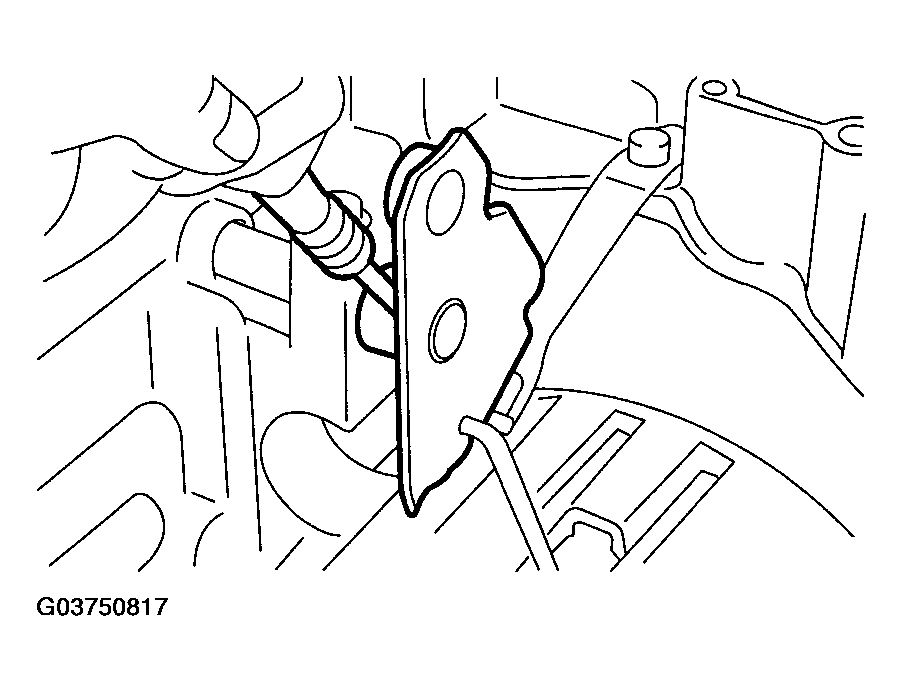

Fig 3: Inserting Spring Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the control valve assembly and oil pan. < Ref. to , INSTALLATION . >
Turn over the transmission case to its original position.
Install the pitching stopper bracket.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install the inhibitor switch and adjust the inhibitor switch. < Ref. to , INHIBITOR SWITCH . >
Insert the inhibitor switch and transmission connector into stay.

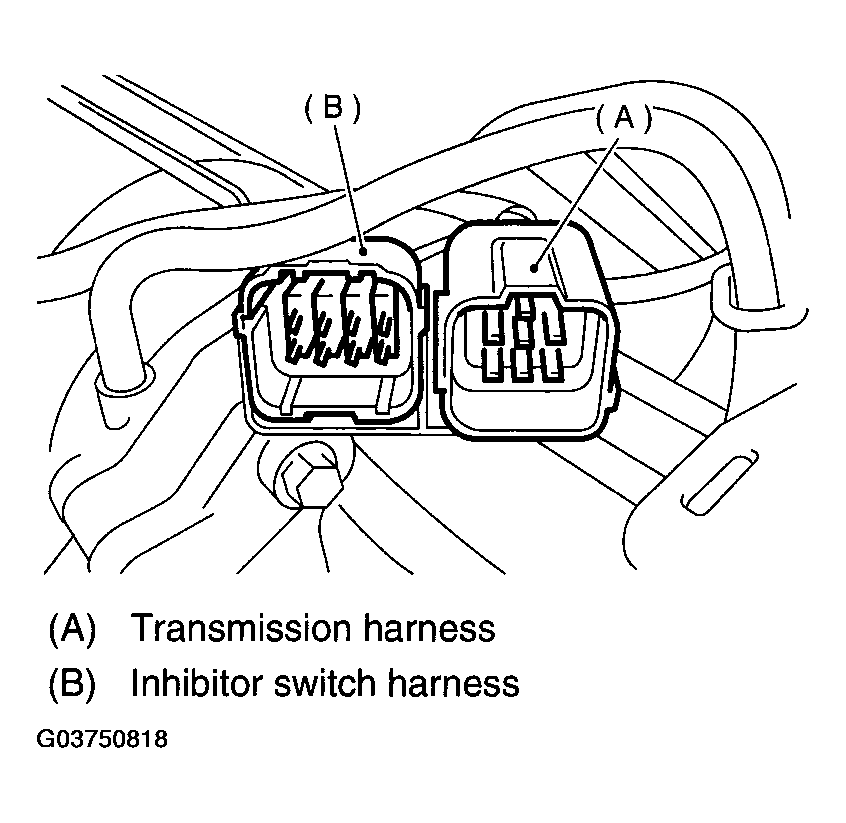

Fig 4: Inserting Inhibitor Switch And Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. < Ref. to , INSTALLATION . >
Insert the input shaft while turning it lightly by hand and verify the protrusion amount.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

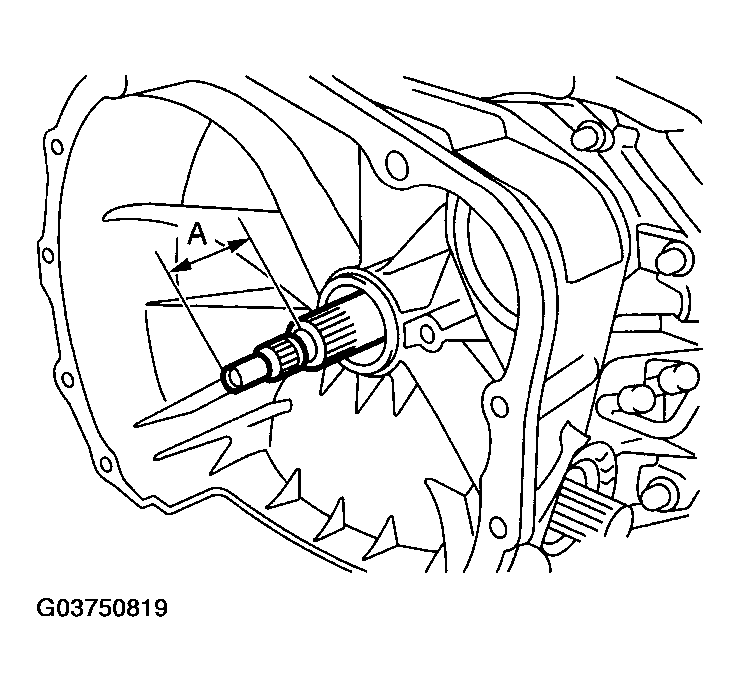

Fig 5: Inserting Input Shaft While Turning It Lightly By Hand And Verifying Protrusion Amount
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to , INSTALLATION . >
Install the transmission assembly to the vehicle. < Ref. to , INSTALLATION . >
