Transmission Control Device: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to , REMOVAL . >
  2. Extract the torque converter clutch assembly. < Ref. to , REMOVAL . >
  3. Remove the input shaft.
  4. Lift-up the lever behind the transmission harness connector and disconnect it from stay.
  5. Disconnect the air breather hoses. < Ref. to , REMOVAL . >
  6. Disconnect the inhibitor switch connector from stay.
  7. Wrap the nipple attached to the air breather hose around with a vinyl tape.
  8. Remove pitching stopper bracket.
  9. Remove the inhibitor switch.

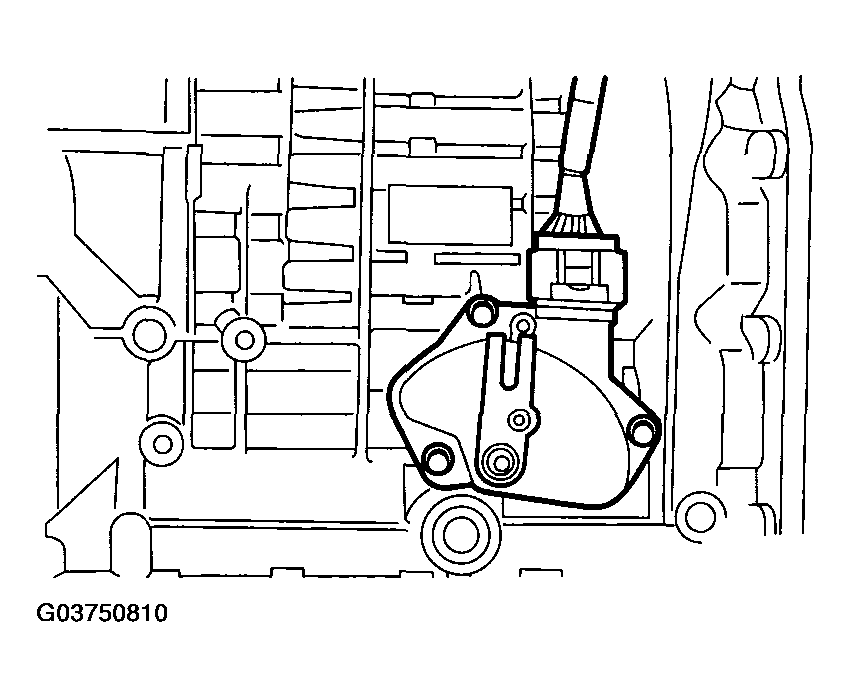

    Fig 1: Removing Pitching Stopper Bracket
    G03750810Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the control valve body assembly. < Ref. to , REMOVAL . >
  11. Pull off the straight pin of manual plate.

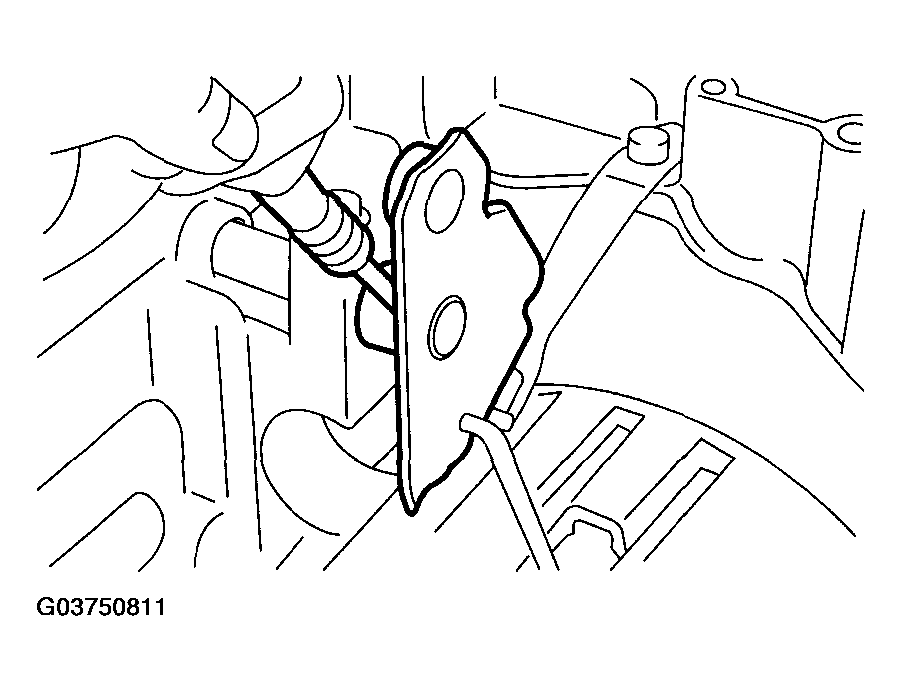

    Fig 2: Pulling Off Straight Pin Of Manual Plate
    G03750811Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the bolts securing select lever, then remove the select lever, manual plate and parking rod.
    NOTE: Be careful not to damage the lips of the press-fitted oil seal in the case.

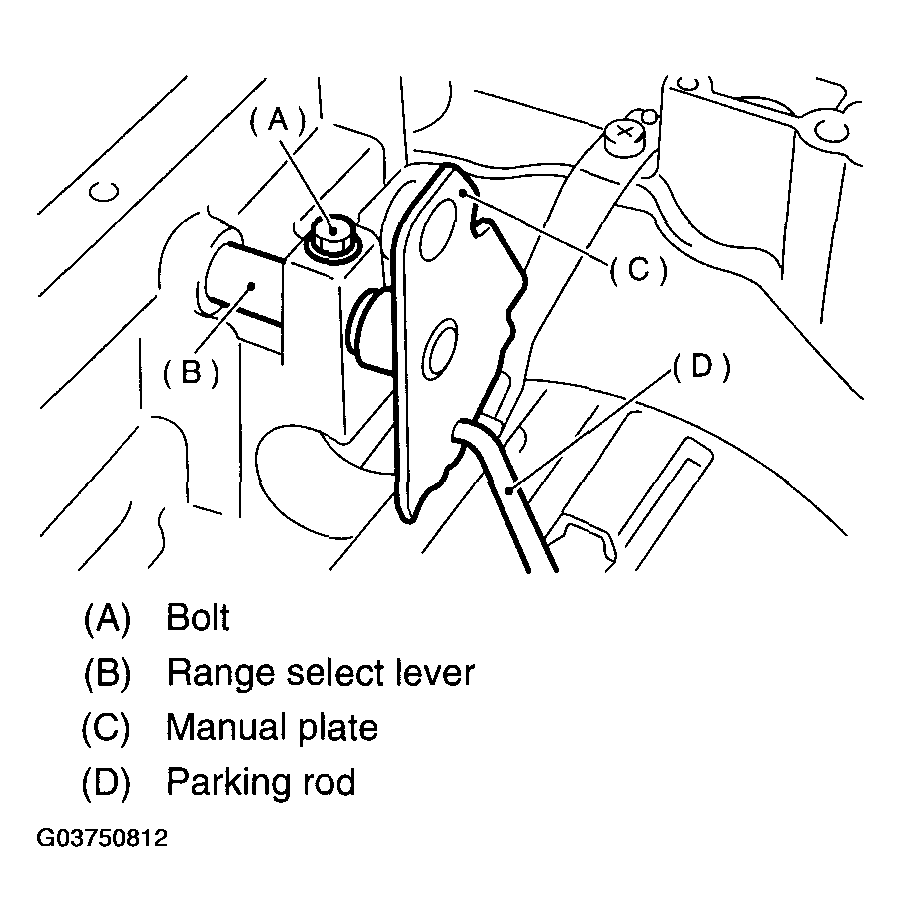

    Fig 3: Removing Bolts Securing Select Lever And Select Lever, Manual Plate And Parking Rod
    G03750812Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the detention spring.

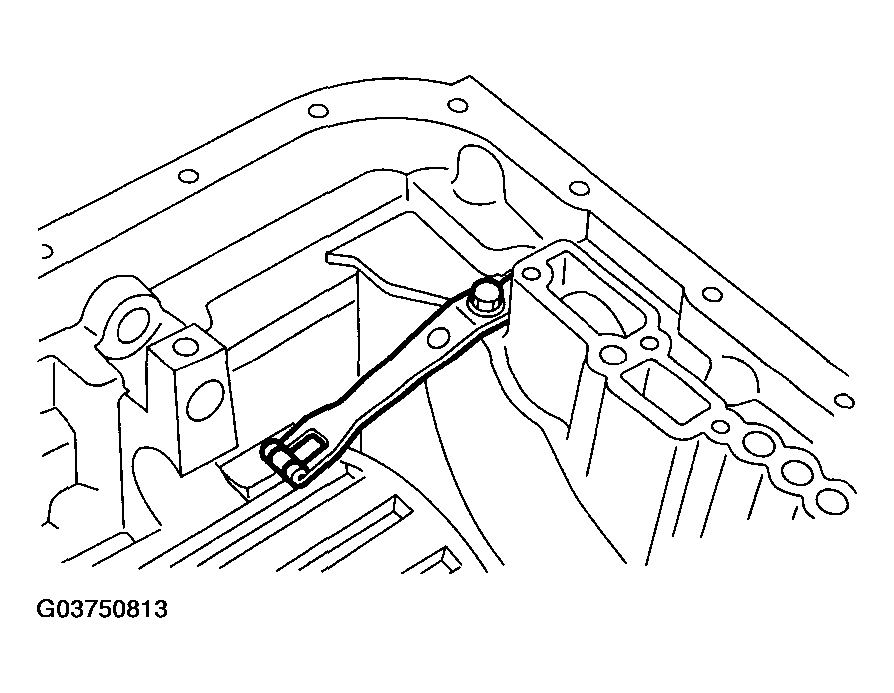

    Fig 4: Removing Detention Spring
    G03750813Courtesy of SUBARU OF AMERICA, INC.
