Rear Regulator and Motor Assembly: Removal
- Remove door trim. < Ref. to
REMOVAL
, Rear Door Trim . >
- Remove sealing cover. < Ref. to
REMOVAL
, Rear Sealing Cover .>
- Remove door glass. < Ref. to
, REMOVAL , Rear Door Glass. >
- Secure bolts using screwdriver to remove front sash adjusting nut.
Courtesy of SUBARU OF AMERICA, INC.
- Remove front sash.

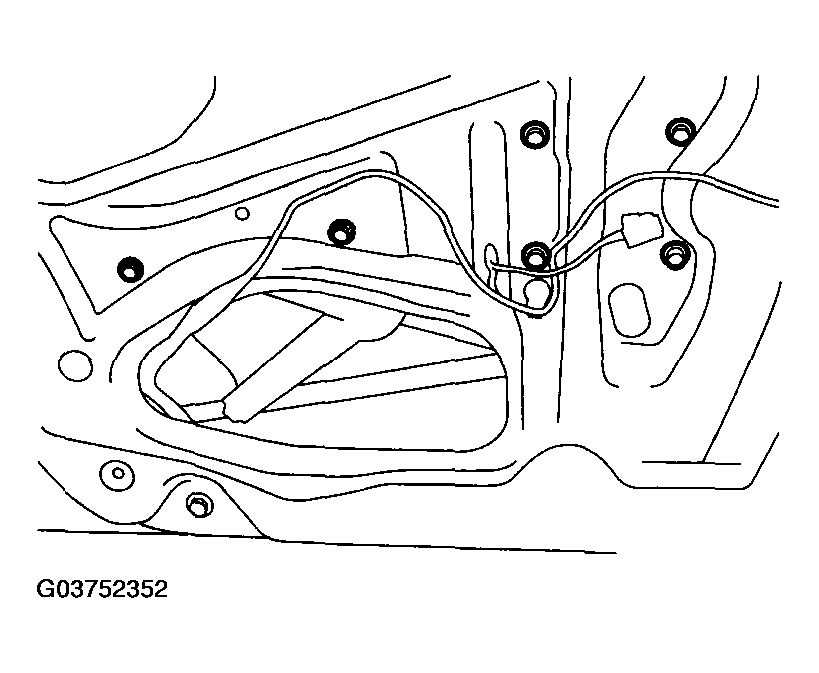

- Disconnect electrical connector regulator motor.
- Loosen four bolts and two nuts to remove regulator assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Loosen screws to remove motor assembly.
Courtesy of SUBARU OF AMERICA, INC.
