Air Assist Injector Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

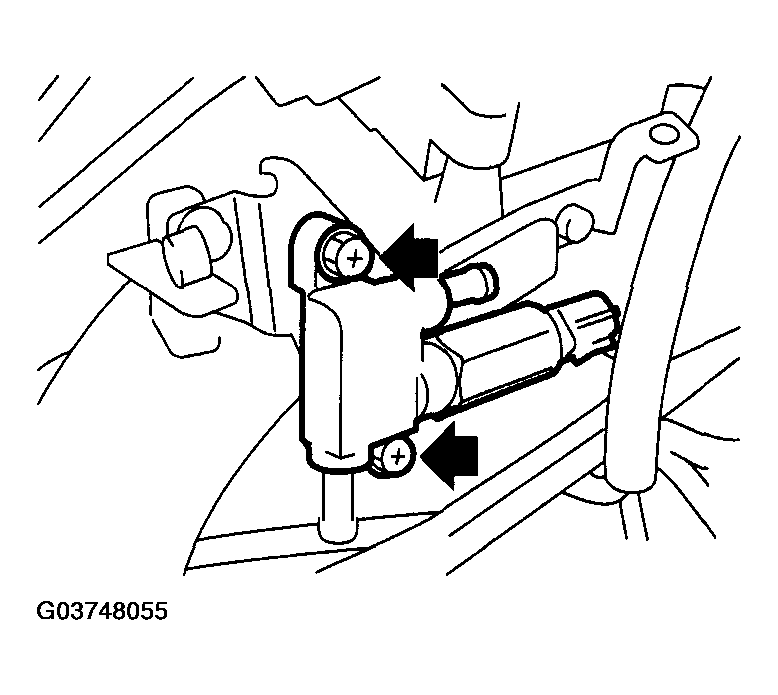

Fig 1: Installing Air Assist Injector Solenoid Valve To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.
