Engine Control Module: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side.
< Ref. to REMOVAL , Lower Inner Trim. >
Detach floor mat of passenger seat.
Remove protect cover.

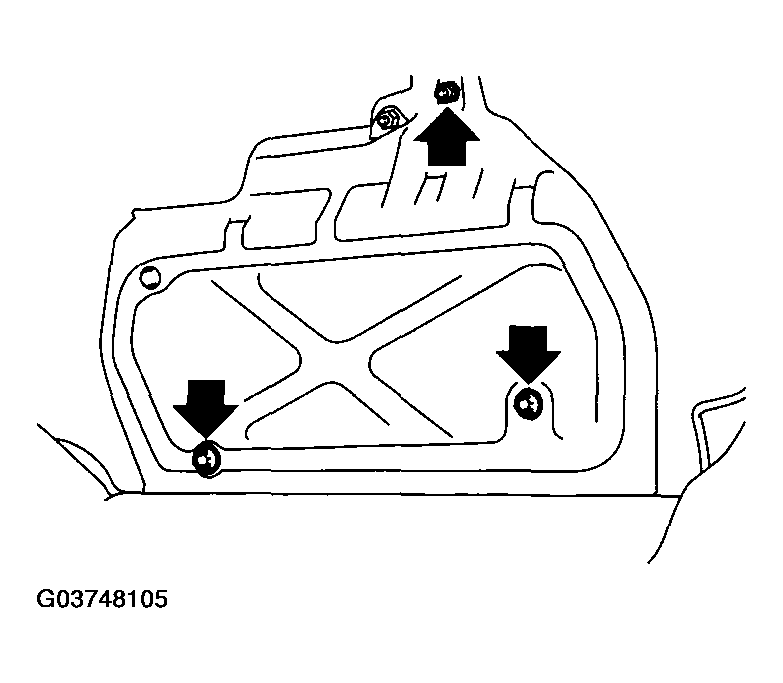

Fig 2: Removing Protection Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts (A) which hold ECM to bracket.
Remove clip (B) from bracket.

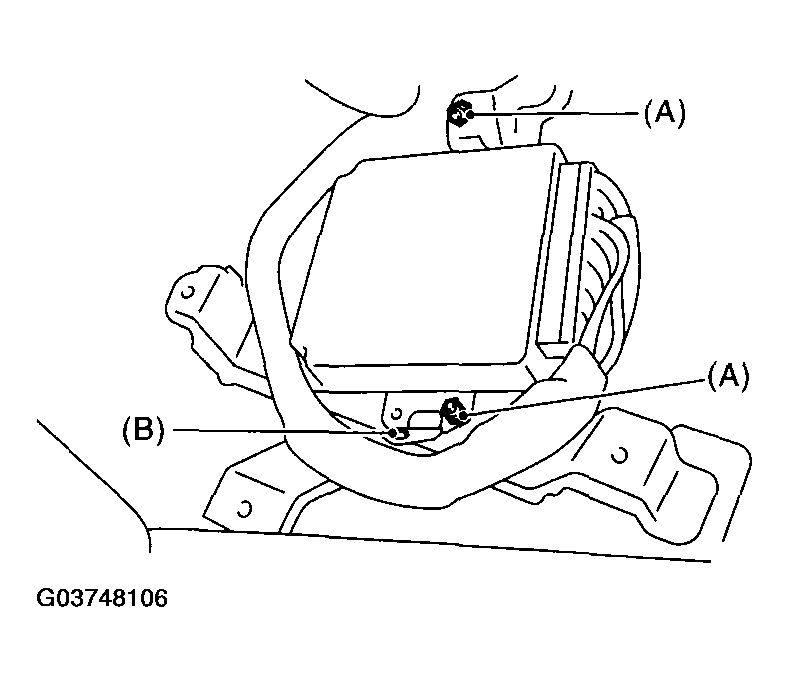

Fig 3: Removing Nuts And Clips From ECM Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
