Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Remove fuel pump assembly. < Ref. to , REMOVAL , Fuel Pump. >
  2. Disconnect connector from fuel pump bracket.

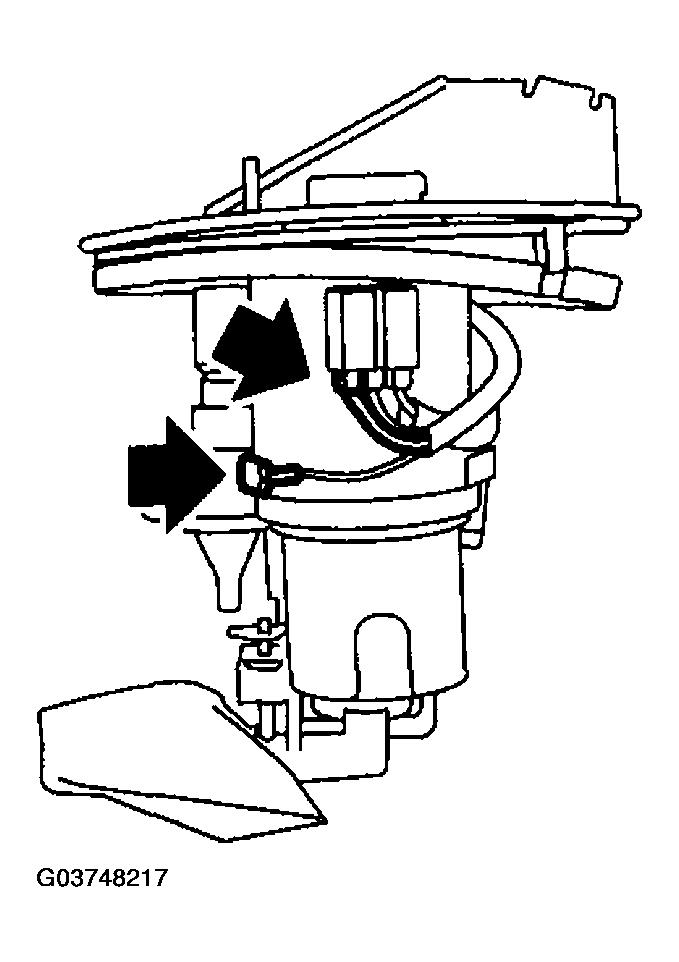

    Fig 1: Disconnecting Connector From Fuel Pump Bracket
    G03748217Courtesy of SUBARU OF AMERICA, INC.
  3. Pushing the pawls with a screwdriver, remove fuel level sensor by pulling it downwards.
    NOTE: If the retainer pawls are broken during removal, the fuel level sensor must be replaced with a new one.

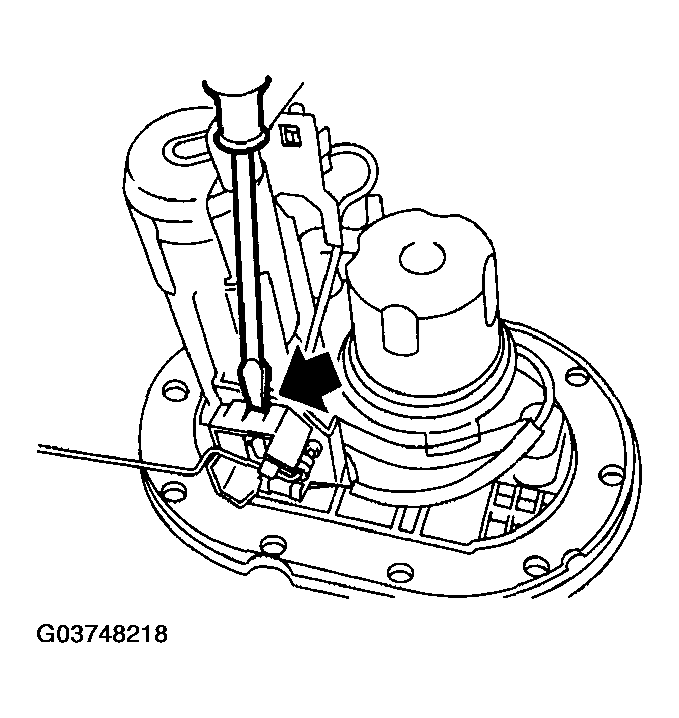

    Fig 2: Removing Fuel Level Sensor
    G03748218Courtesy of SUBARU OF AMERICA, INC.
