Draining Fuel

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Set vehicle on the lift.
Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove front right side fuel tank cover.

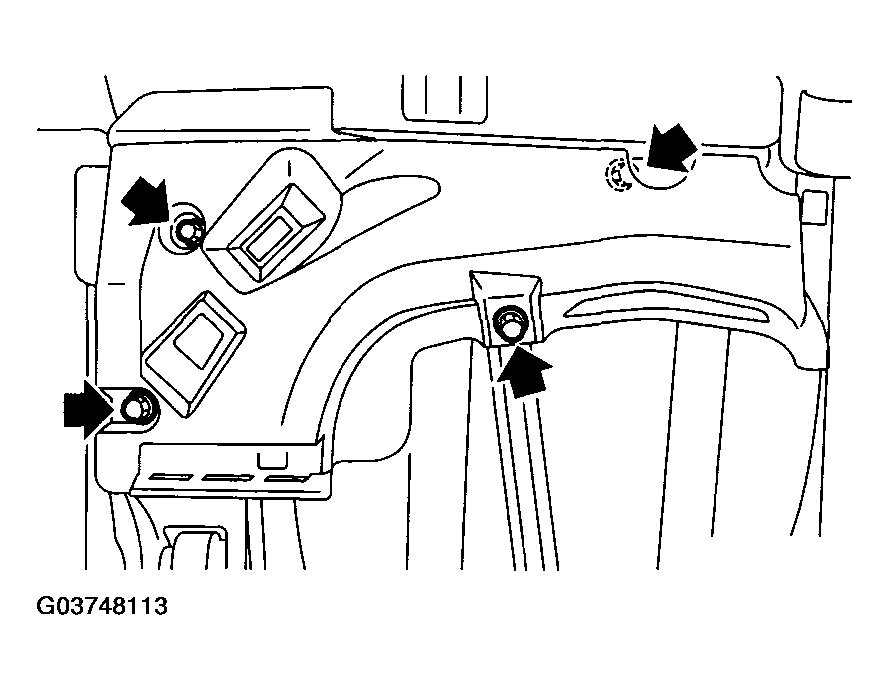

Fig 2: Removing Front Right Side Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.
Drain fuel from fuel tank.
Set a container under the vehicle and remove drain plug from fuel tank.

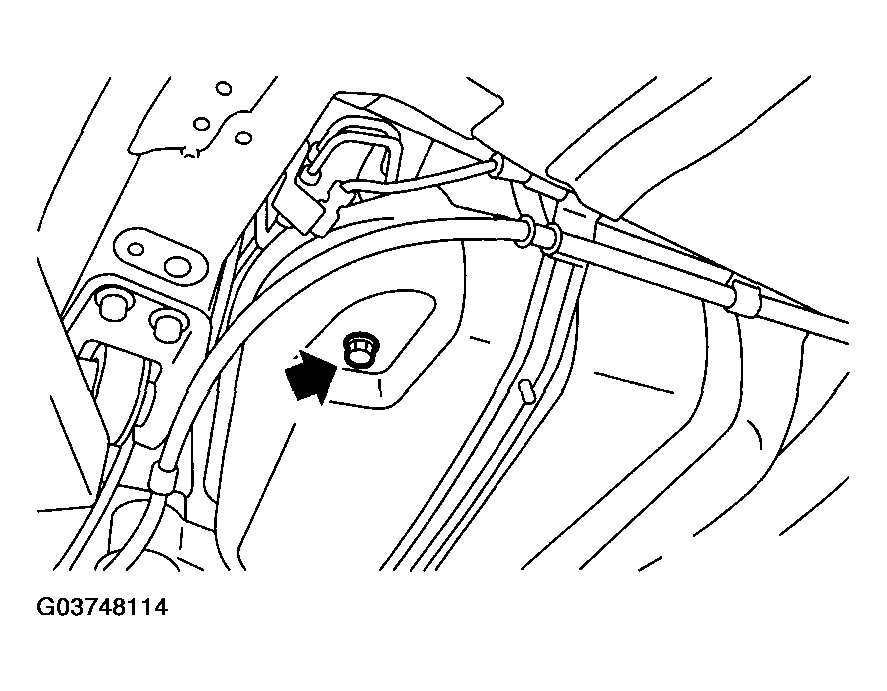

Fig 3: Removing Drain Plug From Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Tighten fuel drain plug and install front right side tank cover.
Tightening torque:

26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 4: Tightening Drain Plug
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

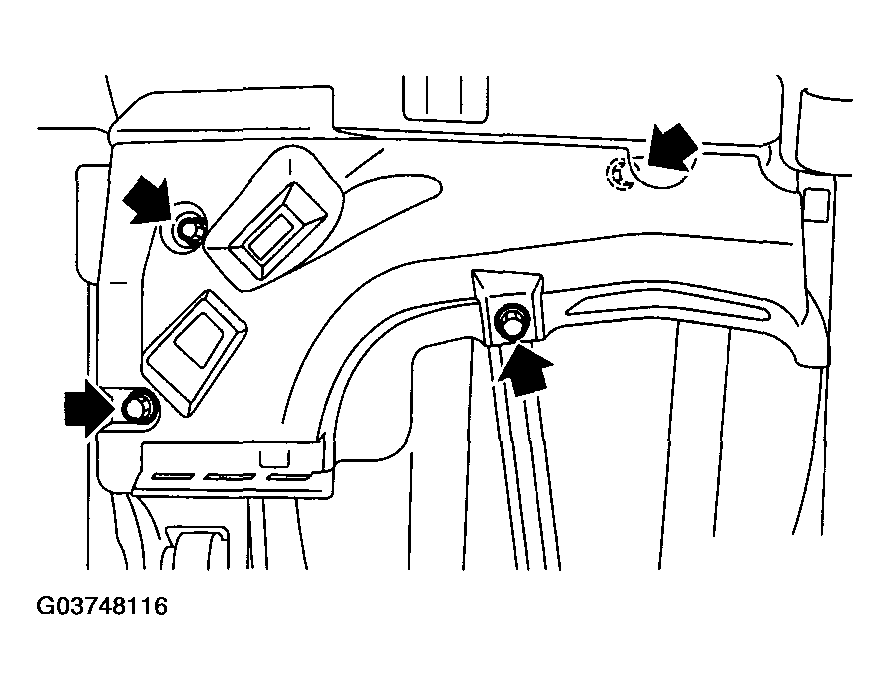

Fig 5: Installing Front Right Side Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove sub service hole cover.

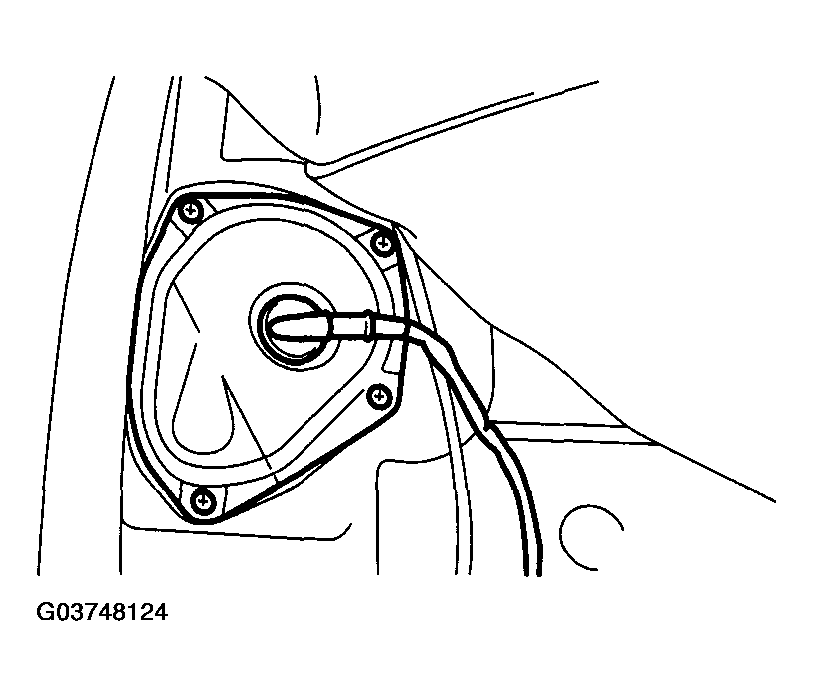

Fig 6: Removing Sub Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel sub level sensor.

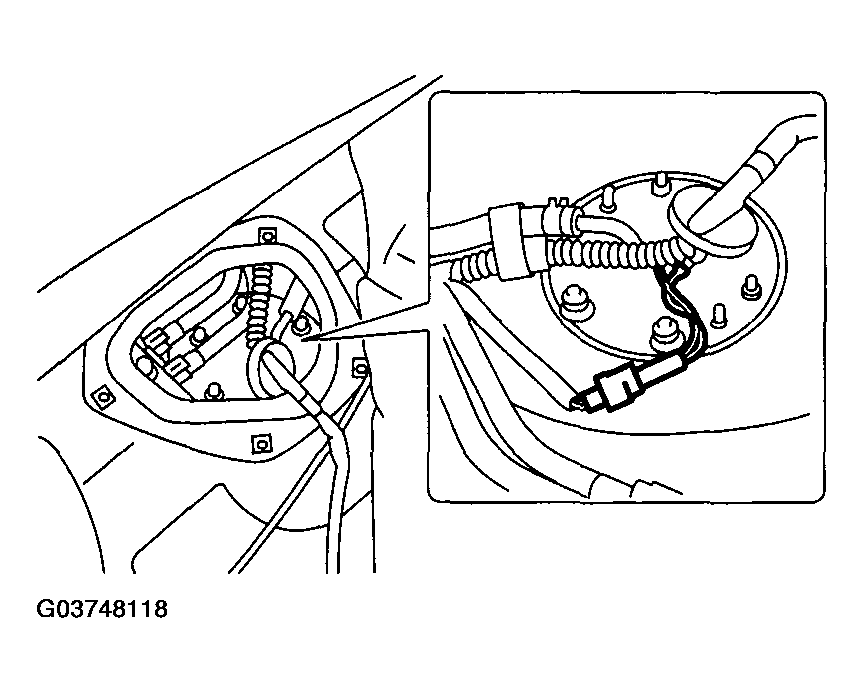

Fig 7: Disconnecting Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect fuel jet pump hose.

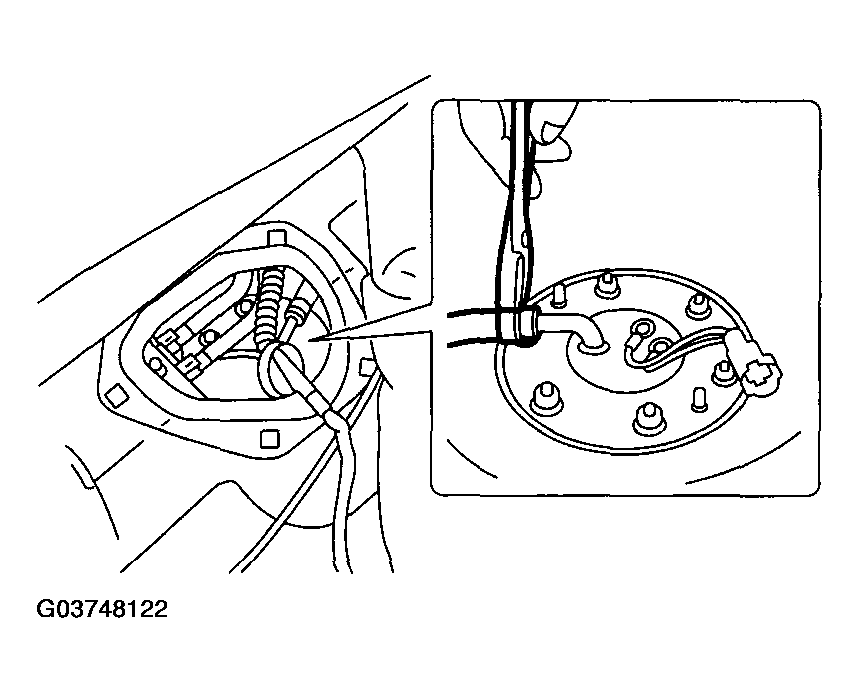

Fig 8: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel sub level sensor.

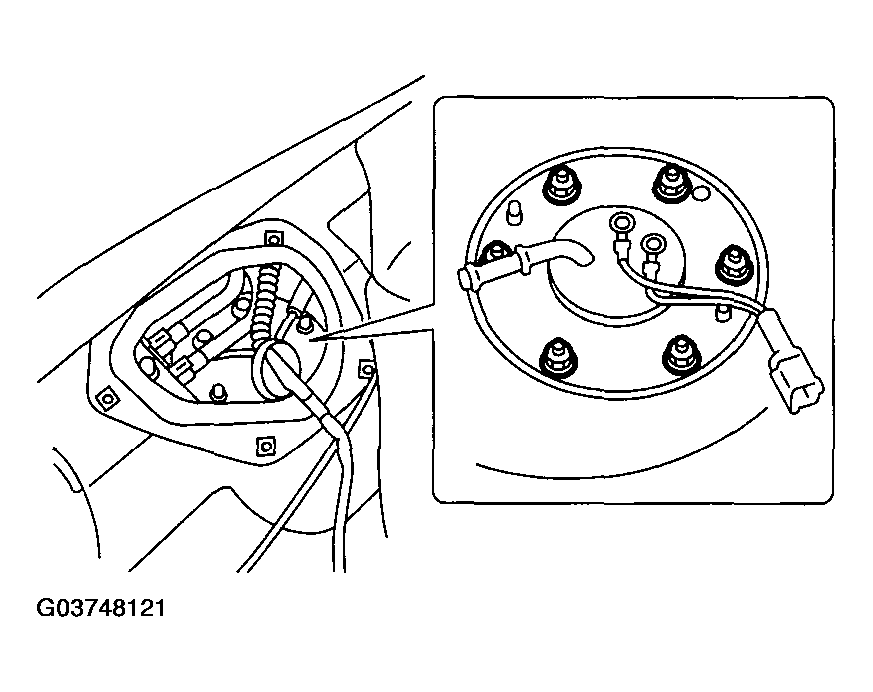

Fig 9: Removing Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Drain fuel from fuel tank by using hand pump.
WARNING: Do not use a motor pump when draining fuel.
After draining fuel, reinstall fuel sub level sensor.
Tightening torque:

T: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

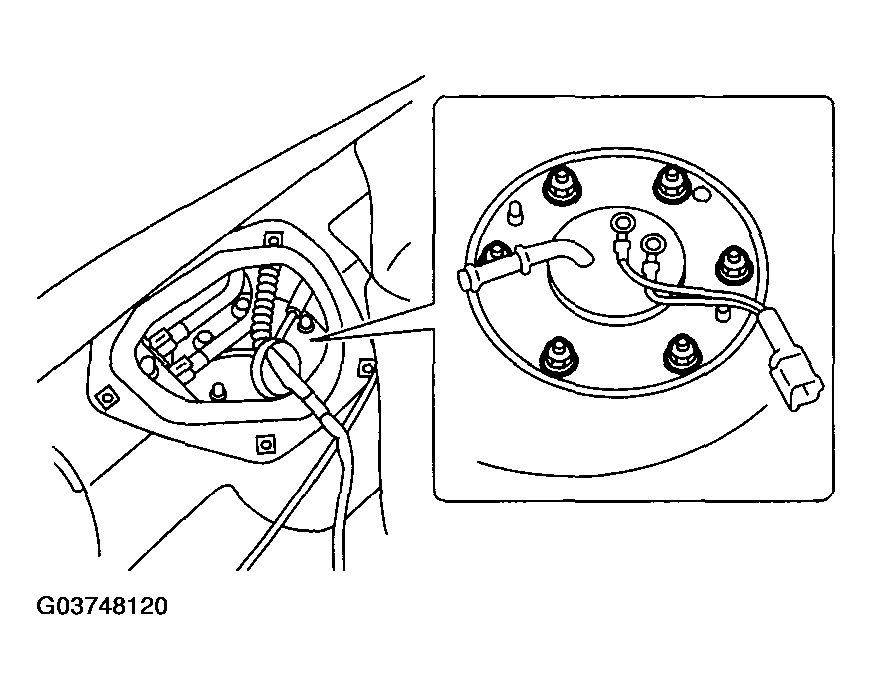

Fig 10: Installing Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.

NOTE: If you have not removed fuel tank yet, proceed with the procedure below for installation.
1. Connect fuel jet pump hose.

  Fig 11: Connecting Fuel Jet Pump Hose
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect connector from fuel sub level sensor.

  Fig 12: Connecting Fuel Sub Level Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
3. Install sub service hole cover.

  Fig 13: Installing Sub Service Hole Cover
  Courtesy of SUBARU OF AMERICA, INC.
4. Set rear seat and floor mat.
