Air Intake System

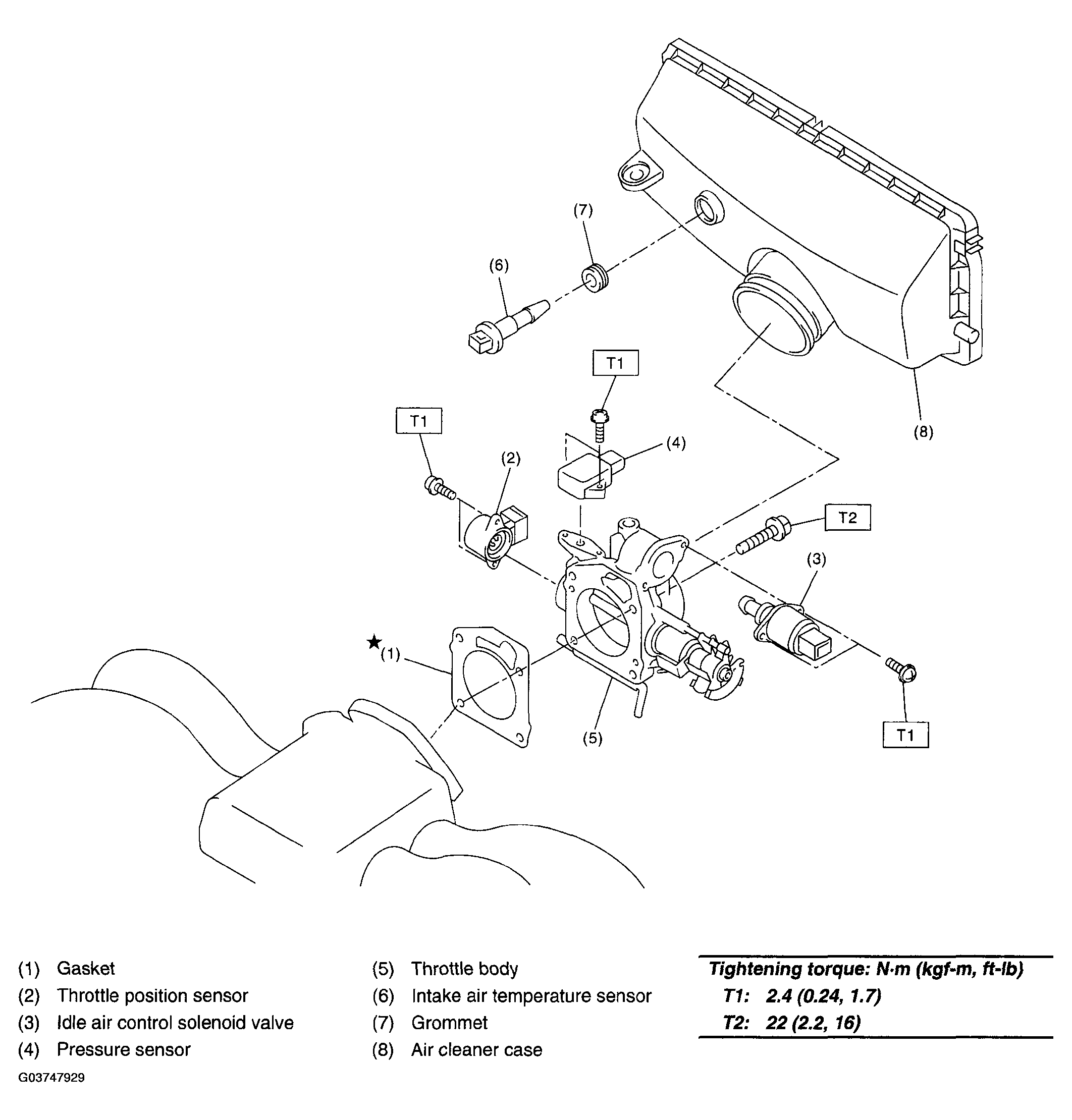

Fig 1: Exploded View Of Air Intake System Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
