Knock Sensor: Installation

Install knock sensor to cylinder block.
Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

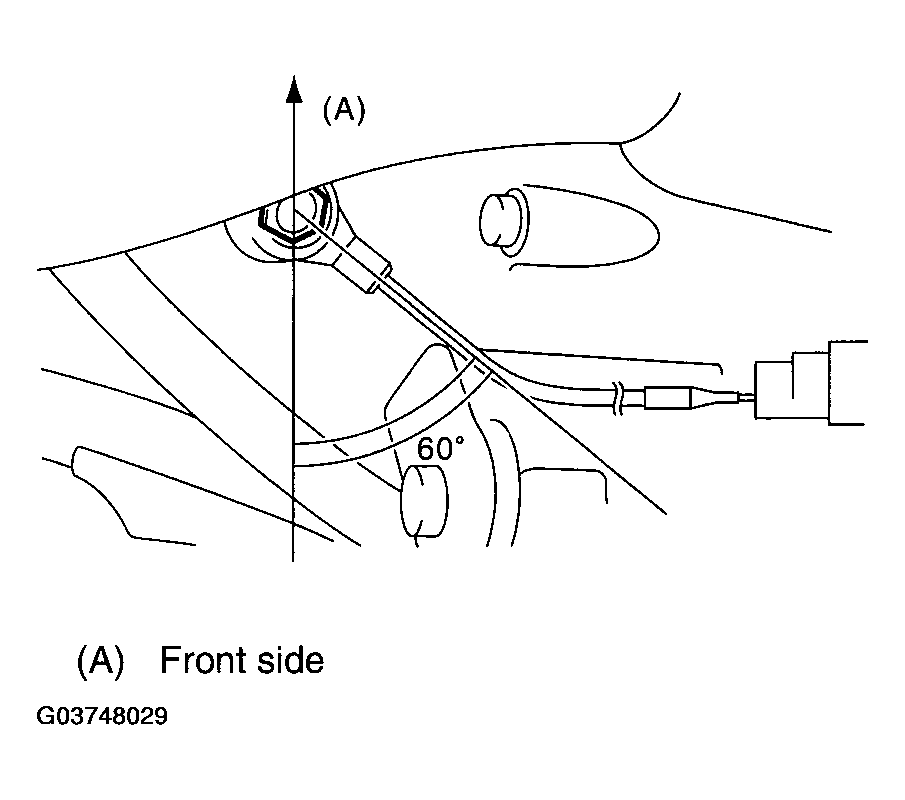

NOTE: The extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

Fig 1: Installing Knock Sensor To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Connect knock sensor connector.

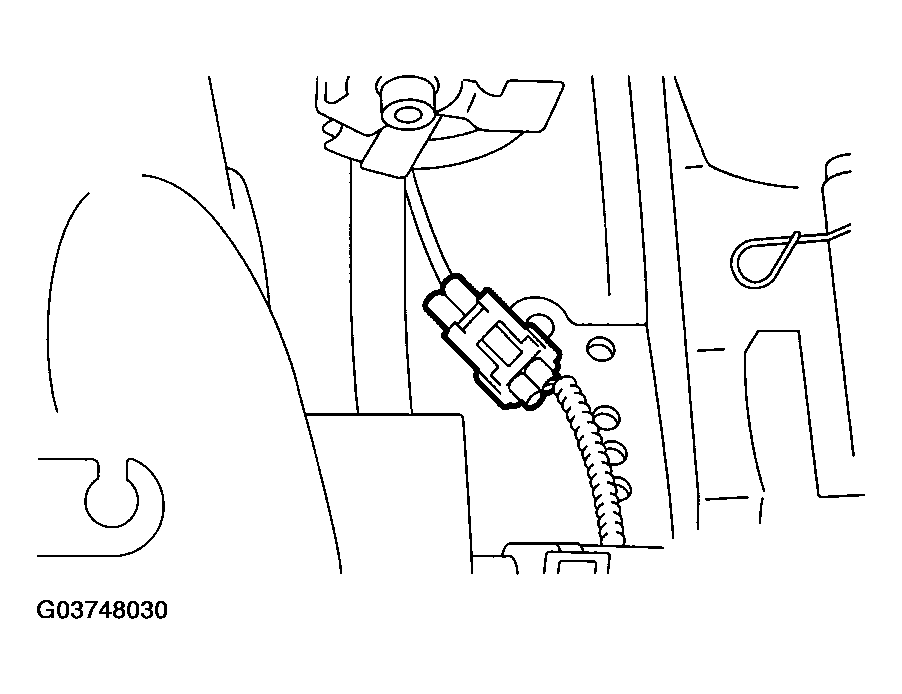

Fig 2: Connecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install knock sensor harness connector to connector bracket.
Install air cleaner case.
< Ref. to INSTALLATION , Air Cleaner Case. >
Connect battery ground cable.

Fig 3: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
