Pressure Sensor: Installation

Install in the reverse order of removal.

NOTE: Replace O-ring with a new one.

Tightening torque:

1.6 N.m (0.16 kgf-m, 1.2 ft-lb)

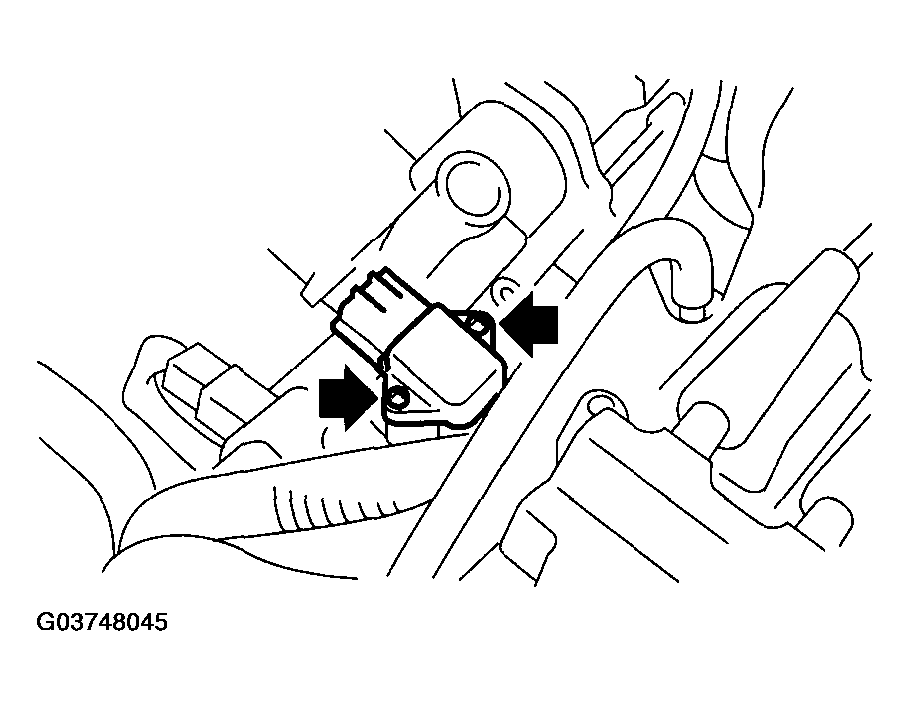

Fig 1: Installing Pressure Sensor To Throttle Body
G03748045Courtesy of SUBARU OF AMERICA, INC.
