Accelerator Pedal: Removal

  1. Disconnect ground cable from battery.
  2. Disconnect the connector.
  3. Remove the nuts which securing accelerator pedal assembly.

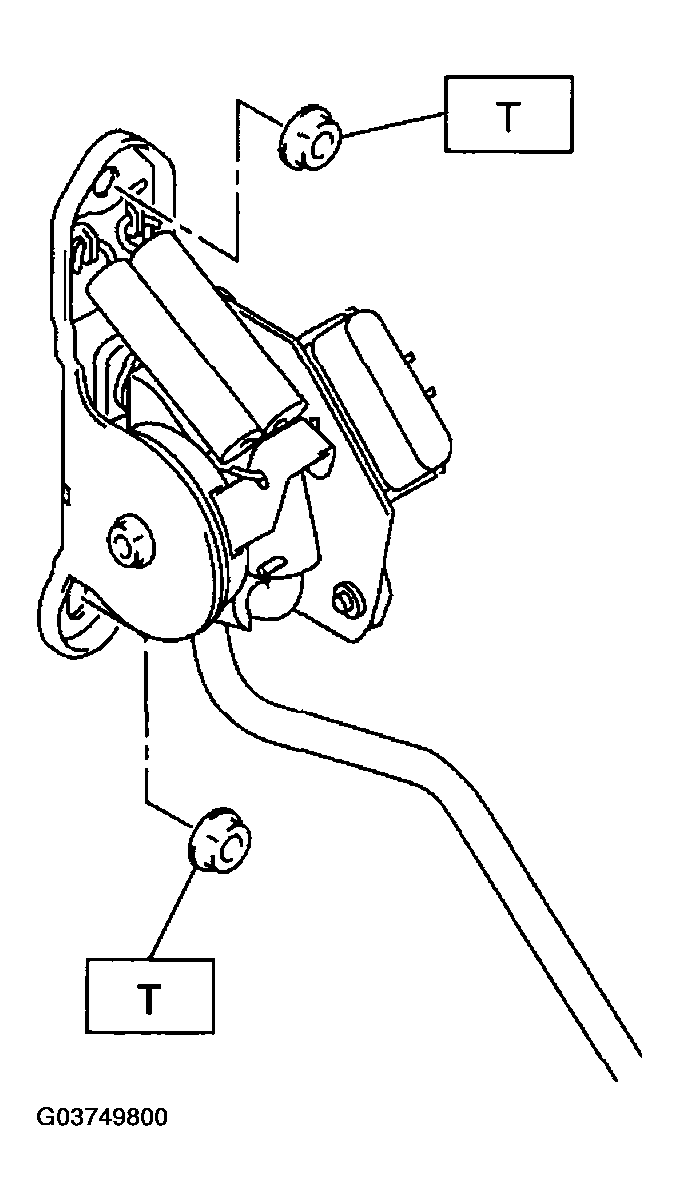

    Fig 1: Removing Nuts Which Securing Accelerator Pedal Assembly
    G03749800Courtesy of SUBARU OF AMERICA, INC.
